AW11L-WCMQF (1984)
Toyota Mr2

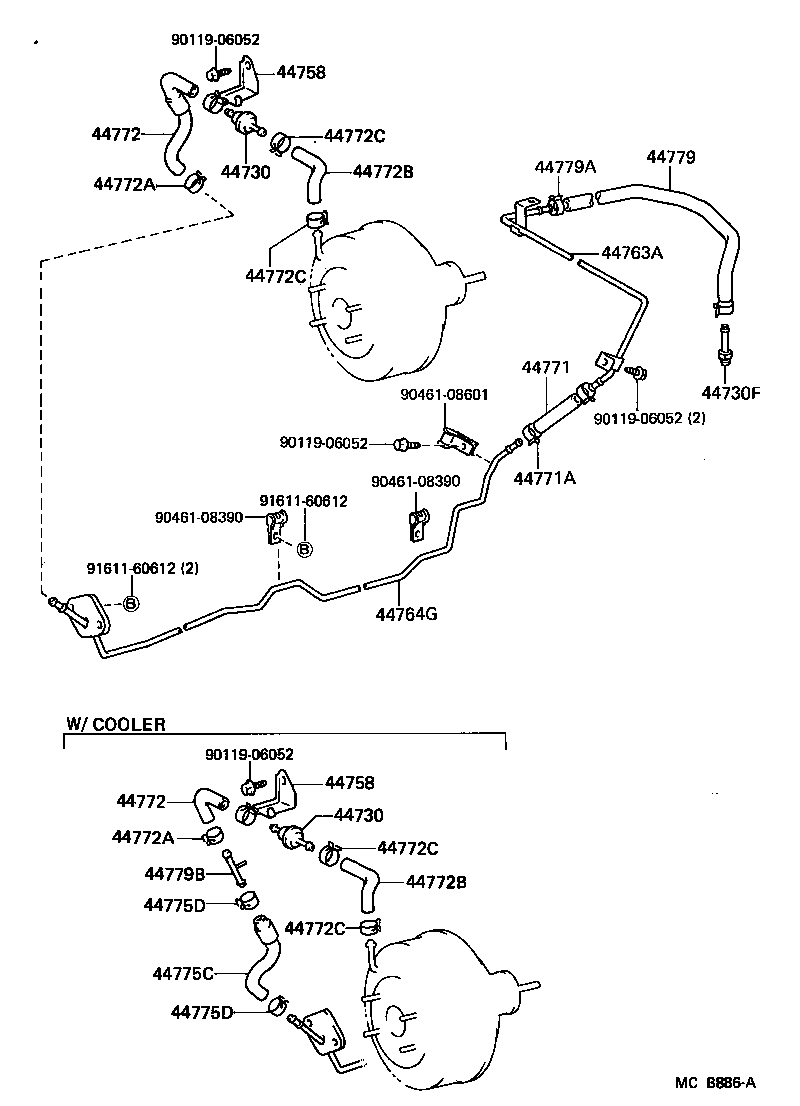

ILLUST NO. 2 OF 2(8411-8608)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14060 |
AW11..LHD..GEN JKC |
1 | ||
| 44730-10010 |
AW11 |
1 | ||
| 44730-14050 |
AW11..LHD AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14060 |
AW11..LHD..GEN JKC |
1 | ||
| 44730-10010 |
AW11 |
1 | ||
| 44730-14050 |
AW11..LHD AISIN |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
AW11 |
1 | ||
| 90404-51320 |
AW11 W/CRUISE CONTROL |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-17010 |
AW11..LHD |
1 | ||
| 44758-17020 |
AW11..LHD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-17010 |
AW11..LHD |
1 | ||
| 44758-17020 |
AW11..LHD |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-17020 |
AW11 |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-17010 |
AW11 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 90445-17039 |
AW11 |
1 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16002 |
AW11 |
2 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-17020 |
AW11 W/COOLER |
1 | ||
| 44772-17040 |
AW11..LHD |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-17020 |
AW11 W/COOLER |
1 | ||
| 44772-17040 |
AW11..LHD |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16002 |
AW11 |
2 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16002 |
AW11 |
2 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-17020 |
AW11..LHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-17020 |
AW11..LHD |
1 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
AW11 |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
AW11 |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
AW11 |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
AW11 |
2 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-17010 |
AW11 |
1 | ||
| 44775D - CLAMP(FOR CONNECTOR TO WAY HOSE) | ||||
| 90467-16002 |
AW11..GEN |
2 | ||
| 90467-16002 |
AW11 |
2 | ||
| 44775D - CLAMP(FOR CONNECTOR TO WAY HOSE) | ||||
| 90467-16002 |
AW11..GEN |
2 | ||
| 90467-16002 |
AW11 |
2 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44779-17020 |
AW11 |
1 | ||
| 44779A - CLIP(FOR UNION TO CONNECTOR HOSE) | ||||
| 90467-16002 |
AW11 |
2 | ||
| 44779B - WAY(FOR UNION TO CONNECTOR HOSE) | ||||
| 90413-09026 |
AW11 |
1 | ||
| 90413-09026 |
AW11..GEN |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90461-08390 | ||||
| 90461-08601 | ||||
| 91611-60612 | ||||

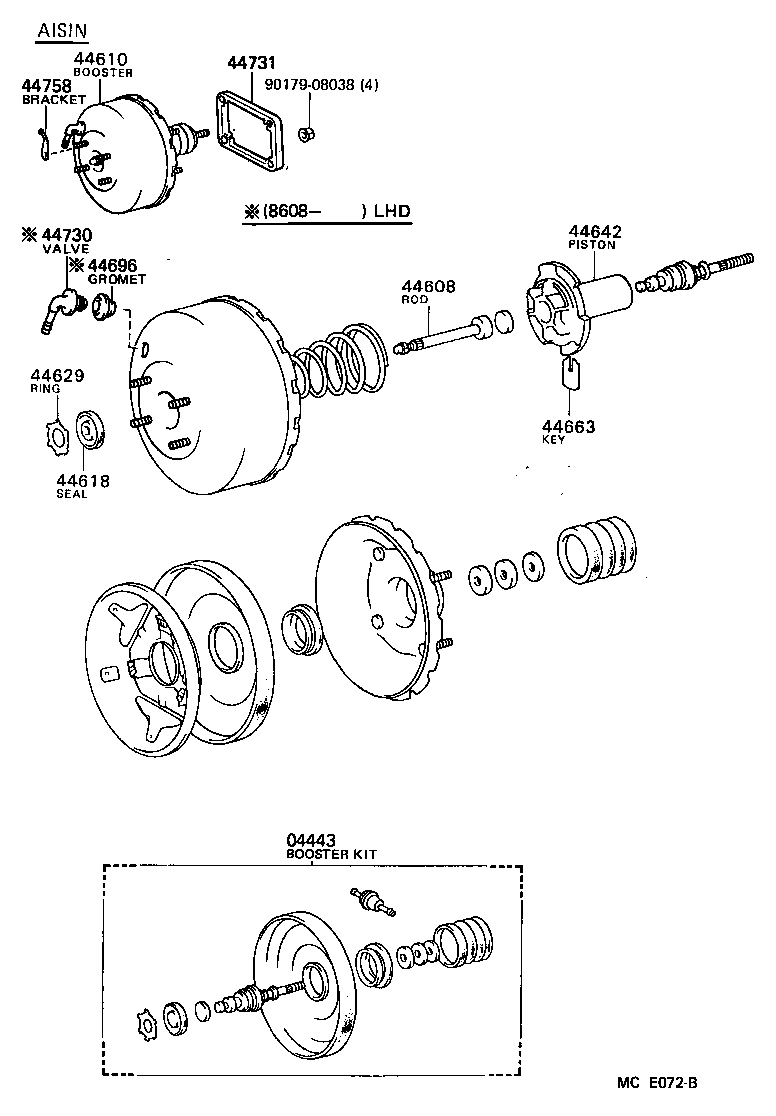

ILLUST NO. 1 OF 2(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-17090 |
AW11..LHD..GEN AISIN |
1 | ||
| 04443-17030 |
AW11..LHD JKC |
1 | ||
| 04443-17091 |
AW11..LHD..GEN AISIN |
1 | ||
| 04443-17050 |
AW11..LHD..GEN JKC |
1 | ||
| 04443-17020 |
AW11..LHD AISIN |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
AW11 AISIN |
1 | ||
| 44608-32020 |
AW11..LHD JKC |
1 | ||
| 44608-32020 |
AW11..LHD..GEN JKC |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-17020 |
AW11..LHD |
1 | ||
| 44610-17060 |
AW11..LHD..GEN |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AW11 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
AW11 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-16050 |
AW11 |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
AW11..EUR,GEN |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
AW11..LHD AISIN |
1 | ||
| 90480-24517 |
AW11..LHD..GEN JKC |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14060 |
AW11..LHD..GEN JKC |
1 | ||
| 44730-10010 |
AW11 |
1 | ||
| 44730-14050 |
AW11..LHD AISIN |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-17010 |
AW11..LHD |
1 | ||
| 44758-17020 |
AW11..LHD |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

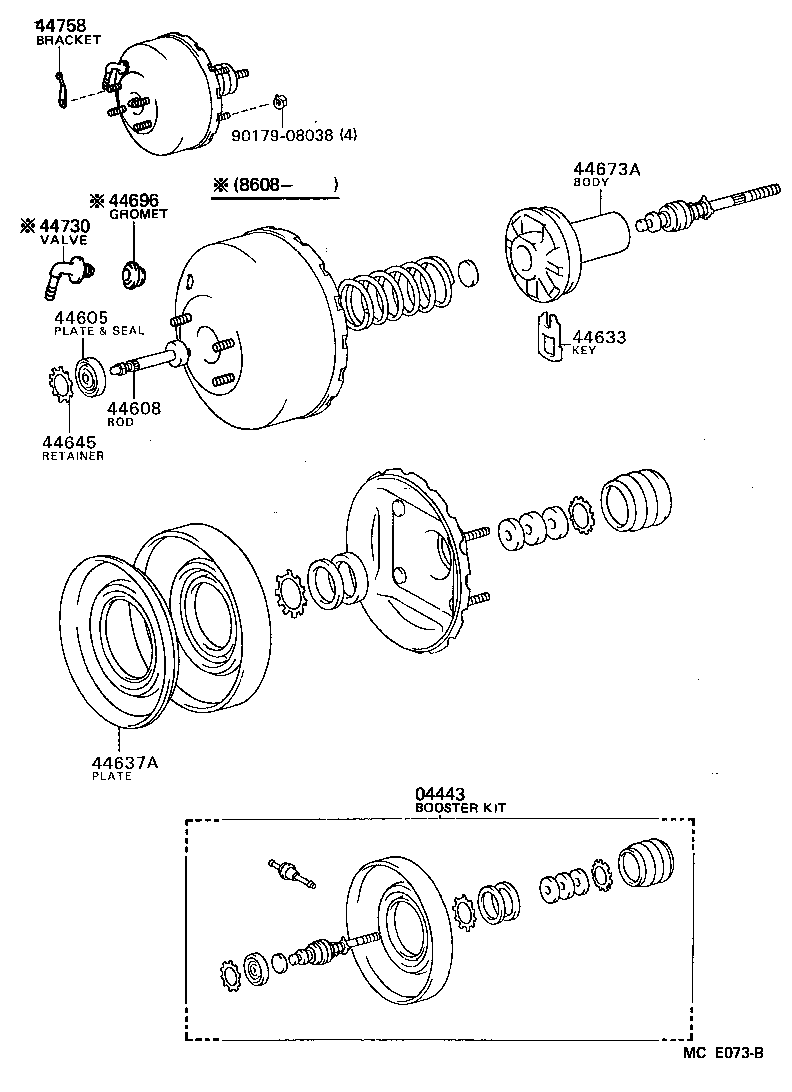

ILLUST NO. 1 OF 2(8411-8608)LHD ; (8608- )LHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-17090 |
AW11..LHD..GEN AISIN |
1 | ||
| 04443-17030 |
AW11..LHD JKC |
1 | ||
| 04443-17091 |
AW11..LHD..GEN AISIN |
1 | ||
| 04443-17050 |
AW11..LHD..GEN JKC |
1 | ||
| 04443-17020 |
AW11..LHD AISIN |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
AW11..LHD..GEN |
1 | ||
| 44605-22021 |
AW11..LHD |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
AW11 AISIN |
1 | ||
| 44608-32020 |
AW11..LHD JKC |
1 | ||
| 44608-32020 |
AW11..LHD..GEN JKC |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
AW11..LHD |
1 | ||
| 44633-28130 |
AW11..LHD..GEN |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32020 |
AW11..LHD |
1 | ||
| 44637-32020 |
AW11..LHD..GEN |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
AW11..LHD |
1 | ||
| 44645-22020 |
AW11..LHD..GEN |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-16060 |
AW11..LHD |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
AW11..LHD AISIN |
1 | ||
| 90480-24517 |
AW11..LHD..GEN JKC |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14060 |
AW11..LHD..GEN JKC |
1 | ||
| 44730-10010 |
AW11 |
1 | ||
| 44730-14050 |
AW11..LHD AISIN |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-17010 |
AW11..LHD |
1 | ||
| 44758-17020 |
AW11..LHD |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 2 OF 2(8608- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
AW11 |
1 | ||
| 90404-51320 |
AW11 W/CRUISE CONTROL |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-17020 |
AW11 |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-17010 |
AW11 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 90445-17039 |
AW11 |
1 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16002 |
AW11 |
2 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-17020 |
AW11 W/COOLER |
1 | ||
| 44772-17040 |
AW11..LHD |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16002 |
AW11 |
2 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16002 |
AW11 |
2 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-17010 |
AW11 |
1 | ||
| 44775D - CLAMP(FOR CONNECTOR TO WAY HOSE) | ||||
| 90467-16002 |
AW11..GEN |
2 | ||
| 90467-16002 |
AW11 |
2 | ||
| 44775D - CLAMP(FOR CONNECTOR TO WAY HOSE) | ||||
| 90467-16002 |
AW11..GEN |
2 | ||
| 90467-16002 |
AW11 |
2 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44779-17020 |
AW11 |
1 | ||
| 44779A - CLIP(FOR UNION TO CONNECTOR HOSE) | ||||
| 90467-16002 |
AW11 |
2 | ||
| 44779B - WAY(FOR UNION TO CONNECTOR HOSE) | ||||
| 90413-09026 |
AW11 |
1 | ||
| 90413-09026 |
AW11..GEN |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90461-08390 | ||||
| 90461-08601 | ||||
| 90464-00437 | ||||
| 91611-60612 | ||||
