AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

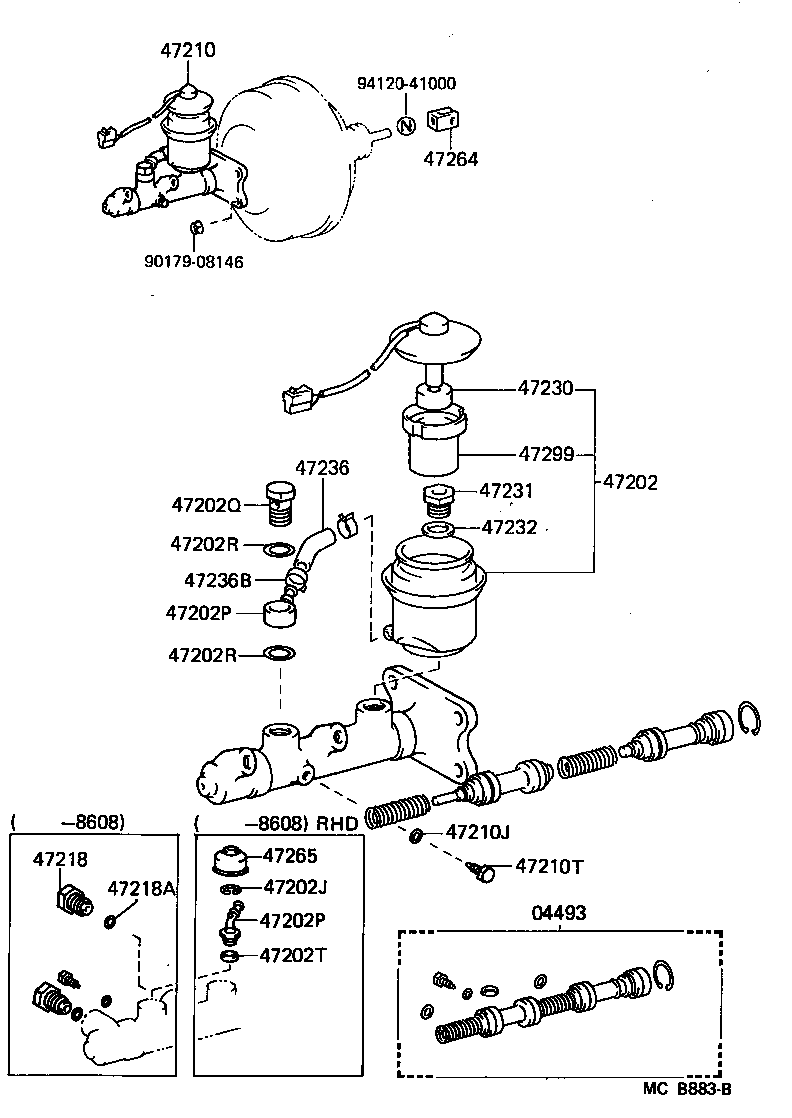

Click highlighted areas on diagram

diagram 04493 47202 47202J 47202P 47202P 47202Q 47202R 47202R 47202T 47210 47210J 47210T 47218 47218A 47230 47231 47232 47236 47236B 47264 47265 47299 9017908146 9412041000
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-17020

AW11..LHD

 1
04493-17020

AW11

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202-17010

AW11

 1
47202-17030

AW11..LHD

 1
47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)
90405-10003

AW11..LHD

 1
90405-10003

AW11

 1
47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)
90405-10003

AW11..LHD

 1
90405-10003

AW11

 1
47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
90401-16002

AW11

 1
90401-16002

AW11..LHD

 1
47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
90430-16242

AW11

 2
90430-16242

AW11..LHD

 1
47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
90430-16242

AW11

 2
90430-16242

AW11..LHD

 1
47210 - CYLINDER ASSY, MASTER, W/O BOOSTER
47201-17040

AW11..LHD

 1
47201-17020

AW11..LHD

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

AW11

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06008

AW11

 1
47218 - PLUG, MASTER CYLINDER FLUID OUTLET
47218-12040

AW11

 2
47218A - GASKET(FOR FLUID OUTLET PLUG)
90430-09253

AW11

 2
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
84460-20051

AW11

 1
47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET
47231-30010

AW11

 1
47232 - WASHER, BRAKE RESERVOIR SET BOLT
47232-30010

AW11

 1
47236 - TUBE, RESERVOIR BRAKE
47234-14010

AW11

 1
47236B - CLAMP(FOR RESERVOIR TUBE)
90467-16001

AW11

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-10080

AW11

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-14010

AW11

 1
Common parts
90179-08146
94120-41000
