AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

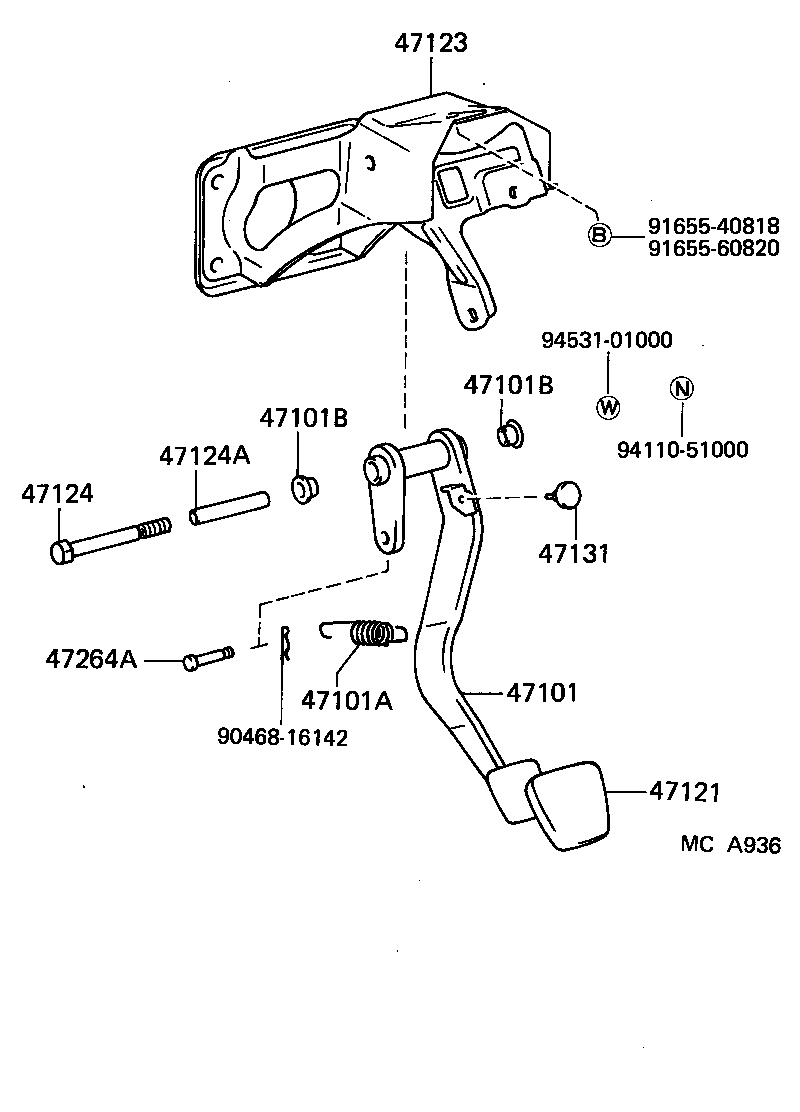

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-17030 |
AW11..LHD |
1 | ||
| 47101-17050 |
AW11..LHD |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-12011 |
AW11 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13192 |
AW11 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13192 |
AW11 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-12030 |
AW11 |
1 | ||
| 47123 - BRACKET, BRAKE PEDAL | ||||
| 55106-17020 |
AW11..LHD |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90101-10043 |
AW11 |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10002 |
AW11 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06008 |
AW11 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08051 |
AW11 |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 91655-40818 | ||||
| 91655-60820 | ||||
| 94110-51000 | ||||
| 94531-01000 | ||||
