AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

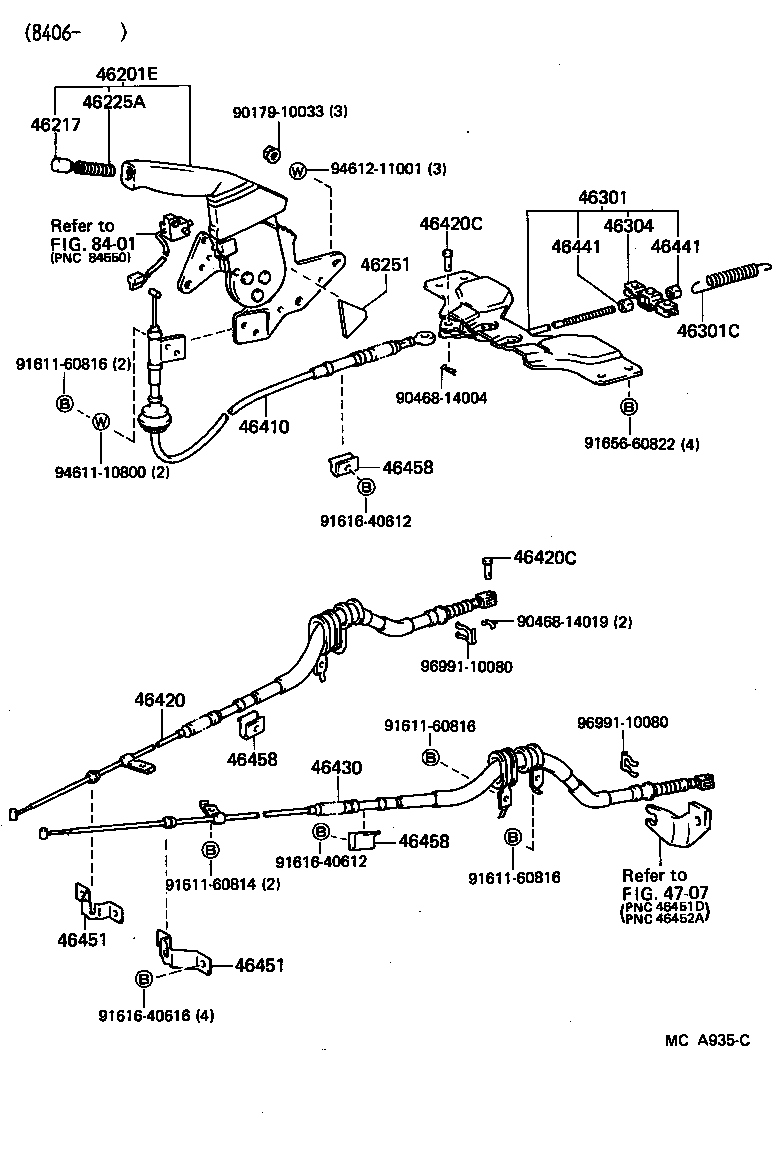

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-1701001 |
AW11..EUR,GEN BLACK,BLACK,TRIM2# |
1 | ||
| 46201-1701004 |
AW11..EUR,GEN BLUE,DARK BLUE,TRIM8# |
1 | ||
| 46201-1701101 |
AW11..EUR,GEN BLACK,TRIM2# |
1 | ||
| 46201-1701005 |
AW11..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 46201-17020 |
AW11..LHD |
1 | ||
| 46201-1701105 |
AW11..EUR,GEN DARK BEIGE,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-2002001 |
AW11..EUR,GEN BLACK,BLACK,TRIM2# |
1 | ||
| 46217-1202001 |
AW11..EUR,GEN BLACK,TRIM2# |
1 | ||
| 46217-2002054 |
AW11..EUR,GEN BLUE,DARK BLUE,TRIM8# |
1 | ||
| 46217-2002015 |
AW11..EUR,GEN BEIGE,BEIGE,TRIM4# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
AW11 |
1 | ||
| 46251 - SPACER, PARKING BRAKE LEVER | ||||
| 46251-17010 |
AW11 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46330-17012 |
AW11..LHD |
1 | ||
| 46301C - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90506-18048 |
AW11 |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-17010 |
AW11 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-17021 |
AW11 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-17013 |
AW11 |
1 | ||
| 46420-17012 |
AW11 |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08040 |
AW11 |
3 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08040 |
AW11 |
3 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-17012 |
AW11 |
1 | ||
| 46430-17013 |
AW11 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
AW11 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
AW11 |
2 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46452-17010 |
AW11 LH |
1 | ||
| 46451-17010 |
AW11 RH |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46452-17010 |
AW11 LH |
1 | ||
| 46451-17010 |
AW11 RH |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AW11 |
3 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AW11 |
3 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AW11 |
3 | ||
| Common parts | ||||
| 90179-10033 | ||||
| 90468-14004 | ||||
| 90468-14019 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91616-40612 | ||||
| 91616-40616 | ||||
| 91656-60822 | ||||
| 94611-10800 | ||||
| 94612-11001 | ||||
| 96991-10080 | ||||
| Linked diagrams | ||||
| 4707 | ||||
| 8401 | ||||
