AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

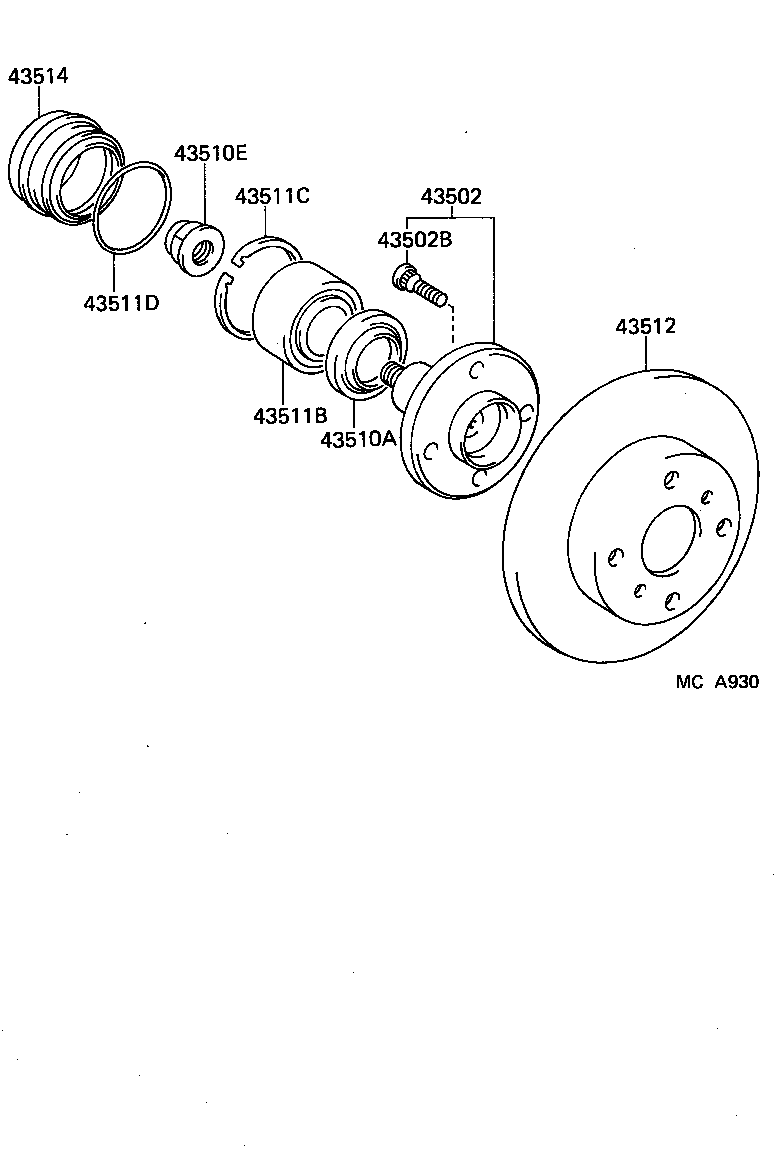

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43502 - HUB SUB-ASSY, FRONT AXLE | ||||
| 43502-17010 |
AW11 |
1 | ||
| 43502-17010 |
AW11 |
2 | ||
| 43502B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02047 |
AW11 |
8 | ||
| 90942-02047 |
AW11 |
4 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-41002 |
AW11 |
2 | ||
| 90311-41004 |
AW11 |
2 | ||
| 90311-41004 |
AW11 |
1 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90179-20003 |
AW11 |
1 | ||
| 90179-20003 |
AW11 |
2 | ||
| 43511B - BEARING (FOR FRONT AXLE HUB) | ||||
| 90369-28006 |
AW11 |
1 | ||
| 90369-28006 |
AW11 |
2 | ||
| 43511C - RING, HOLE SNAP (FOR FRONT AXLE HUB) | ||||
| 90521-66003 |
AW11 |
2 | ||
| 90521-66003 |
AW11 |
1 | ||
| 43511D - RING, O (FOR FRONT AXLE HUB) | ||||
| 96711-35056 |
AW11 |
1 | ||
| 96711-35056 |
AW11 |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-20080 |
AW11 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-17010 |
AW11 |
1 | ||
| 43514-17010 |
AW11 |
2 | ||
