AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

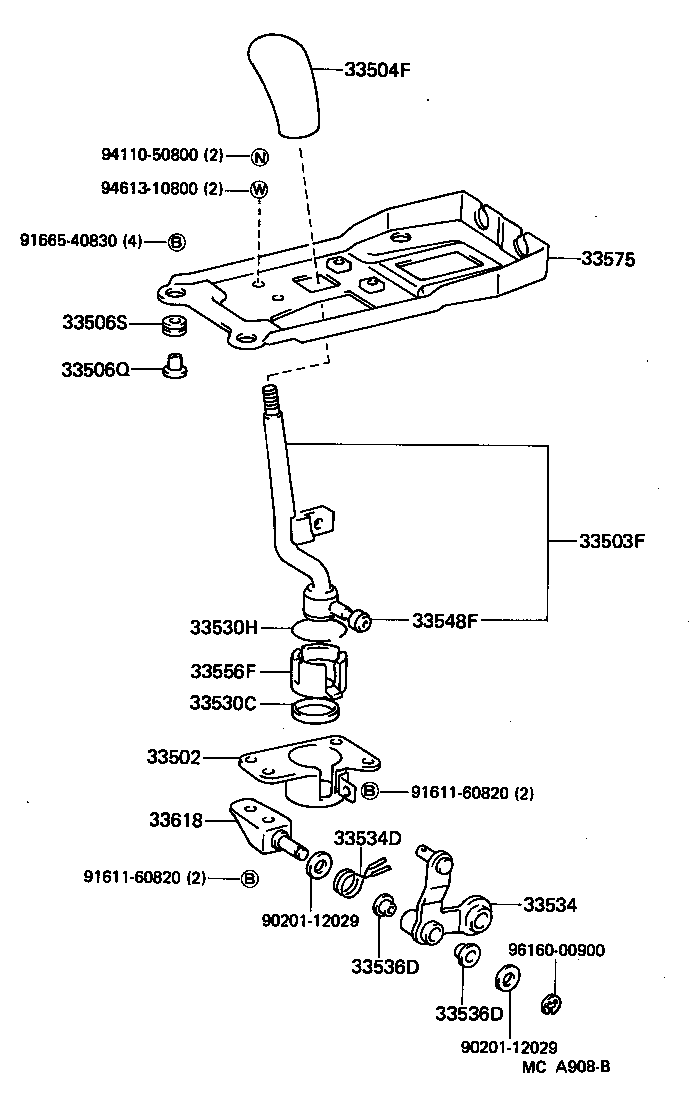

ILLUST NO. 1 OF 2(8411- )

Click highlighted areas on diagram

diagram 33502 33503F 33504F 33506Q 33506S 33530C 33530H 33534 33534D 33536D 33536D 33548F 33556F 33575 33618 9020112029 9020112029 9161160820 9161160820 9166540830 9411050800 9461310800 9616000900
Part # Description Qty Price
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-17010

AW11

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-17050

AW11

 1
33503-17020

AW11..LHD

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-17010

AW11

 1
33504-1701001

AW11

BLACK,BLACK,TRIM2#

 1
33504-17020

AW11

LEATHER

 1
33504-1702004

AW11

LEATHER,BLUE,DARK BLUE,TRIM8#

 1
33504-1701005

AW11

BEIGE,DARK BEIGE,TRIM4#

 1
33504-17010

AW11..EUR,GEN

 1
33504-1702001

AW11

LEATHER,BLACK,BLACK,TRIM2#

 1
33504-1702005

AW11

LEATHER,BEIGE,DARK BEIGE,TRIM4#

 1
33504-1702004

AW11..GEN

DARK BLUE,TRIM8#

 1
33504-1702011

AW11

LEATHER,BLACK,BLACK,TRIM2#

 1
33504-1702005

AW11..GEN

DARK BEIGE,TRIM4#

 1
33504-1702011

AW11..GEN

BLACK,TRIM2#

 1
33504-1701004

AW11

BLUE,DARK BLUE,TRIM8#

 1
33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
90389-08031

AW11

 4
33506S - COLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
90389-10016

AW11

 4
33530C - BUSH (FOR SHIFT LEVER)
90385-24001

AW11

 1
33530H - RING, SNAP (FOR SHIFT LEVER)
90520-34002

AW11

 1
33534 - BELLCRANK, SELECTING
33509-17010

AW11

 1
33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1)
90508-22001

AW11

 1
33536D - BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)
90386-12013

AW11

 2
33536D - BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)
90386-12013

AW11

 2
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021

AW11

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-17010

AW11

 1
33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33575-17020

AW11

 1
33575-17010

AW11

 1
33618 - SUPPORT, SELECTING BELLCRANK, NO.1
33619-17010

AW11

 1
Common parts
90201-12029
91611-60820
91665-40830
94110-50800
94613-10800
96160-00900

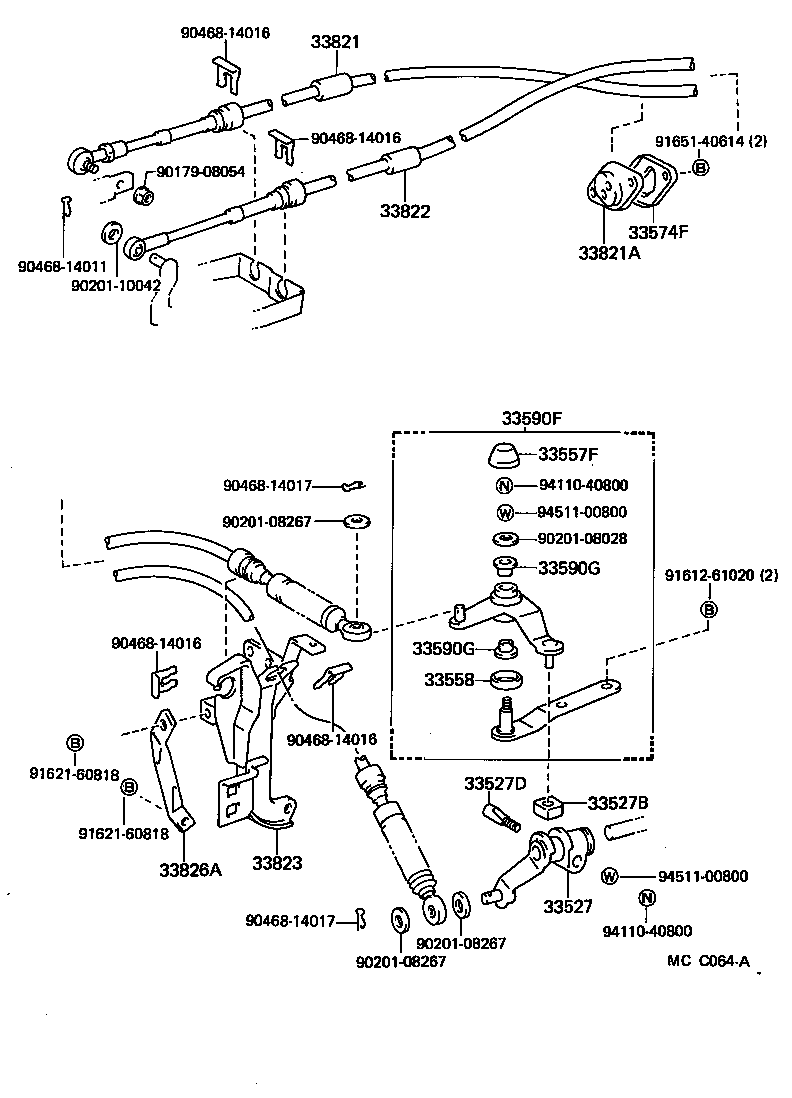

ILLUST NO. 2 OF 2(8411- )

Click highlighted areas on diagram

diagram 33527 33527B 33527D 33557F 33558 33574F 33590F 33590G 33590G 33821 33821A 33822 33823 33826A 9017908054 9020108028 9020108267 9020108267 9020108267 9020110042 9046814011 9046814016 9046814016 9046814016 9046814016 9046814017 9046814017 9161261020 9162160818 9162160818 9165140614 9411040800 9411040800 9451100800 9451100800
Part # Description Qty Price
33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)
33527-17010

AW11

 1
33527B - BUSH (FOR CONTROL SHIFT LEVER)
90389-10009

AW11

 1
33527D - PIN, LEVER LOCK (FOR CONTROL SHIFT LEVER)
33281-16020

AW11

 1
33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)
33557-32010

AW11

 1
33558 - COVER, SELECTING BELLCRANK DUST, NO.2
33558-32010

AW11

 1
33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT)
33574-17010

AW11

 1
33590F - CRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)
33590-17010

AW11

 1
33590G - BUSH (FOR SELECTING BELL CRANK)
90386-12022

AW11

 2
33590G - BUSH (FOR SELECTING BELL CRANK)
90386-12022

AW11

 2
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821-17030

AW11

 1
33821-17010

AW11

 1
33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90480-01266

AW11

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33822-17010

AW11

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-17011

AW11

 1
33823-17010

AW11

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-17010

AW11

 1
Common parts
90179-08054
90201-08028
90201-08267
90201-10042
90468-14011
90468-14016
90468-14017
91612-61020
91621-60818
91651-40614
94110-40800
94511-00800
