AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

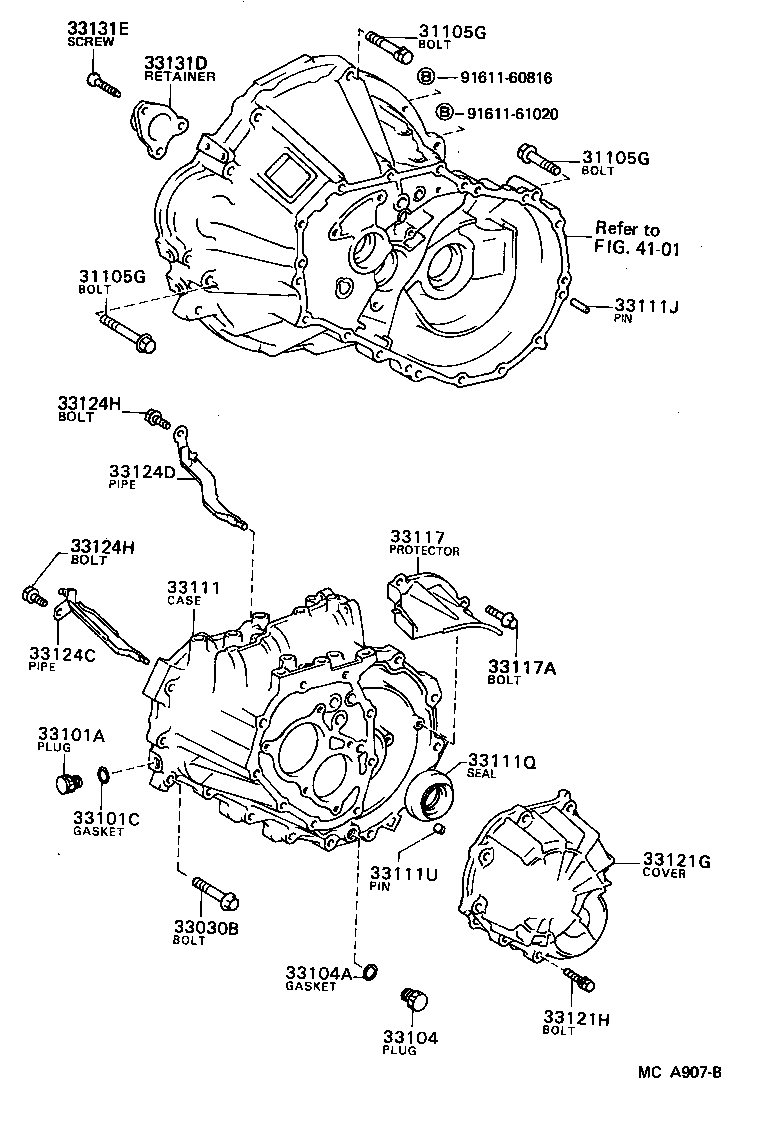

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
AW11 *10-1.25PX43-26,*10-1.25PX43-26 |
1 | ||
| 90119-12063 |
AW11 *12-1.25PX80-30,*12-1.25PX80-30 |
1 | ||
| 90119-12168 |
AW11 *12-1.25PX55-30,*10-1.25PX55-30 |
2 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
AW11 *10-1.25PX43-26,*10-1.25PX43-26 |
1 | ||
| 90119-12063 |
AW11 *12-1.25PX80-30,*12-1.25PX80-30 |
1 | ||
| 90119-12168 |
AW11 *12-1.25PX55-30,*10-1.25PX55-30 |
2 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
AW11 *10-1.25PX43-26,*10-1.25PX43-26 |
1 | ||
| 90119-12063 |
AW11 *12-1.25PX80-30,*12-1.25PX80-30 |
1 | ||
| 90119-12168 |
AW11 *12-1.25PX55-30,*10-1.25PX55-30 |
2 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08064 |
AW11 *8-1.25PX51-28 |
16 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
AW11 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
AW11 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
AW11 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
AW11 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-17010 |
AW11 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AW11 L=23,OD=8 |
4 | ||
| 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90311-34008 |
AW11 |
1 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
AW11 L=11,OD=11 |
2 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-17010 |
AW11 |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
AW11 |
2 | ||
| 33121G - COVER, MANUAL TRANSMISSION CASE | ||||
| 33102-12020 |
AW11 |
1 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 91611-60835 |
AW11 |
9 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-12010 |
AW11 |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-12020 |
AW11 |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91611-60820 |
AW11 |
2 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91611-60820 |
AW11 |
2 | ||
| 33131D - RETAINER, BEARING, FRONT | ||||
| 33131-12070 |
AW11 |
1 | ||
| 33131E - SCREW(FOR BEARING RETAINER FRONT) | ||||
| 90149-60028 |
AW11 |
3 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 91611-61020 | ||||
| Linked diagrams | ||||
| 4101 | ||||
