AW11L-WCMQF (1984)
Toyota Mr2
Production
Nov 1984
-
Aug 1988
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

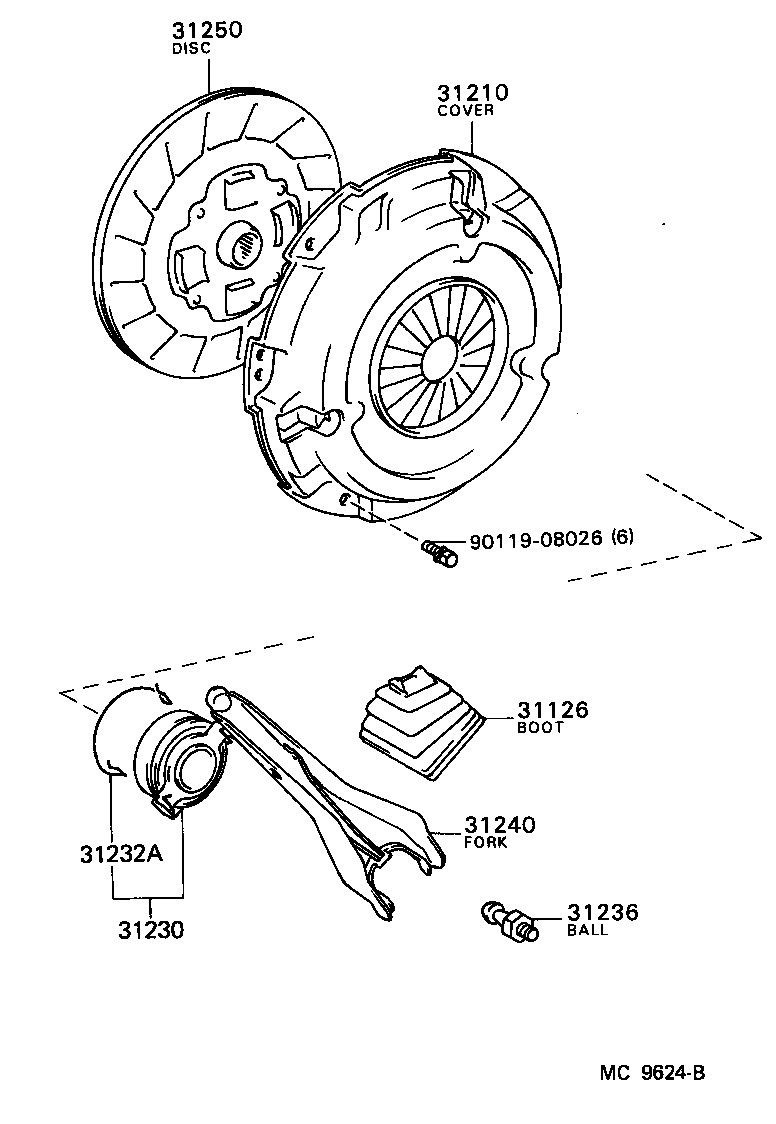

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-12050 |
AW11 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-17010 |
AW11 |
1 | ||
| 31210-12080 |
AW11 |
1 | ||
| 31210-17011 |
AW11 |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-16060 |
AW11 |
1 | ||
| 31230-12100 |
AW11 |
1 | ||
| 31230-16060 |
AW11 NACHI |
1 | ||
| 31230-12130 |
AW11 |
1 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-12011 |
AW11 |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-12050 |
AW11 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
