AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

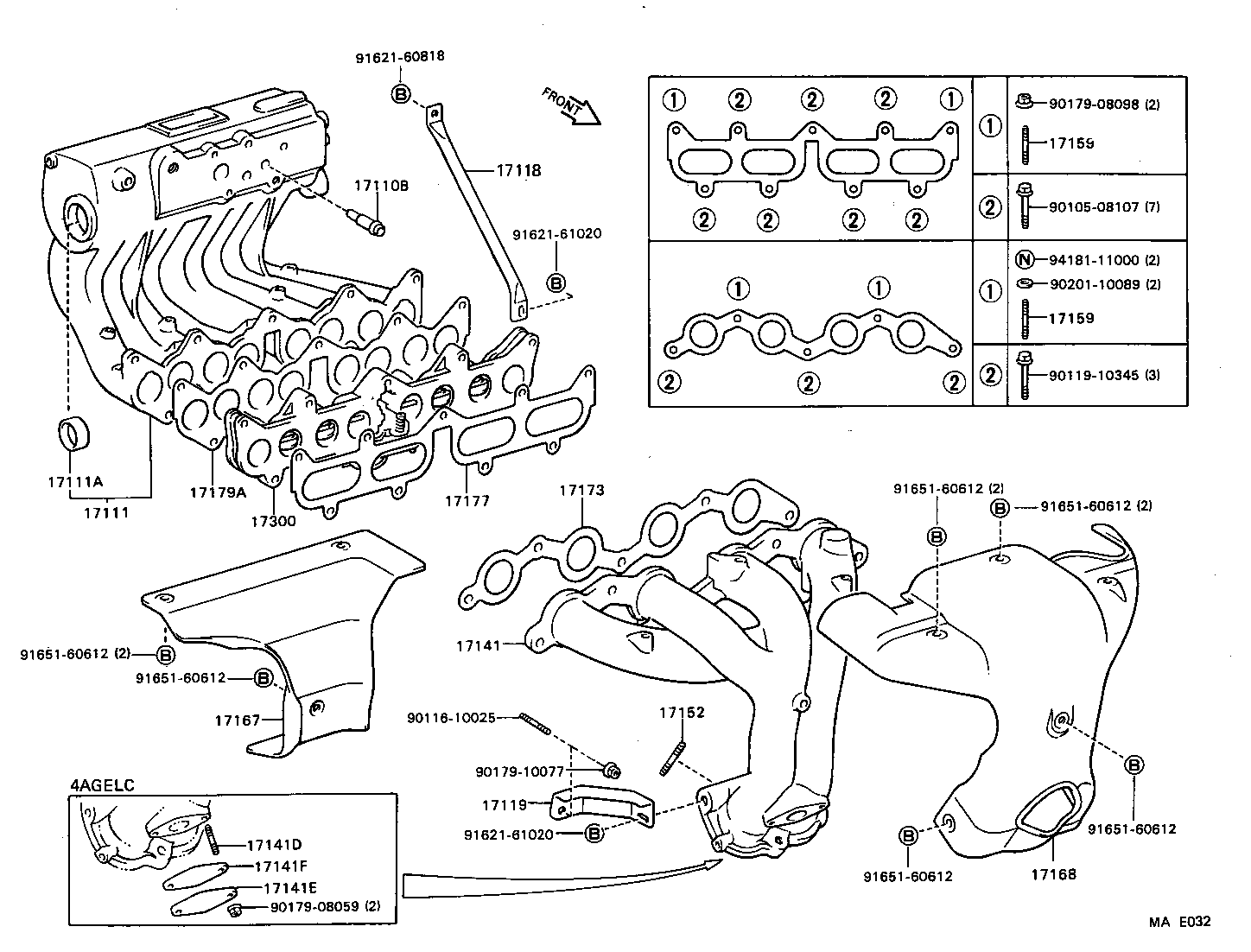

Click highlighted areas on diagram

diagram 17110B 17111 17111A 17118 17119 17141 17141D 17141E 17141F 17152 17159 17159 17167 17168 17173 17177 17179A 17300 9010508107 9011610025 9011910345 9017908059 9017908098 9017910077 9020110089 9162160818 9162161020 9162161020 9165160612 9165160612 9165160612 9165160612 9165160612 9165160612 9418111000
Part # Description Qty Price
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90405-10009

4AG#..AW11

 1
17111 - MANIFOLD, INTAKE
17101-16020

4AGEL..AW11

 1
17111A - PLUG, NO.1
96411-43500

4AG#..AW11

 1
17118 - STAY, MANIFOLD
17125-16030

4AGEL..AW11

 1
17119 - STAY, MANIFOLD, NO.2
17118-16040

4AG#..AW11

 1
17141 - MANIFOLD, EXHAUST
17141-16100

4AGEL..AW11

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

4AG#..AW11

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60850

4AGEL..AW11

INTAKE MANIFOLD

 2
90116-10037

4AG#..AW11

EXHAUST MANIFOLD

 2
90116-08218

4AG#..AW11

INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60850

4AGEL..AW11

INTAKE MANIFOLD

 2
90116-10037

4AG#..AW11

EXHAUST MANIFOLD

 2
90116-08218

4AG#..AW11

INTAKE MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-16030

4AG#..AW11

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-16020

4AG#..AW11

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-16010

4AG#..AW11

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-16011

4AGEL..AW11

 1
17179A - GASKET, INTAKE MANIFOLD, NO.2
17171-16011

4AGEL..AW11

 1
17300 - VALVE ASSY, INTAKE AIR CONTROL
17300-16011

4AG#..AW11

 1
Common parts
90105-08107
90116-10025
90119-10345
90179-08059
90179-08098
90179-10077
90201-10089
91621-60818
91621-61020
91651-60612
94181-11000
