AW11L-WCMQF (1984)
Toyota Mr2

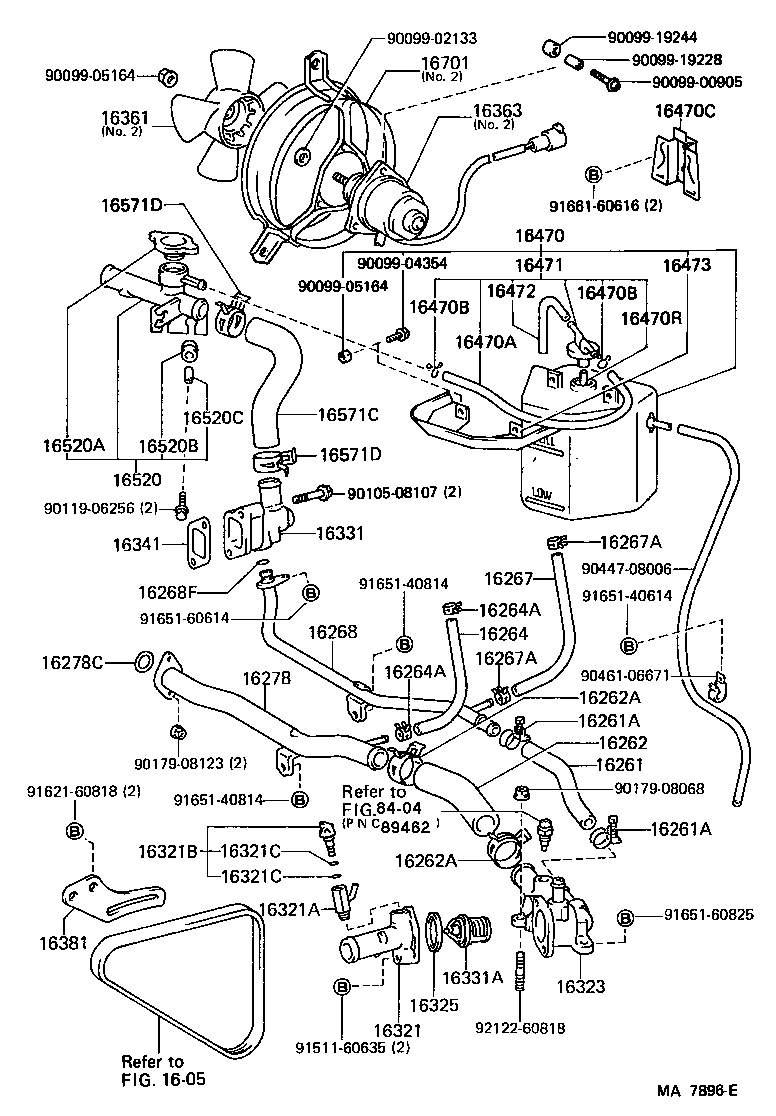

ILLUST NO. 1 OF 2(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-15010 |
4AG#..AW11 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
4AG#..AW11 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
4AG#..AW11 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-15010 |
4AG#..AW11 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34002 |
4AG#..AW11 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34002 |
4AG#..AW11 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-16030 |
4AG#..AW11 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
4AG#..AW11 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
4AG#..AW11 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-16010 |
4AG#..AW11 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
4AG#..AW11 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
4AG#..AW11 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-16030 |
4AG#..AW11 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96711-24013 |
4AG#..AW11 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-16010 |
4AG#..AW11 |
1 | ||
| 16278C - RING, O(FOR WATER BY-PASS PIPE NO.2) | ||||
| 96711-24035 |
4AG#..AW11 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-16010 |
4AG#..AW11 |
1 | ||
| 16321A - UNION(FOR WATER INLET) | ||||
| 90404-08002 |
4AG#..AW11 |
1 | ||
| 16321B - PLUG, DRAIN COCK(FOR WATER INLET UNION) | ||||
| 90910-09081 |
4AG#..AW11 |
1 | ||
| 16321C - RING, O(FOR WATER INLET UNION DRAIN COCK PLUG) | ||||
| 96761-19004 |
4AG#..AW11 ID=4 |
1 | ||
| 96761-19006 |
4AG#..AW11 ID=6 |
1 | ||
| 16321C - RING, O(FOR WATER INLET UNION DRAIN COCK PLUG) | ||||
| 96761-19004 |
4AG#..AW11 ID=4 |
1 | ||
| 96761-19006 |
4AG#..AW11 ID=6 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-16030 |
4AGEL..AW11 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
4AG#..AW11 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-16030 |
4AG#..AW11 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
4AG#..AW11 *WAX 82-95 |
1 | ||
| 90916-03060 |
4AG#..AW11 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-16010 |
4AG#..AW11 |
1 | ||
| 16361 - FAN | ||||
| 16361-16020 |
4AG#..AW11..ARL,GEN NO.1 |
1 | ||
| 16361-16041 |
4AG#..AW11 NO.2 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-16010 |
4AG#..AW11..ARL,GEN NO.1 |
1 | ||
| 16363-15090 |
4AG#..AW11 NO.2 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-16030 |
4AG#..AW11 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-16020 |
4AGEL..AW11 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12043 |
4AG#..AW11 *H,L=250 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AG#..AW11 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AG#..AW11 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-16010 |
4AGEL..AW11 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12043 |
4AG#..AW11 *H,L=175 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-16020 |
4AG#..AW11 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22030 |
4AG#..AW11 |
1 | ||
| 16520 - FILLER ASSY, WATER | ||||
| 16520-16011 |
4AG#..AW11 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-63010 |
4AG#..AW11 |
1 | ||
| 16520B - BUSHING(FOR WATER FILLER) | ||||
| 16444-15010 |
4AG#..AW11 |
2 | ||
| 16520C - PIPE(FOR WATER FILLER) | ||||
| 16445-15010 |
4AG#..AW11 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-16030 |
4AG#..AW11 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-34002 |
4AG#..AW11 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-34002 |
4AG#..AW11 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-16010 |
4AGEL..AW11..GEN NO.1 |
1 | ||
| 16711-16031 |
4AG#..AW11 NO.2 |
1 | ||
| 16711-16110 |
4AG#..AW11..ARL,GEN NO.1 |
1 | ||
| Common parts | ||||
| 90099-00905 | ||||
| 90099-02133 | ||||
| 90099-04354 | ||||
| 90099-05164 | ||||
| 90099-19228 | ||||
| 90099-19244 | ||||
| 90105-08107 | ||||
| 90119-06256 | ||||
| 90179-08068 | ||||
| 90179-08123 | ||||
| 90447-08006 | ||||
| 90461-06671 | ||||
| 91511-60635 | ||||
| 91621-60818 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| 91651-60825 | ||||
| 91661-60616 | ||||
| 92122-60818 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 8404 | ||||

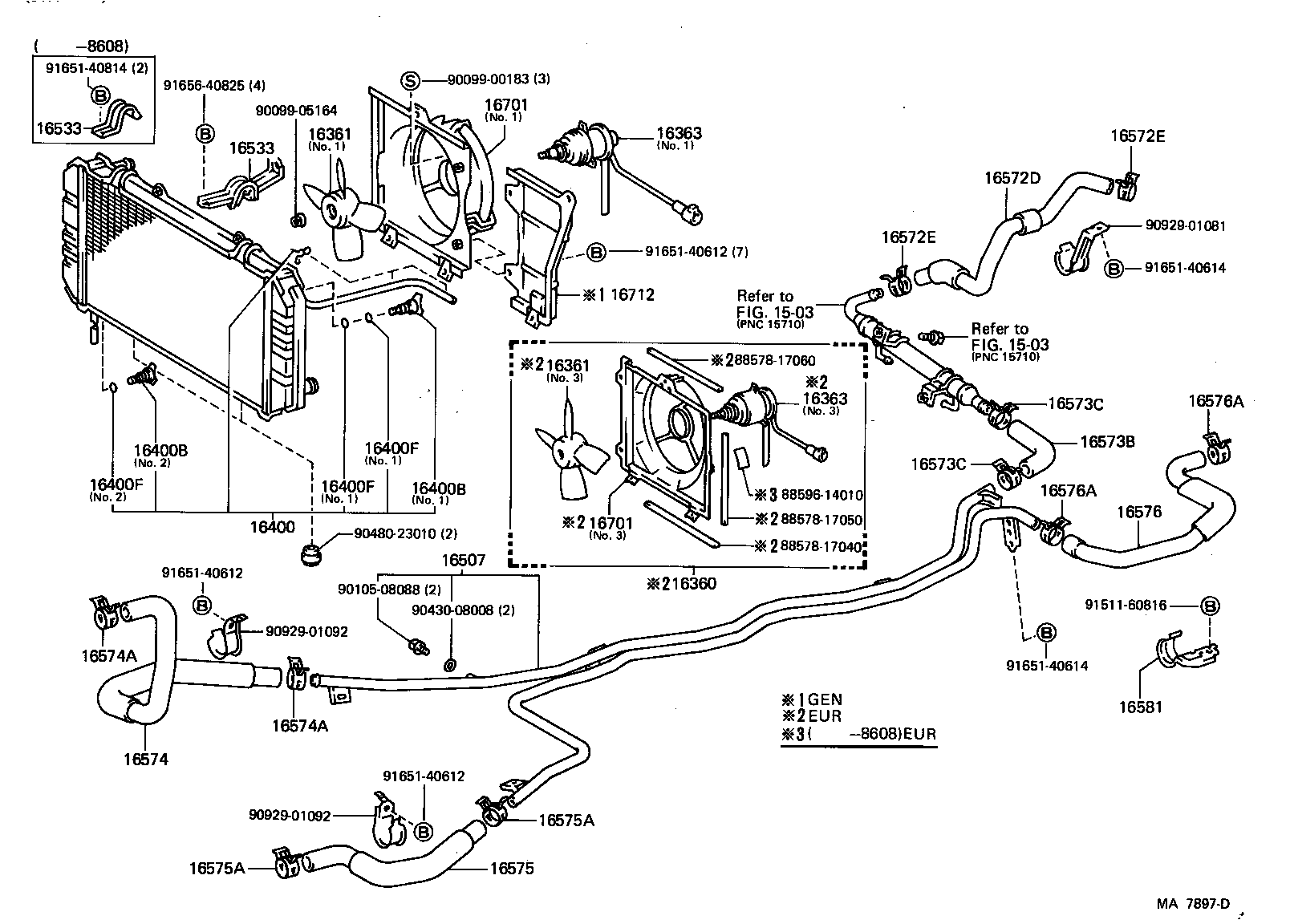

ILLUST NO. 2 OF 2(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-16020 |
4AG#..AW11..ARL,GEN NO.1 |
1 | ||
| 16361-16041 |
4AG#..AW11 NO.2 |
1 | ||
| 16361 - FAN | ||||
| 16361-16020 |
4AG#..AW11..ARL,GEN NO.1 |
1 | ||
| 16361-16041 |
4AG#..AW11 NO.2 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-16010 |
4AG#..AW11..ARL,GEN NO.1 |
1 | ||
| 16363-15090 |
4AG#..AW11 NO.2 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-16010 |
4AG#..AW11..ARL,GEN NO.1 |
1 | ||
| 16363-15090 |
4AG#..AW11 NO.2 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-16110 |
4AG#..AW11..ARL,GEN |
1 | ||
| 16400-16020 |
4AGEL..AW11..GEN |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
4AG#..AW11 NO.2 |
1 | ||
| 90910-09081 |
4AG#..AW11 NO.1 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
4AG#..AW11 NO.2 |
1 | ||
| 90910-09081 |
4AG#..AW11 NO.1 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01004 |
4AG#..AW11 NO.1,ID=4 |
1 | ||
| 96711-19007 |
4AG#..AW11 NO.2,ID=7 |
1 | ||
| 96711-19006 |
4AG#..AW11 NO.1,ID=6 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01004 |
4AG#..AW11 NO.1,ID=4 |
1 | ||
| 96711-19007 |
4AG#..AW11 NO.2,ID=7 |
1 | ||
| 96711-19006 |
4AG#..AW11 NO.1,ID=6 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01004 |
4AG#..AW11 NO.1,ID=4 |
1 | ||
| 96711-19007 |
4AG#..AW11 NO.2,ID=7 |
1 | ||
| 96711-19006 |
4AG#..AW11 NO.1,ID=6 |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-16020 |
4AG#..AW11 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-16011 |
4AG#..AW11 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-16011 |
4AG#..AW11 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-16040 |
4AG#..AW11 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-34002 |
4AG#..AW11 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-34002 |
4AG#..AW11 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-16020 |
4AG#..AW11 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-34002 |
4AG#..AW11 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-34002 |
4AG#..AW11 |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-16010 |
4AG#..AW11 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90467-34001 |
4AG#..AW11 |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90467-34001 |
4AG#..AW11 |
2 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-16010 |
4AG#..AW11 |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-34002 |
4AG#..AW11 RADIATOR SIDE |
1 | ||
| 90467-34001 |
4AG#..AW11 PIPE SIDE |
1 | ||
| 90467-34003 |
4AG#..AW11 RADIATOR SIDE |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-34002 |
4AG#..AW11 RADIATOR SIDE |
1 | ||
| 90467-34001 |
4AG#..AW11 PIPE SIDE |
1 | ||
| 90467-34003 |
4AG#..AW11 RADIATOR SIDE |
1 | ||
| 16576 - HOSE, RADIATOR, NO.6 | ||||
| 16576-16010 |
4AG#..AW11 |
1 | ||
| 16576A - CLIP, RADIATOR HOSE, NO.6 | ||||
| 90467-34002 |
4AG#..AW11 |
2 | ||
| 16576A - CLIP, RADIATOR HOSE, NO.6 | ||||
| 90467-34002 |
4AG#..AW11 |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 90929-01088 |
4AG#..AW11 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-16010 |
4AGEL..AW11..GEN NO.1 |
1 | ||
| 16711-16031 |
4AG#..AW11 NO.2 |
1 | ||
| 16711-16110 |
4AG#..AW11..ARL,GEN NO.1 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-16010 |
4AGEL..AW11..GEN NO.1 |
1 | ||
| 16711-16031 |
4AG#..AW11 NO.2 |
1 | ||
| 16711-16110 |
4AG#..AW11..ARL,GEN NO.1 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-16010 |
4AGEL..AW11..GEN |
1 | ||
| 16712-16030 |
4AG#..AW11..ARL,GEN |
1 | ||
| Common parts | ||||
| 88578-17040 | ||||
| 88578-17050 | ||||
| 88578-17060 | ||||
| 88596-14010 | ||||
| 90099-00183 | ||||
| 90099-05164 | ||||
| 90105-08088 | ||||
| 90430-08008 | ||||
| 90480-23010 | ||||
| 90929-01081 | ||||
| 90929-01092 | ||||
| 91511-60816 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
| 91656-40825 | ||||
| Linked diagrams | ||||
| 1503 | ||||
