AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

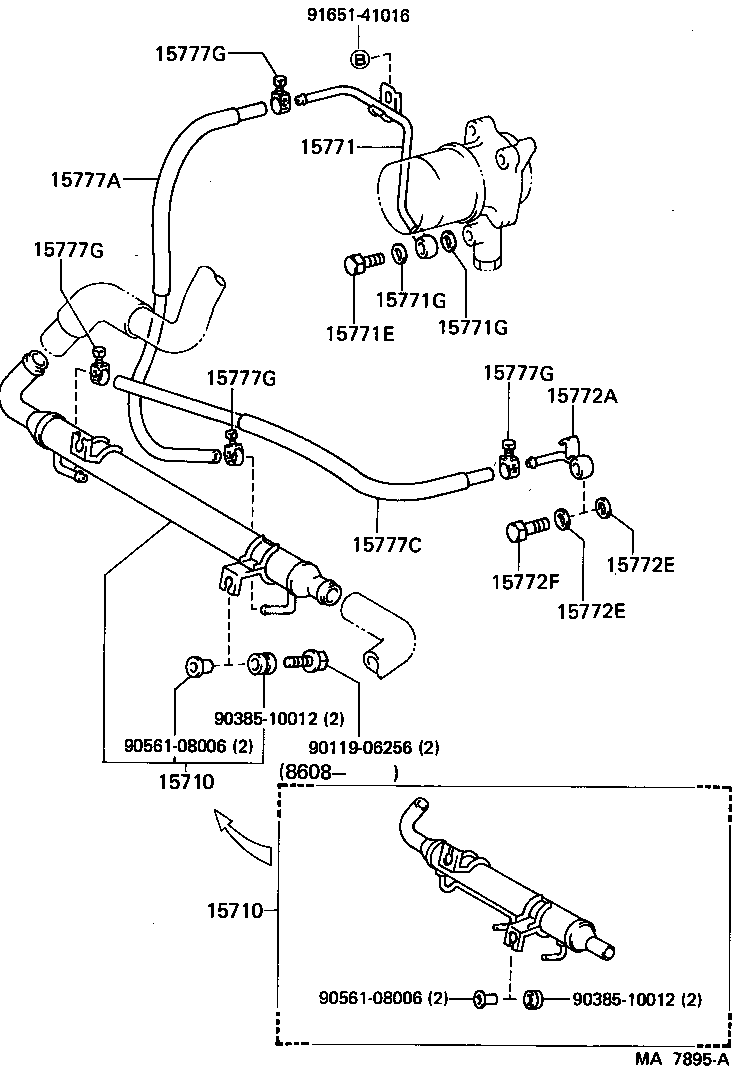

Click highlighted areas on diagram

diagram 15710 15710 15771 15771E 15771G 15771G 15772A 15772E 15772E 15772F 15777A 15777C 15777G 15777G 15777G 15777G 9011906256 9038510012 9038510012 9056108006 9056108006 9165141016
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15700-16010

4AG#..AW11

 1
15710 - COOLER ASSY, OIL
15700-16010

4AG#..AW11

 1
15771 - PIPE, OIL, NO.1
15767-16020

4AG#..AW11

 1
15771E - BOLT, UNION(FOR OIL PIPE)
90401-14003

4AG#..AW11

 1
15771G - GASKET
90430-14235

4AG#..AW11

 2
15771G - GASKET
90430-14235

4AG#..AW11

 2
15772A - UNION(FOR OIL PIPE)
90405-10015

4AG#..AW11..EUR,GEN

 1
15772E - GASKET(FOR OIL PIPE)
90430-12009

4AGEL..AW11

 2
15772E - GASKET(FOR OIL PIPE)
90430-12009

4AGEL..AW11

 2
15772F - BOLT, UNION(FOR OIL PIPE)
90401-12009

4AG#..AW11

 1
15777A - HOSE, OIL COOLER
15778-16040

4AG#..AW11

 1
15777-16030

4AG#..AW11

 1
15777C - HOSE, OIL COOLER
15778-16030

4AGEL..AW11..GEN

W/*AAC

 1
15778-16010

4AG#..AW11

 1
15777G - CLAMP OR CRIP, HOSE
90460-01001

4AG#..AW11

 4
15777G - CLAMP OR CRIP, HOSE
90460-01001

4AG#..AW11

 4
15777G - CLAMP OR CRIP, HOSE
90460-01001

4AG#..AW11

 4
15777G - CLAMP OR CRIP, HOSE
90460-01001

4AG#..AW11

 4
Common parts
90119-06256
90385-10012
90561-08006
91651-41016
