AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

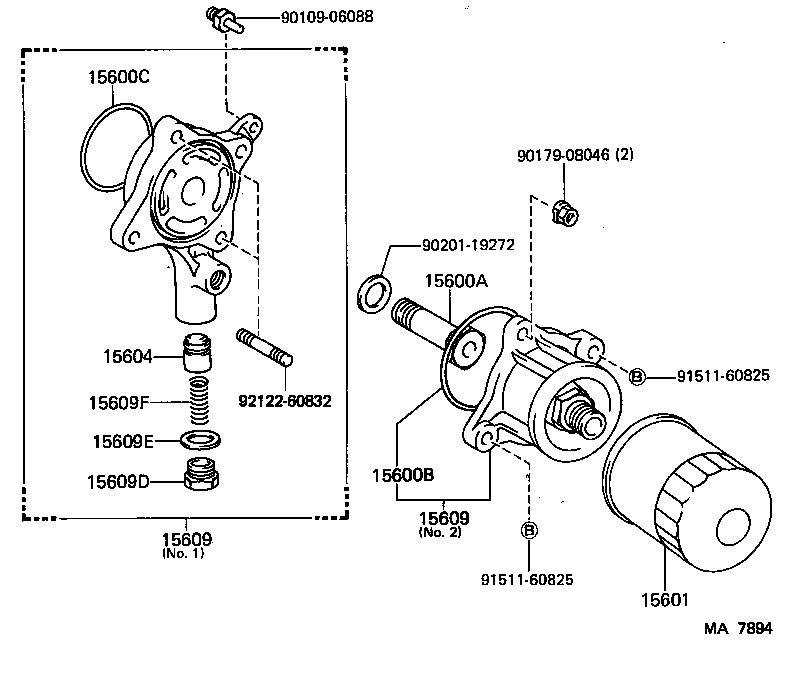

Click highlighted areas on diagram

diagram 15600A 15600B 15600C 15601 15604 15609 15609 15609D 15609E 15609F 9010906088 9017908046 9020119272 9151160825 9151160825 9212260832
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-19006

4AG#..AW11

 1
15600B - RING, O, NO.1(FOR OIL FILTER)
90029-20013

4AG#..AW11

 1
15600C - RING, O, NO.2(FOR OIL FILTER)
96732-31060

4AG#..AW11

 1
15601 - FILTER SUB-ASSY, OIL
15601-13011

4AG#..AW11

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-38030

4AG#..AW11

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15608-16020

4AG#..AW11

NO.1

 1
15607-16010

4AG#..AW11

NO.2

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15608-16020

4AG#..AW11

NO.1

 1
15607-16010

4AG#..AW11

NO.2

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
15133-20010

4AG#..AW11

 1
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
15134-20010

4AG#..AW11

 1
15609F - SPRING(FOR OIL FILTER BRACKET)
15132-21010

4AG#..AW11

 1
Common parts
90109-06088
90179-08046
90201-19272
91511-60825
92122-60832
