AW11L-WCMQF (1984)

Toyota Mr2

Production Nov 1984 - Aug 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

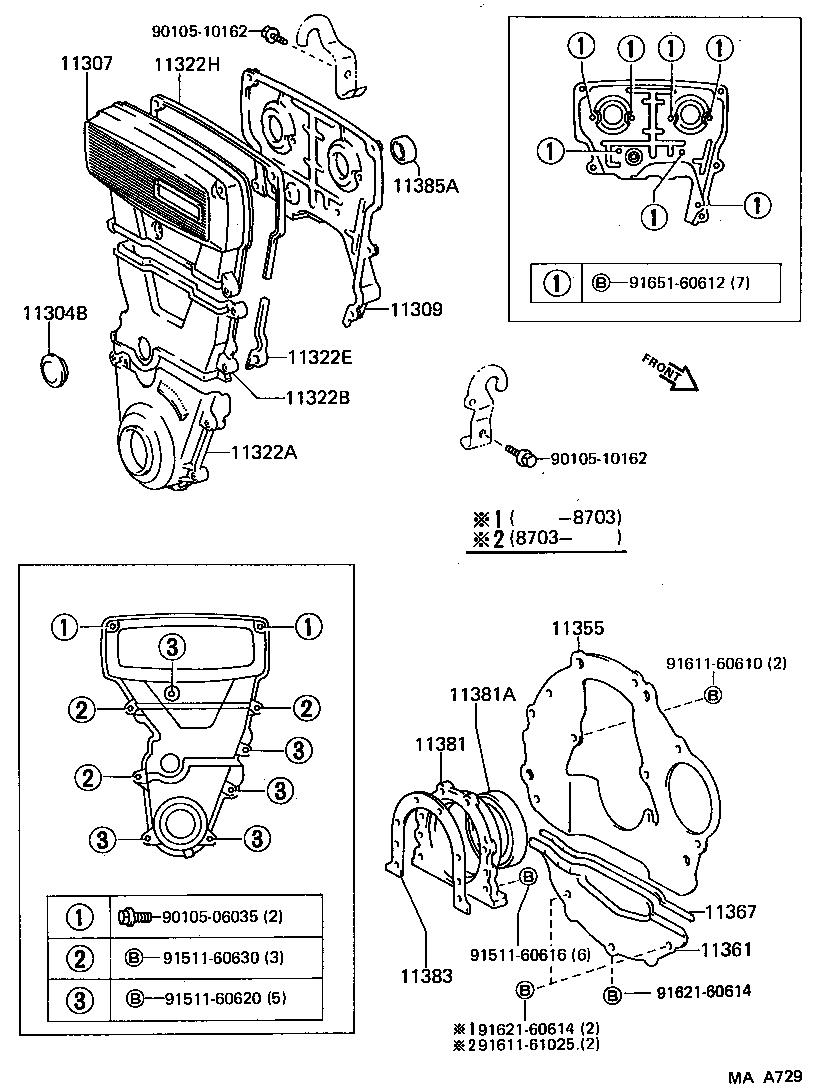

Click highlighted areas on diagram

diagram 11304B 11307 11309 11322A 11322B 11322E 11322H 11355 11361 11367 11381 11381A 11383 11385A 9010506035 9010510162 9010510162 9151160616 9151160620 9151160630 9161160610 9161161025 9162160614 9162160614 9165160612
Part # Description Qty Price
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01425

4AG#..AW11

OD=34

 1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-16020

4AG#..AW11

 1
11309 - COVER SUB-ASSY, TIMING BELT, NO.4
11325-16011

4AG#..AW11

 1
11322A - COVER, TIMING BELT, NO.1
11302-16010

4AG#..AW11

 1
11322B - COVER, TIMING BELT, NO.2
11303-16020

4AG#..AW11

 1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-16010

4AG#..AW11

 1
11322H - GASKET, TIMING BELT COVER, NO.3
11319-16010

4AGEL..AW11

 1
11355 - PLATE, REAR END
11355-15050

4AG#..AW11

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-16020

4AG#..AW11

 1
11361-15021

4AG#..AW11

 1
11367 - GASKET, FLYWHEEL HOUSING UNDER
11367-15030

4AG#..AW11

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-15010

4AG#..AW11

 1
11381A - SEAL, ENGINE REAR OIL
90311-70004

4AG#..AW11

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-15010

4AG#..AW11

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-35013

4AG#..AW11

 2
Common parts
90105-06035
90105-10162
91511-60616
91511-60620
91511-60630
91611-60610
91611-61025
91621-60614
91651-60612
