YR31RG-PQEQ (1988)
Toyota Model-F

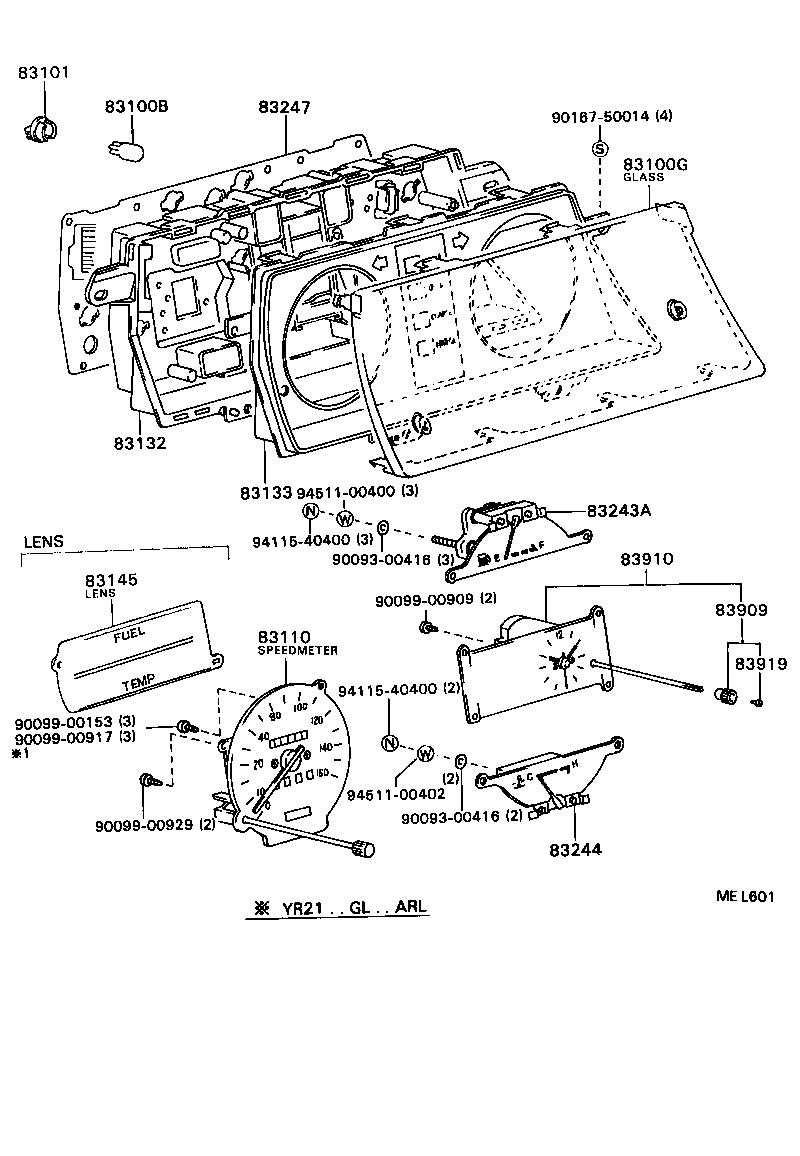

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
YR2#,31..GL..ARL 12V 1.2W W/O SOCKET |
2 | ||
| 83109-28010 |
YR21,31;YR22..GL 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
YR2#,31..GL;YR21..5F..ARL 12V 3.4W |
9 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-87007 |
YR22;YR21,31..GL |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
YR2#,31..GL..ARL 12V 3.4W BULB |
13 | ||
| 83101-14040 |
YR2#,31..GL..ARL 12V 1.4W BULB |
2 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-87022 |
YR22,31;YR21..GL..ARL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-28090 |
YR22,31;YR21..GL..ARL |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-87019 |
YR22;YR21,31..GL |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-95D03 |
YR31..4FC |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-95D01 |
YR22,31;YR21..GL..ARL |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-95D09 |
YR31..4FC |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-16050 |
YR22;YR21,31..GL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-87019 |
YR22,31;YR21..GL..ARL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
YR22;YR21,31..GL |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90167-50014 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
| 94511-00402 | ||||

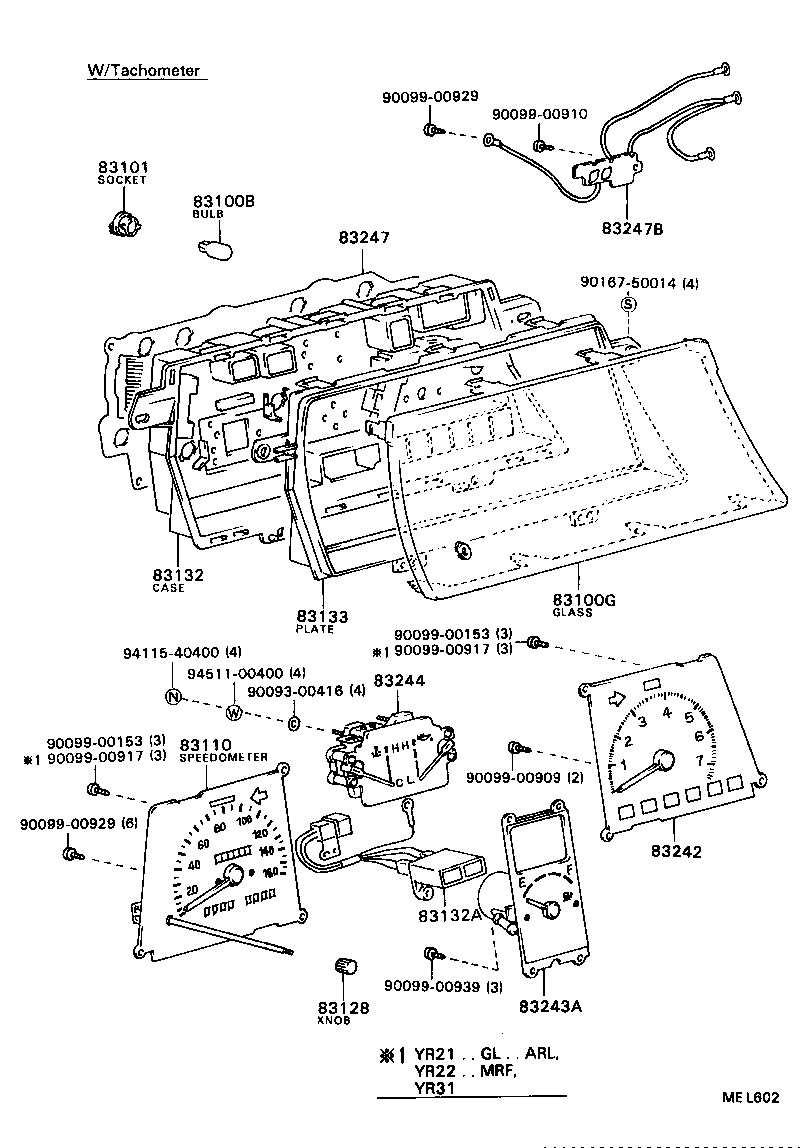

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
YR2#,31..GL..ARL 12V 1.2W W/O SOCKET |
2 | ||
| 83109-28010 |
YR21,31;YR22..GL 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
YR2#,31..GL;YR21..5F..ARL 12V 3.4W |
9 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-87007 |
YR22;YR21,31..GL |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
YR2#,31..GL..ARL 12V 3.4W BULB |
13 | ||
| 83101-14040 |
YR2#,31..GL..ARL 12V 1.4W BULB |
2 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-87022 |
YR22,31;YR21..GL..ARL |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14510 |
YR22;YR21,31..GL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-28090 |
YR22,31;YR21..GL..ARL |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-95D03 |
YR31..4FC |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-87019 |
YR22;YR21,31..GL |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-87031 |
YR22,31..4FC |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-95D03 |
YR31..4FC |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-95D01 |
YR22,31;YR21..GL..ARL |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-95D09 |
YR31..4FC |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83247-28290 |
YR2#,31..GL..ARL |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90167-50014 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||

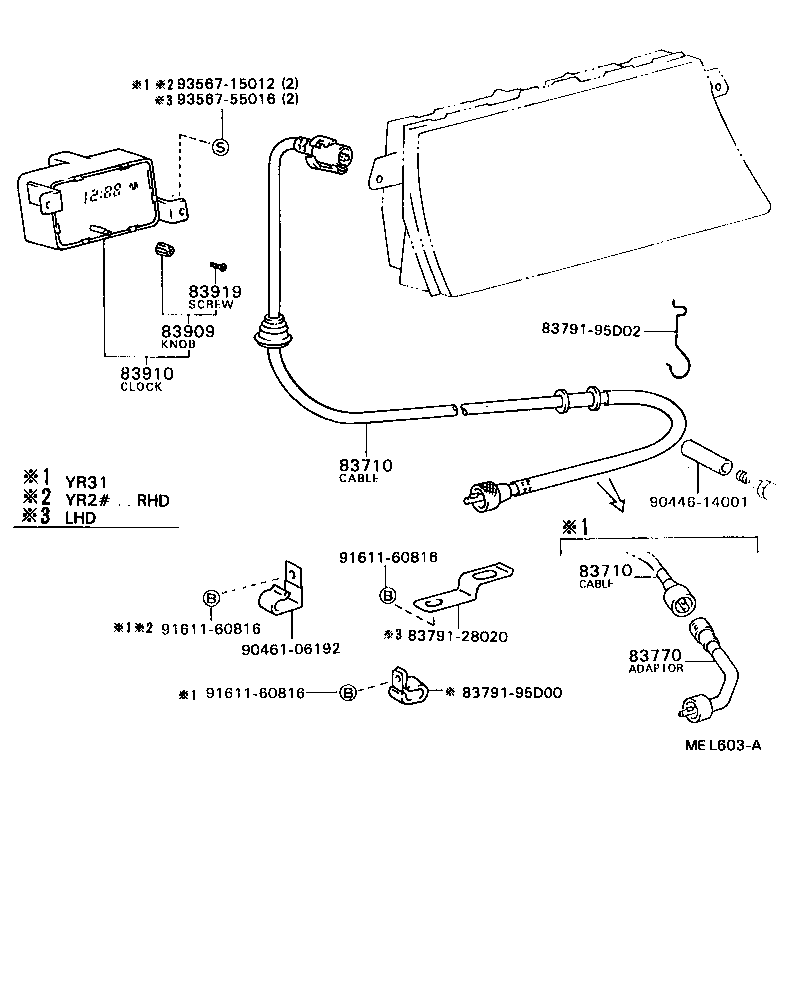

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95D02 |
YR31..4FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95D02 |
YR31..4FC |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-30070 |
YR31 |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-16050 |
YR22;YR21,31..GL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-87019 |
YR22,31;YR21..GL..ARL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
YR22;YR21,31..GL |
1 | ||
| Common parts | ||||
| 83791-28020 | ||||
| 83791-95D00 | ||||
| 83791-95D02 | ||||
| 90446-14001 | ||||
| 90461-06192 | ||||
| 91611-60816 | ||||
| 93567-15012 | ||||
| 93567-55016 | ||||
