YR31RG-PQEQ (1988)

Toyota Model-F

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )4FC

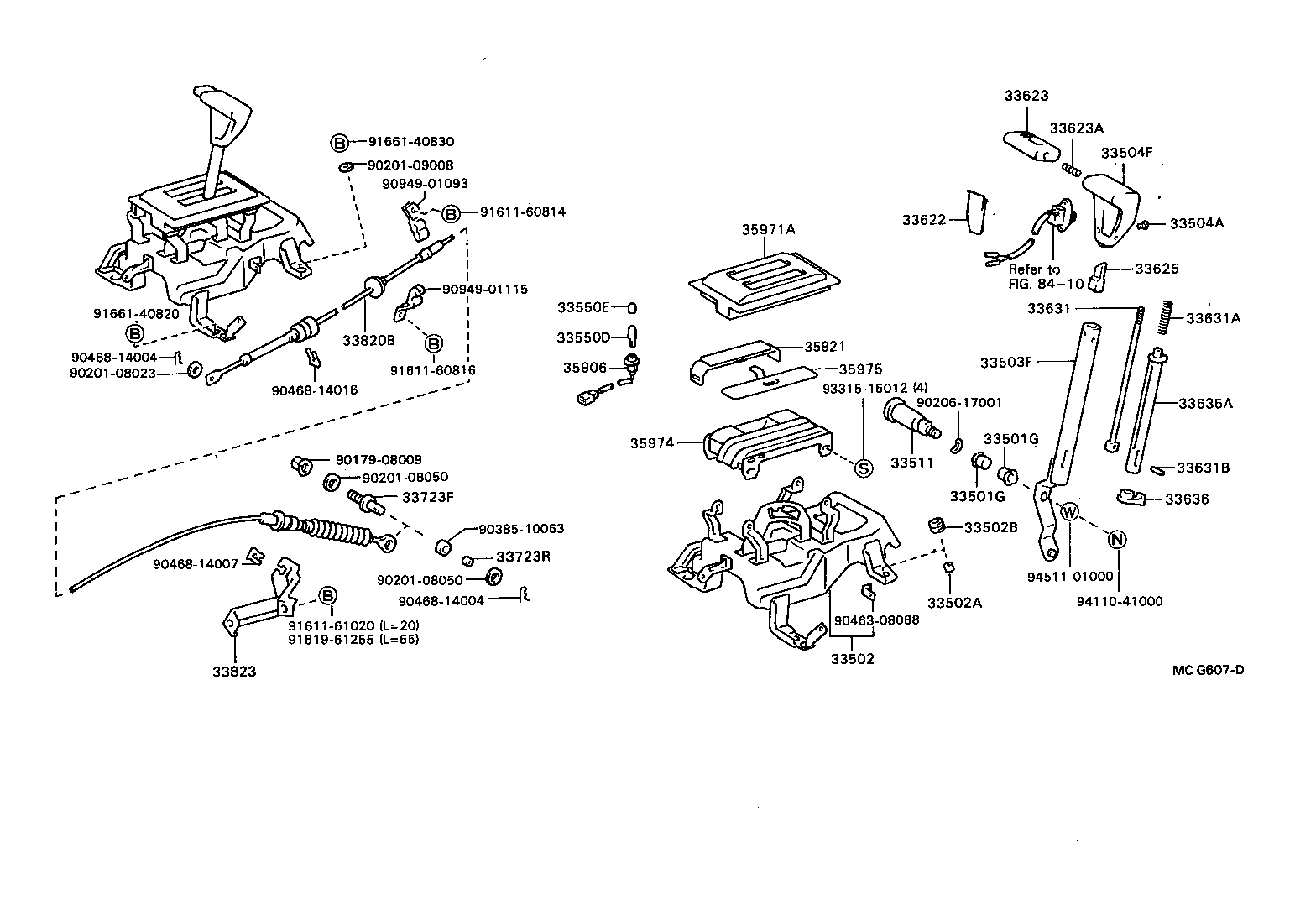

Click highlighted areas on diagram

diagram 33501G 33501G 33502 33502A 33502B 33503F 33504A 33504F 33511 33550D 33550E 33622 33623 33623A 33625 33631 33631A 33631B 33635A 33636 33723F 33723R 33820B 33823 35906 35921 35971A 35974 35975 8410 9017908009 9020108023 9020108050 9020108050 9020109008 9020617001 9038510063 9046308088 9046814004 9046814004 9046814007 9046814016 9094901093 9094901115 9161160814 9161160816 9161161020 9161961255 9166140820 9166140830 9331515012 9411041000 9451101000
Part # Description Qty Price
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-16003

YR2#,31..4FC

 2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-16003

YR2#,31..4FC

 2
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-28080

YR2#,31..4FC..ARL

 1
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-09011

YR2#,31..4FC

OD=13.6

 4
33502B - GROMMET (FOR SHIFT LEVER PLATE)
90480-13012

YR2#,31

 4
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33501-28120

YR2#,31..4FC..ARL

 1
33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)
90159-40109

YR2#,31..4FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-3204026

YR2#,31..4FC..GL..ARL

BROWN,TRIM4#

 1
33542-3204003

YR2#,31..MRF..4FC..ARL

SHADOW GRAY,TRIM1#

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-28070

YR2#,31..4FC

 1
33550D - BULB, POSITION INDICATOR LAMP
99132-12034

YR2#,31..4FC

12V 3.4W

 1
33550E - CAP, POSITION INDICATOR LAMP
90339-09001

YR2#,31..4FC

 1
33622 - COVER, SHIFT LEVER KNOB, NO.1
33622-1601036

YR2#,31..4FC..GL..ARL

BROWN,TRIM4#

 1
33622-1601023

YR2#,31..MRF..4FC..ARL

SHADOW GRAY,TRIM1#

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-1403013

YR2#,31..MRF..4FC..ARL

SHADOW GRAY,TRIM1#

 1
33623-1403036

YR2#,31..4FC..GL..ARL

BROWN,TRIM4#

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009

YR2#,31..4FC

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-32010

YR2#,31..4FC

 1
33631 - ROD, DETENT
33631-28030

YR2#,31..4FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07005

YR2#,31..4FC

 1
33631B - PIN, SLOTTED SPRING (FOR DETENT ROD)
90256-04003

YR2#,31..4FC

 1
33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33635-28020

YR2#,31..4FC

 1
33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
33636-16010

YR2#,31..4FC

 1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-28010

YR2#,31..4FC

 1
33723R - SPACER (FOR FLOOR SHIFT CONTROL CABLE)
90560-08366

YR31..4FC

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-28160

YR2#,31..4FC

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-28090

YR31..4FC

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-32030

YR2#,31..4FC

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-28040

YR2#,31..4FC..ARL

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-28020

YR2#,31..4FC

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-28020

YR2#,31..4FC

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-28020

YR2#,31..4FC..ARL

 1
Common parts
90179-08009
90201-08023
90201-08050
90201-09008
90206-17001
90385-10063
90463-08088
90468-14004
90468-14007
90468-14016
90949-01093
90949-01115
91611-60814
91611-60816
91611-61020
91619-61255
91661-40820
91661-40830
93315-15012
94110-41000
94511-01000
Linked diagrams
8410
