YR31RG-MQEQ (1988)

Toyota Model-F

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

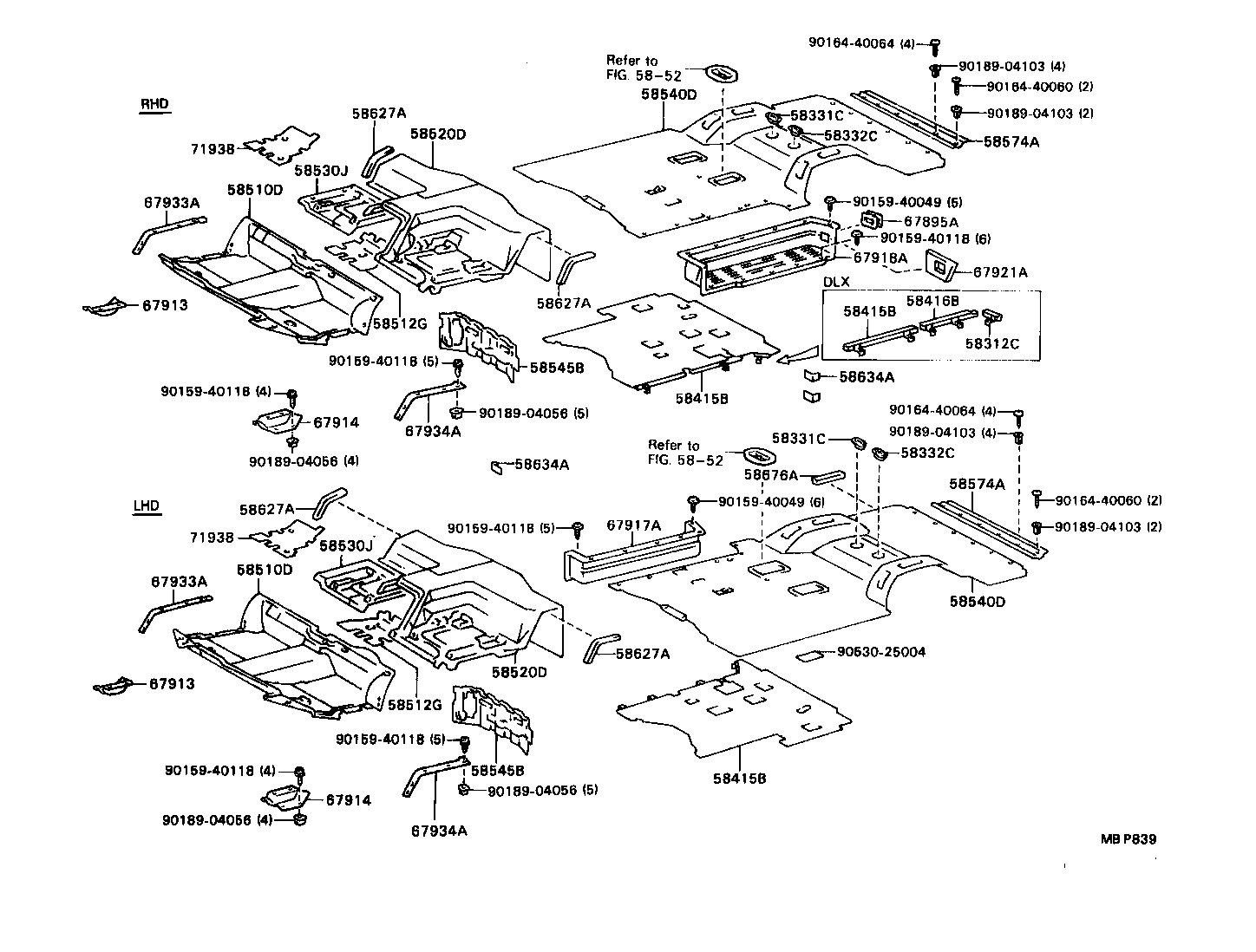

Click highlighted areas on diagram

diagram 58312C 58331C 58331C 58332C 58332C 58415B 58415B 58415B 58416B 58510D 58510D 58512G 58512G 5852 5852 58520D 58520D 58530J 58530J 58540D 58540D 58545B 58545B 58574A 58574A 58627A 58627A 58627A 58627A 58634A 58634A 58676A 67895A 67913 67913 67914 67914 67917A 67918A 67921A 67933A 67933A 67934A 67934A 71938 71938 9015940049 9015940049 9015940118 9015940118 9015940118 9015940118 9015940118 9015940118 9016440060 9016440060 9016440064 9016440064 9018904056 9018904056 9018904056 9018904056 9018904103 9018904103 9018904103 9018904103 9053025004
Part # Description Qty Price
58331C - COVER, REAR FLOOR SIDE SERVICE HOLE, RH
58331-8700103

YR2#,31..MRF

SHADOW GRAY,TRIM1#

 1
58331-8700116

YR2#,31..GL

BROWN,TRIM4#

 1
58331C - COVER, REAR FLOOR SIDE SERVICE HOLE, RH
58331-8700103

YR2#,31..MRF

SHADOW GRAY,TRIM1#

 1
58331-8700116

YR2#,31..GL

BROWN,TRIM4#

 1
58332C - COVER, REAR FLOOR SIDE SERVICE HOLE, LH
58332-8700203

YR2#,31..MRF

SHADOW GRAY,TRIM1#

 1
58332-8700216

YR2#,31..GL

BROWN,TRIM4#

 1
58332C - COVER, REAR FLOOR SIDE SERVICE HOLE, LH
58332-8700203

YR2#,31..MRF

SHADOW GRAY,TRIM1#

 1
58332-8700216

YR2#,31..GL

BROWN,TRIM4#

 1
58415B - BOARD, REAR FLOOR, NO.1
58415-87010

YR2#,31..GL..ARL

 1
58415B - BOARD, REAR FLOOR, NO.1
58415-87010

YR2#,31..GL..ARL

 1
58415B - BOARD, REAR FLOOR, NO.1
58415-87010

YR2#,31..GL..ARL

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-87G1116

YR2#,31..GL..ARL

SABLE,TRIM4#

 1
58510-87G1103

YR2#,31..MRF..GL..ARL

SHADOW GRAY,TRIM1#

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-87G1116

YR2#,31..GL..ARL

SABLE,TRIM4#

 1
58510-87G1103

YR2#,31..MRF..GL..ARL

SHADOW GRAY,TRIM1#

 1
58512G - SILENCER, FRONT FLOOR, NO.2
58512-87005

YR2#,31

 1
58512G - SILENCER, FRONT FLOOR, NO.2
58512-87005

YR2#,31

 1
58520D - MAT ASSY, FRONT FLOOR, FRONT NO.2
58520-87G4403

YR31

W(REAR HEATER),SHADOW GRAY,TRIM1#

 1
58520-87G4516

YR2#,31..MRF..GL..ARL

BROWN,TRIM4#

 1
58520-87G4416

YR31

W(REAR HEATER),BROWN,TRIM4#

 1
58520-87G4503

YR2#,31..MRF..GL..ARL

SHADOW GRAY,TRIM1#

 1
58520-87K1006

YR31

W(REAR HEATER),SABLE,TRIM4#

 1
58520-87K1003

YR31

W(REAR HEATER),SHADOW GRAY,TRIM1#

 1
58520-87K1103

YR2#,31..MRF..GL..ARL

SHADOW GRAY,TRIM1#

 1
58520-87K1106

YR2#,31..MRF..GL..ARL

SABLE,TRIM4#

 1
58520D - MAT ASSY, FRONT FLOOR, FRONT NO.2
58520-87G4403

YR31

W(REAR HEATER),SHADOW GRAY,TRIM1#

 1
58520-87G4516

YR2#,31..MRF..GL..ARL

BROWN,TRIM4#

 1
58520-87G4416

YR31

W(REAR HEATER),BROWN,TRIM4#

 1
58520-87G4503

YR2#,31..MRF..GL..ARL

SHADOW GRAY,TRIM1#

 1
58520-87K1006

YR31

W(REAR HEATER),SABLE,TRIM4#

 1
58520-87K1003

YR31

W(REAR HEATER),SHADOW GRAY,TRIM1#

 1
58520-87K1103

YR2#,31..MRF..GL..ARL

SHADOW GRAY,TRIM1#

 1
58520-87K1106

YR2#,31..MRF..GL..ARL

SABLE,TRIM4#

 1
58530J - CARPET ASSY, FLOOR, CENTER
58530-87G0516

YR2#,31..GL..ARL

BROWN,TRIM4#

 1
58530-87G0503

YR2#,31..MRF..GL..ARL

SHADOW GRAY,TRIM1#

 1
58530J - CARPET ASSY, FLOOR, CENTER
58530-87G0516

YR2#,31..GL..ARL

BROWN,TRIM4#

 1
58530-87G0503

YR2#,31..MRF..GL..ARL

SHADOW GRAY,TRIM1#

 1
58540D - CARPET ASSY, FLOOR, REAR
58540-87G3116

YR2#,31..GL..ARL

SABLE,TRIM4#

 1
58540-87G3103

YR2#,31..MRF..GL..ARL

SHADOW GRAY,TRIM1#

 1
58540D - CARPET ASSY, FLOOR, REAR
58540-87G3116

YR2#,31..GL..ARL

SABLE,TRIM4#

 1
58540-87G3103

YR2#,31..MRF..GL..ARL

SHADOW GRAY,TRIM1#

 1
58545B - SILENCER, HEADER PANEL
58545-87001

YR2#,31

 1
58545B - SILENCER, HEADER PANEL
58545-87001

YR2#,31

 1
58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR
58574-87001

YR2#,31

 1
58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR
58574-87001

YR2#,31

 1
58627A - PAD, CENTER FLOOR SILENCER, REAR
58627-28010

YR2#,31

RH

 1
58628-28010

YR2#,31

LH

 1
58627A - PAD, CENTER FLOOR SILENCER, REAR
58627-28010

YR2#,31

RH

 1
58628-28010

YR2#,31

LH

 1
58627A - PAD, CENTER FLOOR SILENCER, REAR
58627-28010

YR2#,31

RH

 1
58628-28010

YR2#,31

LH

 1
58627A - PAD, CENTER FLOOR SILENCER, REAR
58627-28010

YR2#,31

RH

 1
58628-28010

YR2#,31

LH

 1
58634A - PLATE, ENGINE SERVICE HOLE MAT, RH
58634-87001

YR2#,31..ARL

 2
58634A - PLATE, ENGINE SERVICE HOLE MAT, RH
58634-87001

YR2#,31..ARL

 2
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-8700413

YR2#,31..MRF

SHADOW GRAY,TRIM1#

 1
67913-8700416

YR2#,31..GL

BROWN,TRIM4#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-8700413

YR2#,31..MRF

SHADOW GRAY,TRIM1#

 1
67913-8700416

YR2#,31..GL

BROWN,TRIM4#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-8700113

YR2#,31..MRF

SHADOW GRAY,TRIM1#

 1
67914-8700116

YR2#,31..GL

BROWN,TRIM4#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-8700113

YR2#,31..MRF

SHADOW GRAY,TRIM1#

 1
67914-8700116

YR2#,31..GL

BROWN,TRIM4#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67920-95D0003

YR31

SHADOW GRAY,TRIM1#

 1
67920-95D0016

YR31

SABLE,TRIM4#

 1
67921A - PAD, CENTER DOOR SCUFF PLATE
67921-95D02

YR31

 1
67933A - PLATE, FRONT DOOR SCUFF, REAR RH
67933-8700213

YR2#,31..MRF

SHADOW GRAY,TRIM1#

 1
67933-8700216

YR2#,31..GL

SABLE,TRIM4#

 1
67933A - PLATE, FRONT DOOR SCUFF, REAR RH
67933-8700213

YR2#,31..MRF

SHADOW GRAY,TRIM1#

 1
67933-8700216

YR2#,31..GL

SABLE,TRIM4#

 1
67934A - PLATE, FRONT DOOR SCUFF, REAR LH
67934-8700216

YR2#,31..GL

BROWN,TRIM4#

 1
67934-8700213

YR2#,31..MRF

SHADOW GRAY,TRIM1#

 1
67934A - PLATE, FRONT DOOR SCUFF, REAR LH
67934-8700216

YR2#,31..GL

BROWN,TRIM4#

 1
67934-8700213

YR2#,31..MRF

SHADOW GRAY,TRIM1#

 1
71938 - PAD, ENGINE SERVICE HOLE COVER, NO.2
71938-87003

YR2#,31

 1
71938 - PAD, ENGINE SERVICE HOLE COVER, NO.2
71938-87003

YR2#,31

 1
Common parts
90159-40049
90159-40118
90164-40060
90164-40064
90189-04056
90189-04103
90530-25004
Linked diagrams
5852
