YR22RG-PQZEQ (1988)

Toyota Model-F

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

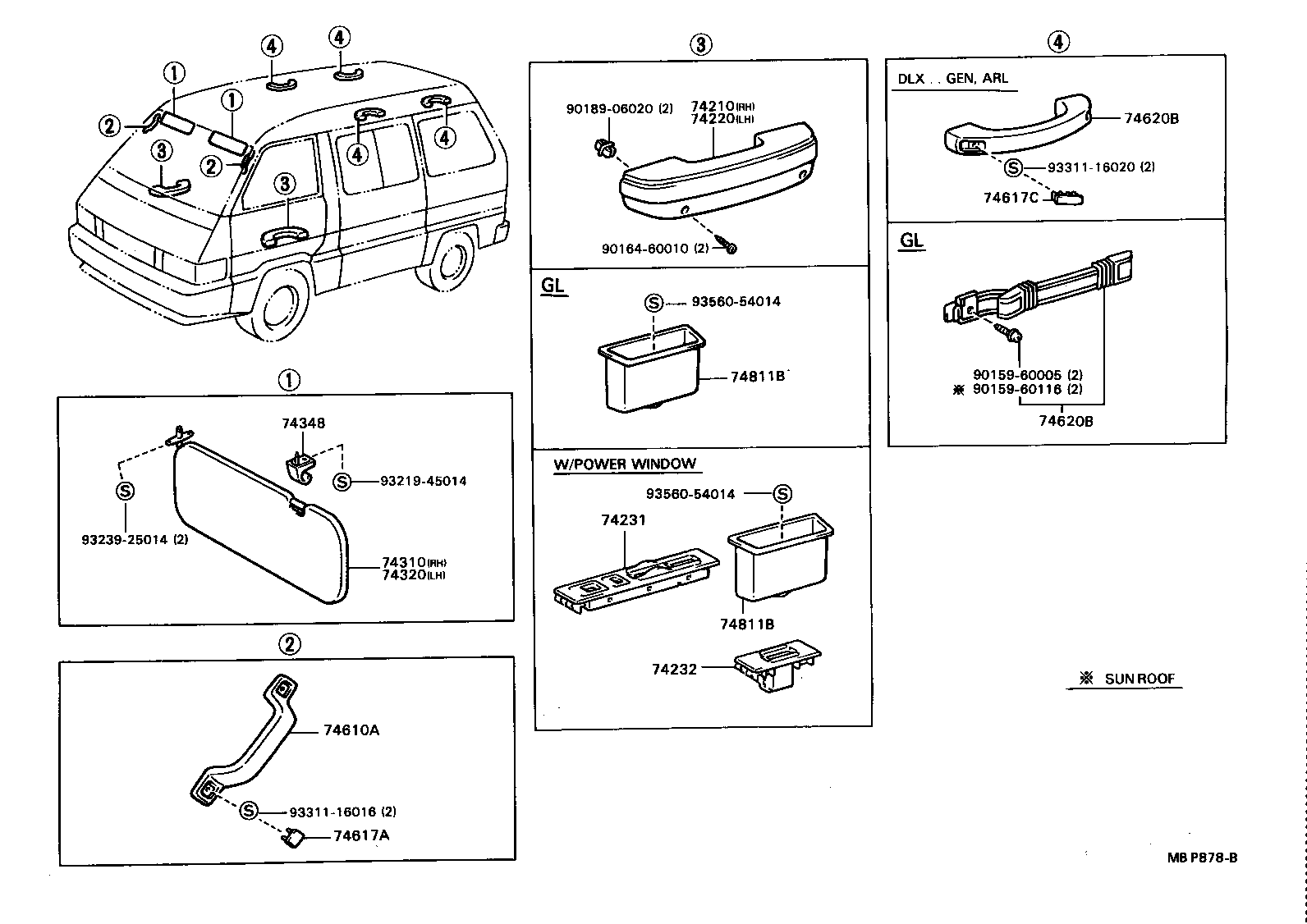

Click highlighted areas on diagram

diagram 74210 74220 74231 74232 74310 74320 74348 74610A 74617A 74617C 74620B 74620B 74811B 74811B 9015960005 9015960116 9016460010 9018906020 9321945014 9323925014 9331116016 9331116020 9356054014 9356054014
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-8700216

YR22..4FC;YR21,31..GL

SABLE,TRIM4#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-8700116

YR22..4FC;YR21,31..GL

SABLE,TRIM4#

 1
74310 - VISOR ASSY, RH
74310-8701406

YR22..HRF

LIGHT SABLE,TRIM4#

 1
74320 - VISOR ASSY, LH
74320-8700706

YR22..HRF

LIGHT SABLE,TRIM4#

 1
74348 - HOLDER, VISOR
74348-3201006

YR2#,31..GL

LIGHT BROWN,TRIM4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74603-1601016

YR2#,31..GL

LIGHT BROWN,TRIM4#

 2
74617A - PLUG, ASSIST GRIP
74617-1601046

YR2#,31..GL

BROWN,TRIM4#

 4
74620B - GRIP ASSY, ASSIST, REAR
74610-1403036

YR22..HRF

BROWN,TRIM4#

 4
74620B - GRIP ASSY, ASSIST, REAR
74610-1403036

YR22..HRF

BROWN,TRIM4#

 4
74811B - HANDLE, DOOR PULL
74811-8700136

YR2#,31..GL

BROWN,TRIM4#

 2
74811B - HANDLE, DOOR PULL
74811-8700136

YR2#,31..GL

BROWN,TRIM4#

 2
Common parts
90159-60005
90159-60116
90164-60010
90189-06020
93219-45014
93239-25014
93311-16016
93311-16020
93560-54014
