YR22RG-PQEQ (1988)
Toyota Model-F

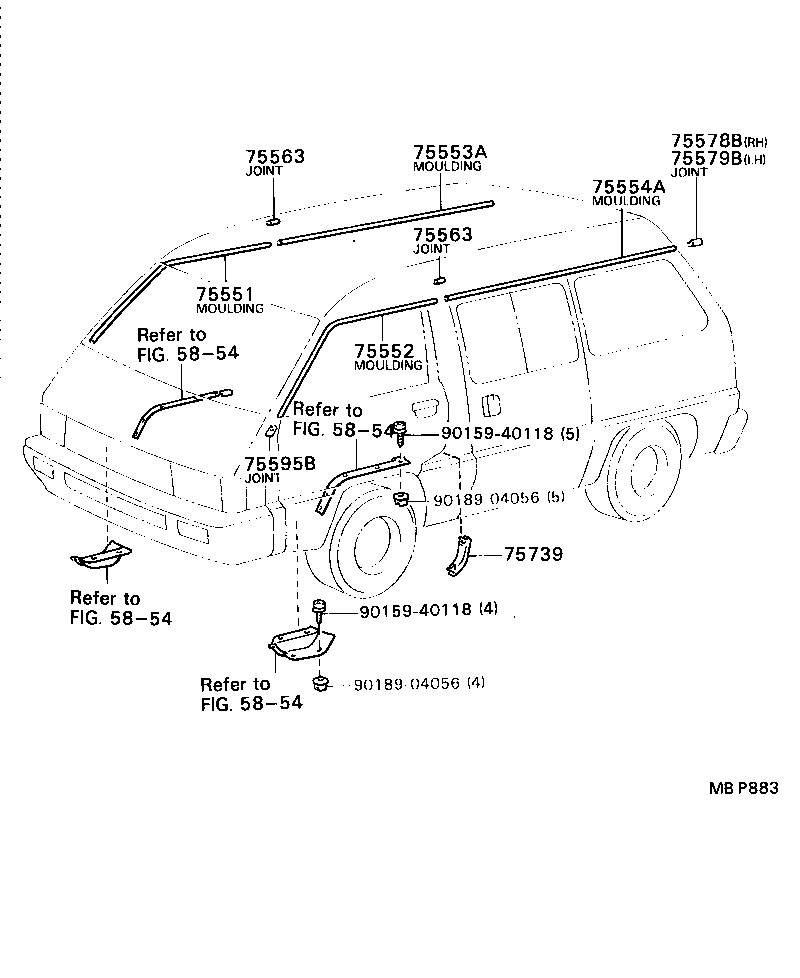

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-87005 |
YR2#,31..GL |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-87005 |
YR2#,31..GL |
1 | ||
| 75553A - MOULDING, ROOF DRIP SIDE FINISH, REAR RH | ||||
| 75553-87005 |
YR2#,31..GL |
1 | ||
| 75554A - MOULDING, ROOF DRIP SIDE FINISH, REAR LH | ||||
| 75554-87005 |
YR2#,31..GL |
1 | ||
| 75563 - RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75563-87002 |
YR2#,31..GL..ARL LH |
1 | ||
| 75563-87001 |
YR2#,31..GL..ARL RH |
1 | ||
| 75563 - RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75563-87002 |
YR2#,31..GL..ARL LH |
1 | ||
| 75563-87001 |
YR2#,31..GL..ARL RH |
1 | ||
| 75739 - MOULDING, DOOR EDGE PROTECTION | ||||
| 75739-30030 |
YR2#,31 |
1 | ||
| Common parts | ||||
| 90159-40118 | ||||
| 90189-04056 | ||||
| Linked diagrams | ||||
| 5854 | ||||

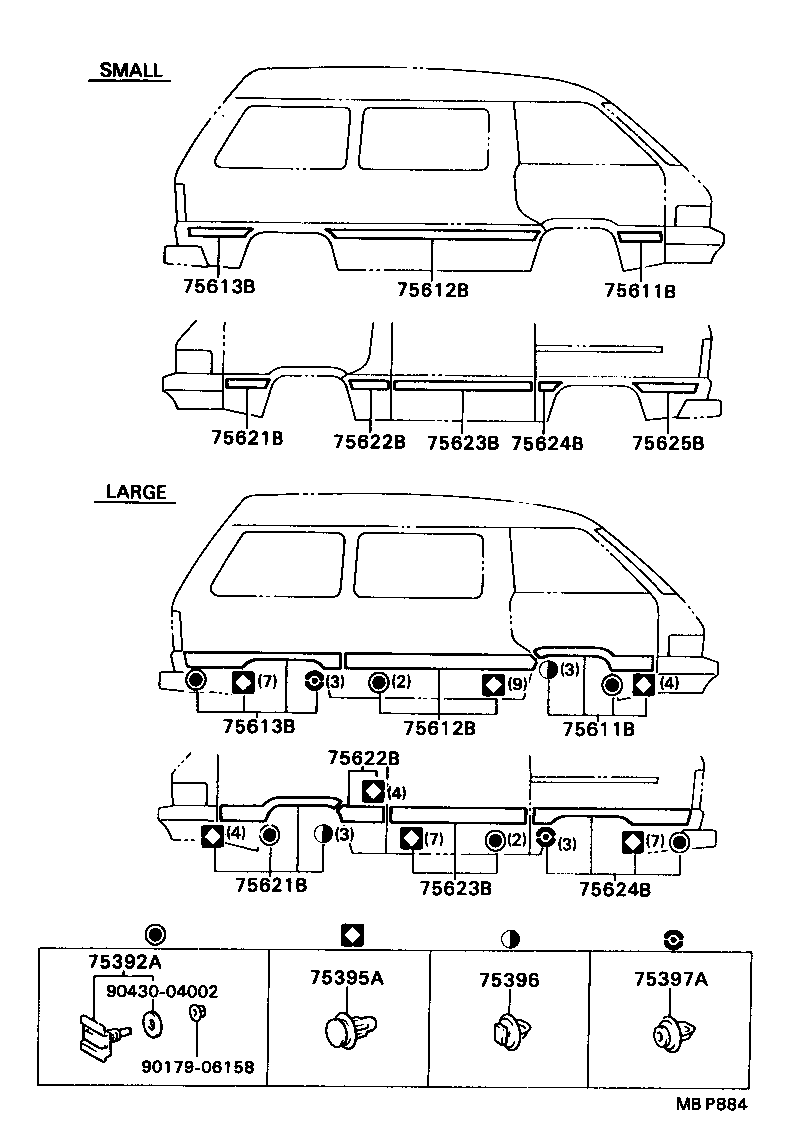

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75392A - RETAINER, OUTSIDE MOULDING, NO.1 | ||||
| 75392-87001 |
YR22..4FC |
8 | ||
| 75395A - CLIP, OUTSIDE MOULDING, NO.1 | ||||
| 47749-87001 |
YR22..4FC |
42 | ||
| 75396 - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 76519-87001 |
YR22..4FC |
6 | ||
| 75397A - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75498-87001 |
YR22..4FC |
6 | ||
| 75611B - MOULDING, SIDE PANEL, NO.1 RH | ||||
| 75071-8700243 |
YR22..MRF..4FC GRAY M.,168 ,20L |
1 | ||
| 75071-8700203 |
YR22..MRF..4FC SILVER METALLIC,148 |
1 | ||
| 75071-8700244 |
YR22..MRF..4FC BLUE METALLIC,8D7 |
1 | ||
| 75071-8700228 |
YR22..MRF..4FC WHITE,045 |
1 | ||
| 75071-8700222 |
YR22..MRF..4FC RED MICA,3H4 |
1 | ||
| 75071-8700254 |
YR22..MRF..4FC LIGHT BLUE METALLIC,8D8 |
1 | ||
| 75731-87004 |
YR22 |
1 | ||
| 75071-8700236 |
YR22..4FC DR. BROWN M.,22L ,4K5 |
1 | ||
| 75071-8700246 |
YR22..MRF..4FC LT. REDDISH BROWN M.,4K7 |
1 | ||
| 75611B - MOULDING, SIDE PANEL, NO.1 RH | ||||
| 75071-8700243 |
YR22..MRF..4FC GRAY M.,168 ,20L |
1 | ||
| 75071-8700203 |
YR22..MRF..4FC SILVER METALLIC,148 |
1 | ||
| 75071-8700244 |
YR22..MRF..4FC BLUE METALLIC,8D7 |
1 | ||
| 75071-8700228 |
YR22..MRF..4FC WHITE,045 |
1 | ||
| 75071-8700222 |
YR22..MRF..4FC RED MICA,3H4 |
1 | ||
| 75071-8700254 |
YR22..MRF..4FC LIGHT BLUE METALLIC,8D8 |
1 | ||
| 75731-87004 |
YR22 |
1 | ||
| 75071-8700236 |
YR22..4FC DR. BROWN M.,22L ,4K5 |
1 | ||
| 75071-8700246 |
YR22..MRF..4FC LT. REDDISH BROWN M.,4K7 |
1 | ||
| 75612B - MOULDING, SIDE PANEL, NO.2 RH | ||||
| 75655-87005 |
YR22 |
1 | ||
| 76605-8700236 |
YR22..MRF..4FC L. REDDISH BROWN M.,4K7 |
1 | ||
| 76605-8700234 |
YR22..MRF..4FC BLUE METALLIC,8D7 |
1 | ||
| 76605-8700203 |
YR22..MRF..4FC SILVER METALLIC,148 |
1 | ||
| 76605-8700243 |
YR22..MRF..4FC GRAY M.,168 ,20L |
1 | ||
| 76605-8700212 |
YR22..MRF..4FC RED MICA,3H4 |
1 | ||
| 76605-8700228 |
YR22..MRF..4FC WHITE,045 |
1 | ||
| 76605-8700244 |
YR22..MRF..4FC LIGHT BLUE METALLIC,8D8 |
1 | ||
| 76605-8700246 |
YR22..4FC DR. BROWN M.,22L ,4K5 |
1 | ||
| 75612B - MOULDING, SIDE PANEL, NO.2 RH | ||||
| 75655-87005 |
YR22 |
1 | ||
| 76605-8700236 |
YR22..MRF..4FC L. REDDISH BROWN M.,4K7 |
1 | ||
| 76605-8700234 |
YR22..MRF..4FC BLUE METALLIC,8D7 |
1 | ||
| 76605-8700203 |
YR22..MRF..4FC SILVER METALLIC,148 |
1 | ||
| 76605-8700243 |
YR22..MRF..4FC GRAY M.,168 ,20L |
1 | ||
| 76605-8700212 |
YR22..MRF..4FC RED MICA,3H4 |
1 | ||
| 76605-8700228 |
YR22..MRF..4FC WHITE,045 |
1 | ||
| 76605-8700244 |
YR22..MRF..4FC LIGHT BLUE METALLIC,8D8 |
1 | ||
| 76605-8700246 |
YR22..4FC DR. BROWN M.,22L ,4K5 |
1 | ||
| 75613B - MOULDING, SIDE PANEL, NO.3 RH | ||||
| 75065-8700256 |
YR22..4FC DR. BROWN M.,22L ,4K5 |
1 | ||
| 75065-8700203 |
YR22..MRF..4FC SILVER METALLIC,148 |
1 | ||
| 75065-8700244 |
YR22..MRF..4FC BLUE METALLIC,8D7 |
1 | ||
| 75065-8700243 |
YR22..MRF..4FC GRAY M.,168 ,20L |
1 | ||
| 75065-8700222 |
YR22..MRF..4FC RED MICA,3H4 |
1 | ||
| 75065-8700254 |
YR22..MRF..4FC LIGHT BLUE METALLIC,8D8 |
1 | ||
| 75065-8700228 |
YR22..MRF..4FC WHITE,045 |
1 | ||
| 75065-8700246 |
YR22..MRF..4FC L. REDDISH BROWN M.,4K7 |
1 | ||
| 75657-87004 |
YR22 |
1 | ||
| 75613B - MOULDING, SIDE PANEL, NO.3 RH | ||||
| 75065-8700256 |
YR22..4FC DR. BROWN M.,22L ,4K5 |
1 | ||
| 75065-8700203 |
YR22..MRF..4FC SILVER METALLIC,148 |
1 | ||
| 75065-8700244 |
YR22..MRF..4FC BLUE METALLIC,8D7 |
1 | ||
| 75065-8700243 |
YR22..MRF..4FC GRAY M.,168 ,20L |
1 | ||
| 75065-8700222 |
YR22..MRF..4FC RED MICA,3H4 |
1 | ||
| 75065-8700254 |
YR22..MRF..4FC LIGHT BLUE METALLIC,8D8 |
1 | ||
| 75065-8700228 |
YR22..MRF..4FC WHITE,045 |
1 | ||
| 75065-8700246 |
YR22..MRF..4FC L. REDDISH BROWN M.,4K7 |
1 | ||
| 75657-87004 |
YR22 |
1 | ||
| 75621B - MOULDING, SIDE PANEL, NO.1 LH | ||||
| 75072-8700203 |
YR22..MRF..4FC SILVER METALLIC,148 |
1 | ||
| 75072-8700222 |
YR22..MRF..4FC RED MICA,3H4 |
1 | ||
| 75072-8700243 |
YR22..MRF..4FC GRAY M.,168 ,20L |
1 | ||
| 75072-8700254 |
YR22..MRF..4FC LIGHT BLUE METALLIC,8D8 |
1 | ||
| 75072-8700244 |
YR22..MRF..4FC BLUE METALLIC,8D7 |
1 | ||
| 75072-8700228 |
YR22..MRF..4FC WHITE,045 |
1 | ||
| 75732-87004 |
YR22 |
1 | ||
| 75072-8700236 |
YR22..4FC DR. BROWN M.,22L ,4K5 |
1 | ||
| 75072-8700246 |
YR22..MRF..4FC LT. REDDISH BROWN M.,4K7 |
1 | ||
| 75621B - MOULDING, SIDE PANEL, NO.1 LH | ||||
| 75072-8700203 |
YR22..MRF..4FC SILVER METALLIC,148 |
1 | ||
| 75072-8700222 |
YR22..MRF..4FC RED MICA,3H4 |
1 | ||
| 75072-8700243 |
YR22..MRF..4FC GRAY M.,168 ,20L |
1 | ||
| 75072-8700254 |
YR22..MRF..4FC LIGHT BLUE METALLIC,8D8 |
1 | ||
| 75072-8700244 |
YR22..MRF..4FC BLUE METALLIC,8D7 |
1 | ||
| 75072-8700228 |
YR22..MRF..4FC WHITE,045 |
1 | ||
| 75732-87004 |
YR22 |
1 | ||
| 75072-8700236 |
YR22..4FC DR. BROWN M.,22L ,4K5 |
1 | ||
| 75072-8700246 |
YR22..MRF..4FC LT. REDDISH BROWN M.,4K7 |
1 | ||
| 75622B - MOULDING, SIDE PANEL, NO.2 LH | ||||
| 76056-8700234 |
YR22..MRF..4FC BLUE METALLIC,8D7 |
1 | ||
| 76056-8700228 |
YR22..MRF..4FC WHITE,045 |
1 | ||
| 76056-8700203 |
YR22..MRF..4FC SILVER METALLIC,148 |
1 | ||
| 76056-8700236 |
YR22..MRF..4FC L. REDDISH BROWN M.,4K7 |
1 | ||
| 76056-8700243 |
YR22..MRF..4FC GRAY M.,168 ,20L |
1 | ||
| 76056-8700244 |
YR22..MRF..4FC LIGHT BLUE METALLIC,8D8 |
1 | ||
| 76056-8700212 |
YR22..MRF..4FC RED MICA,3H4 |
1 | ||
| 76056-8700246 |
YR22..4FC DR. BROWN M.,22L ,4K5 |
1 | ||
| 76562-87005 |
YR22 |
1 | ||
| 75622B - MOULDING, SIDE PANEL, NO.2 LH | ||||
| 76056-8700234 |
YR22..MRF..4FC BLUE METALLIC,8D7 |
1 | ||
| 76056-8700228 |
YR22..MRF..4FC WHITE,045 |
1 | ||
| 76056-8700203 |
YR22..MRF..4FC SILVER METALLIC,148 |
1 | ||
| 76056-8700236 |
YR22..MRF..4FC L. REDDISH BROWN M.,4K7 |
1 | ||
| 76056-8700243 |
YR22..MRF..4FC GRAY M.,168 ,20L |
1 | ||
| 76056-8700244 |
YR22..MRF..4FC LIGHT BLUE METALLIC,8D8 |
1 | ||
| 76056-8700212 |
YR22..MRF..4FC RED MICA,3H4 |
1 | ||
| 76056-8700246 |
YR22..4FC DR. BROWN M.,22L ,4K5 |
1 | ||
| 76562-87005 |
YR22 |
1 | ||
| 75623B - MOULDING, SIDE PANEL, NO.3 LH | ||||
| 75705-8700243 |
YR22..MRF..4FC GRAY M.,168 ,20L |
1 | ||
| 75705-8700228 |
YR22..MRF..4FC WHITE,045 |
1 | ||
| 75705-8700222 |
YR22..MRF..4FC RED MICA,3H4 |
1 | ||
| 75705-8700246 |
YR22..MRF..4FC L. REDDISH BROWN M.,4K7 |
1 | ||
| 75705-8700244 |
YR22..MRF..4FC BLUE METALLIC,8D7 |
1 | ||
| 75705-8700256 |
YR22..4FC DR. BROWN M.,22L ,4K5 |
1 | ||
| 75705-8700203 |
YR22..MRF..4FC SILVER METALLIC,148 |
1 | ||
| 75741-87004 |
YR22 |
1 | ||
| 75705-8700254 |
YR22..MRF..4FC LIGHT BLUE METALLIC,8D8 |
1 | ||
| 75623B - MOULDING, SIDE PANEL, NO.3 LH | ||||
| 75705-8700243 |
YR22..MRF..4FC GRAY M.,168 ,20L |
1 | ||
| 75705-8700228 |
YR22..MRF..4FC WHITE,045 |
1 | ||
| 75705-8700222 |
YR22..MRF..4FC RED MICA,3H4 |
1 | ||
| 75705-8700246 |
YR22..MRF..4FC L. REDDISH BROWN M.,4K7 |
1 | ||
| 75705-8700244 |
YR22..MRF..4FC BLUE METALLIC,8D7 |
1 | ||
| 75705-8700256 |
YR22..4FC DR. BROWN M.,22L ,4K5 |
1 | ||
| 75705-8700203 |
YR22..MRF..4FC SILVER METALLIC,148 |
1 | ||
| 75741-87004 |
YR22 |
1 | ||
| 75705-8700254 |
YR22..MRF..4FC LIGHT BLUE METALLIC,8D8 |
1 | ||
| 75624B - MOULDING, SIDE PANEL, NO.4 LH | ||||
| 75066-8700243 |
YR22..MRF..4FC GRAY M.,168 ,20L |
1 | ||
| 75066-8700246 |
YR22..MRF..4FC L. REDDISH BROWN M.,4K7 |
1 | ||
| 75066-8700222 |
YR22..MRF..4FC RED MICA,3H4 |
1 | ||
| 75066-8700203 |
YR22..MRF..4FC SILVER METALLIC,148 |
1 | ||
| 75066-8700256 |
YR22..4FC DR. BROWN M.,22L ,4K5 |
1 | ||
| 75066-8700228 |
YR22..MRF..4FC WHITE,045 |
1 | ||
| 75066-8700254 |
YR22..MRF..4FC LIGHT BLUE METALLIC,8D8 |
1 | ||
| 75656-87002 |
YR22 |
1 | ||
| 75066-8700244 |
YR22..MRF..4FC BLUE METALLIC,8D7 |
1 | ||
| 75624B - MOULDING, SIDE PANEL, NO.4 LH | ||||
| 75066-8700243 |
YR22..MRF..4FC GRAY M.,168 ,20L |
1 | ||
| 75066-8700246 |
YR22..MRF..4FC L. REDDISH BROWN M.,4K7 |
1 | ||
| 75066-8700222 |
YR22..MRF..4FC RED MICA,3H4 |
1 | ||
| 75066-8700203 |
YR22..MRF..4FC SILVER METALLIC,148 |
1 | ||
| 75066-8700256 |
YR22..4FC DR. BROWN M.,22L ,4K5 |
1 | ||
| 75066-8700228 |
YR22..MRF..4FC WHITE,045 |
1 | ||
| 75066-8700254 |
YR22..MRF..4FC LIGHT BLUE METALLIC,8D8 |
1 | ||
| 75656-87002 |
YR22 |
1 | ||
| 75066-8700244 |
YR22..MRF..4FC BLUE METALLIC,8D7 |
1 | ||
| 75625B - MOULDING, SIDE PANEL, NO.5 LH | ||||
| 75658-87004 |
YR22 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90430-04002 | ||||
