YR22RG-MQEQ (1985)

Toyota Model-F

Production Aug 1985 - Aug 1988
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

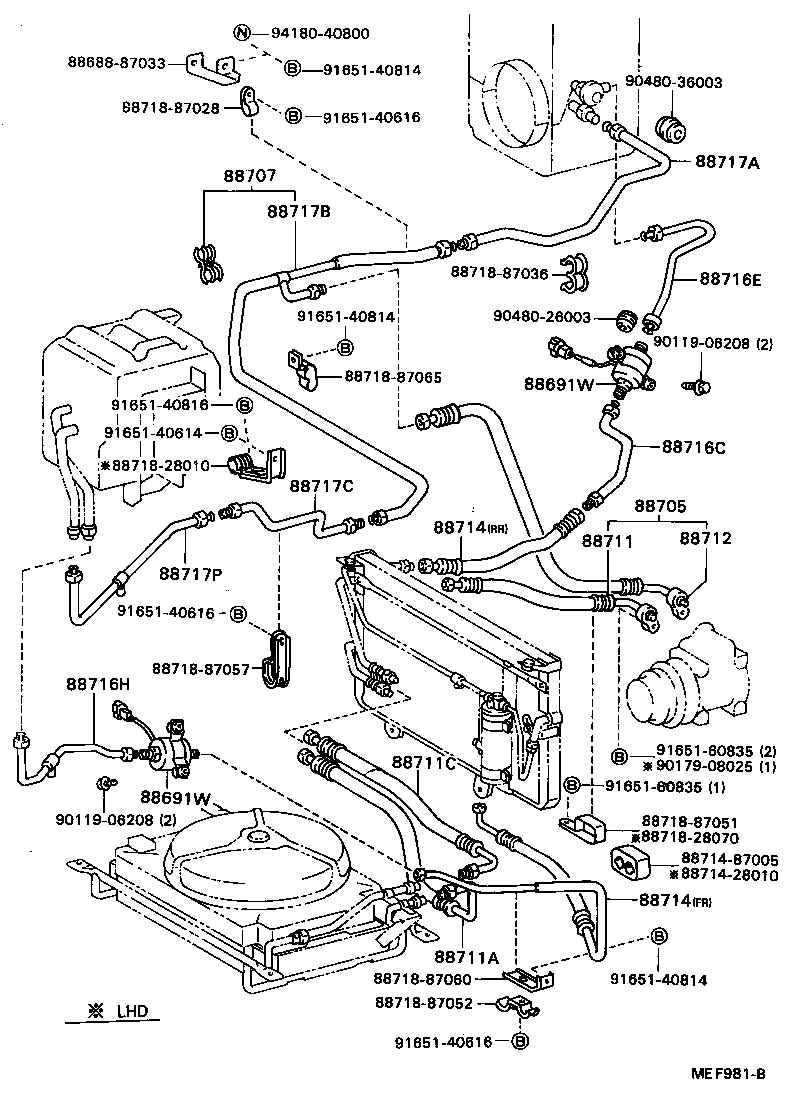

ILLUST NO. 2 OF 3(8508- )YR2#

Click highlighted areas on diagram

diagram 8868887033 88691W 88691W 88705 88707 88711 88711A 88711C 88712 88714 88714 8871428010 8871487005 88716C 88716E 88716H 88717A 88717B 88717C 88717P 8871828010 8871828070 8871887028 8871887036 8871887051 8871887052 8871887057 8871887060 8871887065 9011906208 9011906208 9017908025 9048026003 9048036003 9165140614 9165140616 9165140616 9165140616 9165140814 9165140814 9165140814 9165140816 9165160835 9165160835 9418040800
Part # Description Qty Price
88691W - VALVE, MAGNET
88690-87015

CR21,YR2#..ARL,GEN

FR COOLER

 1
88691-87001

CR21,YR2#..ARL,GEN

RR COOLER

 1
88690-87015

CR21,YR2#..ARL

FR COOLER

 1
88691W - VALVE, MAGNET
88690-87015

CR21,YR2#..ARL,GEN

FR COOLER

 1
88691-87001

CR21,YR2#..ARL,GEN

RR COOLER

 1
88690-87015

CR21,YR2#..ARL

FR COOLER

 1
88705 - PIPE SUB-ASSY, DISCHARGE
88705-87001

YR2#..ARL

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-87003

CR21,YR2#..ARL

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-87027

YR2#..ARL

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-87007

YR2#..ARL,GEN

 1
88712-87016

YR2#..ARL

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-87011

CR21,YR2#..ARL

RR

 1
88721-87008

CR21,YR2#..ARL

FR

 1
88721-87011

YR22..GL..ARL

RR

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-87011

CR21,YR2#..ARL

RR

 1
88721-87008

CR21,YR2#..ARL

FR

 1
88721-87011

YR22..GL..ARL

RR

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-87027

CR21,YR2#..ARL,GEN

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-87028

CR21,YR2#..ARL

 1
88716-87028

CR21,YR2#..ARL,GEN

 1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88721-87004

CR21,YR2#..RHD..(ARL,GEN)

 1
88716-87056

CR21,YR2#..ARL

W/COOL BOX

 1
88716-87046

CR21,YR2#..ARL

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-87019

CR21,YR2#..ARL,GEN

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-87043

CR21,YR2#..ARL

 1
88717-87026

YR2#..ARL,GEN

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-87046

CR21,YR2#..ARL

 1
88717-87041

CR21,YR2#..ARL

W/COOL BOX

 1
88717-87027

YR2#..ARL,GEN

 1
88717P - PIPE, COOLER REFRIGERANT SUCTION, P
88717-87040

CR21,YR2#..ARL

 1
88717-87020

CR21,YR2#..RHD..(ARL,GEN)

 1
Common parts
88688-87033
88714-28010
88714-87005
88718-28010
88718-28070
88718-87028
88718-87036
88718-87051
88718-87052
88718-87057
88718-87060
88718-87065
90119-06208
90179-08025
90480-26003
90480-36003
91651-40614
91651-40616
91651-40814
91651-40816
91651-60835
94180-40800

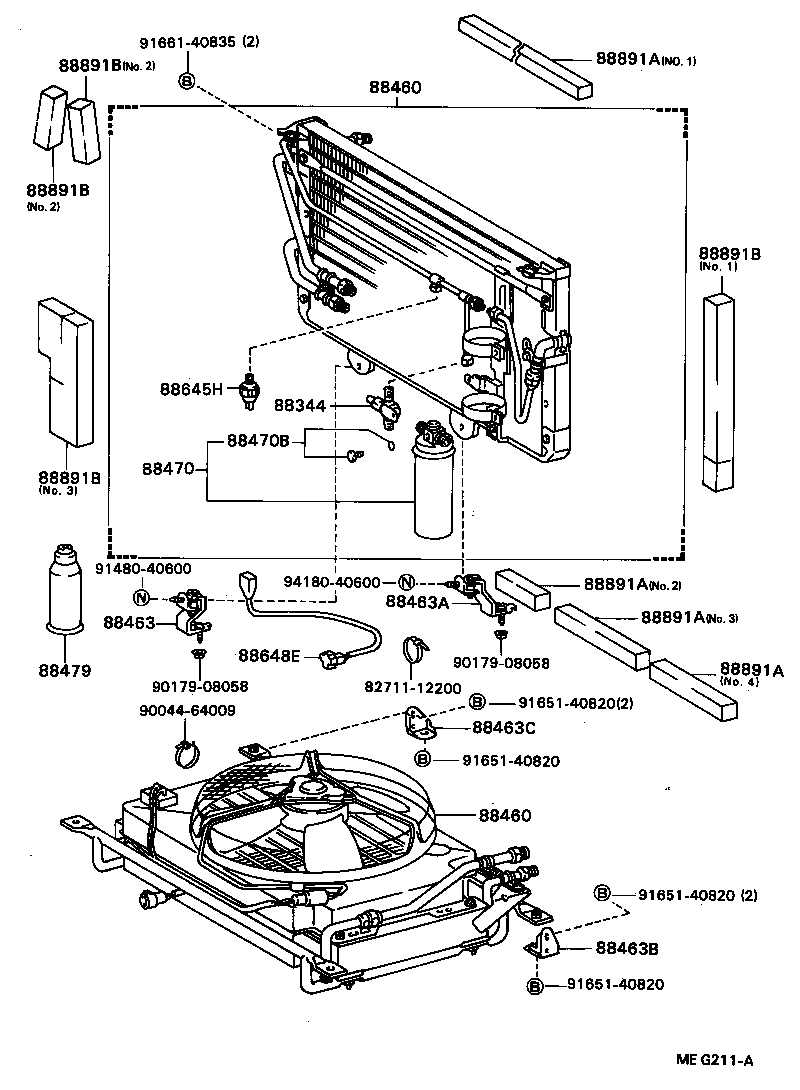

ILLUST NO. 1 OF 3(8508- )CR21,YR2#..ARL

Click highlighted areas on diagram

diagram 8271112200 88344 88460 88460 88463 88463A 88463B 88463C 88470 88470B 88479 88645H 88648E 88891A 88891A 88891A 88891A 88891B 88891B 88891B 88891B 9004464009 9017908058 9017908058 9148040600 9165140820 9165140820 9165140820 9165140820 9166140835 9418040600
Part # Description Qty Price
88344 - GLASS SUB-ASSY, SIGHT
88481-87002

CR21,YR2#..ARL,GEN

 1
88460 - CONDENSER ASSY, COOLER
88450-87002

CR21,YR2#..ARL,GEN

 1
88450-87005

CR21,YR2#..ARL

RADIATOR

 1
88460-87008

CR21,YR2#..ARL

FLOOR

 1
88460 - CONDENSER ASSY, COOLER
88450-87002

CR21,YR2#..ARL,GEN

 1
88450-87005

CR21,YR2#..ARL

RADIATOR

 1
88460-87008

CR21,YR2#..ARL

FLOOR

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-87009

CR21,YR2#..ARL

 1
88463-87008

CR21,YR2#..ARL,GEN

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-87011

CR21,YR2#..ARL,GEN

 1
88463-87010

CR21,YR2#..ARL

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-87014

CR21,YR2#..ARL,GEN

 1
88463C - BRACKET, COOLER CONDENSER, NO.4
88463-87015

CR21,YR2#,31..ARL,GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-14010

CR21,YR2#..ARL,GEN

 1
88470B - BOLT, FUSE
90099-04579

CR21,YR2#..ARL

 1
90099-04579

CR21,YR2#..ARL,GEN

 1
88645H - SWITCH, PRESSURE NO.1
88645-12010

CR21,YR2#..ARL,GEN

 1
88645-12020

CR21,YR2#..ARL,GEN

 1
88648E - WIRING, COOLER
88648-87004

CR21,YR2#..ARL,GEN

 1
88891A - PACKING A (FOR COOLER)
88578-87001

CR21,YR2#..ARL,GEN

NO.1

 1
88578-87005

CR21,YR2#..ARL,GEN

NO.2

 1
88578-87004

CR21,YR2#..ARL

NO.4

 1
88578-28020

CR21,YR2#..ARL,GEN

NO.3

 1
88578-87005

CR21,YR2#..ARL

NO.2

 1
88578-87009

CR21,YR2#..ARL

NO.3

 1
88578-87004

CR21,YR2#..ARL,GEN

NO.4

 1
88891A - PACKING A (FOR COOLER)
88578-87001

CR21,YR2#..ARL,GEN

NO.1

 1
88578-87005

CR21,YR2#..ARL,GEN

NO.2

 1
88578-87004

CR21,YR2#..ARL

NO.4

 1
88578-28020

CR21,YR2#..ARL,GEN

NO.3

 1
88578-87005

CR21,YR2#..ARL

NO.2

 1
88578-87009

CR21,YR2#..ARL

NO.3

 1
88578-87004

CR21,YR2#..ARL,GEN

NO.4

 1
88891A - PACKING A (FOR COOLER)
88578-87001

CR21,YR2#..ARL,GEN

NO.1

 1
88578-87005

CR21,YR2#..ARL,GEN

NO.2

 1
88578-87004

CR21,YR2#..ARL

NO.4

 1
88578-28020

CR21,YR2#..ARL,GEN

NO.3

 1
88578-87005

CR21,YR2#..ARL

NO.2

 1
88578-87009

CR21,YR2#..ARL

NO.3

 1
88578-87004

CR21,YR2#..ARL,GEN

NO.4

 1
88891A - PACKING A (FOR COOLER)
88578-87001

CR21,YR2#..ARL,GEN

NO.1

 1
88578-87005

CR21,YR2#..ARL,GEN

NO.2

 1
88578-87004

CR21,YR2#..ARL

NO.4

 1
88578-28020

CR21,YR2#..ARL,GEN

NO.3

 1
88578-87005

CR21,YR2#..ARL

NO.2

 1
88578-87009

CR21,YR2#..ARL

NO.3

 1
88578-87004

CR21,YR2#..ARL,GEN

NO.4

 1
88891B - PACKING B (FOR COOLER)
88893-28010

CR21,YR2#..ARL

NO.1

 1
88893-28040

CR21,YR2#..RHD

NO.3

 1
88893-28020

CR21,YR2#..ARL

NO.2

 1
88891B - PACKING B (FOR COOLER)
88893-28010

CR21,YR2#..ARL

NO.1

 1
88893-28040

CR21,YR2#..RHD

NO.3

 1
88893-28020

CR21,YR2#..ARL

NO.2

 1
88891B - PACKING B (FOR COOLER)
88893-28010

CR21,YR2#..ARL

NO.1

 1
88893-28040

CR21,YR2#..RHD

NO.3

 1
88893-28020

CR21,YR2#..ARL

NO.2

 1
88891B - PACKING B (FOR COOLER)
88893-28010

CR21,YR2#..ARL

NO.1

 1
88893-28040

CR21,YR2#..RHD

NO.3

 1
88893-28020

CR21,YR2#..ARL

NO.2

 1
Common parts
82711-12200
90044-64009
90179-08058
91480-40600
91651-40820
91661-40835
94180-40600
