YR22RG-MQEQ (1985)

Toyota Model-F

Production Aug 1985 - Aug 1988
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )ARL

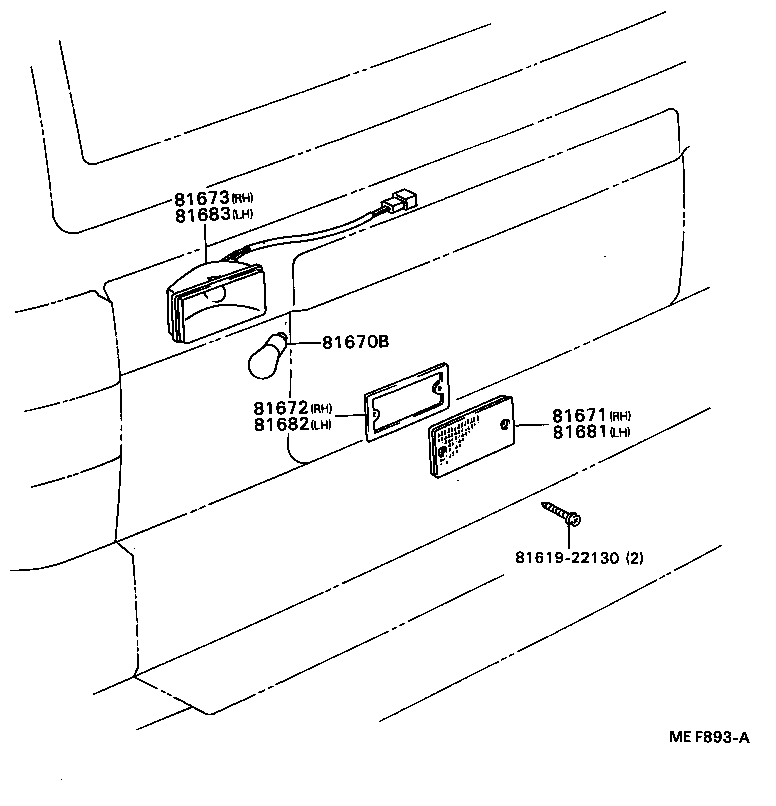

Click highlighted areas on diagram

diagram 8161922130 81670B 81671 81672 81673 81681 81682 81683
Part # Description Qty Price
81670B - BULB(FOR BACK-UP LAMP)
99132-11230

CR21,YR2#,31..ARL

12V 23W,12V 23W

 2
81671 - LENS, BACK-UP LAMP, RH
81671-87001

CR21,YR2#,31..ARL

 1
81672 - GASKET, BACK-UP LAMP LENS, RH
81672-87001

CR21,YR2#,31..ARL

 1
81673 - BODY, BACK-UP LAMP, RH
81673-87001

CR21,YR2#,31..ARL

 1
81681 - LENS, BACK-UP LAMP, LH
81681-87001

CR21,YR2#,31..ARL

 1
81682 - GASKET, BACK UP LAMP LENS, LH
81672-87001

CR21,YR2#,31..ARL

 1
81683 - BODY, BACK UP LAMP, LH
81683-87001

CR21,YR2#,31..ARL

 1
Common parts
81619-22130
