YR22RG-MQEQ (1985)

Toyota Model-F

Production Aug 1985 - Aug 1988
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

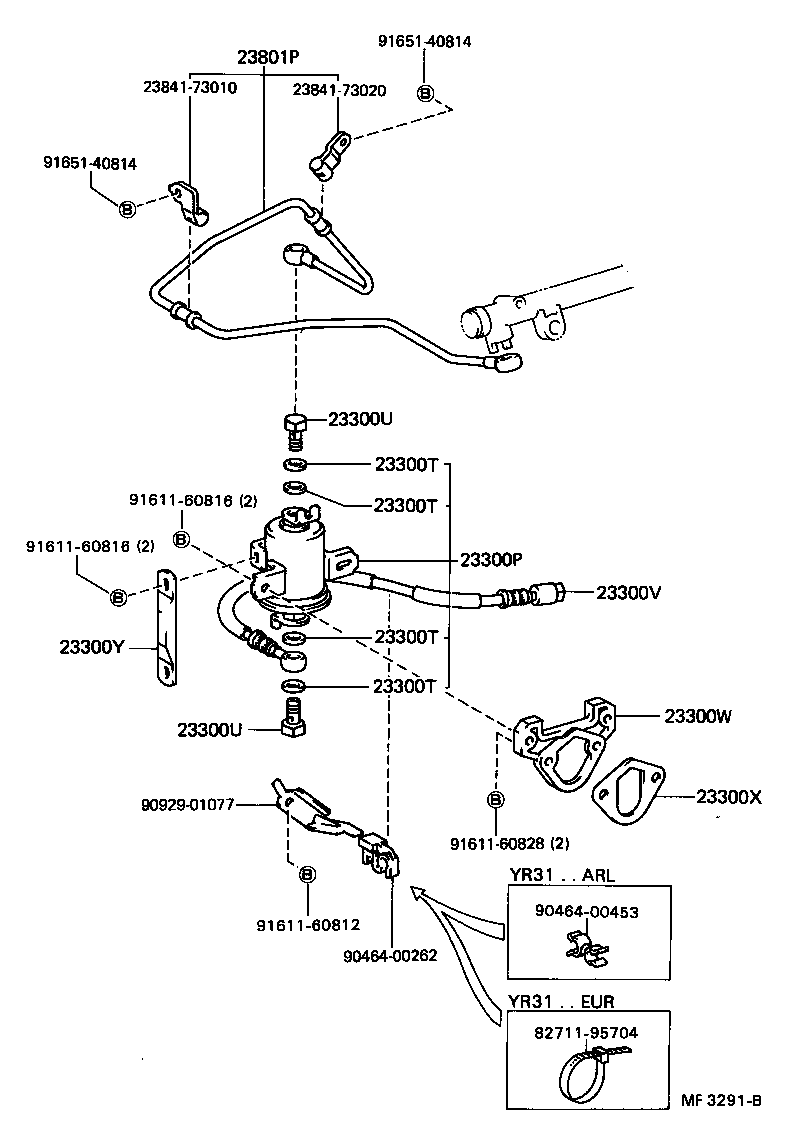

ILLUST NO. 2 OF 3(8508- )4YEC

Click highlighted areas on diagram

diagram 23300P 23300T 23300T 23300T 23300T 23300U 23300U 23300V 23300W 23300X 23300Y 23801P 2384173010 2384173020 8271195704 9046400262 9046400453 9092901077 9161160812 9161160816 9161160816 9161160828 9165140814 9165140814
Part # Description Qty Price
23300P - FILTER, FUEL(FOR EFI)
23300-79055

4YEC..YR22,31

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

4YEC..YR22,31

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

4YEC..YR22,31

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

4YEC..YR22,31

 4
23300T - GASKET(FOR FUEL FILTER)
90430-12005

4YEC..YR22,31

 4
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

4YEC..YR22,31

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

4YEC..YR22,31

 2
23300V - HOSE, FUEL(FOR FUEL INLET)
90923-01286

4YEC..YR22,31

 1
90923-01286

4YEC..YR22

 1
23300W - BRACKET, FUEL FILTER
23264-73010

4YEC..YR22,31

 1
23300X - INSULATOR(FOR FUEL FILTER BRACKET)
90923-06006

4YEC..YR22,31

 1
23300Y - SUPPORT, FUEL FILTER
23921-73010

4YEC..YR22,31

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-73010

4YEC..YR22,31

 1
Common parts
23841-73010
23841-73020
82711-95704
90464-00262
90464-00453
90929-01077
91611-60812
91611-60816
91611-60828
91651-40814

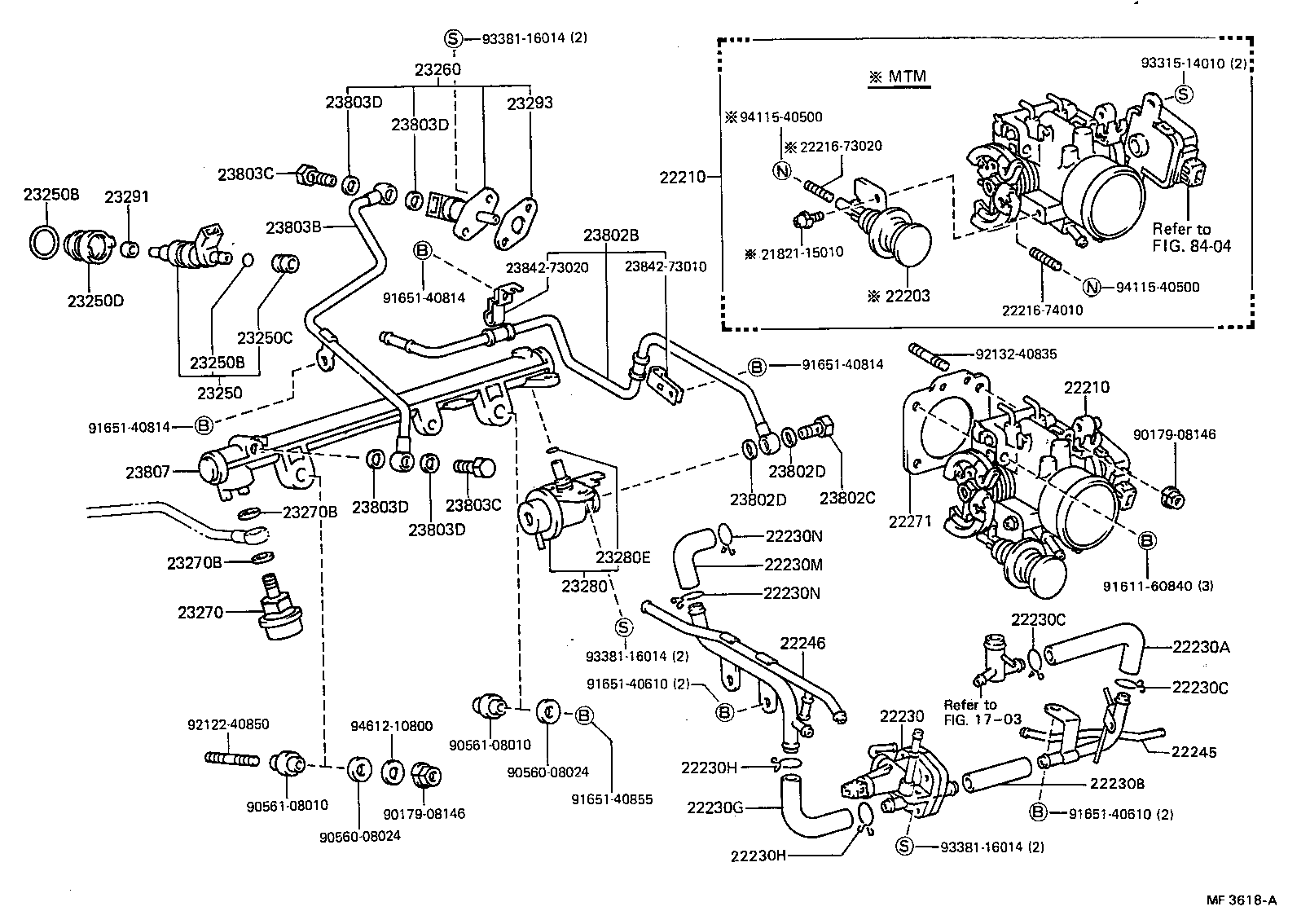

ILLUST NO. 1 OF 3(8508- )4YEC

Click highlighted areas on diagram

diagram 1703 2182115010 22203 22210 22210 2221673020 2221674010 22230 22230A 22230B 22230C 22230C 22230G 22230H 22230H 22230M 22230N 22230N 22245 22246 22271 23250 23250B 23250B 23250C 23250D 23260 23270 23270B 23270B 23280 23280E 23291 23293 23802B 23802C 23802D 23802D 23803B 23803C 23803C 23803D 23803D 23803D 23803D 23807 2384273010 2384273020 8404 9017908146 9017908146 9056008024 9056008024 9056108010 9056108010 9161160840 9165140610 9165140610 9165140814 9165140814 9165140814 9165140855 9212240850 9213240835 9331514010 9338116014 9338116014 9338116014 9411540500 9411540500 9461210800
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22202-73022

4YEC..YR22,31..5F

 1
22210 - BODY ASSY, THROTTLE
22210-73022

4YEC..YR22,31..5F

 1
22210 - BODY ASSY, THROTTLE
22210-73022

4YEC..YR22,31..5F

 1
22230 - VALVE ASSY, AUXILIARY AIR
22230-73011

4YEC..YR22,31

 1
22230A - HOSE, AUXILIARY AIR VALVE, NO.1
22233-73010

4YEC..YR22,31

 1
22230B - HOSE, AUXILIARY AIR VALVE, NO.2
90445-21008

4YEC..YR22,31

 1
22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1
90467-19003

4YEC..YR22,31

 2
22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1
90467-19003

4YEC..YR22,31

 2
22230G - HOSE, AUXILIARY AIR VALVE, NO.3
22236-73011

4YEC..YR22,31

 1
22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3
90467-19003

4YEC..YR22,31

 2
22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3
90467-19003

4YEC..YR22,31

 2
22230M - HOSE, AUXILIARY AIR VALVE, NO.4
22237-73010

4YEC..YR22,31

 1
22230N - CLIP, AUXILIARY AIR VALVE, NO.4
90467-19003

4YEC..YR22,31

 2
22230N - CLIP, AUXILIARY AIR VALVE, NO.4
90467-19003

4YEC..YR22,31

 2
22245 - PIPE, AUXILIARY AIR, NO.2
22245-73011

4YEC..YR22,31

 1
22246 - PIPE, AUXILIARY AIR, NO.3
22246-73011

4YEC..YR22,31

 1
22271 - GASKET, THROTTLE BODY
22271-73010

4YEC..YR22,31

 1
23250 - INJECTOR ASSY, FUEL
23209-45011

4YEC..YR22,31..ARL

 4
23209-45011

4YEC..YR22,31

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-23004

4YEC..YR22,31

MANIFOLD SIDE

 4
90301-07001

4YEC..YR22,31

DELIVERY PIPE SIDE

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-23004

4YEC..YR22,31

MANIFOLD SIDE

 4
90301-07001

4YEC..YR22,31

DELIVERY PIPE SIDE

 4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

4YEC..YR22,31

 1
23250D - SPACER(FOR FUEL INJECTOR)
90561-10002

4YEC..YR22,31

 4
23260 - INJECTOR ASSY, COLD START FUEL
23260-79085

4YEC..YR22,31

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-52011

4YEC..YR22,31

 1
23270-73010

4YEC..YR22,31

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-12005

4YEC..YR22,31

PIPE SIDE

 1
23232-28010

4YEC..YR22,31

DAMPER SIDE

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-12005

4YEC..YR22,31

PIPE SIDE

 1
23232-28010

4YEC..YR22,31

DAMPER SIDE

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-73030

4YEC..YR22,31..ARL

 1
23280-73010

4YEC..YR22,31

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

4YEC..YR22,31

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-73010

4YEC..YR22,31

 4
23293 - GASKET, COLD START INJECTOR
23293-73010

4YEC..YR22,31

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-73011

4YEC..YR22,31

 1
23802-73020

4YEC..YR22,31

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-08004

4YEC..YR22,31

 1
90401-08003

4YEC..YR22,31

 1
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08007

4YEC..YR22,31

 2
90430-08011

4YEC..YR22,31

 2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08007

4YEC..YR22,31

 2
90430-08011

4YEC..YR22,31

 2
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-73011

4YEC..YR22,31

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08004

4YEC..YR22,31

 2
90401-08003

4YEC..YR22,31

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08004

4YEC..YR22,31

 2
90401-08003

4YEC..YR22,31

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08009

4YEC..YR22,31

 4
90430-08005

4YEC..YR22,31

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08009

4YEC..YR22,31

 4
90430-08005

4YEC..YR22,31

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08009

4YEC..YR22,31

 4
90430-08005

4YEC..YR22,31

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08009

4YEC..YR22,31

 4
90430-08005

4YEC..YR22,31

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-73010

4YEC..YR22,31

 1
Common parts
21821-15010
22216-73020
22216-74010
23842-73010
23842-73020
90179-08146
90560-08024
90561-08010
91611-60840
91651-40610
91651-40814
91651-40855
92122-40850
92132-40835
93315-14010
93381-16014
94115-40500
94612-10800
Linked diagrams
1703
8404

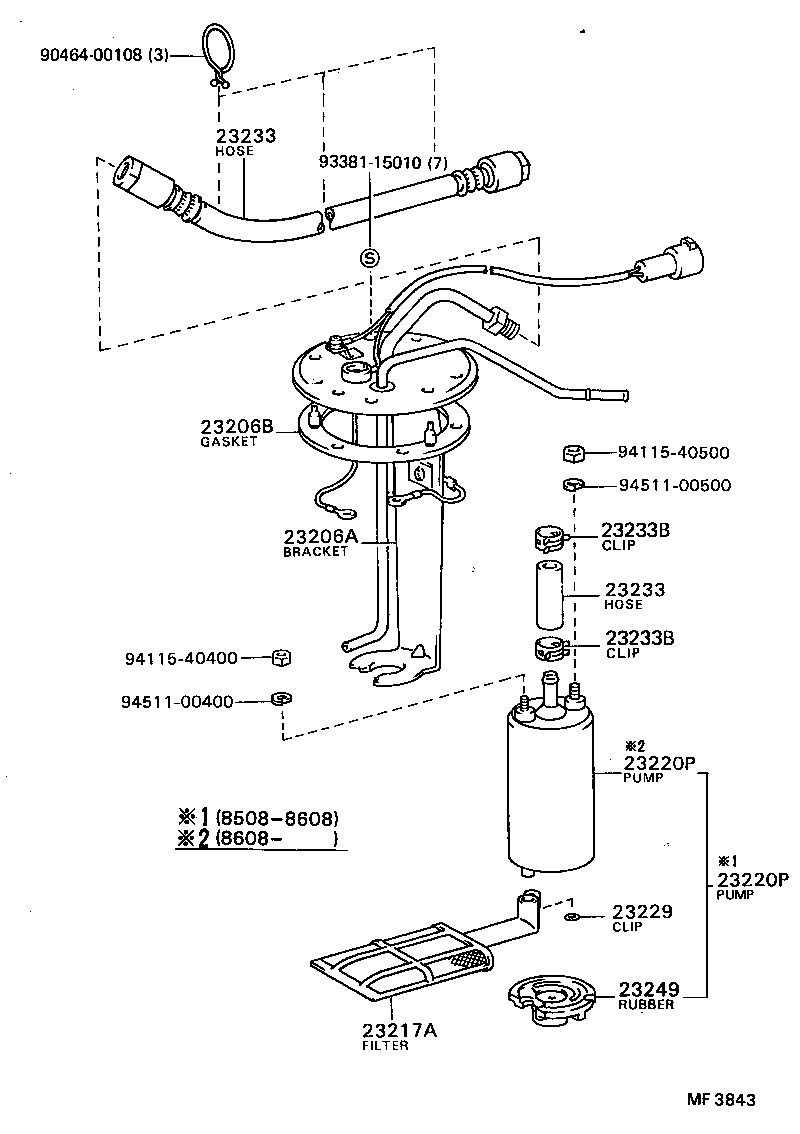

ILLUST NO. 3 OF 3(8508- )4YEC

Click highlighted areas on diagram

diagram 23206A 23206B 23217A 23220P 23220P 23229 23233 23233 23233B 23233B 23249 9046400108 9338115010 9411540400 9411540500 9451100400 9451100500
Part # Description Qty Price
23206A - BRACKET, FUEL PUMP
23206-73020

4YEC..YR22

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-14010

4YEC..YR22,31

 1
23217A - FILTER, FUEL PUMP
23217-73010

4YEC..YR22,31

 1
23220P - PUMP ASSY, FUEL
23220-16190

4YEC..YR22,31

 1
23220-19015

4YEC..YR22,31

 1
23220P - PUMP ASSY, FUEL
23220-16190

4YEC..YR22,31

 1
23220-19015

4YEC..YR22,31

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

4YEC..YR22,31

 1
23233 - HOSE, FUEL PUMP
90923-01303

4YEC..YR22,31

BRACKET TO FUEL PIPE

 1
23239-16010

4YEC..YR22,31

PUMP TO BRACKET

 1
23233 - HOSE, FUEL PUMP
90923-01303

4YEC..YR22,31

BRACKET TO FUEL PIPE

 1
23239-16010

4YEC..YR22,31

PUMP TO BRACKET

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13001

4YEC..YR22,31

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13001

4YEC..YR22,31

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-43080

4YEC..YR22,31

 1
Common parts
90464-00108
93381-15010
94115-40400
94115-40500
94511-00400
94511-00500
