YR22RG-MQEQ (1988)

Toyota Model-F

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )YR2#

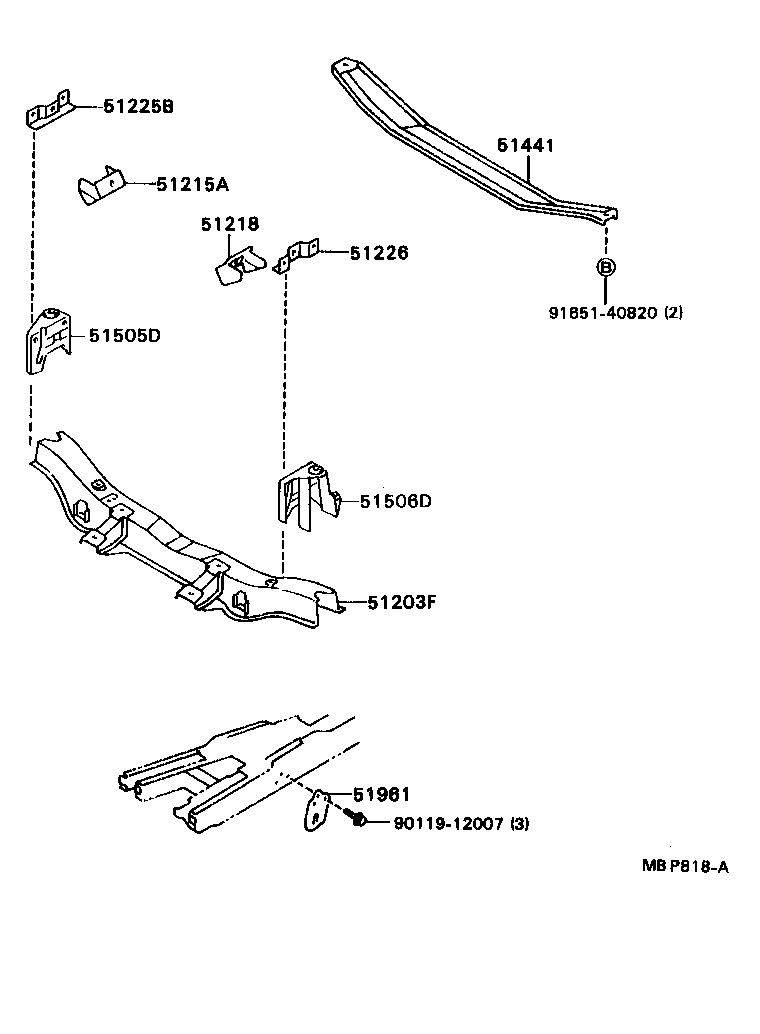

Click highlighted areas on diagram

diagram 51203F 51215A 51218 51225B 51226 51441 51505D 51506D 51961 9011912007 9165140820
Part # Description Qty Price
51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51221-28904

YR2#..MRF..ARL

W(POWER STEERING)

 1
51221-28903

YR2#..MRF..ARL

 1
51215A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51215-87007

YR2#

 1
51218 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
51218-87002

YR2#

 1
51225B - BRACKET, FRONT SUSPENSION MEMBER, RH
51225-87003

YR2#

 1
51226 - BRACKET, FRONT SUSPENSION MEMBER, LH
51226-87003

YR2#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-87002

YR2#

 1
51505D - SUPPORT ASSY, FRONT SUSPENSION RH
51505-28903

YR2#..ARL

 1
51506D - SUPPORT ASSY, FRONT SUSPENSION, LH
51506-28903

YR2#..ARL

 1
51961 - HOOK, NO.1
51970-87001

YR2#

RH

 1
51980-87001

YR2#

LH

 1
Common parts
90119-12007
91651-40820
