YR22RG-MDEQ (1988)

Toyota Model-F

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

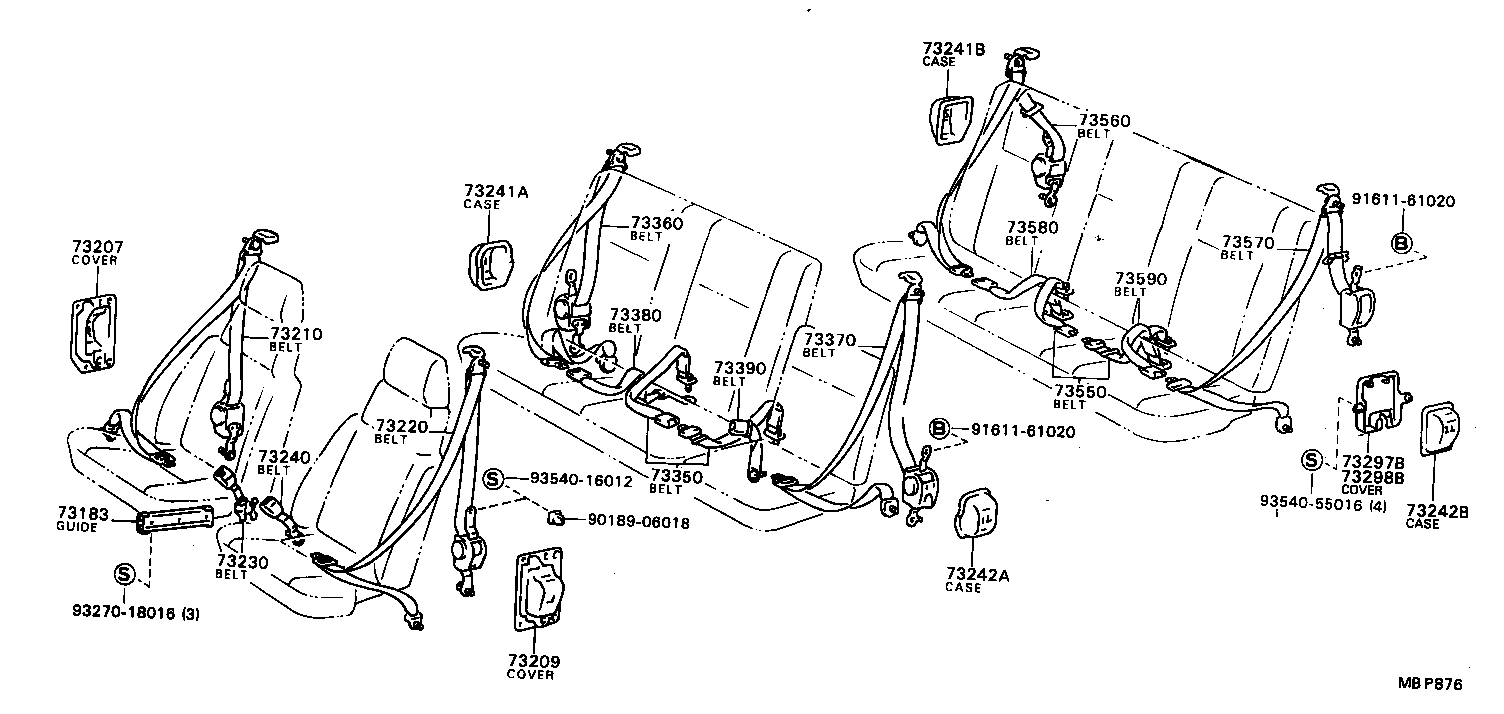

Click highlighted areas on diagram

diagram 73183 73207 73209 73210 73220 73230 73240 73241A 73241B 73242A 73242B 73297B 73298B 73350 73360 73370 73380 73390 73550 73560 73570 73580 73590 9018906018 9161161020 9161161020 9327018016 9354016012 9354055016
Part # Description Qty Price
73183 - GUIDE, FRONT SEAT LAP BELT, INNER
73183-87001

YR2#,31..ARL

 1
73207 - COVER SUB-ASSY, SEAT BELT RETRACTOR, RH
73207-87003

YR2#,31

 1
73209 - COVER SUB-ASSY, SEAT BELT RETRACTOR, LH
73209-87003

YR2#,31

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-2809103

YR2#,31..MRF

SHADOW GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-2806203

YR2#,31..MRF..ARL

SHADOW GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-2808003

YR2#,31..MRF..ARL

SHADOW GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-2805103

YR2#,31..MRF..ARL

SHADOW GRAY,TRIM1#

 1
73241A - CASE, SEAT BELT RETRACTOR, RH
73241-28040

YR2#,31..ARL

 1
73241B - CASE, SEAT BELT RETRACTOR, RH(FOR NO.2 SEAT)
73241-28020

YR2#,31..ARL

 1
73242A - CASE, SEAT BELT RETRACTOR, LH
73242-28010

YR2#,31..ARL

 1
73242B - CASE, SEAT BELT RETRACTOR, LH(FOR NO.2 SEAT)
73242-28020

YR2#,31..ARL

 1
73297B - COVER, QUARTER TRIM BELT HOLE, RH
73297-2801013

YR2#,31..MRF..ARL

SHADOW GRAY,TRIM1#

 1
73298B - COVER, QUARTER TRIM BELT HOLE, LH
73298-2801013

YR2#,31..MRF..ARL

SHADOW GRAY,TRIM1#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-2808103

YR2#,31..MRF..ARL

SHADOW GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-2804203

YR2#,31..MRF..ARL

SHADOW GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-2804203

YR2#,31..MRF..ARL

SHADOW GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-2806103

YR2#,31..MRF..ARL

SHADOW GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73390-2805103

YR2#,31..MRF..ARL

SHADOW GRAY,TRIM1#

 1
73550 - BELT ASSY, REAR NO.2 SEAT LAP TYPE, CENTER
73550-2807103

YR2#,31..MRF..ARL

SHADOW GRAY,TRIM1#

 1
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-2804203

YR2#,31..MRF..ARL

SHADOW GRAY,TRIM1#

 1
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-2804203

YR2#,31..MRF..ARL

SHADOW GRAY,TRIM1#

 1
73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH
73580-2802103

YR2#,31..MRF..ARL

SHADOW GRAY,TRIM1#

 1
73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH
73580-2802103

YR2#,31..MRF..ARL

SHADOW GRAY,TRIM1#

 1
Common parts
90189-06018
91611-61020
93270-18016
93540-16012
93540-55016
