YR22RG-MDEQ (1988)
Toyota Model-F
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

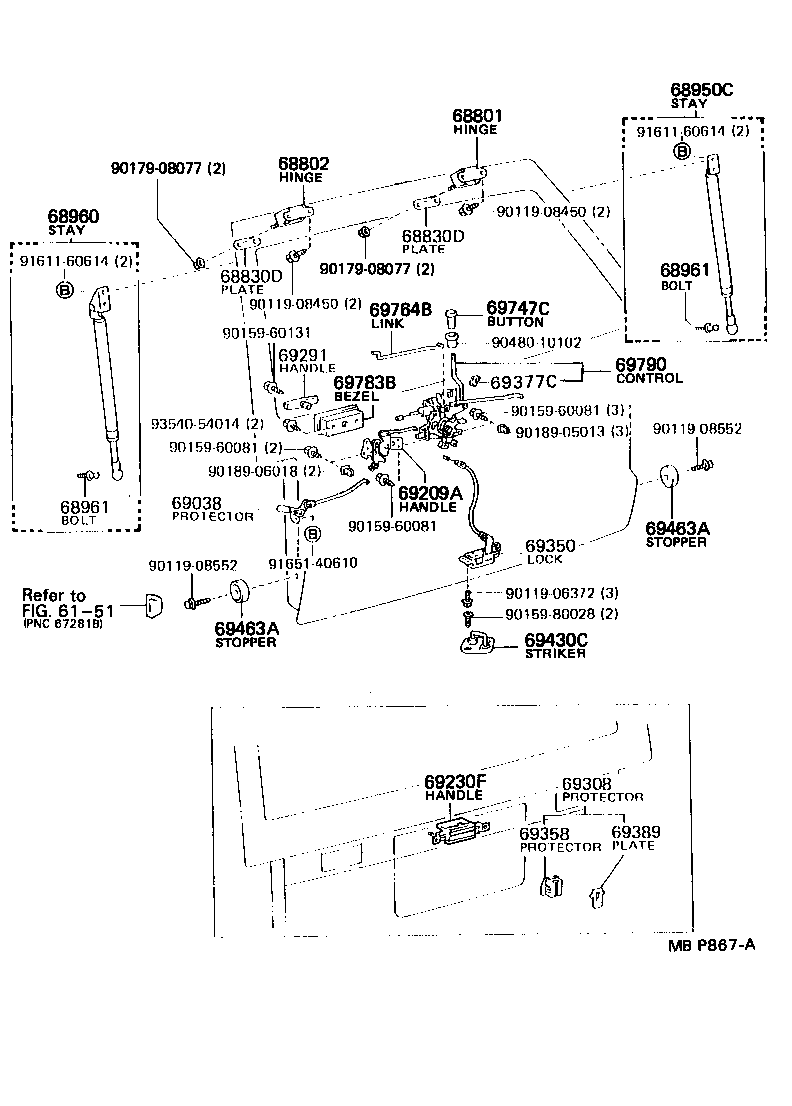

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH | ||||
| 68801-87006 |
YR2#..DLX;YR21..GEN W(REAR WINDOW WIPER) |
1 | ||
| 68801-87005 |
YR2#..DLX;YR21..GEN |
1 | ||
| 68802 - HINGE SUB-ASSY, BACK DOOR, UPPER LH | ||||
| 68801-87005 |
YR2#,31 |
1 | ||
| 68830D - PLATE, BACK DOOR HINGE | ||||
| 68715-87001 |
YR2#,31..MRF |
2 | ||
| 68830D - PLATE, BACK DOOR HINGE | ||||
| 68715-87001 |
YR2#,31..MRF |
2 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-29535 |
YR2#..DLX;YR21..GEN |
1 | ||
| 68950-29545 |
YR2#..DLX;YR21..GEN W(REAR WINDOW WIPER) |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-29205 |
YR2#..DLX;YR21..GEN |
1 | ||
| 68960-29215 |
YR2#..DLX;YR21..GEN W(REAR WINDOW WIPER) |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-28010 |
YR2#,31 |
2 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-28010 |
YR2#,31 |
2 | ||
| 69038 - PROTECTOR SUB-ASSY, BACK DOOR CHILD | ||||
| 69038-28010 |
YR2#,31..ARL |
1 | ||
| 69209A - HANDLE SUB-ASSY, BACK DOOR, INSIDE | ||||
| 69209-28010 |
YR2#,31..ARL |
1 | ||
| 69230F - HANDLE ASSY, REAR DOOR OUTSIDE | ||||
| 69230-87008 |
YR2#,31..ARL |
1 | ||
| 69230-87005 |
YR2#,31..ARL |
1 | ||
| 69291 - HANDLE ASSY, BACK DOOR INSIDE | ||||
| 69291-95J0003 |
YR2#,31..MRF GRAY,TRIM1# |
1 | ||
| 69308 - PROTECTOR SUB-ASSY, BACK DOOR LOCK | ||||
| 69308-87001 |
YR2#,31 |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-87006 |
YR2#,31 |
1 | ||
| 69358 - PROTECTOR, BACK DOOR LOCK | ||||
| 69358-87001 |
YR2#,31 |
1 | ||
| 69377C - SNAP, DOOR LOCK CONTROL ROD | ||||
| 69377-13020 |
YR2#,31 |
1 | ||
| 69389 - PLATE, BACK DOOR LOCK | ||||
| 69389-87001 |
YR2#,31 |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-28010 |
YR2#,31 |
1 | ||
| 69463A - STOPPER, BACK DOOR MALE, LOWER | ||||
| 69463-87002 |
YR2#,31 |
2 | ||
| 69463A - STOPPER, BACK DOOR MALE, LOWER | ||||
| 69463-87002 |
YR2#,31 |
2 | ||
| 69747C - BUTTON, DOOR LOCKING(FOR BACK DOOR) | ||||
| 69747-87701 |
YR2#,31 |
1 | ||
| 69783B - BEZEL, BACK DOOR INSIDE HANDLE | ||||
| 69783-95J0003 |
YR2#,31..MRF GRAY,TRIM1# |
1 | ||
| 69790 - CONTROL ASSY, BACK DOOR LOCK | ||||
| 69790-87007 |
YR2#..DLX |
1 | ||
| Common parts | ||||
| 90119-06372 | ||||
| 90119-08450 | ||||
| 90119-08552 | ||||
| 90159-60081 | ||||
| 90159-60131 | ||||
| 90159-80028 | ||||
| 90179-08077 | ||||
| 90189-05013 | ||||
| 90189-06018 | ||||
| 90480-10102 | ||||
| 91611-60614 | ||||
| 91651-40610 | ||||
| 93540-54014 | ||||
| Linked diagrams | ||||
| 6151 | ||||
