YR21RG-PQQ (1984)
Toyota Model-F

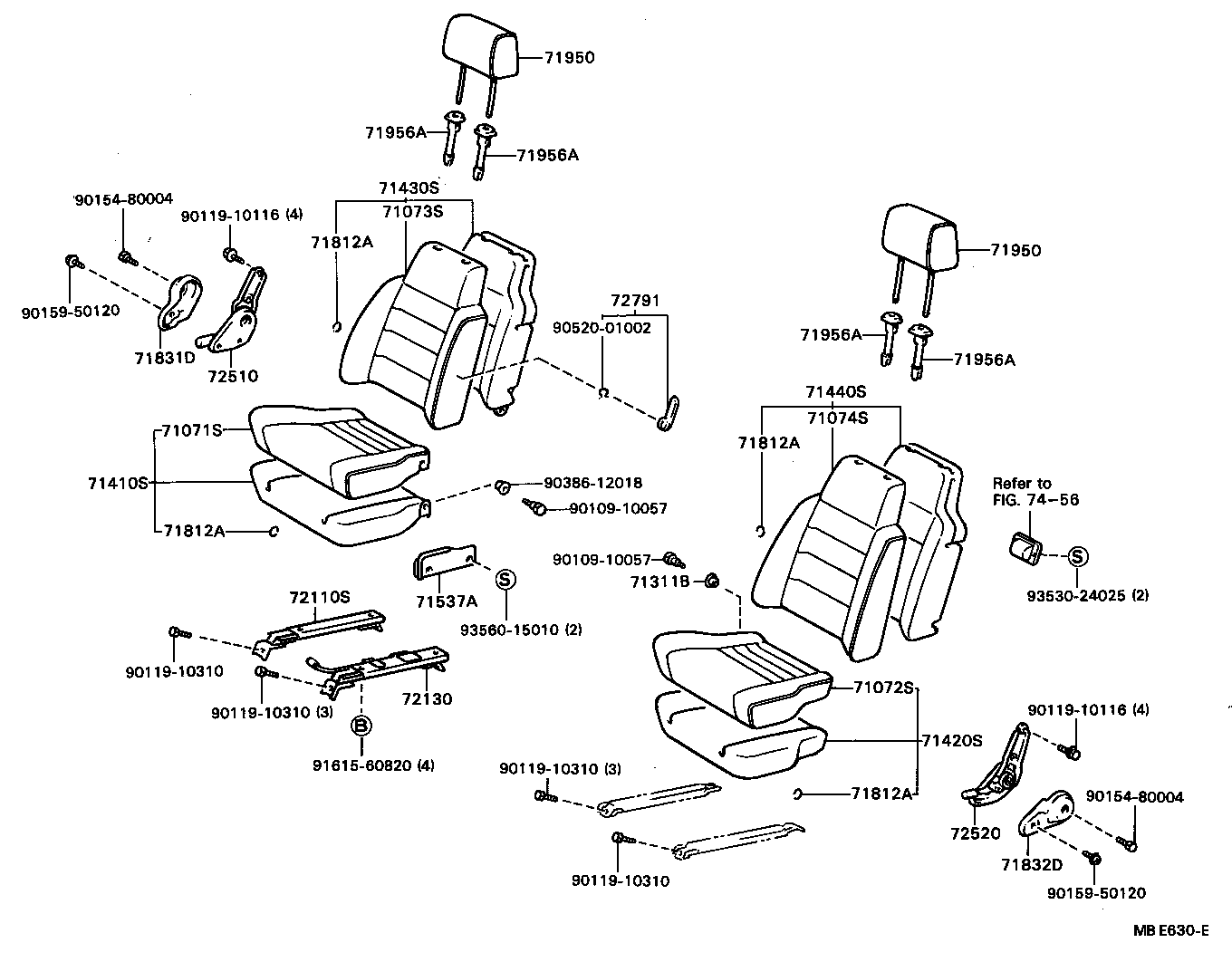

ILLUST NO. 1 OF 3(8211-8408)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-8706404 |
YR2#,31..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-8707306 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-8706406 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-8707004 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-8707006 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-87G0504 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-8707304 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-87G0506 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-8707406 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-8706604 |
YR2#,31..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-8707404 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-8706606 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-87G1004 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-8707804 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-8707806 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-87G1006 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-8707504 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-8706704 |
YR21..RHD..GL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71073-8706702 |
YR21..RHD..GL FB,WINE,WINE,TRIM4# |
1 | ||
| 71073-8703506 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-8703504 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-8707506 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-87G0604 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-87G0606 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-8704404 |
YR21..GL..ARL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71074-8705206 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-8705406 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-8705204 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-8705404 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-8704402 |
YR21..GL..ARL FB,WINE,WINE,TRIM4# |
1 | ||
| 71074-8706204 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-8706206 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12018 |
CR21,YR2#,31 |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-8706904 |
YR21..RHD..GL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71410-8707604 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-8707606 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-8706902 |
YR21..RHD..GL FB,WINE,WINE,TRIM4# |
1 | ||
| 71410-8707804 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-8707806 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-87G0304 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-87G0306 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-8705902 |
YR21..RHD..GL FB,WINE,WINE,TRIM4# |
1 | ||
| 71420-8706506 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-8705904 |
YR21..RHD..GL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71420-8706504 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-8707404 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-8707106 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-8707104 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-8707406 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-8707602 |
YR21..RHD..GL FB,WINE,WINE,TRIM4# |
1 | ||
| 71430-87G0606 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-87G0604 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-8707604 |
YR21..RHD..GL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71430-87G0906 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-87G0904 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-87G1506 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-87G1504 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-87G0104 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-8707102 |
YR21..GL..ARL FB,WINE,WINE,TRIM4# |
1 | ||
| 71440-87G0106 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-8707104 |
YR21..GL..ARL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71440-87G0304 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-87G0306 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-87G1006 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-87G1004 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-8700104 |
YR2#..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71537-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71537-8700106 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 71537-8700102 |
CR21,YR2#..RHD WINE,RED/MAROON,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 71831-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71831-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71831-8700114 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71831-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 71832-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71832-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71832-8700114 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71832-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8701204 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
2 | ||
| 71910-8701704 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
2 | ||
| 71910-8701206 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
2 | ||
| 71910-8701706 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
2 | ||
| 71910-8702006 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
1 | ||
| 71910-8702004 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8701204 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
2 | ||
| 71910-8701704 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
2 | ||
| 71910-8701206 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
2 | ||
| 71910-8701706 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
2 | ||
| 71910-8702006 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
1 | ||
| 71910-8702004 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
CR21,YR2# W(LOCK),W/LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71930-1006004 |
YR2#,31..RHD..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
CR21,YR2#,31..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001016 |
CR21,YR2#,31 W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
CR21,YR2#,31..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001004 |
YR2#,31..RHD..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006016 |
CR21,YR2#,31 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001002 |
CR21,YR2# W/O(LOCK),W/O LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
CR21,YR2# W(LOCK),W/LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71930-1006004 |
YR2#,31..RHD..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
CR21,YR2#,31..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001016 |
CR21,YR2#,31 W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
CR21,YR2#,31..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001004 |
YR2#,31..RHD..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006016 |
CR21,YR2#,31 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001002 |
CR21,YR2# W/O(LOCK),W/O LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
CR21,YR2# W(LOCK),W/LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71930-1006004 |
YR2#,31..RHD..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
CR21,YR2#,31..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001016 |
CR21,YR2#,31 W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
CR21,YR2#,31..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001004 |
YR2#,31..RHD..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006016 |
CR21,YR2#,31 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001002 |
CR21,YR2# W/O(LOCK),W/O LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
CR21,YR2# W(LOCK),W/LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71930-1006004 |
YR2#,31..RHD..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
CR21,YR2#,31..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001016 |
CR21,YR2#,31 W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
CR21,YR2#,31..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001004 |
YR2#,31..RHD..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006016 |
CR21,YR2#,31 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001002 |
CR21,YR2# W/O(LOCK),W/O LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-87004 |
CR21,YR2#,31..RHD |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-87003 |
CR21,YR2#,31..RHD |
1 | ||
| 72130-87001 |
CR21,YR2#..RHD |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-2802004 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72010-2802006 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 72010-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 72010-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72010-2802004 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-8700104 |
YR2#..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72020-8700102 |
CR21,YR2#..RHD WINE,RED/MAROON,TRIM4# |
1 | ||
| 72020-8700304 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72020-8700306 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3003002 |
CR21,YR2#..GL WINE,RED/MAROON,TRIM4# |
1 | ||
| 72791-3003024 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| Common parts | ||||
| 90109-10057 | ||||
| 90119-10116 | ||||
| 90119-10310 | ||||
| 90154-80004 | ||||
| 90159-50120 | ||||
| 90386-12018 | ||||
| 90520-01002 | ||||
| 91615-60820 | ||||
| 93530-24025 | ||||
| 93560-15010 | ||||
| Linked diagrams | ||||
| 7456 | ||||

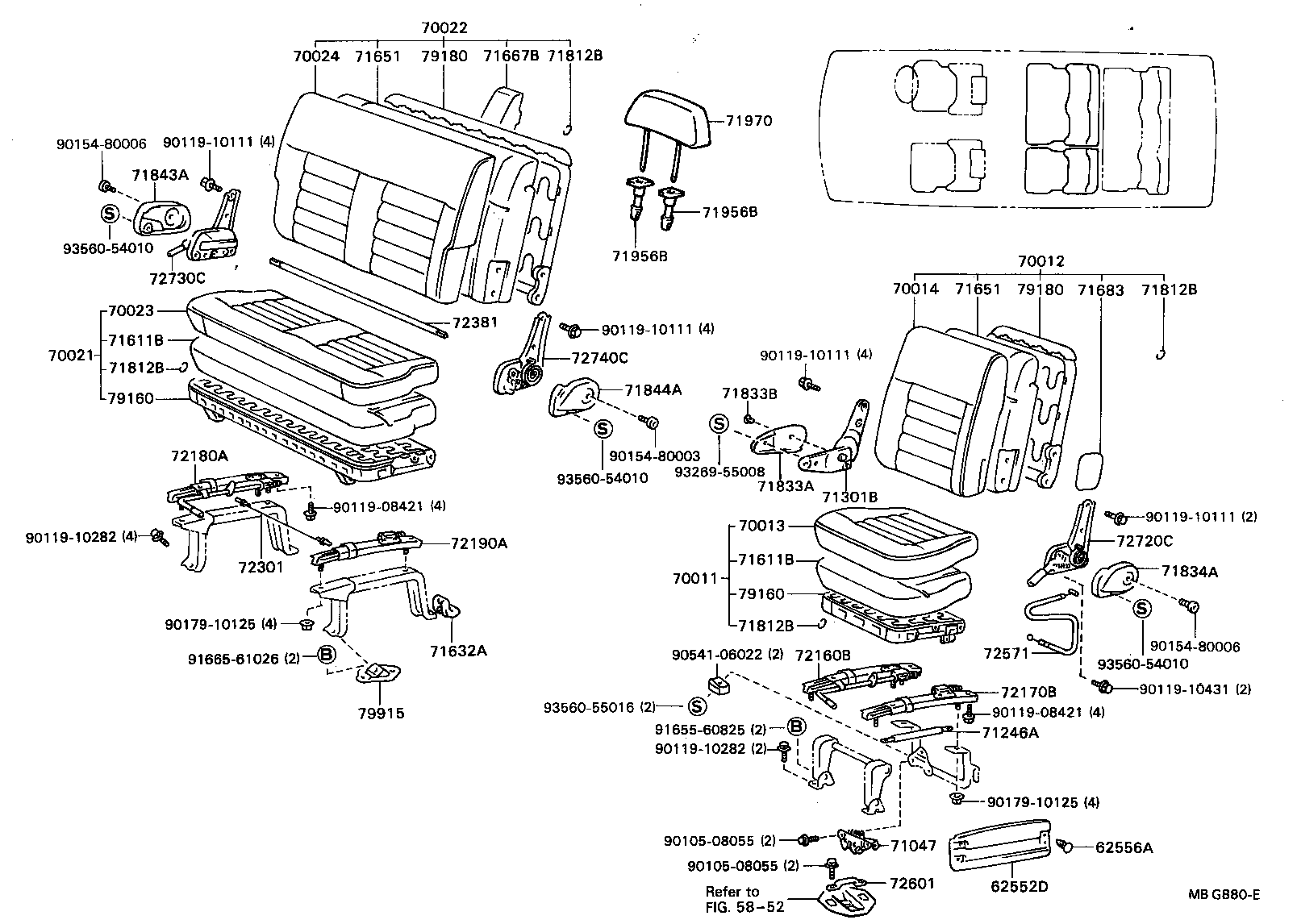

ILLUST NO. 2 OF 3(8211-8408)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62552D - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-8700104 |
YR2#..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 62552-8700106 |
YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 62552-8700102 |
CR21,YR2#..RHD WINE,RED/MAROON,TRIM4# |
1 | ||
| 62552-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 62556A - CAP, REAR SEAT SIDE GARNISH | ||||
| 90467-1001604 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
4 | ||
| 90467-1001624 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
4 | ||
| 90467-1001616 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
4 | ||
| 90467-1001602 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
4 | ||
| 90467-1001624 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
4 | ||
| 90467-1207846 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
4 | ||
| 90467-1207834 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
4 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 79130-8701006 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79130-8700404 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79130-8700406 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79130-8701004 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79130-8701306 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79130-8701304 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 79150-8700504 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79150-8700306 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79150-8701204 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79150-8701206 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79150-8700506 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79150-8700304 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71066-8702206 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71066-8702204 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71066-8703304 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71066-8702806 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71066-8703306 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71066-8702804 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71078-8701506 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-8701504 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-8701606 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-8701604 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-8702006 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-8702004 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 79120-8700806 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79120-8700804 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79120-8701606 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79120-8701604 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79120-8701904 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79120-8701906 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 79140-8700704 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79140-8700706 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79140-8701206 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79140-8701204 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79140-8702106 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79140-8702104 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71065-8702706 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-8703304 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-8702704 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-8703306 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-8703604 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-8703606 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71077-8703604 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-8703904 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-8703906 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-8703606 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-8704806 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-8704804 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71047 - LOCK SUB-ASSY, REAR SEAT LEG | ||||
| 72680-28010 |
CR21,YR2#..RHD |
1 | ||
| 72680-28030 |
CR21,YR2#..RHD |
1 | ||
| 72680-28031 |
CR21,YR2#,31..RHD |
1 | ||
| 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH | ||||
| 71302-8700306 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 71302-8700304 |
YR2#..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71302-8700506 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 71302-8700314 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71302-8700504 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71302-8700302 |
CR21,YR2#..RHD WINE,RED/MAROON,TRIM4# |
1 | ||
| 71632A - COVER, REAR SEAT, OUTER | ||||
| 71632-87002 |
CR21,YR2# |
2 | ||
| 71632-8700314 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
2 | ||
| 71632-8700304 |
YR21..GL BLUE,BLUE,TRIM1# |
2 | ||
| 71632-8700306 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
2 | ||
| 71632-8700302 |
CR21,YR21 WINE,WINE,TRIM4# |
2 | ||
| 71632-8700314 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
2 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71812-8700102 |
CR21,YR2#..RHD WINE,RED/MAROON,TRIM4# |
1 | ||
| 71812-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71812-8700104 |
YR2#..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71812-8700106 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71811-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 71811-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71811-8700114 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71811-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71811-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71812-8700114 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71812-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71812-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71812-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71812-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 72160B - TRACK ASSY, REAR NO.1 SEAT, RH | ||||
| 72220-87001 |
CR21,YR2#..RHD |
1 | ||
| 72220-87003 |
CR21,YR2#,31..RHD |
1 | ||
| 72170B - TRACK ASSY, REAR NO.1 SEAT, LH | ||||
| 72210-87004 |
CR21,YR2#,31..RHD |
1 | ||
| 72210-87002 |
CR21,YR2#..RHD |
1 | ||
| 72180A - TRACK ASSY, REAR NO.2 SEAT, RH | ||||
| 72160-87005 |
CR21,YR2#,31 |
1 | ||
| 72160-87001 |
CR21,YR2# |
1 | ||
| 72190A - TRACK ASSY, REAR NO.2 SEAT, LH | ||||
| 72170-87004 |
CR21,YR2#,31 |
1 | ||
| 72170-87001 |
CR21,YR2# |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72302-87001 |
CR21,YR2#,31 |
1 | ||
| 72381 - ROD, RECLINING ADJUSTER EQUALIZING, NO.1 | ||||
| 72381-28010 |
CR21,YR2#,31 |
1 | ||
| 72571 - CABLE, LOCKING LEVER NO.1 | ||||
| 72620-28030 |
CR21,YR2#,31 |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72693-28020 |
CR21,YR2# |
1 | ||
| 72693-28010 |
CR21,YR2# |
1 | ||
| 72693-28030 |
CR21,YR2#,31 |
1 | ||
| 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH | ||||
| 72740-2802002 |
CR21,YR2#..RHD WINE,RED/MAROON,TRIM4# |
1 | ||
| 72740-2802004 |
YR2#..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72740-8701806 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 72740-2802106 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 72740-2802114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72740-8701804 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72740-2802102 |
CR21,YR21..RHD WINE,WINE,TRIM4# |
1 | ||
| 72740-2802104 |
YR21..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH | ||||
| 72730-8700904 |
YR21..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72730-2807004 |
YR2#,31..GL..ARL BLUE,BLUE,TRIM8# |
1 | ||
| 72730-8700402 |
CR21,YR2#..RHD WINE,RED/MAROON,TRIM4# |
1 | ||
| 72730-8700404 |
YR2#..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72730-8700902 |
CR21,YR21..RHD WINE,WINE,TRIM4# |
1 | ||
| 72730-2807006 |
CR21,YR2#,31..ARL BROWN,BROWN,TRIM4# |
1 | ||
| 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH | ||||
| 72630-87001 |
CR21,YR21..RHD |
1 | ||
| 72630-87001 |
CR21,YR2#..RHD |
1 | ||
| 72630-28010 |
CR21,YR2#,31..ARL |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-87001 |
CR21,YR2#,31..RHD |
1 | ||
| Common parts | ||||
| 90105-08055 | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10282 | ||||
| 90154-80003 | ||||
| 90179-10125 | ||||
| 90541-06022 | ||||
| 91615-60820 | ||||
| 91651-60825 | ||||
| 91655-60825 | ||||
| 91665-61025 | ||||
| 93560-54010 | ||||
| 93560-55016 | ||||

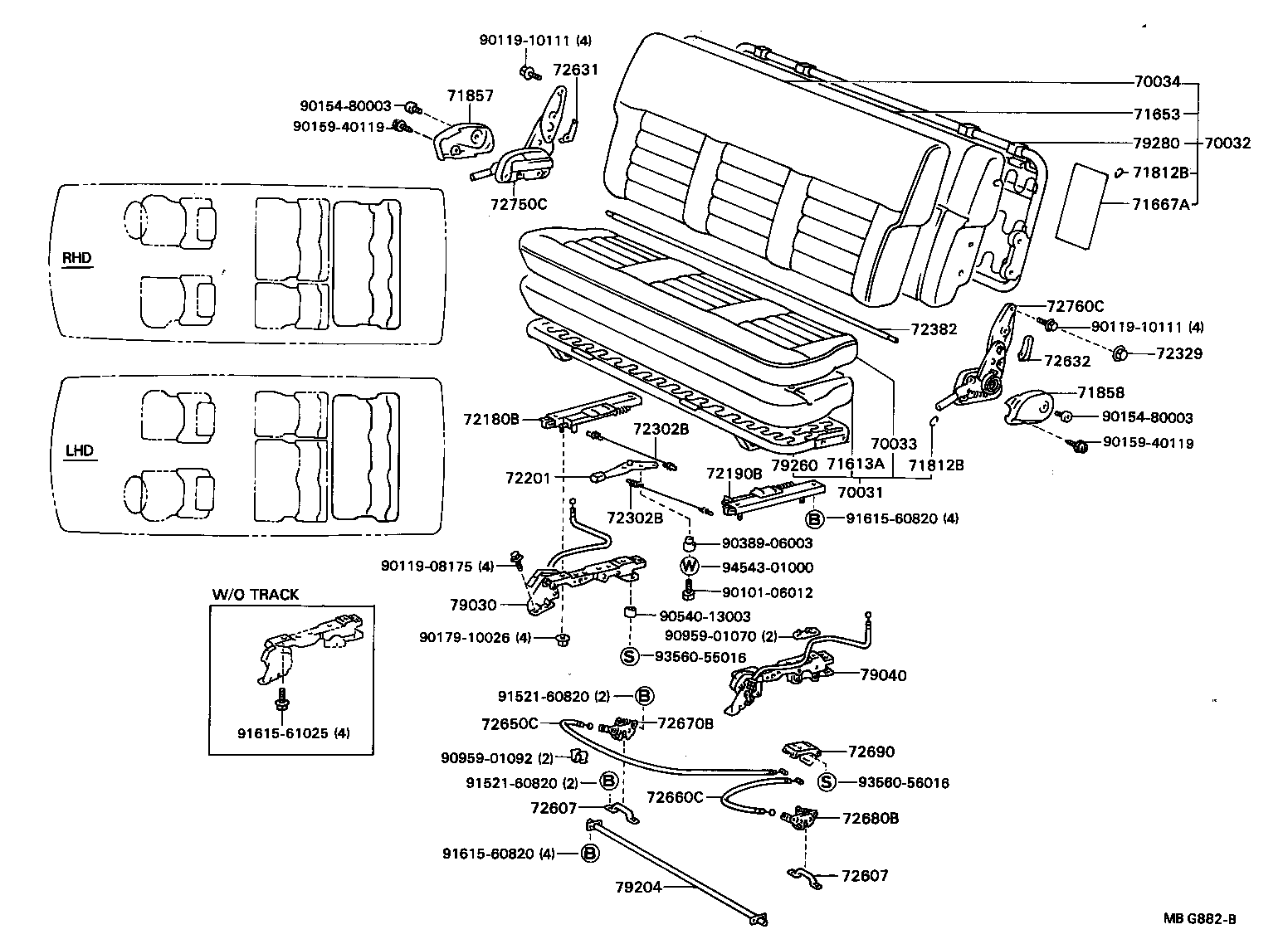

ILLUST NO. 3 OF 3(8211-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71857 - COVER, RECLINING HINGE, RH | ||||
| 71811-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 71811-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71811-8700114 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71811-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71811-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71858 - COVER, RECLINING HINGE, LH | ||||
| 71812-8700114 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71812-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71812-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 71812-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71812-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72382 - ROD, RECLINING ADJUSTER EQUALIZING, NO.2 | ||||
| 72382-87002 |
CR21,YR2# |
1 | ||
| 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK | ||||
| 72693-28020 |
CR21,YR21 |
2 | ||
| 72693-28010 |
CR21,YR2# |
2 | ||
| 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK | ||||
| 72693-28020 |
CR21,YR21 |
2 | ||
| 72693-28010 |
CR21,YR2# |
2 | ||
| 72631 - PLATE, REAR SEAT BACK LOCK, RH | ||||
| 72631-87002 |
CR21,YR2# |
1 | ||
| 72632 - PLATE, REAR SEAT BACK LOCK, LH | ||||
| 72632-87002 |
CR21,YR2# |
1 | ||
| 72650C - CABLE ASSY, REAR NO.2 SEAT LOCK, RH | ||||
| 72650-28020 |
CR21,YR2# RH |
1 | ||
| 72660C - CABLE ASSY, REAR NO.2 SEAT LOCK, LH | ||||
| 72660-28010 |
CR21,YR2# LH |
1 | ||
| 72670B - LOCK ASSY, REAR SEAT CUSHION, RH | ||||
| 72670-28030 |
CR21,YR21 |
1 | ||
| 72670-28010 |
CR21,YR2# |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72680-28010 |
CR21,YR2# |
1 | ||
| 72680-28030 |
CR21,YR21 |
1 | ||
| 72690 - LEVER ASSY, SEAT CUSHION LOCK RELEASE | ||||
| 72690-87001 |
CR21,YR2# |
1 | ||
| 72750C - ADJUSTER ASSY, NO.3 SEAT RECLINING, RH | ||||
| 72730-8701402 |
CR21,YR21 WINE,WINE,TRIM4# |
1 | ||
| 72730-8700602 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 72730-8701404 |
YR21..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72730-8700604 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72730-8701904 |
YR2#,31..GL..ARL BLUE,BLUE,TRIM8# |
1 | ||
| 72730-8701906 |
CR21,YR2#,31..ARL BROWN,BROWN,TRIM4# |
1 | ||
| 72760C - ADJUSTER ASSY, NO.3 SEAT RECLINING, LH | ||||
| 72740-8700604 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72740-87011 |
CR21,YR21 |
1 | ||
| 72740-8701604 |
YR2#,31..GL..ARL BLUE,BLUE,TRIM8# |
1 | ||
| 72740-8701606 |
CR21,YR2#,31..ARL BROWN,BROWN,TRIM4# |
1 | ||
| 72740-8700602 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 79030 - LEG ASSY, NO.3 SEAT, RH | ||||
| 79030-28020 |
CR21,YR21 |
1 | ||
| 79030-28010 |
CR21,YR2# |
1 | ||
| 79040 - LEG ASSY, NO.3 SEAT, LH | ||||
| 79040-28020 |
CR21,YR21 |
1 | ||
| 79040-28010 |
CR21,YR2# |
1 | ||
| 79204 - REINFORCEMENT SUB-ASSY, NO.2 SEAT LEG | ||||
| 79204-28010 |
CR21,YR2# |
1 | ||
| Common parts | ||||
| 90041-19140 | ||||
| 90101-06012 | ||||
| 90119-08175 | ||||
| 90119-10111 | ||||
| 90154-80003 | ||||
| 90179-10026 | ||||
| 90389-06003 | ||||
| 90540-13003 | ||||
| 90959-01070 | ||||
| 90959-01092 | ||||
| 91521-60820 | ||||
| 91611-60820 | ||||
| 91615-60820 | ||||
| 93510-56010 | ||||
| 93560-54010 | ||||
| 93560-55016 | ||||
| 94543-01000 | ||||

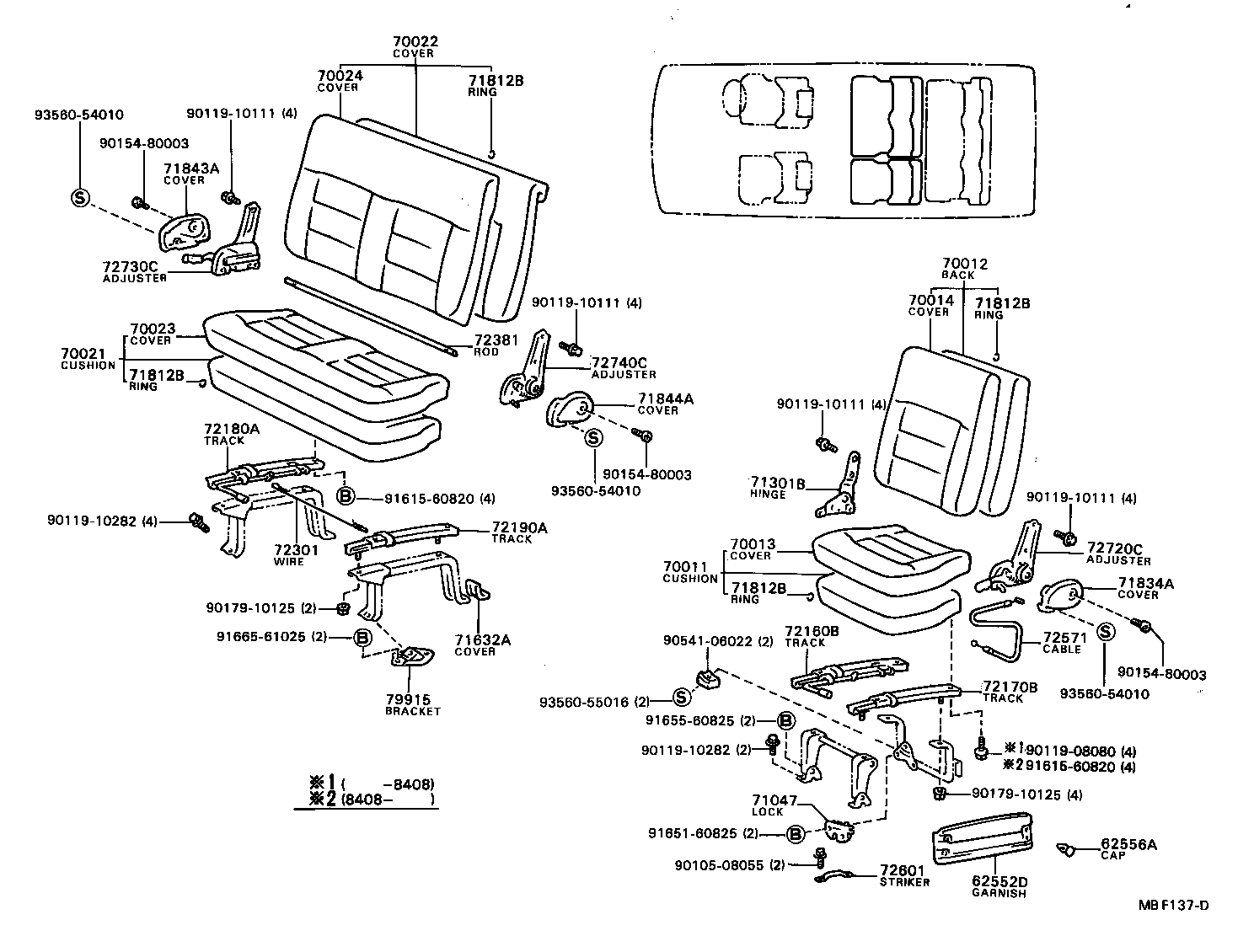

ILLUST NO. 1 OF 3(8408-8508)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-87018 |
CR21,YR2#,31..RHD |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-87011 |
CR21,YR2#,31..RHD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-8706404 |
YR2#,31..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-8707306 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-8706406 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-8707004 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-8707006 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-87G0504 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-8707304 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-87G0506 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-8707406 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-8706604 |
YR2#,31..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-8707404 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-8706606 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-87G1004 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-8707804 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-8707806 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-87G1006 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-8707504 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-8706704 |
YR21..RHD..GL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71073-8706702 |
YR21..RHD..GL FB,WINE,WINE,TRIM4# |
1 | ||
| 71073-8703506 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-8703504 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-8707506 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-87G0604 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-87G0606 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-8704404 |
YR21..GL..ARL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71074-8705206 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-8705406 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-8705204 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-8705404 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-8704402 |
YR21..GL..ARL FB,WINE,WINE,TRIM4# |
1 | ||
| 71074-8706204 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-8706206 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12018 |
CR21,YR2#,31 |
2 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12018 |
CR21,YR2#,31 |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-8706904 |
YR21..RHD..GL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71410-8707604 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-8707606 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-8706902 |
YR21..RHD..GL FB,WINE,WINE,TRIM4# |
1 | ||
| 71410-8707804 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-8707806 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-87G0304 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-87G0306 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-8705902 |
YR21..RHD..GL FB,WINE,WINE,TRIM4# |
1 | ||
| 71420-8706506 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-8705904 |
YR21..RHD..GL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71420-8706504 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-8707404 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-8707106 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-8707104 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-8707406 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-8707602 |
YR21..RHD..GL FB,WINE,WINE,TRIM4# |
1 | ||
| 71430-87G0606 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-87G0604 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-8707604 |
YR21..RHD..GL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71430-87G0906 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-87G0904 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-87G1506 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-87G1504 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-87G0104 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-8707102 |
YR21..GL..ARL FB,WINE,WINE,TRIM4# |
1 | ||
| 71440-87G0106 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-8707104 |
YR21..GL..ARL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71440-87G0304 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-87G0306 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-87G1006 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-87G1004 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28010 |
CR21,YR2#,31 |
1 | ||
| 71511-28011 |
CR21,YR2#,31 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-28011 |
CR21,YR2#,31 |
1 | ||
| 71512-28010 |
CR21,YR2#,31 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-8700104 |
YR2#..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71537-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71537-8700106 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 71537-8700102 |
CR21,YR2#..RHD WINE,RED/MAROON,TRIM4# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-28021 |
YR2#,31..GL |
1 | ||
| 71551-87006 |
YR2#..GL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-87007 |
YR2#..GL |
1 | ||
| 71552-28021 |
YR2#,31..GL |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-87009 |
YR2#,31..RHD..GL |
1 | ||
| 71630-87007 |
YR21..RHD..GL |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-87008 |
YR21..GL..ARL |
1 | ||
| 71640-87011 |
YR2#,31..RHD..GL |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 71831-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71831-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71831-8700114 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71831-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 71832-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71832-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71832-8700114 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71832-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8701204 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
2 | ||
| 71910-8701704 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
2 | ||
| 71910-8701206 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
2 | ||
| 71910-8701706 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
2 | ||
| 71910-8702006 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
1 | ||
| 71910-8702004 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8701204 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
2 | ||
| 71910-8701704 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
2 | ||
| 71910-8701206 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
2 | ||
| 71910-8701706 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
2 | ||
| 71910-8702006 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
1 | ||
| 71910-8702004 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
CR21,YR2# W(LOCK),W/LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71930-1006004 |
YR2#,31..RHD..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
CR21,YR2#,31..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001016 |
CR21,YR2#,31 W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
CR21,YR2#,31..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001004 |
YR2#,31..RHD..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006016 |
CR21,YR2#,31 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001002 |
CR21,YR2# W/O(LOCK),W/O LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
CR21,YR2# W(LOCK),W/LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71930-1006004 |
YR2#,31..RHD..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
CR21,YR2#,31..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001016 |
CR21,YR2#,31 W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
CR21,YR2#,31..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001004 |
YR2#,31..RHD..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006016 |
CR21,YR2#,31 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001002 |
CR21,YR2# W/O(LOCK),W/O LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
CR21,YR2# W(LOCK),W/LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71930-1006004 |
YR2#,31..RHD..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
CR21,YR2#,31..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001016 |
CR21,YR2#,31 W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
CR21,YR2#,31..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001004 |
YR2#,31..RHD..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006016 |
CR21,YR2#,31 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001002 |
CR21,YR2# W/O(LOCK),W/O LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
CR21,YR2# W(LOCK),W/LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71930-1006004 |
YR2#,31..RHD..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
CR21,YR2#,31..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001016 |
CR21,YR2#,31 W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
CR21,YR2#,31..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001004 |
YR2#,31..RHD..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006016 |
CR21,YR2#,31 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001002 |
CR21,YR2# W/O(LOCK),W/O LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-87004 |
CR21,YR2#,31..RHD |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-87003 |
CR21,YR2#,31..RHD |
1 | ||
| 72130-87001 |
CR21,YR2#..RHD |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-2802004 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72010-2802006 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 72010-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 72010-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72010-2802004 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-8700104 |
YR2#..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72020-8700102 |
CR21,YR2#..RHD WINE,RED/MAROON,TRIM4# |
1 | ||
| 72020-8700304 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72020-8700306 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-8700402 |
YR21..GL..ARL WINE,WINE,TRIM4# |
1 | ||
| 72880-8700404 |
YR21..GL..ARL BLUE,BLUE,TRIM1# |
1 | ||
| 72880-8700906 |
YR2#,31..RHD..GL BROWN,BROWN,TRIM4# |
1 | ||
| 72880-8700904 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72880-8700704 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72880-8701204 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72880-8700706 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
1 | ||
| 72880-8701206 |
YR2#,31..RHD..GL BROWN,BROWN,TRIM4# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-8700404 |
YR21..GL..ARL BLUE,BLUE,TRIM1# |
1 | ||
| 72890-8700402 |
YR21..GL..ARL WINE,WINE,TRIM4# |
1 | ||
| 72890-8700604 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72890-8700806 |
YR2#..RHD..GL BROWN,BROWN,TRIM4# |
1 | ||
| 72890-8700606 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
1 | ||
| 72890-8700804 |
YR2#..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72890-8701104 |
YR2#..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72890-8701106 |
YR2#..RHD..GL BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90109-10055 | ||||
| 90109-10057 | ||||
| 90119-10116 | ||||
| 90119-10310 | ||||
| 90154-80045 | ||||
| 90159-50120 | ||||
| 90386-14007 | ||||
| 91615-60820 | ||||
| 93530-54025 | ||||
| 93560-15010 | ||||
| 94542-01400 | ||||
| 94612-11400 | ||||
| Linked diagrams | ||||
| 7456 | ||||

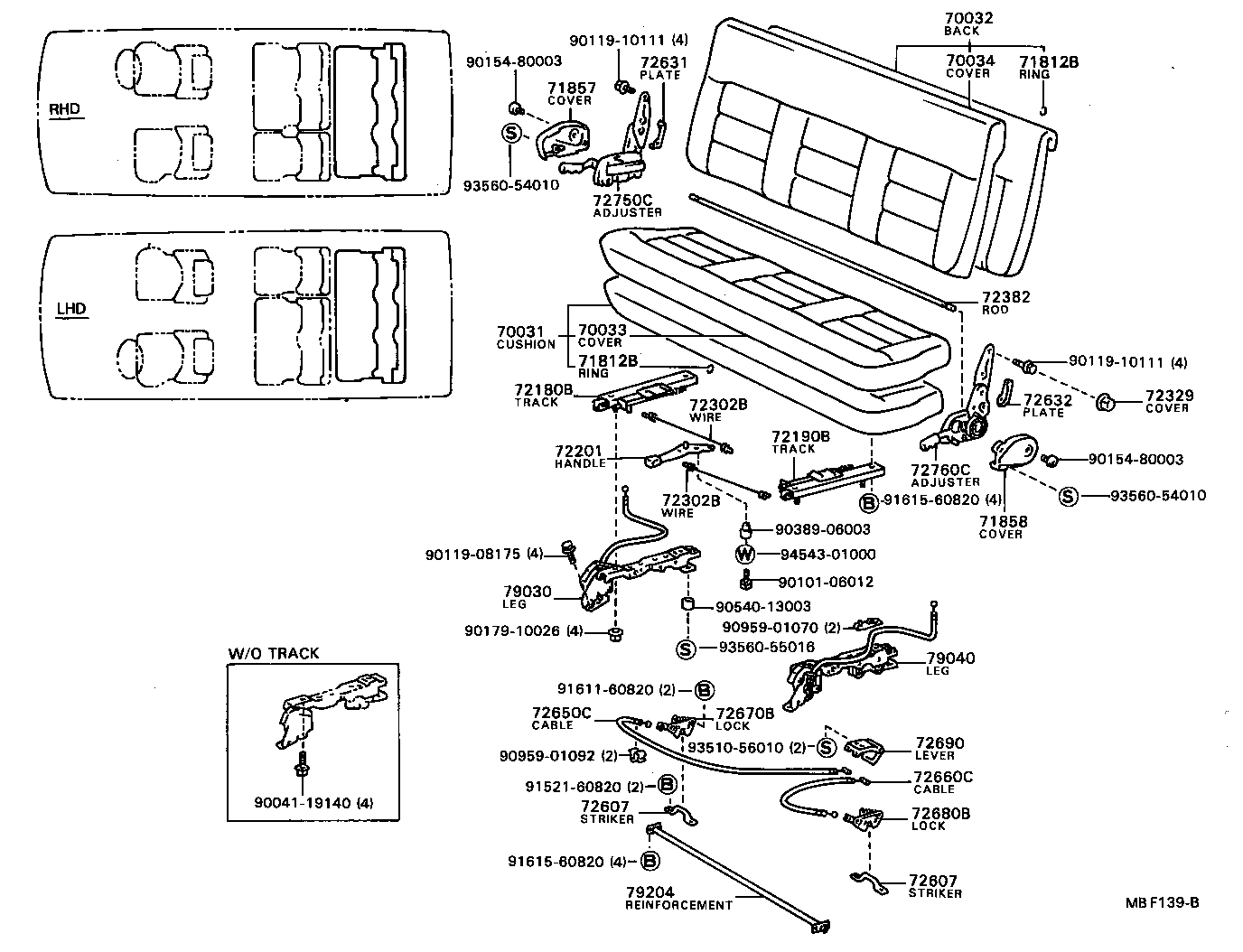

ILLUST NO. 2 OF 3(8408- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62552D - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-8700104 |
YR2#..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 62552-8700106 |
YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 62552-8700102 |
CR21,YR2#..RHD WINE,RED/MAROON,TRIM4# |
1 | ||
| 62552-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 62556A - CAP, REAR SEAT SIDE GARNISH | ||||
| 90467-1001604 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
4 | ||
| 90467-1001624 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
4 | ||
| 90467-1001616 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
4 | ||
| 90467-1001602 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
4 | ||
| 90467-1001624 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
4 | ||
| 90467-1207846 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
4 | ||
| 90467-1207834 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
4 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 79130-8701006 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79130-8700404 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79130-8700406 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79130-8701004 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79130-8701306 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79130-8701304 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 79150-8700504 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79150-8700306 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79150-8701204 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79150-8701206 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79150-8700506 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79150-8700304 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71066-8702206 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71066-8702204 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71066-8703304 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71066-8702806 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71066-8703306 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71066-8702804 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71078-8701506 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-8701504 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-8701606 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-8701604 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-8702006 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-8702004 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 79120-8700806 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79120-8700804 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79120-8701606 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79120-8701604 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79120-8701904 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79120-8701906 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 79140-8700704 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79140-8700706 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79140-8701206 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79140-8701204 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79140-8702106 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79140-8702104 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71065-8702706 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-8703304 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-8702704 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-8703306 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-8703604 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71065-8703606 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71077-8703604 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-8703904 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-8703906 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-8703606 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-8704806 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-8704804 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71047 - LOCK SUB-ASSY, REAR SEAT LEG | ||||
| 72680-28010 |
CR21,YR2#..RHD |
1 | ||
| 72680-28030 |
CR21,YR2#..RHD |
1 | ||
| 72680-28031 |
CR21,YR2#,31..RHD |
1 | ||
| 71246A - PLATE, REAR SEAT CUSHION SET | ||||
| 71246-28010 |
CR21,YR2#,31 |
1 | ||
| 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH | ||||
| 71302-8700306 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 71302-8700304 |
YR2#..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71302-8700506 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 71302-8700314 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71302-8700504 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71302-8700302 |
CR21,YR2#..RHD WINE,RED/MAROON,TRIM4# |
1 | ||
| 71611B - PAD, REAR NO.1 SEAT CUSHION | ||||
| 71612-87002 |
CR21,YR2#,31..RHD LH |
1 | ||
| 71611-87005 |
CR21,YR2#,31..RHD RH |
1 | ||
| 71611B - PAD, REAR NO.1 SEAT CUSHION | ||||
| 71612-87002 |
CR21,YR2#,31..RHD LH |
1 | ||
| 71611-87005 |
CR21,YR2#,31..RHD RH |
1 | ||
| 71632A - COVER, REAR SEAT, OUTER | ||||
| 71632-87002 |
CR21,YR2# |
2 | ||
| 71632-8700314 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
2 | ||
| 71632-8700304 |
YR21..GL BLUE,BLUE,TRIM1# |
2 | ||
| 71632-8700306 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
2 | ||
| 71632-8700302 |
CR21,YR21 WINE,WINE,TRIM4# |
2 | ||
| 71632-8700314 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
2 | ||
| 71651 - PAD, REAR NO.1 SEAT BACK | ||||
| 71652-87001 |
CR21,YR2#,31..RHD LH |
1 | ||
| 71652-87005 |
CR21,YR2#,31..RHD LH |
1 | ||
| 71651-87006 |
CR21,YR2#,31..RHD RH |
1 | ||
| 71651-87009 |
CR21,YR2#,31..RHD RH |
1 | ||
| 71651 - PAD, REAR NO.1 SEAT BACK | ||||
| 71652-87001 |
CR21,YR2#,31..RHD LH |
1 | ||
| 71652-87005 |
CR21,YR2#,31..RHD LH |
1 | ||
| 71651-87006 |
CR21,YR2#,31..RHD RH |
1 | ||
| 71651-87009 |
CR21,YR2#,31..RHD RH |
1 | ||
| 71667B - PAD, REAR SEAT BACK, CENTER B | ||||
| 71668-87002 |
CR21,YR2#,31 W/HEADREST |
1 | ||
| 71668-87001 |
CR21,YR2#,31 |
1 | ||
| 71667-87001 |
CR21,YR2#,31 W/HEADREST |
1 | ||
| 71683 - PAD, REAR SEAT BACK CORNER, C | ||||
| 71683-87002 |
CR21,YR2#,31 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 72552-8700204 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72552-8700206 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 71833B - CLIP (FOR REAR SEAT RECLINING COVER) | ||||
| 90467-0606906 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 90467-0606904 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71812-8700102 |
CR21,YR2#..RHD WINE,RED/MAROON,TRIM4# |
1 | ||
| 71812-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71812-8700104 |
YR2#..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71812-8700106 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71811-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 71811-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71811-8700114 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71811-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71811-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71812-8700114 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71812-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71812-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71812-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71812-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006016 |
CR21,YR2#,31 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
4 | ||
| 71931-1001016 |
CR21,YR2#,31 W/O(LOCK),W/O LOCK BROWN,SABLE,TRIM4# |
4 | ||
| 71930-1006004 |
YR2#,31..RHD..GL W(LOCK),W/LOCK,BLUE,TRIM8# |
4 | ||
| 71931-1001004 |
YR2#,31..RHD..GL W/O(LOCK),W/O LOCK BLUE,BLUE,TRIM8# |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006016 |
CR21,YR2#,31 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
4 | ||
| 71931-1001016 |
CR21,YR2#,31 W/O(LOCK),W/O LOCK BROWN,SABLE,TRIM4# |
4 | ||
| 71930-1006004 |
YR2#,31..RHD..GL W(LOCK),W/LOCK,BLUE,TRIM8# |
4 | ||
| 71931-1001004 |
YR2#,31..RHD..GL W/O(LOCK),W/O LOCK BLUE,BLUE,TRIM8# |
4 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-2805004 |
YR2#,31..RHD..GL FR LH,BLUE,GRAY,TRIM8# |
1 | ||
| 71940-8702504 |
YR2#,31..RHD..GL RR,BLUE,BLUE,TRIM8# |
2 | ||
| 71940-8702504 |
YR2#,31..RHD..GL FR RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71940-8702506 |
YR2#,31..RHD..GL FR RH,BROWN,BROWN,TRIM4# |
1 | ||
| 71940-8702506 |
YR2#,31..RHD..GL RR,BROWN,BROWN,TRIM4# |
2 | ||
| 71940-2805006 |
YR2#,31..RHD..GL FR LH,BROWN,BROWN,TRIM4# |
1 | ||
| 71940-8703304 |
YR2#,31..RHD..GL FR RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71940-8703304 |
YR2#,31..RHD..GL RR,BLUE,BLUE,TRIM8# |
2 | ||
| 71940-8703306 |
YR2#,31..RHD..GL FR RH,BROWN,BROWN,TRIM4# |
1 | ||
| 71940-8703404 |
YR2#,31..RHD..GL FB LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71940-8703406 |
YR2#,31..RHD..GL FR LH,BROWN,BROWN,TRIM4# |
1 | ||
| 71940-8703306 |
YR2#,31..RHD..GL RR,BROWN,BROWN,TRIM4# |
2 | ||
| 72160B - TRACK ASSY, REAR NO.1 SEAT, RH | ||||
| 72220-87001 |
CR21,YR2#..RHD |
1 | ||
| 72220-87003 |
CR21,YR2#,31..RHD |
1 | ||
| 72170B - TRACK ASSY, REAR NO.1 SEAT, LH | ||||
| 72210-87004 |
CR21,YR2#,31..RHD |
1 | ||
| 72210-87002 |
CR21,YR2#..RHD |
1 | ||
| 72180A - TRACK ASSY, REAR NO.2 SEAT, RH | ||||
| 72160-87005 |
CR21,YR2#,31 |
1 | ||
| 72160-87001 |
CR21,YR2# |
1 | ||
| 72190A - TRACK ASSY, REAR NO.2 SEAT, LH | ||||
| 72170-87004 |
CR21,YR2#,31 |
1 | ||
| 72170-87001 |
CR21,YR2# |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72302-87001 |
CR21,YR2#,31 |
1 | ||
| 72381 - ROD, RECLINING ADJUSTER EQUALIZING, NO.1 | ||||
| 72381-28010 |
CR21,YR2#,31 |
1 | ||
| 72571 - CABLE, LOCKING LEVER NO.1 | ||||
| 72620-28030 |
CR21,YR2#,31 |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72693-28030 |
CR21,YR2#,31 |
1 | ||
| 72693-28020 |
CR21,YR2# |
1 | ||
| 72693-28010 |
CR21,YR2# |
1 | ||
| 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH | ||||
| 72740-2802002 |
CR21,YR2#..RHD WINE,RED/MAROON,TRIM4# |
1 | ||
| 72740-2802004 |
YR2#..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72740-8701806 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 72740-2802106 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 72740-2802114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72740-8701804 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72740-2802102 |
CR21,YR21..RHD WINE,WINE,TRIM4# |
1 | ||
| 72740-2802104 |
YR21..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH | ||||
| 72730-8700904 |
YR21..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72730-2807004 |
YR2#,31..GL..ARL BLUE,BLUE,TRIM8# |
1 | ||
| 72730-8700402 |
CR21,YR2#..RHD WINE,RED/MAROON,TRIM4# |
1 | ||
| 72730-8700404 |
YR2#..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72730-8700902 |
CR21,YR21..RHD WINE,WINE,TRIM4# |
1 | ||
| 72730-2807006 |
CR21,YR2#,31..ARL BROWN,BROWN,TRIM4# |
1 | ||
| 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH | ||||
| 72630-87001 |
CR21,YR21..RHD |
1 | ||
| 72630-87001 |
CR21,YR2#..RHD |
1 | ||
| 72630-28010 |
CR21,YR2#,31..ARL |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-87009 |
CR21,YR2#,31..ARL RH |
1 | ||
| 79160-87003 |
CR21,YR21..RHD RH |
1 | ||
| 79170-87003 |
CR21,YR2#,31..RHD LH |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-87009 |
CR21,YR2#,31..ARL RH |
1 | ||
| 79160-87003 |
CR21,YR21..RHD RH |
1 | ||
| 79170-87003 |
CR21,YR2#,31..RHD LH |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-87004 |
CR21,YR21..RHD RH |
1 | ||
| 79190-87001 |
CR21,YR2#,31..RHD LH |
1 | ||
| 79180-87007 |
CR21,YR2#,31..ARL RH |
1 | ||
| 79180-87008 |
CR21,YR2#,31..ARL RH |
1 | ||
| 79190-87003 |
CR21,YR2#,31..RHD LH |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-87004 |
CR21,YR21..RHD RH |
1 | ||
| 79190-87001 |
CR21,YR2#,31..RHD LH |
1 | ||
| 79180-87007 |
CR21,YR2#,31..ARL RH |
1 | ||
| 79180-87008 |
CR21,YR2#,31..ARL RH |
1 | ||
| 79190-87003 |
CR21,YR2#,31..RHD LH |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-87001 |
CR21,YR2#,31..RHD |
1 | ||
| Common parts | ||||
| 90105-08055 | ||||
| 90119-08421 | ||||
| 90119-10111 | ||||
| 90119-10282 | ||||
| 90119-10431 | ||||
| 90154-80003 | ||||
| 90154-80006 | ||||
| 90179-10125 | ||||
| 90541-06022 | ||||
| 91655-60825 | ||||
| 91665-61026 | ||||
| 93269-55008 | ||||
| 93560-54010 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 5852 | ||||
ILLUST NO. 3 OF 3(8408-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71613A - PAD, REAR NO.2 SEAT CUSHION | ||||
| 71613-87001 |
CR21,YR21 |
1 | ||
| 71653 - PAD, REAR NO.2 SEAT BACK | ||||
| 71653-87004 |
CR21,YR21 |
1 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71667-87001 |
CR21,YR21 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71857 - COVER, RECLINING HINGE, RH | ||||
| 71811-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 71811-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71811-8700114 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71811-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71811-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71858 - COVER, RECLINING HINGE, LH | ||||
| 71812-8700114 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71812-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71812-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 71812-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71812-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72382 - ROD, RECLINING ADJUSTER EQUALIZING, NO.2 | ||||
| 72382-87002 |
CR21,YR2# |
1 | ||
| 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK | ||||
| 72693-28020 |
CR21,YR21 |
2 | ||
| 72693-28010 |
CR21,YR2# |
2 | ||
| 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK | ||||
| 72693-28020 |
CR21,YR21 |
2 | ||
| 72693-28010 |
CR21,YR2# |
2 | ||
| 72631 - PLATE, REAR SEAT BACK LOCK, RH | ||||
| 72631-87002 |
CR21,YR2# |
1 | ||
| 72632 - PLATE, REAR SEAT BACK LOCK, LH | ||||
| 72632-87002 |
CR21,YR2# |
1 | ||
| 72650C - CABLE ASSY, REAR NO.2 SEAT LOCK, RH | ||||
| 72650-28020 |
CR21,YR2# RH |
1 | ||
| 72660C - CABLE ASSY, REAR NO.2 SEAT LOCK, LH | ||||
| 72660-28010 |
CR21,YR2# LH |
1 | ||
| 72670B - LOCK ASSY, REAR SEAT CUSHION, RH | ||||
| 72670-28030 |
CR21,YR21 |
1 | ||
| 72670-28010 |
CR21,YR2# |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72680-28010 |
CR21,YR2# |
1 | ||
| 72680-28030 |
CR21,YR21 |
1 | ||
| 72690 - LEVER ASSY, SEAT CUSHION LOCK RELEASE | ||||
| 72690-87001 |
CR21,YR2# |
1 | ||
| 72750C - ADJUSTER ASSY, NO.3 SEAT RECLINING, RH | ||||
| 72730-8701402 |
CR21,YR21 WINE,WINE,TRIM4# |
1 | ||
| 72730-8700602 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 72730-8701404 |
YR21..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72730-8700604 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72730-8701904 |
YR2#,31..GL..ARL BLUE,BLUE,TRIM8# |
1 | ||
| 72730-8701906 |
CR21,YR2#,31..ARL BROWN,BROWN,TRIM4# |
1 | ||
| 72760C - ADJUSTER ASSY, NO.3 SEAT RECLINING, LH | ||||
| 72740-8700604 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72740-87011 |
CR21,YR21 |
1 | ||
| 72740-8701604 |
YR2#,31..GL..ARL BLUE,BLUE,TRIM8# |
1 | ||
| 72740-8701606 |
CR21,YR2#,31..ARL BROWN,BROWN,TRIM4# |
1 | ||
| 72740-8700602 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 79030 - LEG ASSY, NO.3 SEAT, RH | ||||
| 79030-28020 |
CR21,YR21 |
1 | ||
| 79030-28010 |
CR21,YR2# |
1 | ||
| 79040 - LEG ASSY, NO.3 SEAT, LH | ||||
| 79040-28020 |
CR21,YR21 |
1 | ||
| 79040-28010 |
CR21,YR2# |
1 | ||
| 79204 - REINFORCEMENT SUB-ASSY, NO.2 SEAT LEG | ||||
| 79204-28010 |
CR21,YR2# |
1 | ||
| 79260 - SPRING ASSY, NO.2 SEAT CUSHION | ||||
| 79260-87004 |
CR21,YR21..ARL,GEN |
1 | ||
| 79280 - SPRING ASSY, NO.2 SEAT BACK | ||||
| 79280-87004 |
CR21,YR21 |
1 | ||
| Common parts | ||||
| 90101-06012 | ||||
| 90119-08175 | ||||
| 90119-10111 | ||||
| 90154-80003 | ||||
| 90159-40119 | ||||
| 90179-10026 | ||||
| 90389-06003 | ||||
| 90540-13003 | ||||
| 90959-01070 | ||||
| 90959-01092 | ||||
| 91521-60820 | ||||
| 91615-60820 | ||||
| 91615-61025 | ||||
| 93560-55016 | ||||
| 93560-56016 | ||||
| 94543-01000 | ||||
ILLUST NO. 1 OF 3(8508- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-87018 |
CR21,YR2#,31..RHD |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-87011 |
CR21,YR2#,31..RHD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-8706404 |
YR2#,31..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-8707306 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-8706406 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-8707004 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-8707006 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-87G0504 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-8707304 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-87G0506 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-8707406 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-8706604 |
YR2#,31..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-8707404 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-8706606 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-87G1004 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-8707804 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-8707806 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-87G1006 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-8707504 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-8706704 |
YR21..RHD..GL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71073-8706702 |
YR21..RHD..GL FB,WINE,WINE,TRIM4# |
1 | ||
| 71073-8703506 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-8703504 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-8707506 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-87G0604 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-87G0606 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-8704404 |
YR21..GL..ARL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71074-8705206 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-8705406 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-8705204 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-8705404 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-8704402 |
YR21..GL..ARL FB,WINE,WINE,TRIM4# |
1 | ||
| 71074-8706204 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-8706206 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12018 |
CR21,YR2#,31 |
2 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12018 |
CR21,YR2#,31 |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-8706904 |
YR21..RHD..GL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71410-8707604 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-8707606 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-8706902 |
YR21..RHD..GL FB,WINE,WINE,TRIM4# |
1 | ||
| 71410-8707804 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-8707806 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-87G0304 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-87G0306 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-8705902 |
YR21..RHD..GL FB,WINE,WINE,TRIM4# |
1 | ||
| 71420-8706506 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-8705904 |
YR21..RHD..GL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71420-8706504 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-8707404 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-8707106 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-8707104 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-8707406 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-8707602 |
YR21..RHD..GL FB,WINE,WINE,TRIM4# |
1 | ||
| 71430-87G0606 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-87G0604 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-8707604 |
YR21..RHD..GL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71430-87G0906 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-87G0904 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-87G1506 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-87G1504 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-87G0104 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-8707102 |
YR21..GL..ARL FB,WINE,WINE,TRIM4# |
1 | ||
| 71440-87G0106 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-8707104 |
YR21..GL..ARL FB,BLUE,BLUE,TRIM1# |
1 | ||
| 71440-87G0304 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-87G0306 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-87G1006 |
YR2#,31..RHD..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-87G1004 |
YR2#,31..RHD..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28010 |
CR21,YR2#,31 |
1 | ||
| 71511-28011 |
CR21,YR2#,31 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-28011 |
CR21,YR2#,31 |
1 | ||
| 71512-28010 |
CR21,YR2#,31 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-8700104 |
YR2#..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71537-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71537-8700106 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 71537-8700102 |
CR21,YR2#..RHD WINE,RED/MAROON,TRIM4# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-28021 |
YR2#,31..GL |
1 | ||
| 71551-87006 |
YR2#..GL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-87007 |
YR2#..GL |
1 | ||
| 71552-28021 |
YR2#,31..GL |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-87009 |
YR2#,31..RHD..GL |
1 | ||
| 71630-87007 |
YR21..RHD..GL |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-87008 |
YR21..GL..ARL |
1 | ||
| 71640-87011 |
YR2#,31..RHD..GL |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 71831-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71831-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71831-8700114 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71831-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 71832-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71832-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71832-8700114 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71832-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8701204 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
2 | ||
| 71910-8701704 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
2 | ||
| 71910-8701206 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
2 | ||
| 71910-8701706 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
2 | ||
| 71910-8702006 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
1 | ||
| 71910-8702004 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
CR21,YR2# W(LOCK),W/LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71930-1006004 |
YR2#,31..RHD..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
CR21,YR2#,31..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001016 |
CR21,YR2#,31 W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
CR21,YR2#,31..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001004 |
YR2#,31..RHD..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006016 |
CR21,YR2#,31 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001002 |
CR21,YR2# W/O(LOCK),W/O LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
CR21,YR2# W(LOCK),W/LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 71930-1006004 |
YR2#,31..RHD..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006004 |
CR21,YR2#,31..GL W(LOCK),W/LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001016 |
CR21,YR2#,31 W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
CR21,YR2#,31..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM1# |
2 | ||
| 71931-1001004 |
YR2#,31..RHD..GL W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006016 |
CR21,YR2#,31 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001002 |
CR21,YR2# W/O(LOCK),W/O LOCK,WINE,DARK WINE,TRIM4# |
2 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-87004 |
CR21,YR2#,31..RHD |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72120-87001 |
CR21,YR2#,31..ARL |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-87003 |
CR21,YR2#,31..RHD |
1 | ||
| 72130-87001 |
CR21,YR2#..RHD |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-87003 |
CR21,YR2#..ARL |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-2802004 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72010-2802006 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 72010-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 72010-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72010-2802004 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-8700104 |
YR2#..RHD..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72020-8700102 |
CR21,YR2#..RHD WINE,RED/MAROON,TRIM4# |
1 | ||
| 72020-8700304 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72020-8700306 |
CR21,YR2#,31..RHD BROWN,BROWN,TRIM4# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-8700402 |
YR21..GL..ARL WINE,WINE,TRIM4# |
1 | ||
| 72880-8700404 |
YR21..GL..ARL BLUE,BLUE,TRIM1# |
1 | ||
| 72880-8700906 |
YR2#,31..RHD..GL BROWN,BROWN,TRIM4# |
1 | ||
| 72880-8700904 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72880-8700704 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72880-8701204 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72880-8700706 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
1 | ||
| 72880-8701206 |
YR2#,31..RHD..GL BROWN,BROWN,TRIM4# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-8700404 |
YR21..GL..ARL BLUE,BLUE,TRIM1# |
1 | ||
| 72890-8700402 |
YR21..GL..ARL WINE,WINE,TRIM4# |
1 | ||
| 72890-8700604 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72890-8700806 |
YR2#..RHD..GL BROWN,BROWN,TRIM4# |
1 | ||
| 72890-8700606 |
YR2#,31..GL BROWN,BROWN,TRIM4# |
1 | ||
| 72890-8700804 |
YR2#..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72890-8701104 |
YR2#..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72890-8701106 |
YR2#..RHD..GL BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90109-10057 | ||||
| 90119-08421 | ||||
| 90119-10048 | ||||
| 90119-10116 | ||||
| 90119-10310 | ||||
| 90119-10401 | ||||
| 90119-10456 | ||||
| 90154-80045 | ||||
| 90159-50120 | ||||
| 90386-25001 | ||||
| 93530-54025 | ||||
| 93560-15010 | ||||
| Linked diagrams | ||||
| 7456 | ||||
ILLUST NO. 3 OF 3(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71257 - PLATE, REAR SEAT BACK ANCHOR | ||||
| 71257-8700203 |
YR2#,31..GL GRAY,GRAY,TRIM1#,8# |
1 | ||
| 71257-8700205 |
CR21,YR2#,31 BEIGE,BEIGE,TRIM4# |
2 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-87002 |
CR21,YR2#,31 |
4 | ||
| 71349B - COVER, REAR SEAT BACK STAY, RH | ||||
| 71349-8700204 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71349-8700206 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71349-8700204 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71369B - COVER, REAR SEAT BACK STAY, LH | ||||
| 71369-8700204 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71369-8700204 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71369-8700206 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-8700104 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
2 | ||
| 71629-8700104 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
2 | ||
| 71629-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
2 | ||
| 71691A - COVER, REAR NO.3 SEAT LOCK, RH | ||||
| 71691-8700304 |
YR2#,31..GL INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 71691-8700206 |
CR21,YR2#,31 OUTER,BROWN,BROWN,TRIM4# |
1 | ||
| 71691-8700304 |
YR2#,31..RHD..GL INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 71691-8700204 |
YR2#,31..RHD..GL OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71691-8700306 |
CR21,YR2#,31 INNER,BROWN,BROWN,TRIM4# |
1 | ||
| 71691-8700204 |
YR2#,31..GL OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71691A - COVER, REAR NO.3 SEAT LOCK, RH | ||||
| 71691-8700304 |
YR2#,31..GL INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 71691-8700206 |
CR21,YR2#,31 OUTER,BROWN,BROWN,TRIM4# |
1 | ||
| 71691-8700304 |
YR2#,31..RHD..GL INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 71691-8700204 |
YR2#,31..RHD..GL OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71691-8700306 |
CR21,YR2#,31 INNER,BROWN,BROWN,TRIM4# |
1 | ||
| 71691-8700204 |
YR2#,31..GL OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71692A - COVER, REAR NO.3 SEAT LOCK, LH | ||||
| 71692-8700204 |
YR2#,31..GL OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71692-8700206 |
CR21,YR2#,31 OUTER,BROWN,BROWN,TRIM4# |
1 | ||
| 71692-8700304 |
YR2#,31..GL INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 71692-8700304 |
YR2#,31..RHD..GL INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 71692-8700204 |
YR2#,31..RHD..GL OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71692-8700306 |
CR21,YR2#,31 INNER,BROWN,BROWN,TRIM4# |
1 | ||
| 71692A - COVER, REAR NO.3 SEAT LOCK, LH | ||||
| 71692-8700204 |
YR2#,31..GL OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71692-8700206 |
CR21,YR2#,31 OUTER,BROWN,BROWN,TRIM4# |
1 | ||
| 71692-8700304 |
YR2#,31..GL INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 71692-8700304 |
YR2#,31..RHD..GL INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 71692-8700204 |
YR2#,31..RHD..GL OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71692-8700306 |
CR21,YR2#,31 INNER,BROWN,BROWN,TRIM4# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
CR21,YR2#,31 |
1 | ||
| 71857 - COVER, RECLINING HINGE, RH | ||||
| 71811-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 71811-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71811-8700114 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71811-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71811-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71858 - COVER, RECLINING HINGE, LH | ||||
| 71812-8700114 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71812-8700106 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 71812-8700102 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 71812-8700114 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 71812-8700104 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006016 |
CR21,YR2#,31 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
4 | ||
| 71931-1001016 |
CR21,YR2#,31 W/O(LOCK),W/O LOCK BROWN,SABLE,TRIM4# |
4 | ||
| 71930-1006004 |
YR2#,31..RHD..GL W(LOCK),W/LOCK,BLUE,TRIM8# |
4 | ||
| 71931-1001004 |
YR2#,31..RHD..GL W/O(LOCK),W/O LOCK BLUE,BLUE,TRIM8# |
4 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006016 |
CR21,YR2#,31 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
4 | ||
| 71931-1001016 |
CR21,YR2#,31 W/O(LOCK),W/O LOCK BROWN,SABLE,TRIM4# |
4 | ||
| 71930-1006004 |
YR2#,31..RHD..GL W(LOCK),W/LOCK,BLUE,TRIM8# |
4 | ||
| 71931-1001004 |
YR2#,31..RHD..GL W/O(LOCK),W/O LOCK BLUE,BLUE,TRIM8# |
4 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-2805004 |
YR2#,31..RHD..GL FR LH,BLUE,GRAY,TRIM8# |
1 | ||
| 71940-8702504 |
YR2#,31..RHD..GL RR,BLUE,BLUE,TRIM8# |
2 | ||
| 71940-8702504 |
YR2#,31..RHD..GL FR RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71940-8702506 |
YR2#,31..RHD..GL FR RH,BROWN,BROWN,TRIM4# |
1 | ||
| 71940-8702506 |
YR2#,31..RHD..GL RR,BROWN,BROWN,TRIM4# |
2 | ||
| 71940-2805006 |
YR2#,31..RHD..GL FR LH,BROWN,BROWN,TRIM4# |
1 | ||
| 71940-8703304 |
YR2#,31..RHD..GL FR RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71940-8703304 |
YR2#,31..RHD..GL RR,BLUE,BLUE,TRIM8# |
2 | ||
| 71940-8703306 |
YR2#,31..RHD..GL FR RH,BROWN,BROWN,TRIM4# |
1 | ||
| 71940-8703404 |
YR2#,31..RHD..GL FB LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71940-8703406 |
YR2#,31..RHD..GL FR LH,BROWN,BROWN,TRIM4# |
1 | ||
| 71940-8703306 |
YR2#,31..RHD..GL RR,BROWN,BROWN,TRIM4# |
2 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-8700106 |
CR21,YR2# BROWN,BROWN,TRIM4# |
1 | ||
| 72065-8700104 |
YR2#..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72065-8700304 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72065-8700304 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72065-8700306 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72065-8700106 |
CR21,YR2# BROWN,BROWN,TRIM4# |
1 | ||
| 72065-8700306 |
CR21,YR2#,31 BROWN,BROWN,TRIM4# |
1 | ||
| 72065-8700304 |
YR2#,31..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72065-8700304 |
YR2#,31..RHD..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72065-8700104 |
YR2#..GL BLUE,BLUE,TRIM8# |
1 | ||
| 72650B - LOCK ASSY, REAR NO.3 SEAT, RH | ||||
| 72660-87002 |
CR21,YR2#,31 |
1 | ||
| 72660-95702 |
CR21,YR2# |
1 | ||
| 72658 - KNOB, REAR SEAT HANDLE | ||||
| 72658-9570101 |
CR21,YR2#,31 BLACK,BLACK |
2 | ||
| 72660B - LOCK ASSY, REAR NO.3 SEAT, LH | ||||
| 72650-87003 |
CR21,YR2#,31 |
1 | ||
| 72650-95703 |
CR21,YR2# |
1 | ||
| 72691 - STRIKER, REAR NO.3 SEAT LOCK | ||||
| 72691-87001 |
CR21,YR2#,31 |
2 | ||
| 72750C - ADJUSTER ASSY, NO.3 SEAT RECLINING, RH | ||||
| 72730-8701402 |
CR21,YR21 WINE,WINE,TRIM4# |
1 | ||
| 72730-8700602 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 72730-8701404 |
YR21..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72730-8700604 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72730-8701904 |
YR2#,31..GL..ARL BLUE,BLUE,TRIM8# |
1 | ||
| 72730-8701906 |
CR21,YR2#,31..ARL BROWN,BROWN,TRIM4# |
1 | ||
| 72760C - ADJUSTER ASSY, NO.3 SEAT RECLINING, LH | ||||
| 72740-8700604 |
CR21,YR2#..GL BLUE,BLUE,TRIM1# |
1 | ||
| 72740-87011 |
CR21,YR21 |
1 | ||
| 72740-8701604 |
YR2#,31..GL..ARL BLUE,BLUE,TRIM8# |
1 | ||
| 72740-8701606 |
CR21,YR2#,31..ARL BROWN,BROWN,TRIM4# |
1 | ||
| 72740-8700602 |
CR21,YR2# WINE,RED/MAROON,TRIM4# |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79031-8700604 |
YR2#,31..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79031-8700606 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79031-8702206 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79031-8702204 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79031-8702704 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79031-8702706 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79032-8700606 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79032-8700604 |
YR2#,31..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79032-8702106 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79032-8702104 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79032-8702604 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79032-8702606 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79033-8700604 |
YR2#,31..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79033-8700606 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79033-8701504 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79033-8701506 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79033-8701906 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79033-8701904 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79034-8700604 |
YR2#,31..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79034-8700606 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79034-8701506 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79034-8701904 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79034-8701906 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79034-8701504 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79232 - LEG, REAR NO.2 SEAT, RH | ||||
| 79232-87002 |
CR21,YR2#,31 |
1 | ||
| 79242 - LEG, REAR NO.2 SEAT, LH | ||||
| 79242-87002 |
CR21,YR2#,31 |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79320-8700604 |
YR2#,31..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79320-8700606 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79320-8701906 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79320-8702606 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79320-8701904 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79320-8702604 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79330 - CUSHION ASSY, NO.3 SEAT, LH | ||||
| 79330-8700604 |
YR2#,31..GL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79330-8701804 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79330-8701806 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79330-8700606 |
YR2#,31..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79330-8702506 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79330-8702504 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79331 - LEG, NO.3 SEAT, OUTER RH | ||||
| 79331-87001 |
CR21,YR2#,31 |
1 | ||
| 79335A - PAD, NO.3 SEAT CUSHION, RH | ||||
| 79335-87004 |
CR21,YR2#,31 |
1 | ||
| 79340 - BACK ASSY, NO.3 SEAT, RH | ||||
| 79340-8700906 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79340-8701306 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79340-8701304 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79340-8700904 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79340-8701806 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79340-8701804 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79341 - LEG, NO.3 SEAT, OUTER LH | ||||
| 79341-87001 |
CR21,YR2#,31 |
1 | ||
| 79345A - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79345-87004 |
CR21,YR2#,31 |
1 | ||
| 79350 - BACK ASSY, NO.3 SEAT, LH | ||||
| 79350-8700904 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79350-8701304 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79350-8701306 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79350-8701906 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79350-8700906 |
YR2#,31..GL..ARL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 79350-8701904 |
YR2#,31..GL..ARL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 79360A - SPRING ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79360-87001 |
CR21,YR2#,31 |
1 | ||
| 79370A - SPRING ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79370-87001 |
CR21,YR2#,31 |
1 | ||
| 79372 - COVER, NO.3 SEAT FRONT BRACKET, RH | ||||
| 79372-8700204 |
YR2#,31..GL FR,BLUE,BLUE,TRIM8# |
1 | ||
| 79372-8700204 |
YR2#,31..RHD..GL FR,BLUE,BLUE,TRIM8# |
1 | ||
| 79372-8700104 |
YR2#,31..GL SIDE,BLUE,BLUE,TRIM8# |
1 | ||
| 79372-8700106 |
CR21,YR2#,31 SIDE,BROWN,BROWN,TRIM4# |
1 | ||
| 79372-8700104 |
YR2#,31..RHD..GL SIDE,BLUE,BLUE,TRIM8# |
1 | ||
| 79372-8700206 |
CR21,YR2#,31 FR,BROWN,BROWN,TRIM4# |
1 | ||
| 79372 - COVER, NO.3 SEAT FRONT BRACKET, RH | ||||
| 79372-8700204 |
YR2#,31..GL FR,BLUE,BLUE,TRIM8# |
1 | ||
| 79372-8700204 |
YR2#,31..RHD..GL FR,BLUE,BLUE,TRIM8# |
1 | ||
| 79372-8700104 |
YR2#,31..GL SIDE,BLUE,BLUE,TRIM8# |
1 | ||
| 79372-8700106 |
CR21,YR2#,31 SIDE,BROWN,BROWN,TRIM4# |
1 | ||
| 79372-8700104 |
YR2#,31..RHD..GL SIDE,BLUE,BLUE,TRIM8# |
1 | ||
| 79372-8700206 |
CR21,YR2#,31 FR,BROWN,BROWN,TRIM4# |
1 | ||
| 79374 - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79384-9570116 |
CR21,YR2#,31 FR INNER,BROWN,BROWN,TRIM4# |
1 | ||
| 79374-9570016 |
CR21,YR2#,31 RR INNER,BROWN,BROWN,TRIM4# |
1 | ||
| 79374-8700106 |
CR21,YR2#,31 RR OUTER,BROWN,BROWN,TRIM4# |
1 | ||
| 79374-9570014 |
YR2#,31..RHD..GL RR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79374-9570014 |
YR2#,31..GL RR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79374-8700104 |
YR2#,31..GL RR OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-9570114 |
YR2#,31..GL FR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79374-8700104 |
YR2#,31..RHD..GL RR OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-9570114 |
YR2#,31..RHD..GL FR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79374 - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79384-9570116 |
CR21,YR2#,31 FR INNER,BROWN,BROWN,TRIM4# |
1 | ||
| 79374-9570016 |
CR21,YR2#,31 RR INNER,BROWN,BROWN,TRIM4# |
1 | ||
| 79374-8700106 |
CR21,YR2#,31 RR OUTER,BROWN,BROWN,TRIM4# |
1 | ||
| 79374-9570014 |
YR2#,31..RHD..GL RR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79374-9570014 |
YR2#,31..GL RR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79374-8700104 |
YR2#,31..GL RR OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-9570114 |
YR2#,31..GL FR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79374-8700104 |
YR2#,31..RHD..GL RR OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-9570114 |
YR2#,31..RHD..GL FR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79374 - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79384-9570116 |
CR21,YR2#,31 FR INNER,BROWN,BROWN,TRIM4# |
1 | ||
| 79374-9570016 |
CR21,YR2#,31 RR INNER,BROWN,BROWN,TRIM4# |
1 | ||
| 79374-8700106 |
CR21,YR2#,31 RR OUTER,BROWN,BROWN,TRIM4# |
1 | ||
| 79374-9570014 |
YR2#,31..RHD..GL RR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79374-9570014 |
YR2#,31..GL RR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79374-8700104 |
YR2#,31..GL RR OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-9570114 |
YR2#,31..GL FR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79374-8700104 |
YR2#,31..RHD..GL RR OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-9570114 |
YR2#,31..RHD..GL FR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79375A - PAD, NO.3 SEAT BACK, RH | ||||
| 79375-87004 |
CR21,YR2#,31 |
1 | ||
| 79375-87007 |
CR21,YR2#,31 |
1 | ||
| 79380A - SPRING ASSY, NO.3 SEAT BACK, RH | ||||
| 79380-87006 |
CR21,YR2#,31..ARL |
1 | ||
| 79380-87008 |
CR21,YR2#,31..ARL |
1 | ||
| 79382 - COVER, NO.3 SEAT FRONT BRACKET, LH | ||||
| 79382-8700204 |
YR2#,31..GL FR,BLUE,BLUE,TRIM8# |
1 | ||
| 79382-8700206 |
CR21,YR2#,31 FR,BROWN,BROWN,TRIM4# |
1 | ||
| 79382-8700104 |
YR2#,31..GL SIDE,BLUE,BLUE,TRIM8# |
1 | ||
| 79382-8700204 |
YR2#,31..RHD..GL FR,BLUE,BLUE,TRIM8# |
1 | ||
| 79382-8700106 |
CR21,YR2#,31 SIDE,BROWN,BROWN,TRIM4# |
1 | ||
| 79382-8700104 |
YR2#,31..RHD..GL SIDE,BLUE,BLUE,TRIM8# |
1 | ||
| 79382 - COVER, NO.3 SEAT FRONT BRACKET, LH | ||||
| 79382-8700204 |
YR2#,31..GL FR,BLUE,BLUE,TRIM8# |
1 | ||
| 79382-8700206 |
CR21,YR2#,31 FR,BROWN,BROWN,TRIM4# |
1 | ||
| 79382-8700104 |
YR2#,31..GL SIDE,BLUE,BLUE,TRIM8# |
1 | ||
| 79382-8700204 |
YR2#,31..RHD..GL FR,BLUE,BLUE,TRIM8# |
1 | ||
| 79382-8700106 |
CR21,YR2#,31 SIDE,BROWN,BROWN,TRIM4# |
1 | ||
| 79382-8700104 |
YR2#,31..RHD..GL SIDE,BLUE,BLUE,TRIM8# |
1 | ||
| 79384 - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79374-9570014 |
YR2#,31..GL FR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79374-9570016 |
CR21,YR2#,31 FR INNER,BROWN,BROWN,TRIM4# |
1 | ||
| 79374-9570014 |
YR2#,31..RHD..GL FR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-8700104 |
YR2#,31..GL RR OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-8700106 |
CR21,YR2#,31 RR OUTER,BROWN,BROWN,TRIM4# |
1 | ||
| 79384-8700104 |
YR2#,31..RHD..GL RR OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-9570114 |
YR2#,31..GL RR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-9570114 |
YR2#,31..RHD..GL RR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-9570116 |
CR21,YR2#,31 RR INNER,BROWN,BROWN,TRIM4# |
1 | ||
| 79384 - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79374-9570014 |
YR2#,31..GL FR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79374-9570016 |
CR21,YR2#,31 FR INNER,BROWN,BROWN,TRIM4# |
1 | ||
| 79374-9570014 |
YR2#,31..RHD..GL FR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-8700104 |
YR2#,31..GL RR OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-8700106 |
CR21,YR2#,31 RR OUTER,BROWN,BROWN,TRIM4# |
1 | ||
| 79384-8700104 |
YR2#,31..RHD..GL RR OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-9570114 |
YR2#,31..GL RR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-9570114 |
YR2#,31..RHD..GL RR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-9570116 |
CR21,YR2#,31 RR INNER,BROWN,BROWN,TRIM4# |
1 | ||
| 79384 - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79374-9570014 |
YR2#,31..GL FR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79374-9570016 |
CR21,YR2#,31 FR INNER,BROWN,BROWN,TRIM4# |
1 | ||
| 79374-9570014 |
YR2#,31..RHD..GL FR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-8700104 |
YR2#,31..GL RR OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-8700106 |
CR21,YR2#,31 RR OUTER,BROWN,BROWN,TRIM4# |
1 | ||
| 79384-8700104 |
YR2#,31..RHD..GL RR OUTER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-9570114 |
YR2#,31..GL RR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-9570114 |
YR2#,31..RHD..GL RR INNER,BLUE,BLUE,TRIM8# |
1 | ||
| 79384-9570116 |
CR21,YR2#,31 RR INNER,BROWN,BROWN,TRIM4# |
1 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 79385-87004 |
CR21,YR2#,31 |
1 | ||
| 79385-87009 |
CR21,YR2#,31 |
1 | ||
| 79390A - SPRING ASSY, NO.3 SEAT BACK, LH | ||||
| 79390-87006 |
CR21,YR2#,31..ARL |
1 | ||
| 79390-87008 |
CR21,YR2#,31..ARL |
1 | ||
| Common parts | ||||
| 90109-08095 | ||||
| 90119-10111 | ||||
| 90119-10157 | ||||
| 90119-10392 | ||||
| 90119-11011 | ||||
| 90154-80006 | ||||
| 90159-40118 | ||||
| 90159-60280 | ||||
| 90164-50020 | ||||
| 90206-12035 | ||||
| 90249-08155 | ||||
| 90386-12005 | ||||
| 90506-26018 | ||||
| 90523-06017 | ||||
| 91651-61025 | ||||
| 93210-46020 | ||||
| 93560-55016 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
