YR21RG-PQQ (1984)

Toyota Model-F

Production Jan 1984 - Aug 1988
Engine 3Y
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )3Y..LHD..EUR ; (8508-8701)3Y..ARL ; (8508-8701)3Y..LHD..EUR

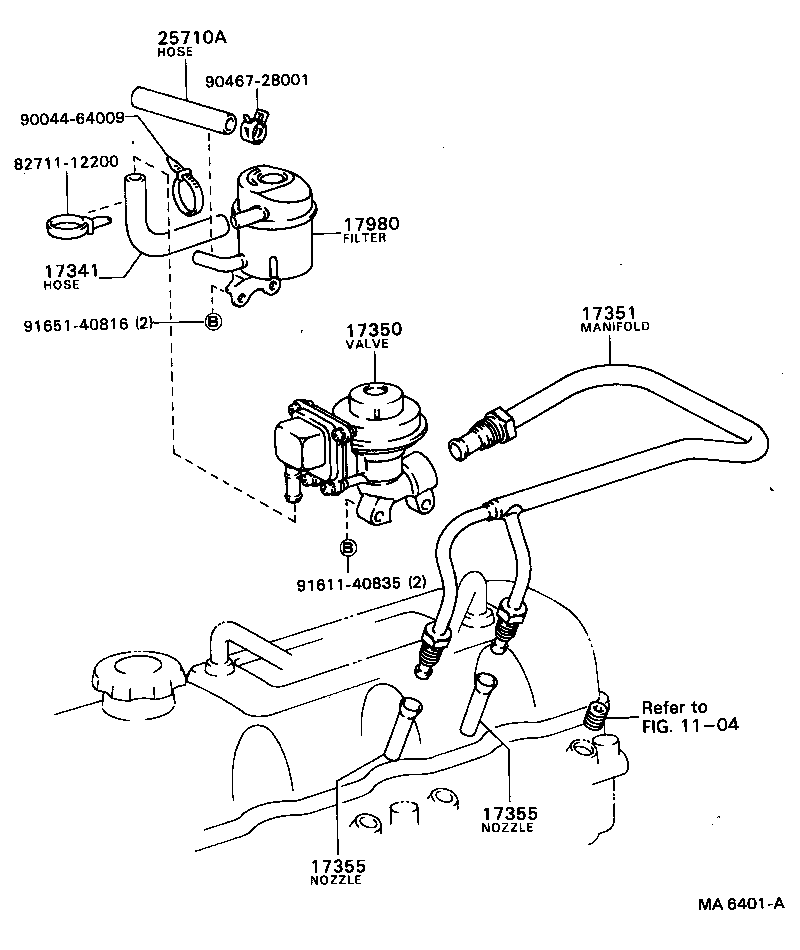

Click highlighted areas on diagram

diagram 1104 17341 17350 17351 17355 17355 17980 25710A 8271112200 9004464009 9046728001 9161140835 9165140816
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-71010

2YC,3Y#..YR20,21..ARL;2Y,3Y..YR20,21..LHD..EUR

 1
17351 - MANIFOLD, AIR INJECTION
17351-71020

2YC,3Y#..YR2#..ARL;2Y,3Y..YR2#..LHD..EUR

 1
17306-71010

3Y#..YR21..ARL

 1
17355 - NOZZLE, AIR INJECTION
17355-71010

2YC,3Y#..YR20,21..ARL;2Y,3Y..YR20,21..LHD..EUR

 2
17355 - NOZZLE, AIR INJECTION
17355-71010

2YC,3Y#..YR20,21..ARL;2Y,3Y..YR20,21..LHD..EUR

 2
17980 - FILTER ASSY, AIR SUCTION
17980-71012

3Y#..YR21..ARL

 1
17980-71012

3Y#..YR21..ARL;3Y..YR21..LHD..4FC..EUR

 1
17980-71011

3Y#..YR21..ARL;3Y..YR21..LHD..4FC..EUR

 1
25710A - HOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)
90445-29003

2YC,3Y#..YR20,21..ARL;2Y,3Y..YR20,21..LHD..EUR

 1
Common parts
82711-12200
90044-64009
90467-28001
91611-40835
91651-40816
Linked diagrams
1104

(8508- )3YC

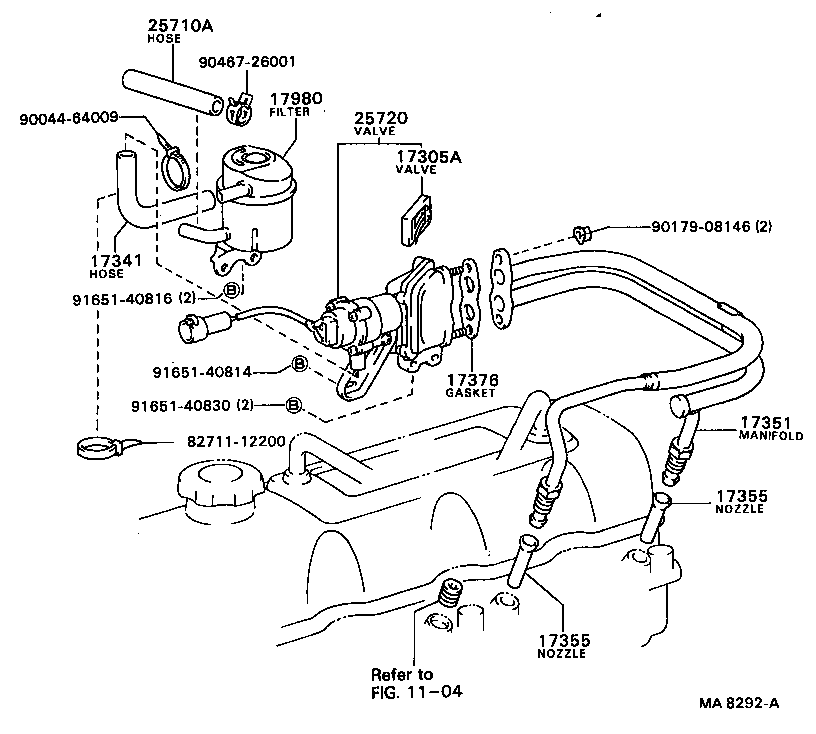

Click highlighted areas on diagram

diagram 1104 17305A 17341 17351 17355 17355 17376 17980 25710A 25720 8271112200 9004464009 9017908146 9046726001 9165140814 9165140816 9165140830
Part # Description Qty Price
17305A - VALVE SUB-ASSY, REED
17305-28010

3Y#..YR21..ARL

DENSO

 1
17305-71010

3Y#..YR21..ARL

NOK

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-71010

2YC,3Y#..YR20,21..ARL;2Y,3Y..YR20,21..LHD..EUR

 1
17351 - MANIFOLD, AIR INJECTION
17351-71020

2YC,3Y#..YR2#..ARL;2Y,3Y..YR2#..LHD..EUR

 1
17306-71010

3Y#..YR21..ARL

 1
17355 - NOZZLE, AIR INJECTION
17355-71010

2YC,3Y#..YR20,21..ARL;2Y,3Y..YR20,21..LHD..EUR

 2
17355 - NOZZLE, AIR INJECTION
17355-71010

2YC,3Y#..YR20,21..ARL;2Y,3Y..YR20,21..LHD..EUR

 2
17376 - GASKET, AIR TUBE, NO.1
17376-71010

3Y#..YR21..ARL

 1
17980 - FILTER ASSY, AIR SUCTION
17980-71012

3Y#..YR21..ARL

 1
17980-71012

3Y#..YR21..ARL;3Y..YR21..LHD..4FC..EUR

 1
17980-71011

3Y#..YR21..ARL;3Y..YR21..LHD..4FC..EUR

 1
25710A - HOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)
90445-29003

2YC,3Y#..YR20,21..ARL;2Y,3Y..YR20,21..LHD..EUR

 1
25720 - VALVE ASSY, ELECTRIC AIR CONTROL
25720-71010

3Y#..YR21..ARL

 1
Common parts
82711-12200
90044-64009
90179-08146
90467-26001
91651-40814
91651-40816
91651-40830
Linked diagrams
1104
