YR21RG-PQQ (1988)

Toyota Model-F

Production Aug 1988 - Jan 1990
Engine 3YC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )YR21

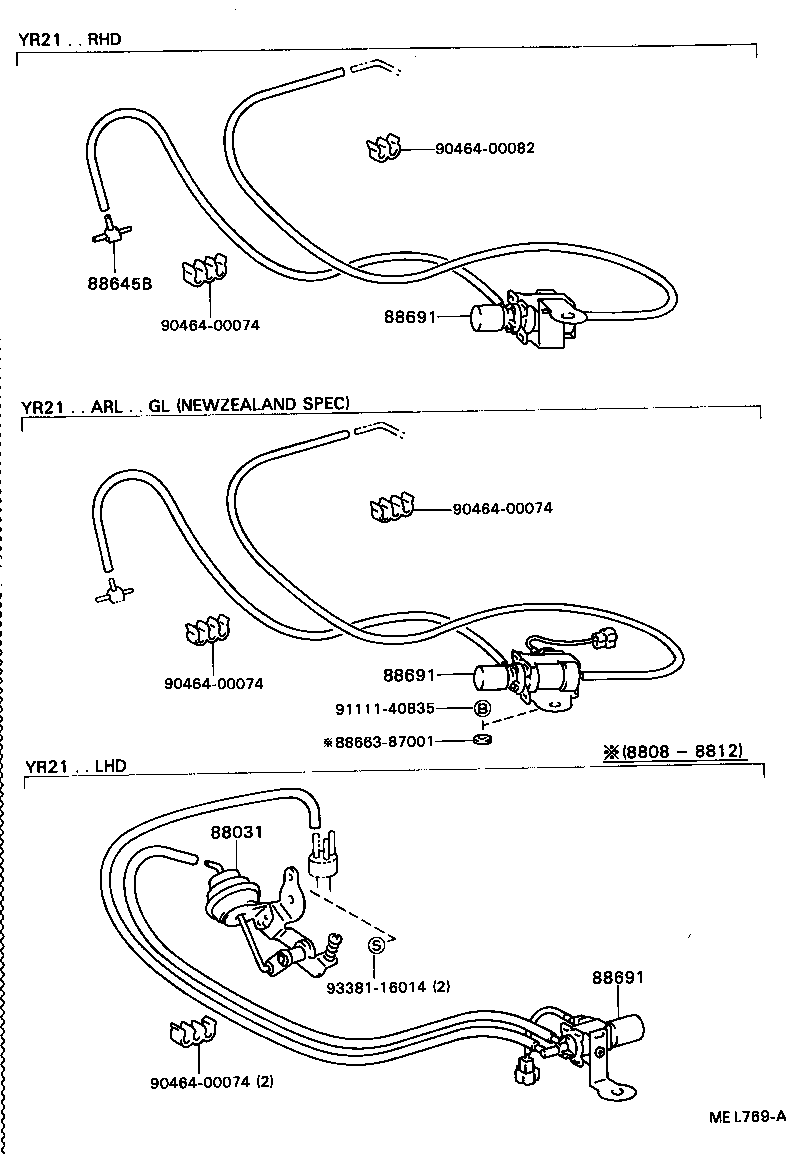

Click highlighted areas on diagram

diagram 88031 88645B 8866387001 88691 88691 88691 9046400074 9046400074 9046400074 9046400074 9046400082 9111140835 9338116014
Part # Description Qty Price
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04001

YR21..ARL

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-87022

YR21..GL..ARL

 1
88690-87030

YR21..GL..ARL

NEW ZEALAND SPEC

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-87022

YR21..GL..ARL

 1
88690-87030

YR21..GL..ARL

NEW ZEALAND SPEC

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-87022

YR21..GL..ARL

 1
88690-87030

YR21..GL..ARL

NEW ZEALAND SPEC

 1
Common parts
88663-87001
90464-00074
90464-00082
91111-40835
93381-16014
