YR21RG-PQQ (1988)
Toyota Model-F
Production
Aug 1988
-
Jan 1990
Engine
3YC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

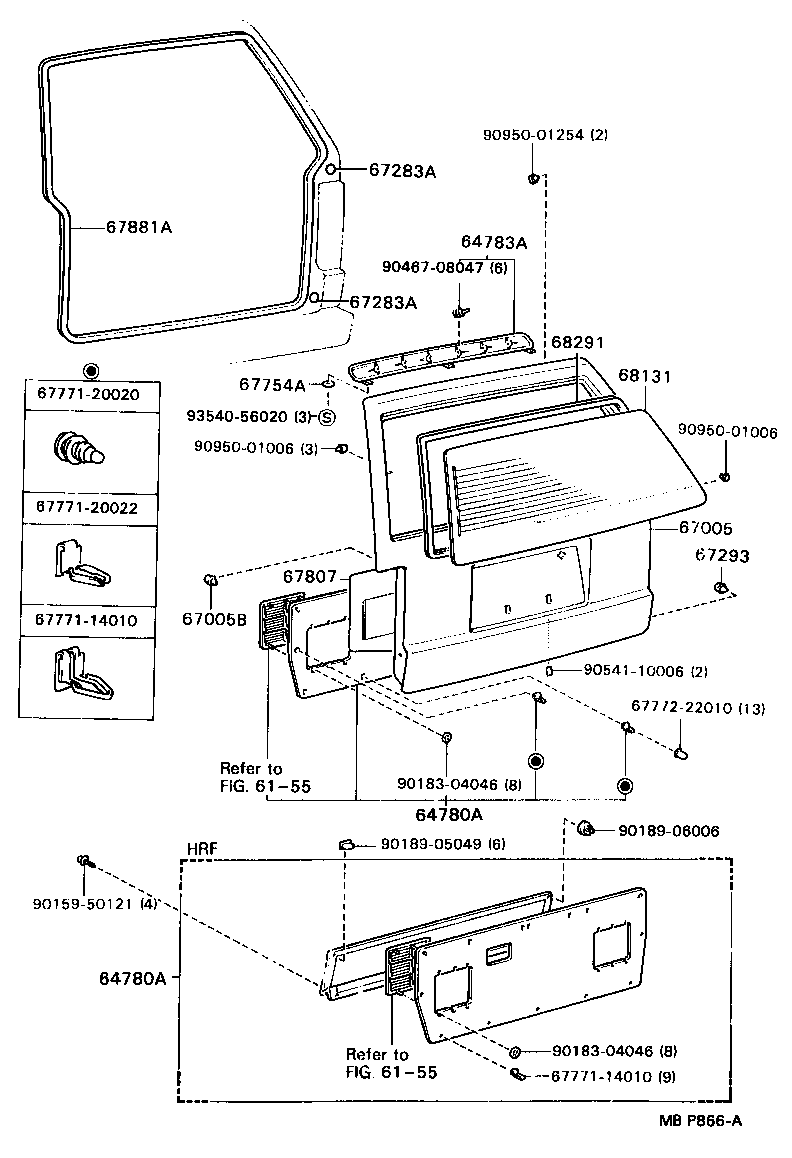

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-8701003 |
YR2#,31..MRF..ARL GRAY,TRIM1# |
1 | ||
| 64780-8701006 |
YR2#,31..MRF..GL..ARL LIGHT SABLE,TRIM4# |
1 | ||
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-8701003 |
YR2#,31..MRF..ARL GRAY,TRIM1# |
1 | ||
| 64780-8701006 |
YR2#,31..MRF..GL..ARL LIGHT SABLE,TRIM4# |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-87G24 |
YR2#,31..MRF..GL..ARL |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09029 |
YR2#,31 |
2 | ||
| 67283A - COVER, BACK DOOR STOPPER CUSHION, NO.1 | ||||
| 67283-87001 |
YR2#,31 |
4 | ||
| 67283A - COVER, BACK DOOR STOPPER CUSHION, NO.1 | ||||
| 67283-87001 |
YR2#,31 |
4 | ||
| 67293 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 90541-09031 |
YR2#,31 |
2 | ||
| 67807 - COVER SUB-ASSY, BACK DOOR SERVICE HOLE | ||||
| 67807-87003 |
YR2#,31 |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-87006 |
YR2#,31..MRF |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-87013 |
YR2#,31..MRF..GL..ARL *EHTT,T=4.0 |
1 | ||
| 68105-87014 |
YR2#,31..MRF..GL..ARL *EHTT,T=4.0,BRONZE |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-87004 |
YR2#,31..MRF |
1 | ||
| Common parts | ||||
| 67771-14010 | ||||
| 67771-20020 | ||||
| 67771-20022 | ||||
| 67772-22010 | ||||
| 90159-50121 | ||||
| 90183-04046 | ||||
| 90189-05049 | ||||
| 90189-06006 | ||||
| 90467-08047 | ||||
| 90541-10006 | ||||
| 90950-01006 | ||||
| 90950-01254 | ||||
| 93540-56020 | ||||
| Linked diagrams | ||||
| 6155 | ||||
