YR21RG-PDQ (1988)
Toyota Model-F

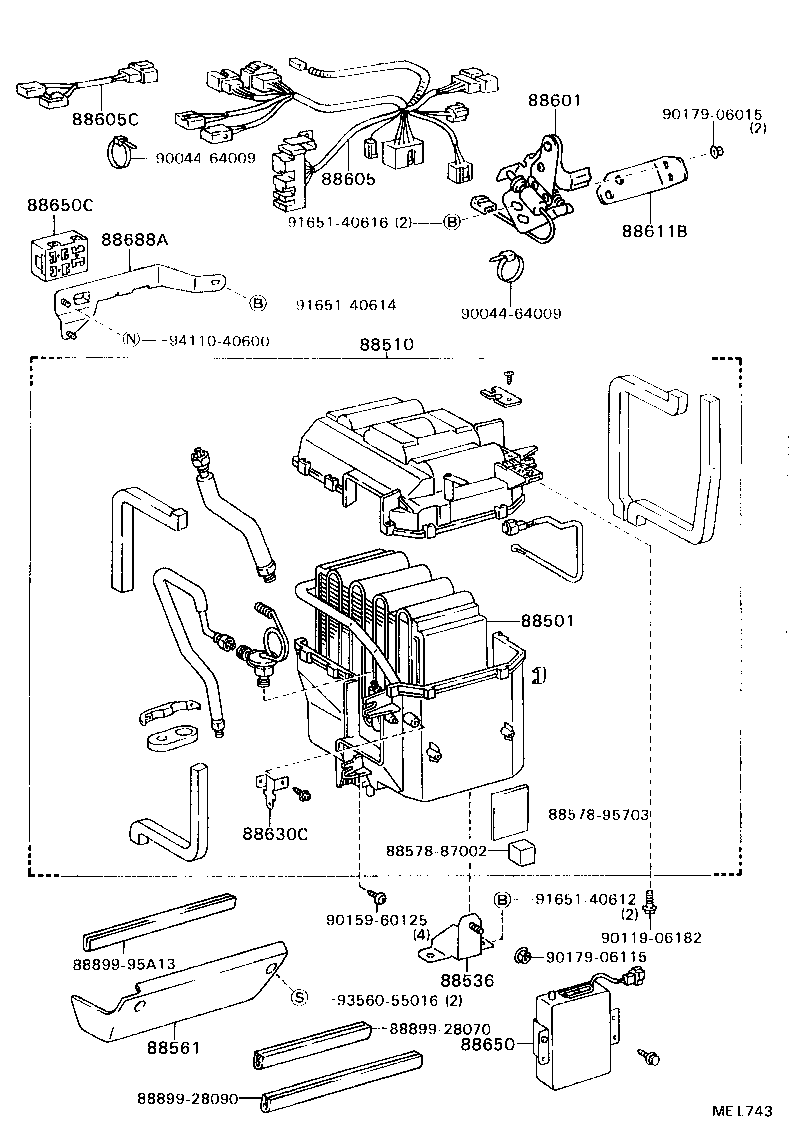

ILLUST NO. 1 OF 4(8808- )YR2#..ARL
FRONT,MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-87011 |
YR21;YR22..MRF..GL REAR |
1 | ||
| 88501-87008 |
YR21..ARL;YR22..MRF..GL COOL BOX |
1 | ||
| 88501-87009 |
YR21..ARL;YR22..MRF..GL FRONT |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-87032 |
YR21..ARL;YR22..MRF..GL FRONT |
1 | ||
| 88510-87011 |
YR21..DLX REAR |
1 | ||
| 88510-87031 |
YR21..DLX FRONT |
1 | ||
| 88510-87031 |
YR21,31..ARL FRONT |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-87013 |
YR21..DLX |
1 | ||
| 88561 - COVER, COOLER UNIT | ||||
| 88899-87012 |
YR21..ARL |
1 | ||
| 88899-87012 |
YR21..DLX |
1 | ||
| 88601 - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 88601-87002 |
YR21..DLX |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-87057 |
YR21..DLX |
1 | ||
| 88605-87072 |
YR21..ARL W(FRONT AIR CONDITIONER) |
1 | ||
| 88605-87064 |
YR21..ARL |
1 | ||
| 88605-87064 |
YR21..DLX REAR MAIN SWITCH |
1 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88648-87020 |
YR21..ARL |
1 | ||
| 88611B - PLATE, COOLER CONTROL SWITCH | ||||
| 88688-87028 |
YR21..DLX |
1 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88631-87001 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-12060 |
YR21..ARL W(FRONT AIR CONDITIONER) |
1 | ||
| 88650-87011 |
YR21..ARL;YR22..MRF..GL COOL BOX |
1 | ||
| 88650-87020 |
YR21..DLX |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-28020 |
YR21..DLX |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88631-87002 |
YR21..DLX |
1 | ||
| Common parts | ||||
| 88578-87002 | ||||
| 88578-95703 | ||||
| 88899-28070 | ||||
| 88899-28090 | ||||
| 88899-95A13 | ||||
| 90044-64009 | ||||
| 90119-06182 | ||||
| 90159-60125 | ||||
| 90179-06015 | ||||
| 90179-06115 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 93560-55016 | ||||
| 94110-40600 | ||||

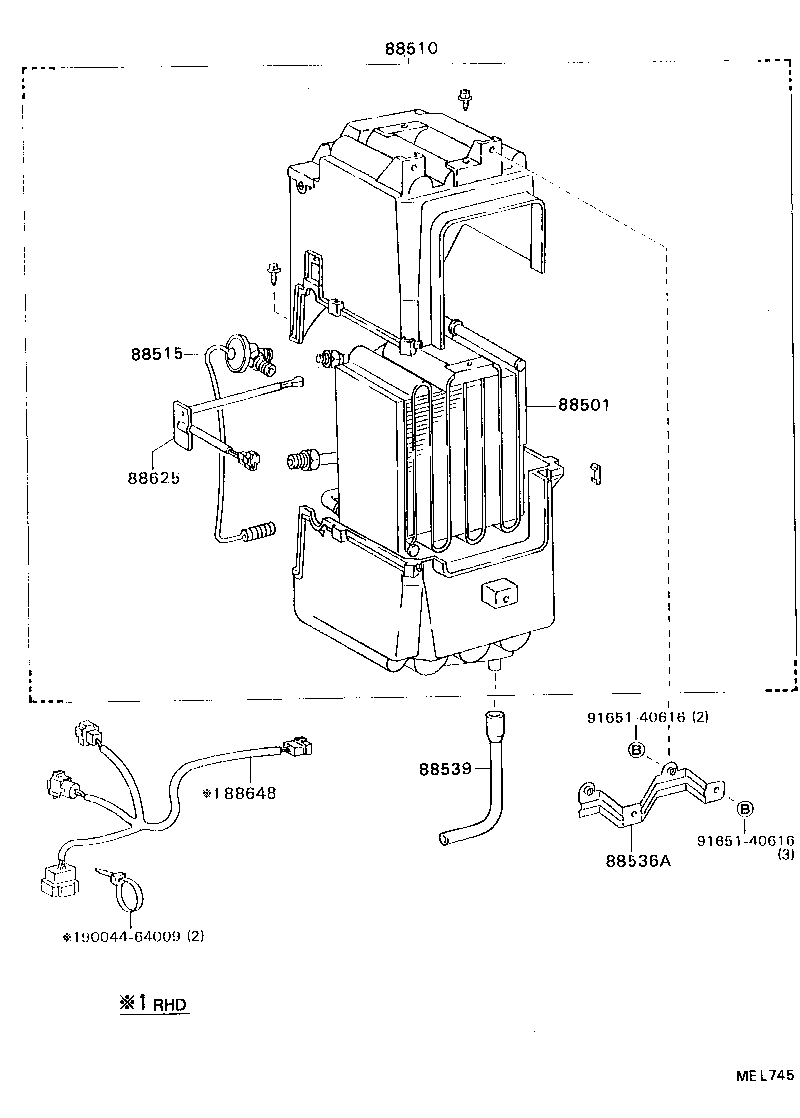

ILLUST NO. 2 OF 4(8808- )YR2#
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-87011 |
YR21;YR22..MRF..GL REAR |
1 | ||
| 88501-87008 |
YR21..ARL;YR22..MRF..GL COOL BOX |
1 | ||
| 88501-87009 |
YR21..ARL;YR22..MRF..GL FRONT |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-87032 |
YR21..ARL;YR22..MRF..GL FRONT |
1 | ||
| 88510-87011 |
YR21..DLX REAR |
1 | ||
| 88510-87031 |
YR21..DLX FRONT |
1 | ||
| 88510-87031 |
YR21,31..ARL FRONT |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87003 |
YR21..ARL;YR22..MRF..GL COOL BOX |
1 | ||
| 88515-87002 |
YR21;YR22..MRF..GL |
1 | ||
| 88515-87004 |
YR2#,31..ARL DEALER OPTION |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-87014 |
YR21..DLX |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95701 |
YR21..DLX |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95A00 |
YR2#,31..ARL DEALER OPTION |
1 | ||
| 88625-87003 |
YR21..ARL;YR22..MRF..GL COOL BOX |
1 | ||
| 88625-20060 |
YR21;YR22..MRF..GL |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-87019 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| Common parts | ||||
| 90044-64009 | ||||
| 90651-40616 | ||||
| 91651-40616 | ||||
ILLUST NO. 3 OF 4(8808- )YR2#
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88688-87023 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-87007 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| 88604 - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-8700213 |
YR21..ARL;YR22..MRF..GL GRAY,TRIM1# |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-28021 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88648-87008 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| 88649A - WIRING, COOLER, NO.3 | ||||
| 88648-28041 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-12060 |
YR21..ARL W(FRONT AIR CONDITIONER) |
1 | ||
| 88650-87011 |
YR21..ARL;YR22..MRF..GL COOL BOX |
1 | ||
| 88650-87020 |
YR21..DLX |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88899-28030 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| Common parts | ||||
| 88578-95703 | ||||
| 90159-60070 | ||||
| 90179-06115 | ||||
| 93510-14012 | ||||

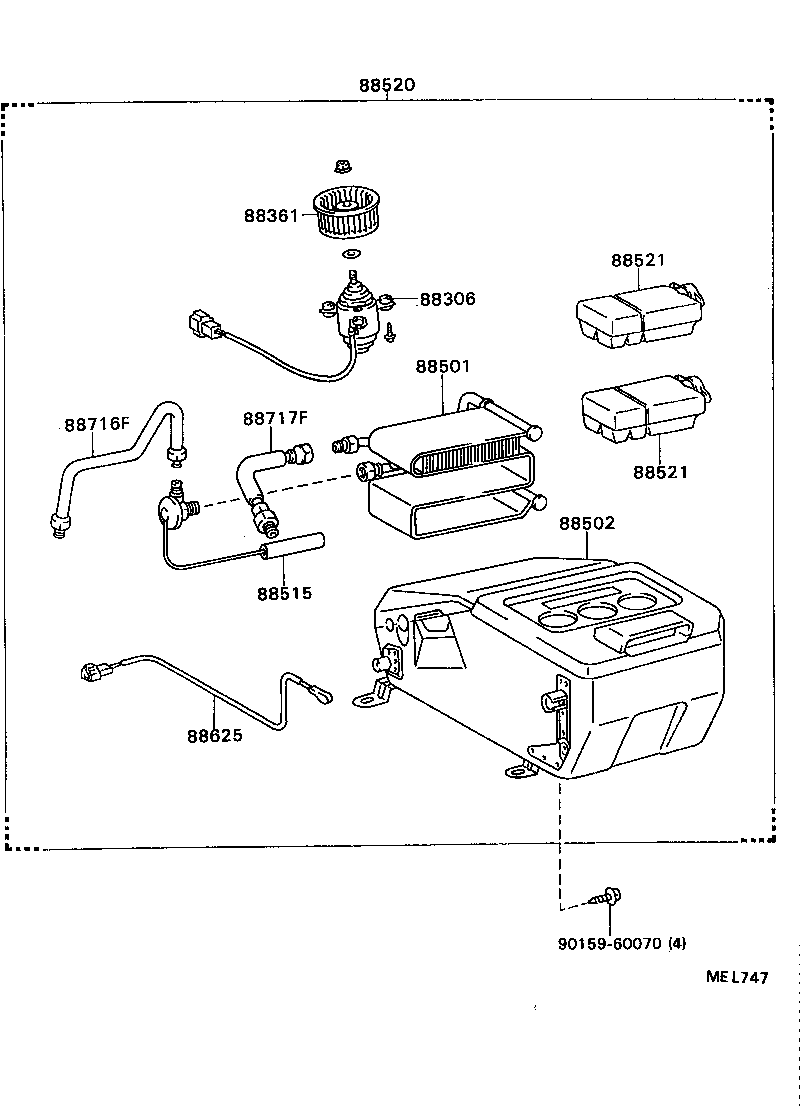

ILLUST NO. 4 OF 4(8808- )YR2#
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-87008 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-87011 |
YR21;YR22..MRF..GL REAR |
1 | ||
| 88501-87008 |
YR21..ARL;YR22..MRF..GL COOL BOX |
1 | ||
| 88501-87009 |
YR21..ARL;YR22..MRF..GL FRONT |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87003 |
YR21..ARL;YR22..MRF..GL COOL BOX |
1 | ||
| 88515-87002 |
YR21;YR22..MRF..GL |
1 | ||
| 88515-87004 |
YR2#,31..ARL DEALER OPTION |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-8700503 |
YR21..ARL;YR22..MRF..GL GRAY,TRIM1# |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88899-28040 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88899-28040 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95A00 |
YR2#,31..ARL DEALER OPTION |
1 | ||
| 88625-87003 |
YR21..ARL;YR22..MRF..GL COOL BOX |
1 | ||
| 88625-20060 |
YR21;YR22..MRF..GL |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-87042 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-87048 |
YR2#,31..ARL DEALER OPTION |
1 | ||
| 88717-87036 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| Common parts | ||||
| 90159-60070 | ||||

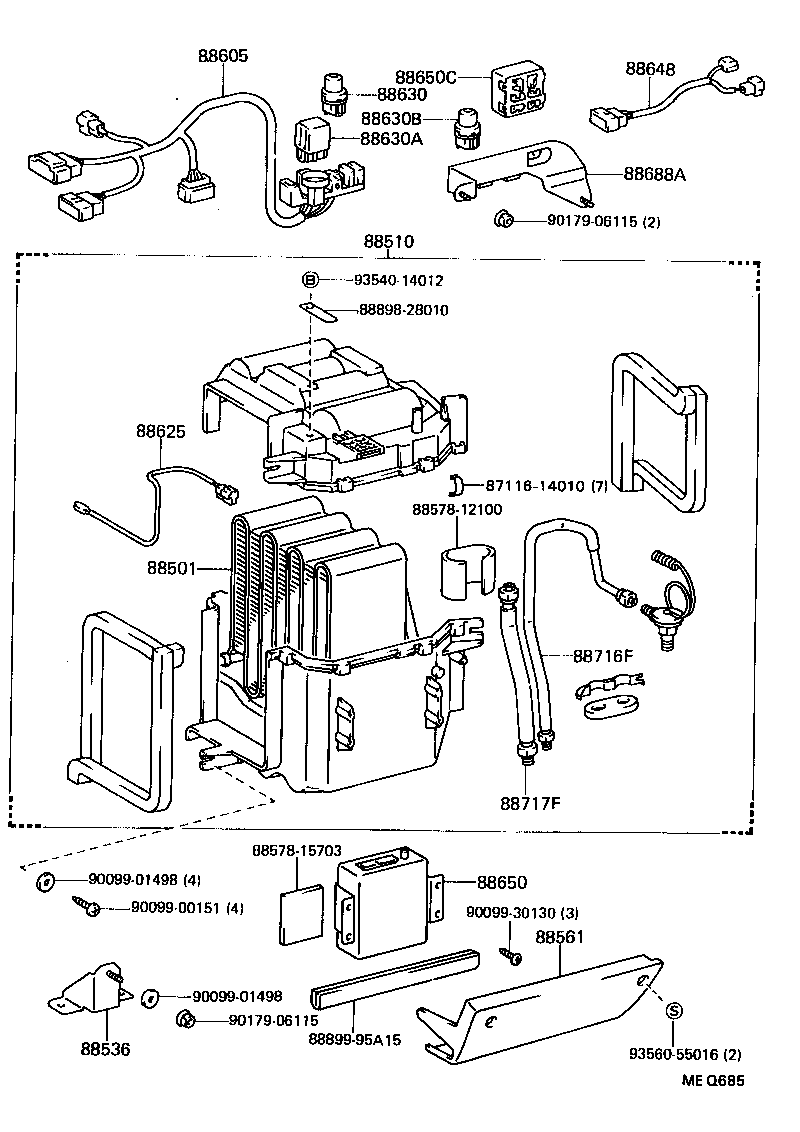

ILLUST NO. 1 OF 4(8808- )ARL
FRONT,DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-87011 |
YR21;YR22..MRF..GL REAR |
1 | ||
| 88501-87008 |
YR21..ARL;YR22..MRF..GL COOL BOX |
1 | ||
| 88501-87009 |
YR21..ARL;YR22..MRF..GL FRONT |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-87032 |
YR21..ARL;YR22..MRF..GL FRONT |
1 | ||
| 88510-87011 |
YR21..DLX REAR |
1 | ||
| 88510-87031 |
YR21..DLX FRONT |
1 | ||
| 88510-87031 |
YR21,31..ARL FRONT |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-87013 |
YR21..DLX |
1 | ||
| 88561 - COVER, COOLER UNIT | ||||
| 88899-87012 |
YR21..ARL |
1 | ||
| 88899-87012 |
YR21..DLX |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-87057 |
YR21..DLX |
1 | ||
| 88605-87072 |
YR21..ARL W(FRONT AIR CONDITIONER) |
1 | ||
| 88605-87064 |
YR21..ARL |
1 | ||
| 88605-87064 |
YR21..DLX REAR MAIN SWITCH |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95A00 |
YR2#,31..ARL DEALER OPTION |
1 | ||
| 88625-87003 |
YR21..ARL;YR22..MRF..GL COOL BOX |
1 | ||
| 88625-20060 |
YR21;YR22..MRF..GL |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
YR21..DLX |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 85913-30020 |
YR21..DLX |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 88630-95702 |
YR21..DLX |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-87019 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-12060 |
YR21..ARL W(FRONT AIR CONDITIONER) |
1 | ||
| 88650-87011 |
YR21..ARL;YR22..MRF..GL COOL BOX |
1 | ||
| 88650-87020 |
YR21..DLX |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-28020 |
YR21..DLX |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88631-87002 |
YR21..DLX |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-87042 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-87048 |
YR2#,31..ARL DEALER OPTION |
1 | ||
| 88717-87036 |
YR21..ARL;YR22..MRF..GL |
1 | ||
| Common parts | ||||
| 87116-14010 | ||||
| 88578-12100 | ||||
| 88578-15703 | ||||
| 88898-28010 | ||||
| 88899-95A15 | ||||
| 90099-00151 | ||||
| 90099-01498 | ||||
| 90099-30130 | ||||
| 90179-06115 | ||||
| 93540-14012 | ||||
| 93560-55016 | ||||
