YR21RG-PDQ (1988)

Toyota Model-F

Production Aug 1988 - Jan 1990
Engine 3YC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

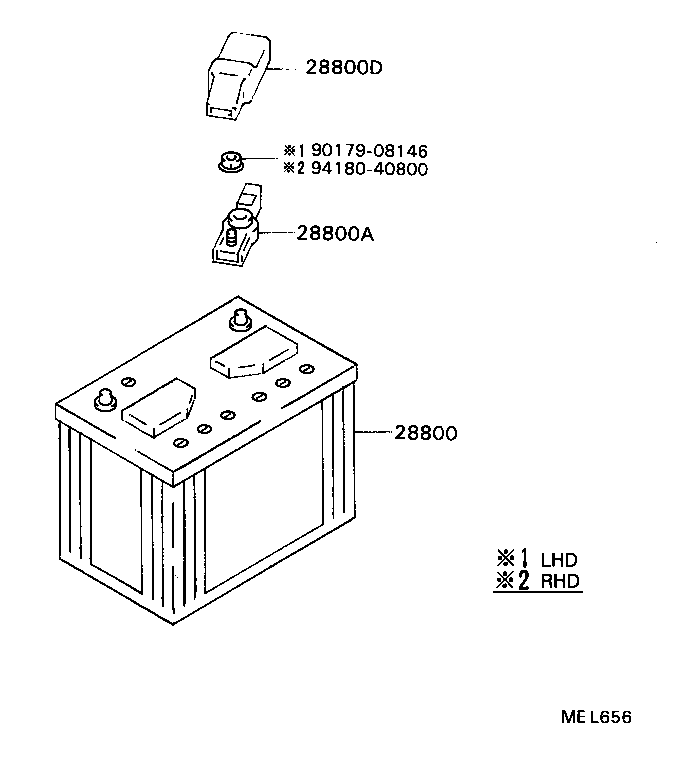

Click highlighted areas on diagram

diagram 28800 28800A 28800D 9017908146 9418040800
Part # Description Qty Price
28800 - BATTERY
28800-13160

3YC..YR21

34B19R

 1
28800-33071

3Y..YR21

32C24R

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

3Y#,4YEC..YR2#,31

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

3Y..YR21

 1
82821-12150

3YC,4YEC..YR2#

 1
82821-95D00

3YC,4YEC..YR2#,31

 1
Common parts
90179-08146
94180-40800
