YR21RG-MQW (1984)
Toyota Model-F

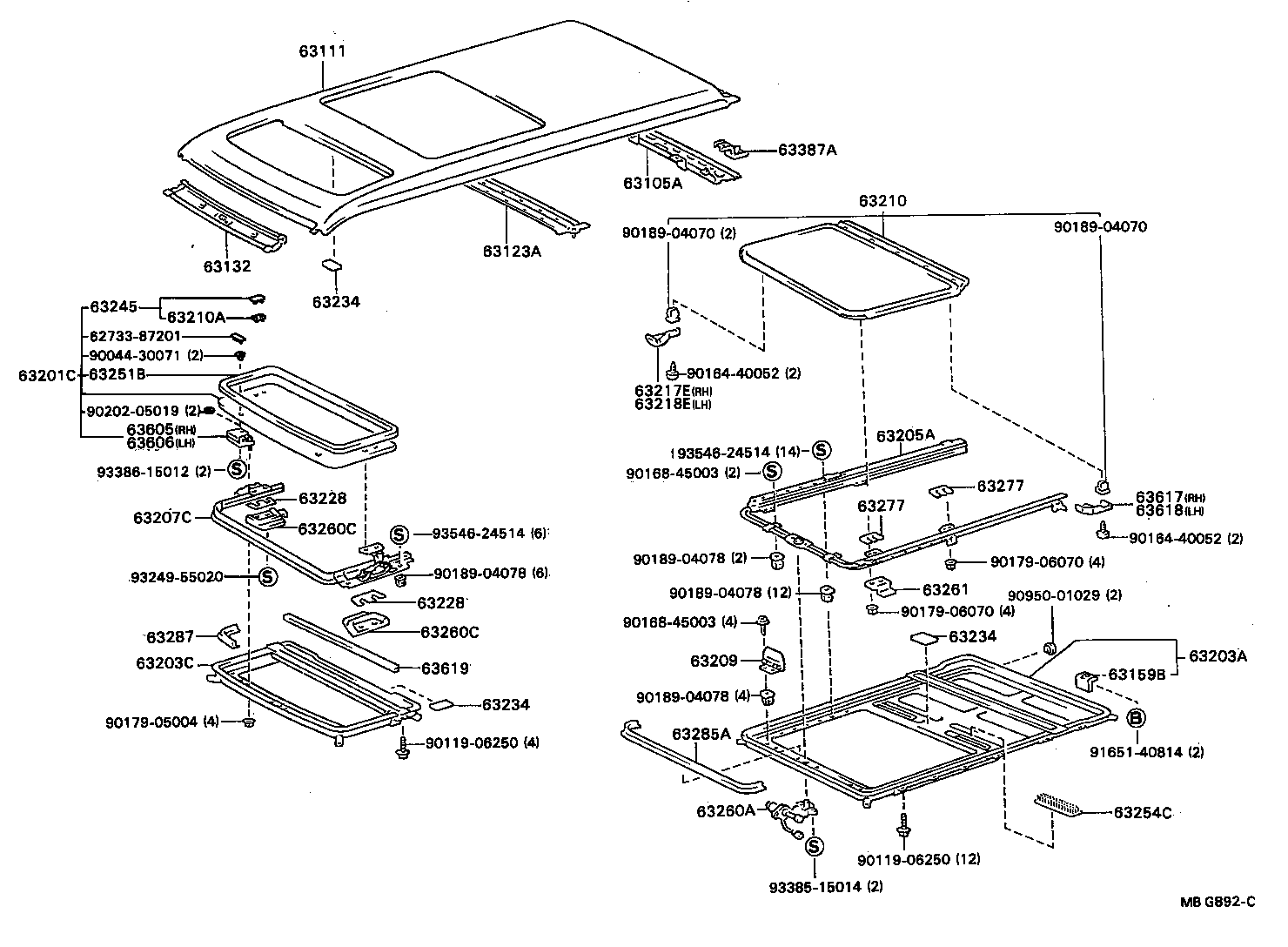

ILLUST NO. 1 OF 3(8408-8608)YR2#..MRF..GL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-87003 |
CR21,YR2#,31..MRF..GL |
1 | ||
| 63105-87006 |
YR2#..MRF..GL W/SUN ROOF |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-87013 |
YR2#..GL..EUR W/SUN ROOF,ROOF RACK |
1 | ||
| 63111-87007 |
YR2#..MRF..GL W/SUN ROOF |
1 | ||
| 63111-87005 |
CR21,YR2#,31..MRF |
1 | ||
| 63123A - REINFORCEMENT, ROOF PANEL, REAR NO.1 | ||||
| 63123-95700 |
YR2#..MRF..GL W/SUN ROOF |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-87004 |
CR21,YR2#,31 |
1 | ||
| 63159B - BRACKET, SLIDING ROOF, REAR | ||||
| 63159-95700 |
YR2#..MRF..GL |
2 | ||
| 63201C - GLASS SUB-ASSY, TILT ROOF | ||||
| 63202-87001 |
YR2#..GL |
1 | ||
| 63202-87003 |
YR21..GL |
1 | ||
| 63201-87013 |
YR2#..MRF..GL |
1 | ||
| 63201-87016 |
YR2#..MRF..GL |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-87004 |
YR2#..MRF..GL |
1 | ||
| 63203C - HOUSING SUB-ASSY, TILT ROOF | ||||
| 63203-87007 |
YR2#..MRF..GL |
1 | ||
| 63203-87005 |
YR2#..GL |
1 | ||
| 63203-87016 |
YR2#..MRF..GL |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-87007 |
YR2#..MRF..GL |
1 | ||
| 63207C - RAIL SUB-ASSY, TILT ROOF GUIDE | ||||
| 63207-87003 |
YR2#..MRF..GL |
1 | ||
| 63207-87005 |
YR2#..MRF..GL |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63230-95700 |
YR2#..MRF..GL |
2 | ||
| 63210 - GLASS SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63201-95703 |
YR2#..GL |
1 | ||
| 63201-87011 |
YR2#..MRF..GL |
1 | ||
| 63201-87006 |
YR21..GL |
1 | ||
| 63201-87018 |
YR2#..MRF..GL |
1 | ||
| 63210A - SEAL, REMOVABLE ROOF GLASS, OUTER | ||||
| 63257-89101 |
YR2#..GL |
4 | ||
| 63257-89101 |
YR2#..MRF..GL |
2 | ||
| 63217E - GARNISH, SLIDING ROOF, FRONT RH | ||||
| 63217-9570201 |
YR2#..MRF..GL BLACK,BLACK,TRIM1#,4# |
1 | ||
| 63218E - GARNISH, SLIDING ROOF, FRONT LH | ||||
| 63218-9570301 |
YR2#..MRF..GL BLACK,BLACK,TRIM1#,4# |
1 | ||
| 63228 - SPACER, SLIDE ROOF LOCK, NO.1 | ||||
| 63228-87006 |
YR2#..MRF..GL |
2 | ||
| 63228 - SPACER, SLIDE ROOF LOCK, NO.1 | ||||
| 63228-87006 |
YR2#..MRF..GL |
2 | ||
| 63245 - HOLDER, REMOVABLE ROOF GLASS, OUTER FRONT | ||||
| 63245-89101 |
YR2#..GL |
4 | ||
| 63245-89101 |
YR2#..MRF..GL |
2 | ||
| 63251B - WEATHERSTRIP, TILT ROOF, OUTER | ||||
| 63251-87004 |
YR2#..GL |
1 | ||
| 63251-87008 |
YR2#..MRF..GL |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-87003 |
YR2#..MRF..GL |
1 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63266-9570205 |
YR2#..GL BEIGE,BEIGE,TRIM4# |
1 | ||
| 63266-87002 |
YR2#..MRF..GL W/O LOCK |
1 | ||
| 63266-9570213 |
YR2#..GL GRAY,GRAY,TRIM1# |
1 | ||
| 63260-87004 |
YR2#..MRF..GL W/LOCK |
1 | ||
| 63260-87004 |
YR2#..MRF..GL |
1 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63266-9570205 |
YR2#..GL BEIGE,BEIGE,TRIM4# |
1 | ||
| 63266-87002 |
YR2#..MRF..GL W/O LOCK |
1 | ||
| 63266-9570213 |
YR2#..GL GRAY,GRAY,TRIM1# |
1 | ||
| 63260-87004 |
YR2#..MRF..GL W/LOCK |
1 | ||
| 63260-87004 |
YR2#..MRF..GL |
1 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-95702 |
YR2#..MRF..GL RH |
1 | ||
| 63262-95702 |
YR2#..MRF..GL LH |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-95701 |
YR2#..MRF..GL |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-95701 |
YR2#..MRF..GL |
1 | ||
| 63285A - DAM, SLIDING ROOF HOUSING | ||||
| 63285-87010 |
YR2#..MRF..GL |
1 | ||
| 63285-95700 |
YR2#..MRF..GL |
1 | ||
| 63287 - COVER, SLIDING ROOF HOUSING DRAIN | ||||
| 63285-87008 |
YR2#..MRF..GL |
2 | ||
| 63285-87002 |
YR2#..MRF..GL |
2 | ||
| 63387A - BRACKET, ROOF HEADLINING HOLDER | ||||
| 63387-87001 |
YR2#..GL W/*SNR |
2 | ||
| 63387-87001 |
YR2#..GL W/*SNR OR *SKR |
2 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-87002 |
YR2#..GL |
1 | ||
| 63605-87004 |
YR2#..MRF..GL |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-87002 |
YR2#..GL |
1 | ||
| 63606-87004 |
YR2#..MRF..GL |
1 | ||
| 63617 - GARNISH, SLIDING ROOF, REAR RH | ||||
| 63617-9570001 |
YR2#..MRF..GL BLACK,BLACK,TRIM1#,4# |
1 | ||
| 63618 - GARNISH, SLIDING ROOF, REAR LH | ||||
| 63618-9570001 |
YR2#..MRF..GL BLACK,BLACK,TRIM1#,4# |
1 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-87003 |
YR2#..MRF..GL |
1 | ||
| Common parts | ||||
| 62733-87201 | ||||
| 90044-30071 | ||||
| 90119-06250 | ||||
| 90164-40052 | ||||
| 90168-45003 | ||||
| 90179-05004 | ||||
| 90179-06070 | ||||
| 90189-04070 | ||||
| 90189-04078 | ||||
| 90202-05019 | ||||
| 90950-01029 | ||||
| 91651-40814 | ||||
| 93249-55020 | ||||
| 93385-15014 | ||||
| 93386-15012 | ||||
| 93546-24514 | ||||

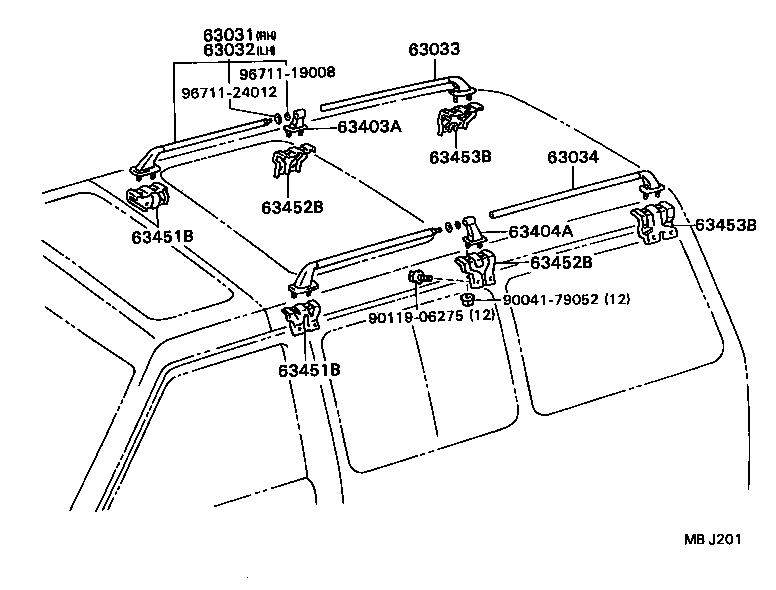

ILLUST NO. 3 OF 3(8508- )GL..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63031 - RACK SUB-ASSY, ROOF, FRONT RH | ||||
| 63031-87003 |
YR2#..GL..EUR |
1 | ||
| 63032 - RACK SUB-ASSY, ROOF, FRONT LH | ||||
| 63032-87003 |
YR2#..GL..EUR |
1 | ||
| 63033 - RACK SUB-ASSY, ROOF, REAR RH | ||||
| 63033-87003 |
YR2#..GL..EUR |
1 | ||
| 63034 - RACK SUB-ASSY, ROOF, REAR LH | ||||
| 63034-87003 |
YR2#..GL..EUR |
1 | ||
| 63403A - SUPPORT SUB-ASSY, ROOF RACK, CENTER RH | ||||
| 63403-87003 |
YR2#..GL..EUR |
1 | ||
| 63404A - SUPPORT SUB-ASSY, ROOF RACK, CENTER LH | ||||
| 63404-87003 |
YR2#..GL..EUR |
1 | ||
| 63451B - REINFORCEMENT, ROOF RACK, NO.1 | ||||
| 63451-87003 |
YR21..RHD..EUR RH |
1 | ||
| 63452-87002 |
YR2#..GL..EUR LH |
1 | ||
| 63451B - REINFORCEMENT, ROOF RACK, NO.1 | ||||
| 63451-87003 |
YR21..RHD..EUR RH |
1 | ||
| 63452-87002 |
YR2#..GL..EUR LH |
1 | ||
| 63452B - REINFORCEMENT, ROOF RACK, NO.2 | ||||
| 63453-87001 |
YR2#..GL..EUR |
2 | ||
| 63452B - REINFORCEMENT, ROOF RACK, NO.2 | ||||
| 63453-87001 |
YR2#..GL..EUR |
2 | ||
| 63453B - REINFORCEMENT, ROOF RACK, NO.3 | ||||
| 63454-87001 |
YR2#..GL..EUR |
2 | ||
| 63453B - REINFORCEMENT, ROOF RACK, NO.3 | ||||
| 63454-87001 |
YR2#..GL..EUR |
2 | ||
| Common parts | ||||
| 90041-79052 | ||||
| 90119-06275 | ||||
| 96711-19008 | ||||
| 96711-24012 | ||||

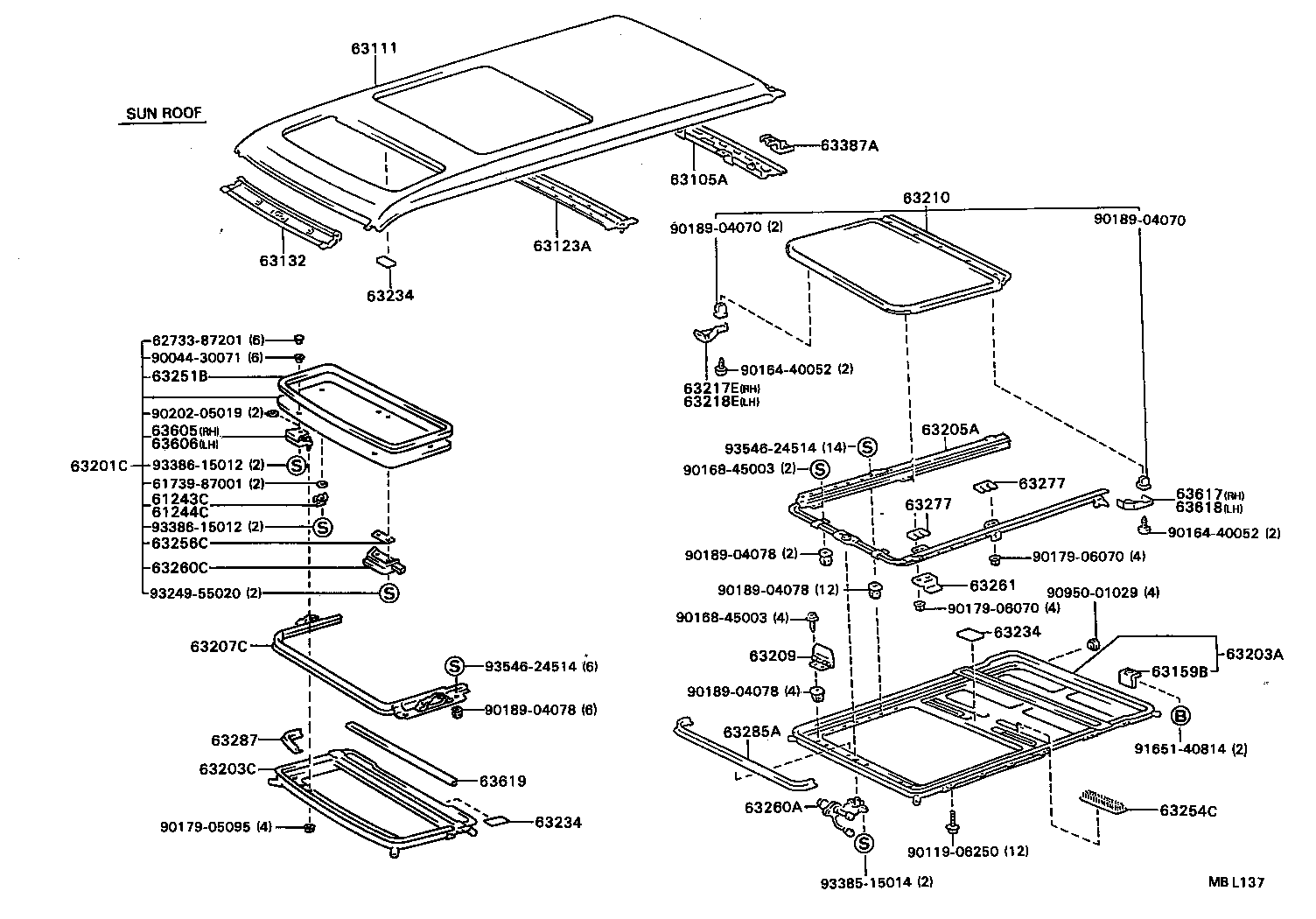

ILLUST NO. 1 OF 3(8608- )YR2#..MRF..GL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61243C - RETAINER, ROOF SIDE RAIL, OUTER RH | ||||
| 61243-87001 |
YR2#..MRF..GL |
1 | ||
| 61244C - RETAINER, ROOF SIDE RAIL, OUTER LH | ||||
| 61244-87001 |
YR2#..MRF..GL |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-87003 |
CR21,YR2#,31..MRF..GL |
1 | ||
| 63105-87006 |
YR2#..MRF..GL W/SUN ROOF |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-87013 |
YR2#..GL..EUR W/SUN ROOF,ROOF RACK |
1 | ||
| 63111-87007 |
YR2#..MRF..GL W/SUN ROOF |
1 | ||
| 63111-87005 |
CR21,YR2#,31..MRF |
1 | ||
| 63123A - REINFORCEMENT, ROOF PANEL, REAR NO.1 | ||||
| 63123-95700 |
YR2#..MRF..GL W/SUN ROOF |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-87004 |
CR21,YR2#,31 |
1 | ||
| 63159B - BRACKET, SLIDING ROOF, REAR | ||||
| 63159-95700 |
YR2#..MRF..GL |
2 | ||
| 63201C - GLASS SUB-ASSY, TILT ROOF | ||||
| 63202-87001 |
YR2#..GL |
1 | ||
| 63202-87003 |
YR21..GL |
1 | ||
| 63201-87013 |
YR2#..MRF..GL |
1 | ||
| 63201-87016 |
YR2#..MRF..GL |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-87004 |
YR2#..MRF..GL |
1 | ||
| 63203C - HOUSING SUB-ASSY, TILT ROOF | ||||
| 63203-87007 |
YR2#..MRF..GL |
1 | ||
| 63203-87005 |
YR2#..GL |
1 | ||
| 63203-87016 |
YR2#..MRF..GL |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-87007 |
YR2#..MRF..GL |
1 | ||
| 63207C - RAIL SUB-ASSY, TILT ROOF GUIDE | ||||
| 63207-87003 |
YR2#..MRF..GL |
1 | ||
| 63207-87005 |
YR2#..MRF..GL |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63230-95700 |
YR2#..MRF..GL |
2 | ||
| 63210 - GLASS SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63201-95703 |
YR2#..GL |
1 | ||
| 63201-87011 |
YR2#..MRF..GL |
1 | ||
| 63201-87006 |
YR21..GL |
1 | ||
| 63201-87018 |
YR2#..MRF..GL |
1 | ||
| 63217E - GARNISH, SLIDING ROOF, FRONT RH | ||||
| 63217-9570201 |
YR2#..MRF..GL BLACK,BLACK,TRIM1#,4# |
1 | ||
| 63218E - GARNISH, SLIDING ROOF, FRONT LH | ||||
| 63218-9570301 |
YR2#..MRF..GL BLACK,BLACK,TRIM1#,4# |
1 | ||
| 63251B - WEATHERSTRIP, TILT ROOF, OUTER | ||||
| 63251-87004 |
YR2#..GL |
1 | ||
| 63251-87008 |
YR2#..MRF..GL |
1 | ||
| 63256C - SEAL, TILT ROOF GLASS | ||||
| 63256-87002 |
YR2#..MRF..GL |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-87003 |
YR2#..MRF..GL |
1 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63266-9570205 |
YR2#..GL BEIGE,BEIGE,TRIM4# |
1 | ||
| 63266-87002 |
YR2#..MRF..GL W/O LOCK |
1 | ||
| 63266-9570213 |
YR2#..GL GRAY,GRAY,TRIM1# |
1 | ||
| 63260-87004 |
YR2#..MRF..GL W/LOCK |
1 | ||
| 63260-87004 |
YR2#..MRF..GL |
1 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-95702 |
YR2#..MRF..GL RH |
1 | ||
| 63262-95702 |
YR2#..MRF..GL LH |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-95701 |
YR2#..MRF..GL |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-95701 |
YR2#..MRF..GL |
1 | ||
| 63285A - DAM, SLIDING ROOF HOUSING | ||||
| 63285-87010 |
YR2#..MRF..GL |
1 | ||
| 63285-95700 |
YR2#..MRF..GL |
1 | ||
| 63287 - COVER, SLIDING ROOF HOUSING DRAIN | ||||
| 63285-87008 |
YR2#..MRF..GL |
2 | ||
| 63285-87002 |
YR2#..MRF..GL |
2 | ||
| 63387A - BRACKET, ROOF HEADLINING HOLDER | ||||
| 63387-87001 |
YR2#..GL W/*SNR |
2 | ||
| 63387-87001 |
YR2#..GL W/*SNR OR *SKR |
2 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-87002 |
YR2#..GL |
1 | ||
| 63605-87004 |
YR2#..MRF..GL |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-87002 |
YR2#..GL |
1 | ||
| 63606-87004 |
YR2#..MRF..GL |
1 | ||
| 63617 - GARNISH, SLIDING ROOF, REAR RH | ||||
| 63617-9570001 |
YR2#..MRF..GL BLACK,BLACK,TRIM1#,4# |
1 | ||
| 63618 - GARNISH, SLIDING ROOF, REAR LH | ||||
| 63618-9570001 |
YR2#..MRF..GL BLACK,BLACK,TRIM1#,4# |
1 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-87003 |
YR2#..MRF..GL |
1 | ||
| Common parts | ||||
| 61739-87001 | ||||
| 62733-87201 | ||||
| 90044-30071 | ||||
| 90119-06250 | ||||
| 90164-40052 | ||||
| 90168-45003 | ||||
| 90179-05095 | ||||
| 90179-06070 | ||||
| 90189-04070 | ||||
| 90189-04078 | ||||
| 90202-05019 | ||||
| 90950-01029 | ||||
| 91651-40814 | ||||
| 93249-55020 | ||||
| 93385-15014 | ||||
| 93386-15012 | ||||
| 93546-24514 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
