YR21RG-MQQ (1984)

Toyota Model-F

Production Jan 1984 - Aug 1988
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )ARL

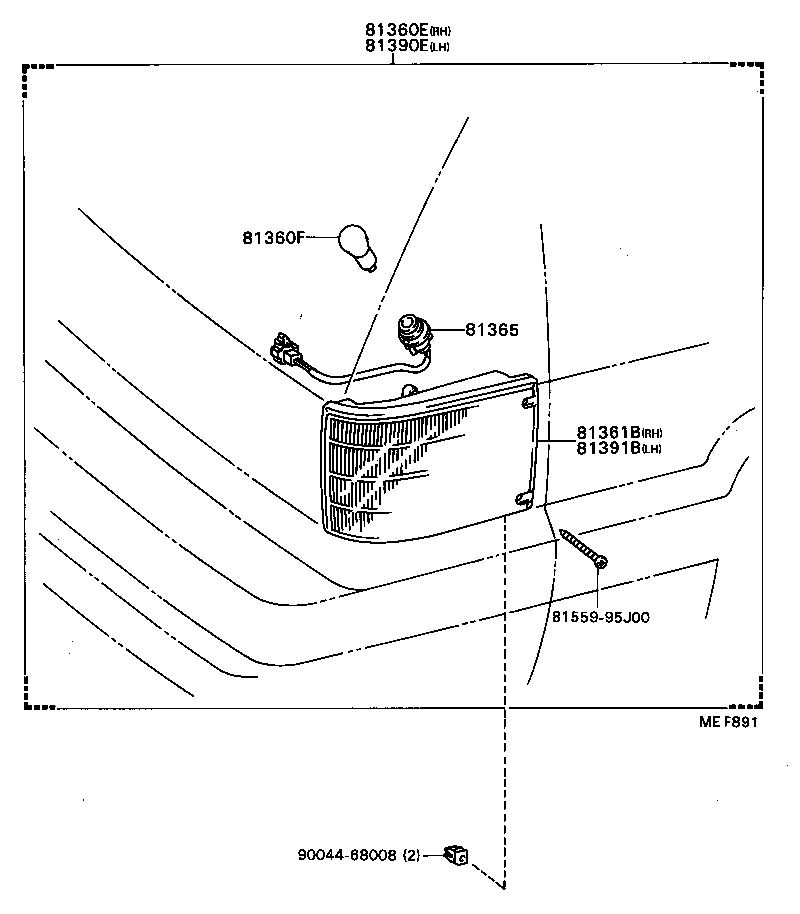

Click highlighted areas on diagram

diagram 81360E 81360F 81361B 81365 81390E 81391B 8155995J00 9004468008
Part # Description Qty Price
81360E - LAMP ASSY, CORNERING, RH
81360-87006

CR21,YR2#,31..ARL

 1
81360F - BULB, CORNERING LAMP
99132-11050

CR21,YR2#,31..ARL

12V 5W,12V 5W

 2
81361B - LENS & BODY, CORNERING LAMP, RH
81361-87004

CR21,YR2#,31..ARL

 1
81365 - SOCKET & WIRE, CORNERING LAMP
81365-87006

CR21,YR2#,31..ARL

 2
81390E - LAMP ASSY, CORNERING, LH
81390-87004

CR21,YR2#,31..ARL

 1
81391B - LENS & BODY, CORNERING LAMP, LH
81391-87002

CR21,YR2#,31..ARL

 1
Common parts
81559-95J00
90044-68008
