YR21RG-MDW (1984)

Toyota Model-F

Production Aug 1984 - Aug 1985
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

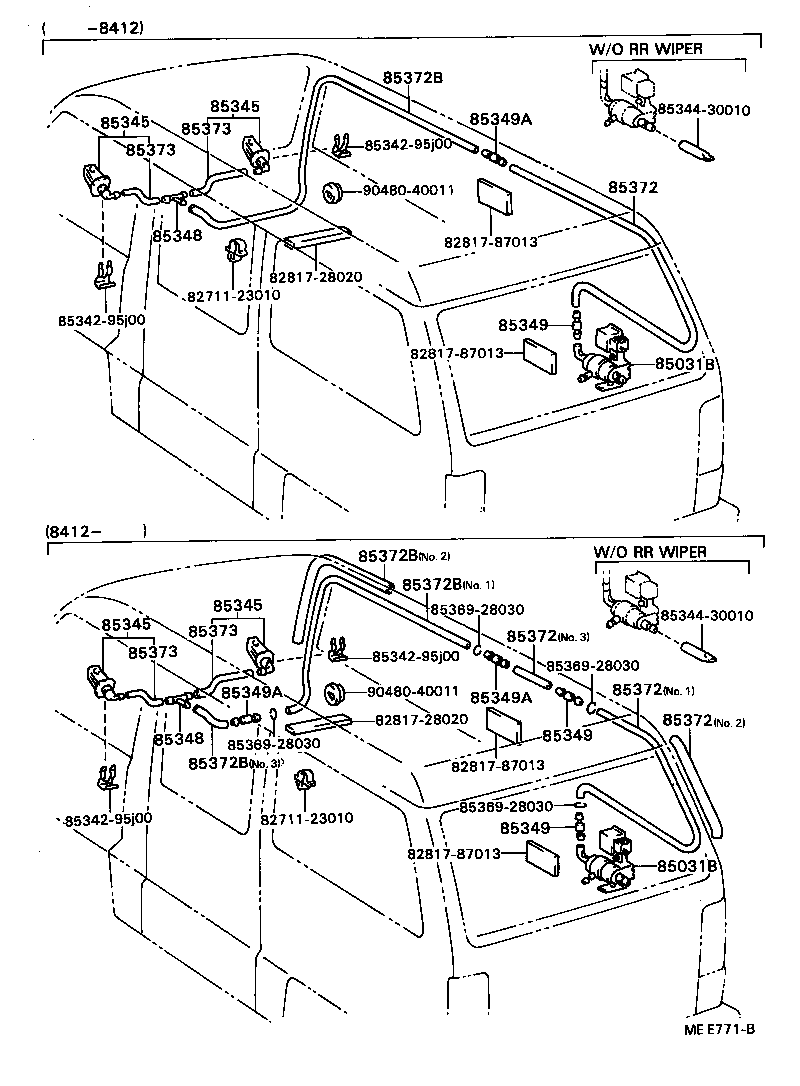

ILLUST NO. 1 OF 2(8408- )

Click highlighted areas on diagram

diagram 8271123010 8271123010 8281728020 8281728020 8281787013 8281787013 8281787013 8281787013 85031B 85031B 8534295J00 8534295J00 8534295J00 8534295J00 8534430010 8534430010 85345 85345 85345 85345 85348 85348 85349 85349 85349 85349A 85349A 85349A 8536928030 8536928030 8536928030 8536928030 85372 85372 85372 85372 85372B 85372B 85372B 85372B 85373 85373 85373 85373 9048040011 9048040011
Part # Description Qty Price
85345 - NOZZLE, WINDSHIELD WASHER
85035-87007

CR21,YR2#,31..RHD

RH

 1
85035-87008

CR21,YR2#,31..RHD

LH

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-87007

CR21,YR2#,31..RHD

RH

 1
85035-87008

CR21,YR2#,31..RHD

LH

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-87007

CR21,YR2#,31..RHD

RH

 1
85035-87008

CR21,YR2#,31..RHD

LH

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-87007

CR21,YR2#,31..RHD

RH

 1
85035-87008

CR21,YR2#,31..RHD

LH

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-60010

CR21,YR2#

3 WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-60010

CR21,YR2#

3 WAY

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-20010

CR21,YR21

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-20010

CR21,YR21

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-20010

CR21,YR21

 1
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-20010

CR21,YR21

 1
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-20010

CR21,YR21

 1
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-20010

CR21,YR21

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

CR21,YR2#..RHD

*H,L=560

 1
85343-87002

CR21,YR21

L=2300

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

CR21,YR2#..RHD

*H,L=560

 1
85343-87002

CR21,YR21

L=2300

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

CR21,YR2#..RHD

*H,L=560

 1
85343-87002

CR21,YR21

L=2300

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

CR21,YR2#..RHD

*H,L=560

 1
85343-87002

CR21,YR21

L=2300

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85343-87003

CR21,YR21

L=3300

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85343-87003

CR21,YR21

L=3300

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85343-87003

CR21,YR21

L=3300

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85343-87003

CR21,YR21

L=3300

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85343-28010

CR21,YR2#..RHD

*H,L=390

 1
90446-06013

CR21,YR2#,31..RHD

*H,L=150

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85343-28010

CR21,YR2#..RHD

*H,L=390

 1
90446-06013

CR21,YR2#,31..RHD

*H,L=150

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85343-28010

CR21,YR2#..RHD

*H,L=390

 1
90446-06013

CR21,YR2#,31..RHD

*H,L=150

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85343-28010

CR21,YR2#..RHD

*H,L=390

 1
90446-06013

CR21,YR2#,31..RHD

*H,L=150

 1
Common parts
82711-23010
82817-28020
82817-87013
85342-95J00
85344-30010
85369-28030
90480-40011

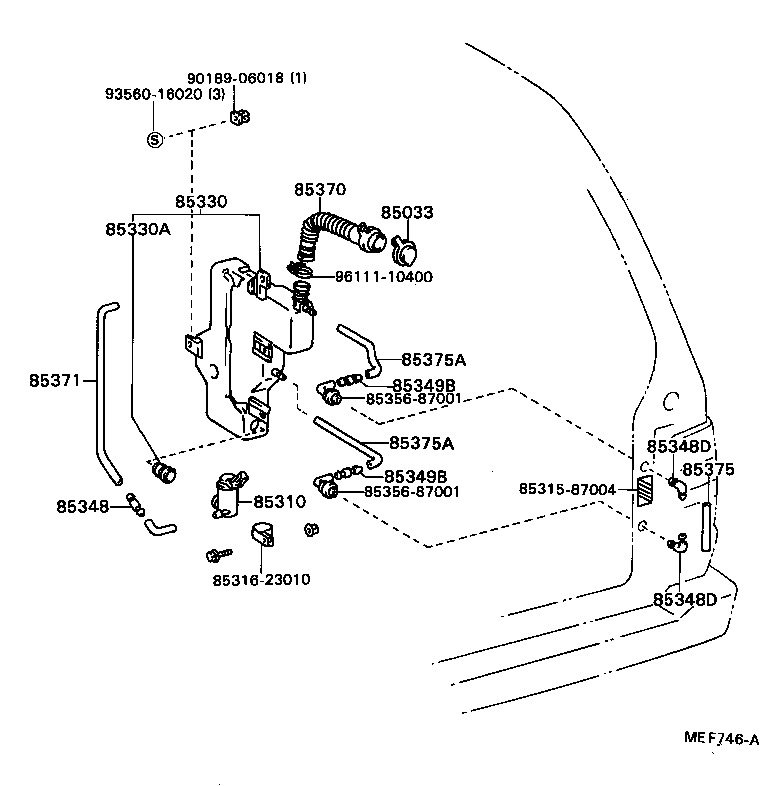

ILLUST NO. 2 OF 2(8408- )

Click highlighted areas on diagram

diagram 85033 85310 8531587004 8531623010 85330 85330A 85348 85348D 85348D 85349B 85349B 8535687001 8535687001 85370 85371 85375 85375A 85375A 9018906018 9356016020 9611110400
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-28010

CR21,YR2#

 1
85332-87002

CR21,YR21..RHD

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-87003

CR21,YR2#..RHD

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32103

CR21,YR2#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-60010

CR21,YR2#

3 WAY

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85354-28010

CR21,YR2#..RHD

L=630

 1
85375A - HOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE)
90099-33299

CR21,YR21

*H,L=260

 1
85375A - HOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE)
90099-33299

CR21,YR21

*H,L=260

 1
Common parts
85315-87004
85316-23010
85356-87001
90189-06018
93560-16020
96111-10400
