YR21RG-MDW (1984)

Toyota Model-F

Production Aug 1984 - Aug 1985
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211-8508)RHD

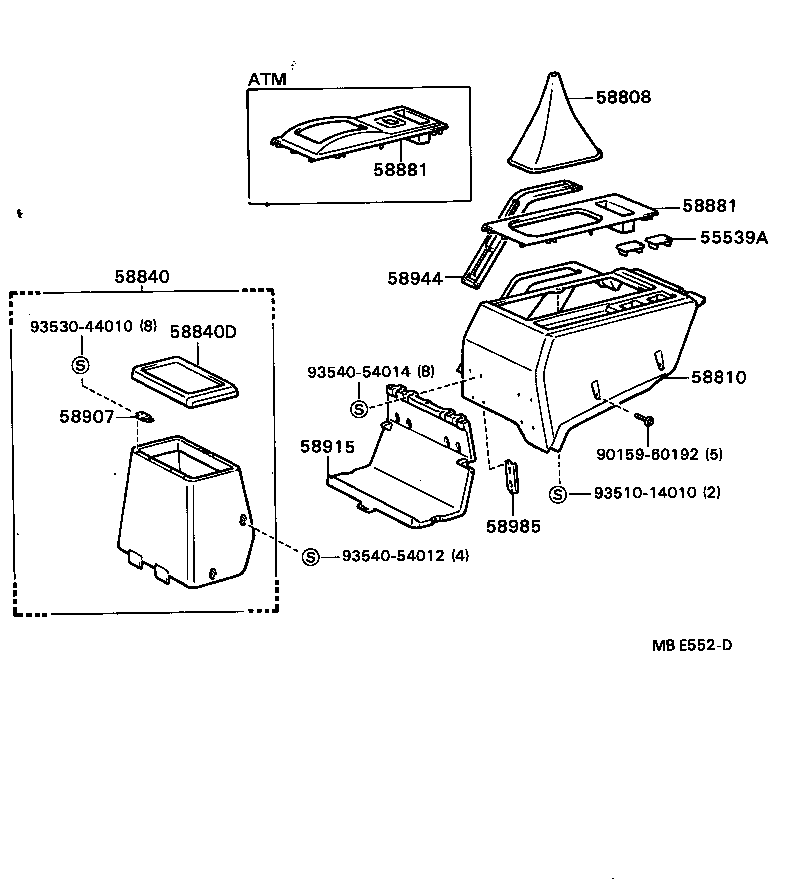

Click highlighted areas on diagram

diagram 55539A 58808 58810 58840 58840D 58881 58881 58907 58915 58944 58985 9015960192 9351014010 9353044010 9354054012 9354054014
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-8700105

CR21,YR2#..RHD

BEIGE,BEIGE,TRIM4#

 2
55539-8700102

CR21,YR21..RHD

WINE,WINE,TRIM4#

 2
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-8700102

CR21,YR21..5F

WINE,WINE,TRIM4#

 1
58808-8700105

CR21,YR2#..5F

BEIGE,BEIGE,TRIM4#

 1
58810 - CONSOLE ASSY
58811-8700505

CR21,YR2#..RHD..DLX

BEIGE,BEIGE,TRIM4#

 1
58811-8700502

CR21,YR21..RHD..DLX

WINE,WINE,TRIM4#

 1
58881 - COVER, SHIFTING HOLE
58848-8700205

CR21,YR2#..RHD..5F

BEIGE,BEIGE,TRIM4#

 1
58848-8700202

CR21,YR21..RHD..5F

WINE,WINE,TRIM4#

 1
58881 - COVER, SHIFTING HOLE
58848-8700205

CR21,YR2#..RHD..5F

BEIGE,BEIGE,TRIM4#

 1
58848-8700202

CR21,YR21..RHD..5F

WINE,WINE,TRIM4#

 1
58944 - COVER, PARKING BRAKE HOLE
58941-8700501

CR21,YR2#..RHD

BLACK,BLACK

 1
Common parts
90159-60192
93510-14010
93530-44010
93540-54012
93540-54014
