YR21RG-MDW (1984)
Toyota Model-F
Production
Aug 1984
-
Aug 1985
Engine
3Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

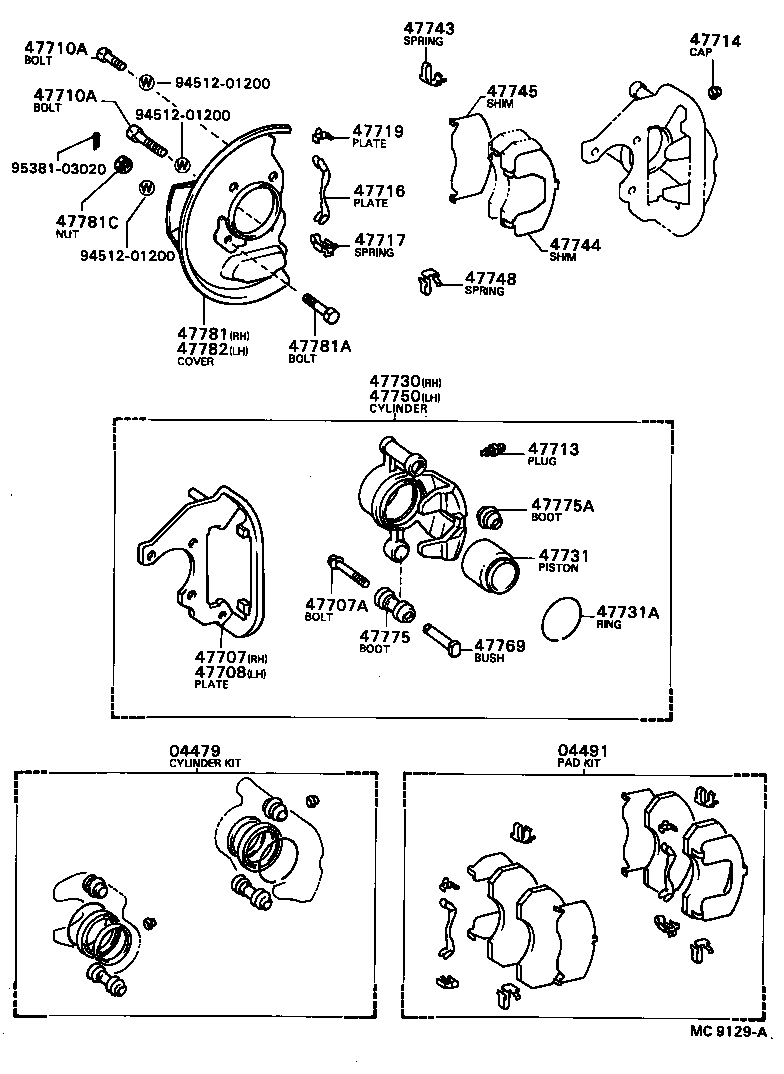

ILLUST NO. 1 OF 2(8211-8508) ; (8508- )CR21,YR2#..ARL,GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-14070 |
CR21,YR2# |
1 | ||
| 47707 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH | ||||
| 47707-28020 |
CR21,YR2#..ARL,EUR |
1 | ||
| 47708 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH | ||||
| 47708-28020 |
CR21,YR2#..ARL,EUR |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12010 |
CR21,YR2# *12-1.25PX50-26,L=50 |
2 | ||
| 90101-12030 |
CR21,YR2# *12-1.25PX31-20,L=30 |
4 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12010 |
CR21,YR2# *12-1.25PX50-26,L=50 |
2 | ||
| 90101-12030 |
CR21,YR2# *12-1.25PX31-20,L=30 |
4 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
CR21,YR2# |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
CR21,YR2#,31 |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-28010 |
CR21,YR2# |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-14050 |
CR21,YR2#,31 RH |
1 | ||
| 47718-14090 |
CR21,YR2#,31 LH |
1 | ||
| 47719 - PLATE, FRONT DISC BRAKE PAD GUIDE | ||||
| 47736-14030 |
CR21,YR2#,31 |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-14090 |
CR21,YR2# |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-69002 |
CR21,YR2# |
2 | ||
| 47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47743-14040 |
CR21,YR2#,31 |
4 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-14050 |
CR21,YR2#,31 |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-14010 |
CR21,YR2# |
2 | ||
| 47775A - BOOT, PIN | ||||
| 47776-14010 |
CR21,YR2#,31 |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-28040 |
CR21,YR2#..ARL,EUR |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-12001 |
CR21,YR2# |
2 | ||
| 47781C - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71200 |
CR21,YR2# |
2 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-28040 |
CR21,YR2#..ARL,EUR |
1 | ||
| Common parts | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||
