YR21RG-MDW (1984)

Toyota Model-F

Production Aug 1984 - Aug 1985
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211-8508)

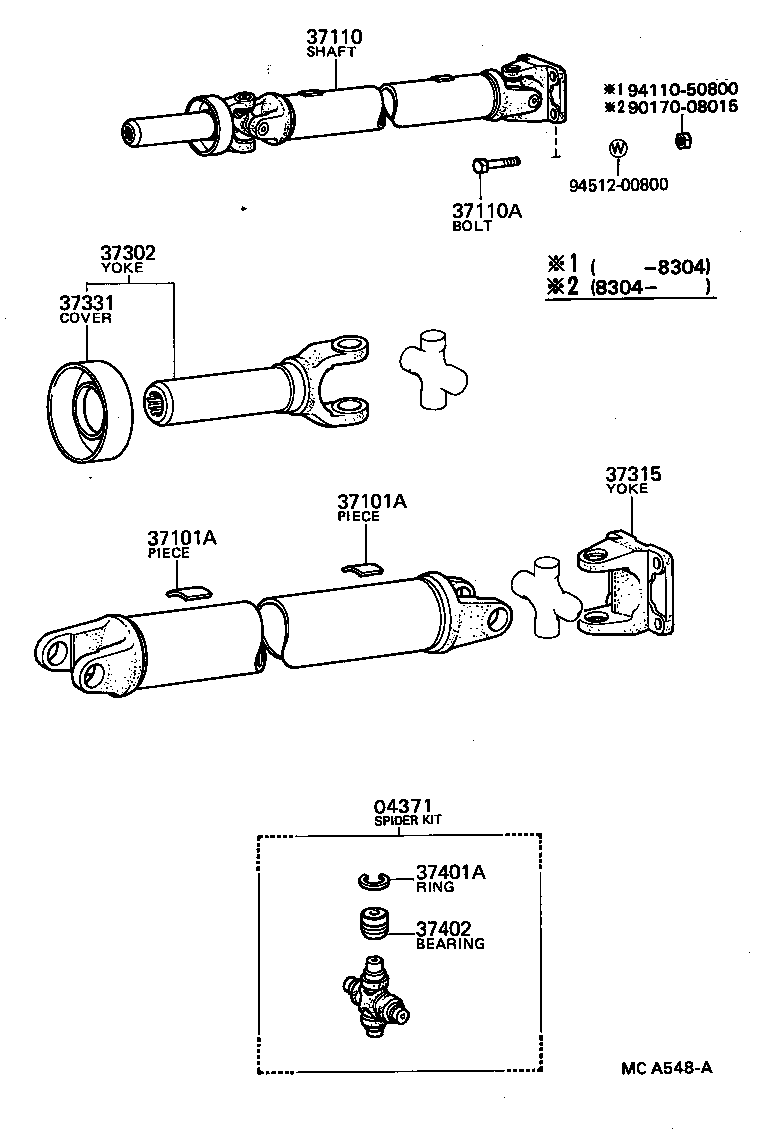

Click highlighted areas on diagram

diagram 04371 37101A 37101A 37110 37110A 37302 37315 37331 37401A 37402 9017008015 9411050800 9451200800
Part # Description Qty Price
04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
04371-22010

CR21,YR2#

 2
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01153

CR21,YR2#

16G,L=33.2,16G

 1
90937-01156

CR21,YR2#

24G,L=49.7,24G

 1
90937-01136

CR21,YR2#

20G,L=41.4,20G

 1
90937-01158

CR21,YR2#

28G,L=58.1,28G

 1
90937-01157

CR21,YR2#

26G,L=53.9,26G

 1
90937-01154

CR21,YR2#

18G,L=37.3,18G

 1
90937-01155

CR21,YR2#

22G,L=45.6,22G

 1
90937-01140

CR21,YR20,21

30G,L=62.2,30G

 1
90937-01151

CR21,YR2#

12G,L=24.9,12G

 1
90937-01152

CR21,YR2#

14G,L=29.0,14G

 1
90937-01148

CR21,YR2#

4G,T=2.0,4G

 1
90937-01132

CR21,YR2#

10G,L=20.7,10G

 1
90937-01147

CR21,YR2#

2G,T=2.0,2G

 1
90937-01150

CR21,YR2#

8G,L=16.6,8G

 1
90937-01149

CR21,YR2#

6G,L=12.4,6G

 1
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01153

CR21,YR2#

16G,L=33.2,16G

 1
90937-01156

CR21,YR2#

24G,L=49.7,24G

 1
90937-01136

CR21,YR2#

20G,L=41.4,20G

 1
90937-01158

CR21,YR2#

28G,L=58.1,28G

 1
90937-01157

CR21,YR2#

26G,L=53.9,26G

 1
90937-01154

CR21,YR2#

18G,L=37.3,18G

 1
90937-01155

CR21,YR2#

22G,L=45.6,22G

 1
90937-01140

CR21,YR20,21

30G,L=62.2,30G

 1
90937-01151

CR21,YR2#

12G,L=24.9,12G

 1
90937-01152

CR21,YR2#

14G,L=29.0,14G

 1
90937-01148

CR21,YR2#

4G,T=2.0,4G

 1
90937-01132

CR21,YR2#

10G,L=20.7,10G

 1
90937-01147

CR21,YR2#

2G,T=2.0,2G

 1
90937-01150

CR21,YR2#

8G,L=16.6,8G

 1
90937-01149

CR21,YR2#

6G,L=12.4,6G

 1
37110 - SHAFT ASSY, PROPELLER
37110-28100

YR2#..5F

 1
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-20040

CR21,YR2#

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-20020

CR21,YR2#

 1
37331 - COVER, SLIDING SHAFT DUST
37331-30010

CR21,YR2#

 1
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29073

CR21,YR2#

T=2.525-2.575,T=2.55

 8
90521-29072

CR21,YR2#

T=2.475-2.525,T=2.5

 8
90521-29071

CR21,YR2#

T=2.425-2.475,T=2.45

 8
90521-29070

CR21,YR2#

T=2.375-2.425,T=2.4

 8
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-22020

CR21,YR2#

 8
Common parts
90170-08015
94110-50800
94512-00800
