YR21RG-MDQ (1988)

Toyota Model-F

Production Aug 1988 - Jan 1990
Engine 3YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )ARL

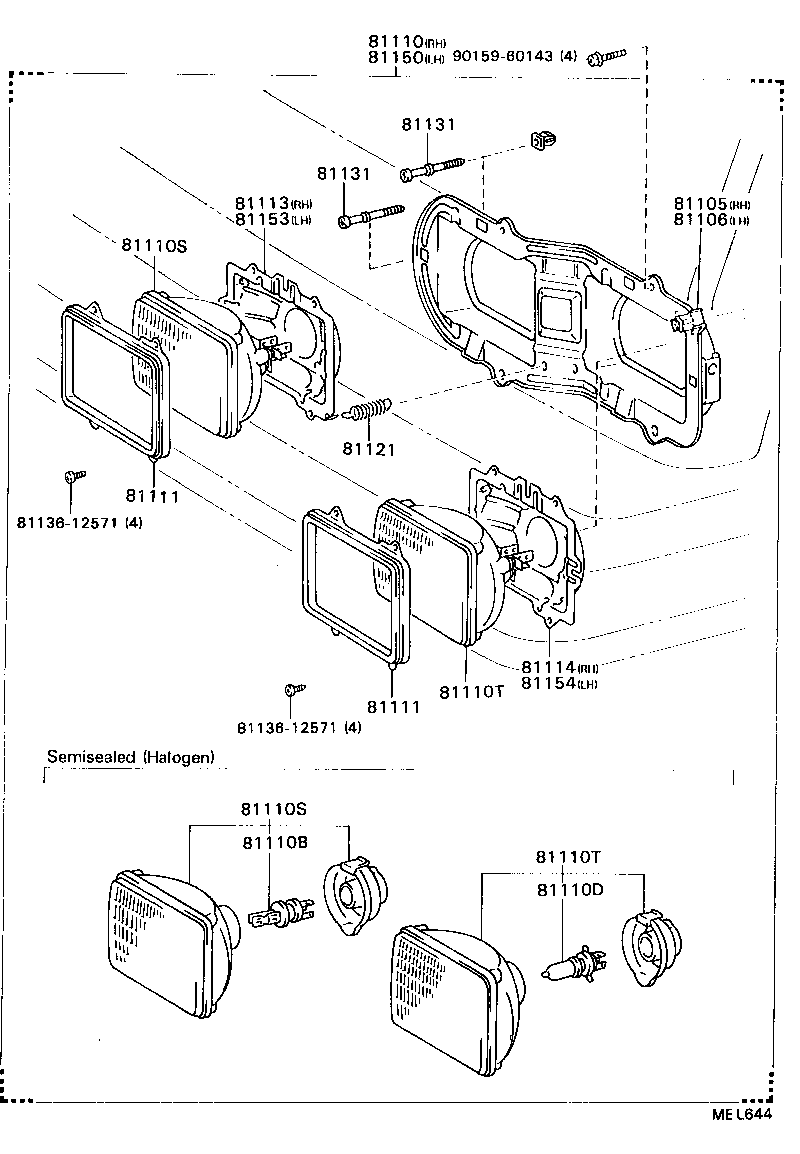

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110D 81110S 81110S 81110T 81110T 81111 81111 81113 81114 81121 81131 81131 8113612571 8113612571 81150 81153 81154 9015960143
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-87015

YR2#,31..ARL

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-87015

YR2#,31..ARL

 1
81110 - HEADLAMP ASSY, RH
81110-87016

YR2#,31..ARL

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13017

YR2#,31..ARL

12V 55W,*HAL *WH

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13015

YR2#,31..ARL

12V 60/55W,*HAL *WH

 2
81110S - SEALED BEAM UNIT, NO.1
90981-05026

YR2#,31..ARL

12V 55W,*HWS

 2
81110S - SEALED BEAM UNIT, NO.1
90981-05026

YR2#,31..ARL

12V 55W,*HWS

 2
81110T - SEALED BEAM UNIT, NO.2
90981-05027

YR2#,31..ARL

12V 55W,*HWS

 2
81110T - SEALED BEAM UNIT, NO.2
90981-05027

YR2#,31..ARL

12V 55W,*HWS

 2
81111 - RING, SEALED BEAM RETAINING
81111-22391

YR2#,31..ARL

 4
81111 - RING, SEALED BEAM RETAINING
81111-22391

YR2#,31..ARL

 4
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-87011

YR2#,31..ARL

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81114-87011

YR2#,31..ARL

 1
81121 - SPRING, HEADLAMP TENSION
81121-14320

YR2#,31..ARL

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-87015

YR2#,31..ARL

UPPER

 4
81132-87015

YR2#,31..ARL

SIDE

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-87015

YR2#,31..ARL

UPPER

 4
81132-87015

YR2#,31..ARL

SIDE

 4
81150 - HEADLAMP ASSY, LH
81150-87016

YR2#,31..ARL

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-87011

YR2#,31..ARL

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-87011

YR2#,31..ARL

 1
Common parts
81136-12571
90159-60143
