YR21RG-MDQ (1988)
Toyota Model-F

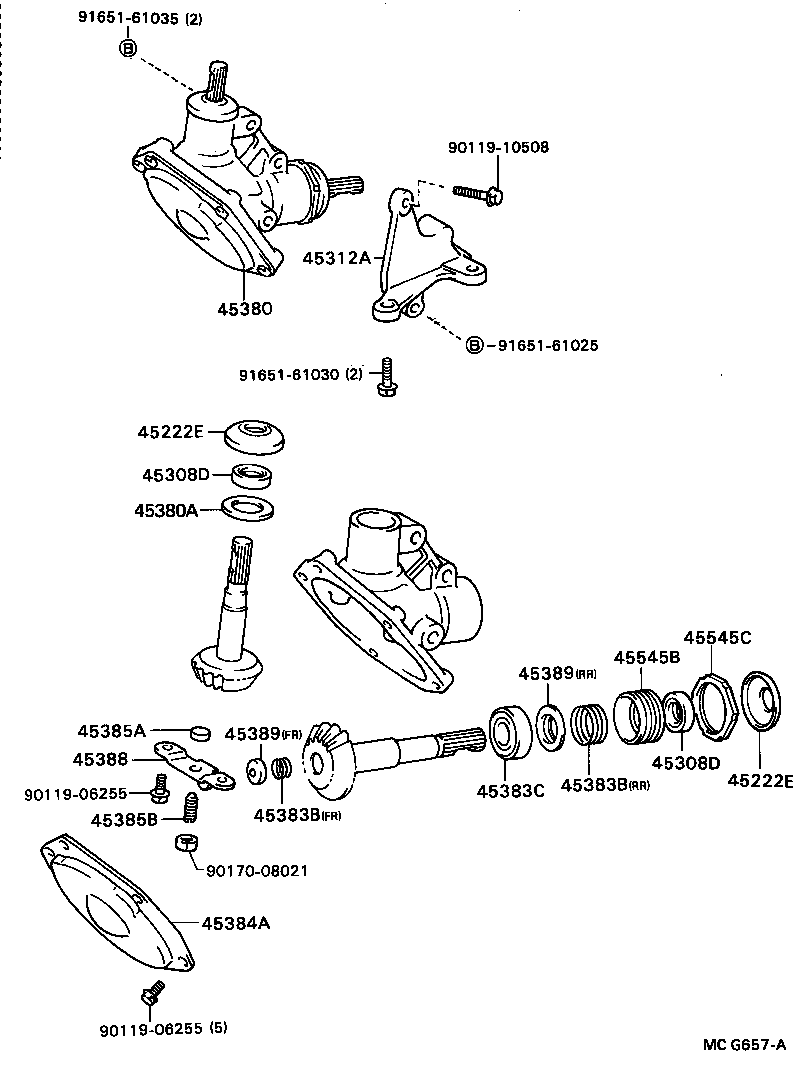

ILLUST NO. 3 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
YR2#,31 |
2 | ||
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
YR2#,31 |
2 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15001 |
YR2#,31 |
2 | ||
| 90311-15002 |
YR2#,31 |
2 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15001 |
YR2#,31 |
2 | ||
| 90311-15002 |
YR2#,31 |
2 | ||
| 45312A - BRACKET, STEERING BEVEL GEAR HOUSING | ||||
| 45312-28010 |
YR2#,31..ARL |
1 | ||
| 45380 - GEAR ASSY, STEERING BEVEL | ||||
| 45380-28011 |
YR2#..MRF..ARL |
1 | ||
| 45380-27011 |
YR2#..MRF..ARL W(POWER STEERING) |
1 | ||
| 45380A - WASHER(FOR STEERING BEVEL GEAR) | ||||
| 90209-18004 |
YR2#,31 T=2.00,MARK 4 |
1 | ||
| 90209-18002 |
YR2#,31 T=1.90,MARK 2 |
1 | ||
| 90209-18008 |
YR2#,31 T=2.20,MARK 8 |
1 | ||
| 90209-18006 |
YR2#,31 T=2.10,MARK 6 |
1 | ||
| 90209-18003 |
YR2#,31 T=1.95,MARK 3 |
1 | ||
| 90209-18007 |
YR2#,31 T=2.15,MARK 7 |
1 | ||
| 90209-18005 |
YR2#,31 T=2.05,MARK 5 |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-20080 |
YR2#,31 FR |
1 | ||
| 90501-18063 |
YR2#,31 RR |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-20080 |
YR2#,31 FR |
1 | ||
| 90501-18063 |
YR2#,31 RR |
1 | ||
| 45383C - BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR) | ||||
| 90363-15010 |
YR2#,31 |
1 | ||
| 45384A - COVER, STEERING BEVEL GEAR | ||||
| 45384-27010 |
YR2#,31 |
1 | ||
| 45385A - SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR) | ||||
| 45385-27010 |
YR2#,31 |
1 | ||
| 45385B - BOLT, SET(FOR LOCK BOLT SEAT) | ||||
| 90113-08006 |
YR2#,31 |
1 | ||
| 45388 - PLATE, STEERING BEVEL GEAR | ||||
| 45388-27010 |
YR2#,31 |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27010 |
YR2#,31 FR |
1 | ||
| 45389-27021 |
YR2#,31 RR |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27010 |
YR2#,31 FR |
1 | ||
| 45389-27021 |
YR2#,31 RR |
1 | ||
| 45545B - SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR | ||||
| 45545-10010 |
YR2#,31 |
1 | ||
| 45545C - NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW | ||||
| 90179-38001 |
YR2#,31 |
1 | ||
| Common parts | ||||
| 90119-06255 | ||||
| 90119-10508 | ||||
| 90170-08021 | ||||
| 91651-61025 | ||||
| 91651-61030 | ||||
| 91651-61035 | ||||

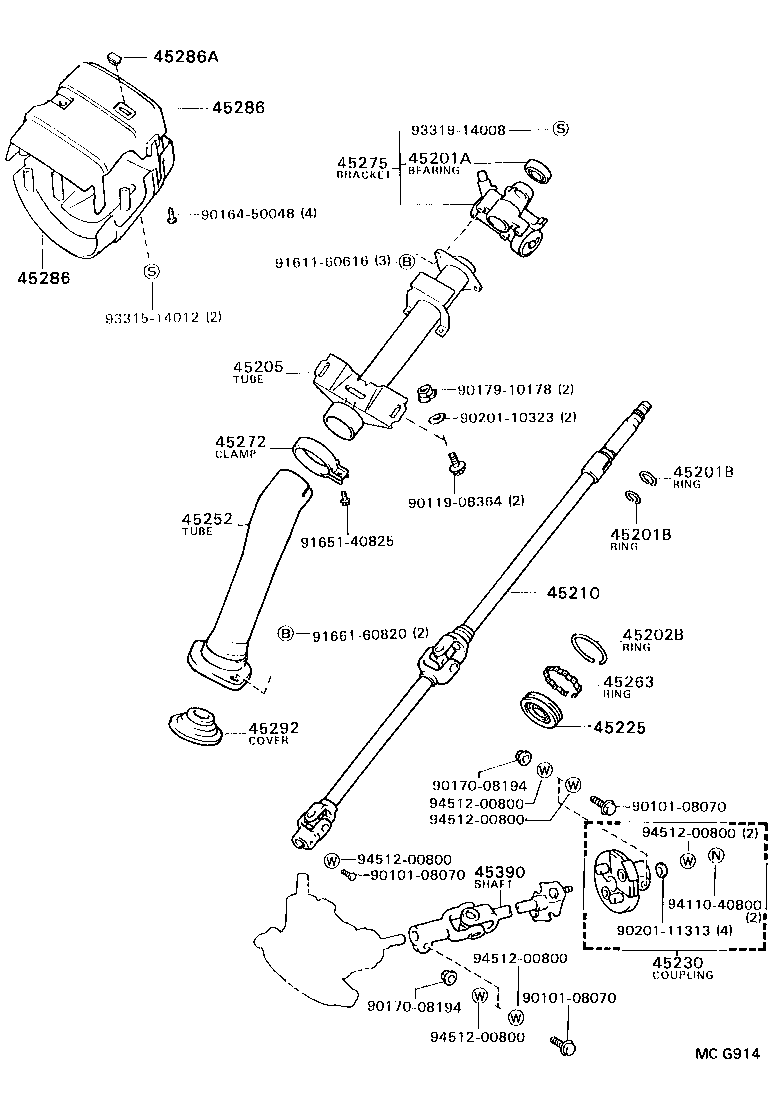

ILLUST NO. 1 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
YR2#..DLX UPR |
1 | ||
| 90363-18038 |
YR2#..DLX |
1 | ||
| 90363-28001 |
YR2#..DLX LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
YR2#..DLX T=1.20 |
1 | ||
| 90520-17042 |
YR2#,31 T=1.20 |
1 | ||
| 90520-17269 |
YR2#,31 T=1.20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
YR2#..DLX T=1.20 |
1 | ||
| 90520-17042 |
YR2#,31 T=1.20 |
1 | ||
| 90520-17269 |
YR2#,31 T=1.20 |
1 | ||
| 45202B - RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 96152-00300 |
YR2#,31 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-28070 |
YR2#..DLX W(TILT STEERING) |
1 | ||
| 45205-28060 |
YR2#..DLX |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-22050 |
YR2#..DLX W(TILT STEERING) |
1 | ||
| 45210-28060 |
YR2#..DLX |
1 | ||
| 45225 - BLOCK, BEARING | ||||
| 45225-26010 |
YR2#,31 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-27090 |
YR2#..MRF W(POWER STEERING) |
1 | ||
| 45230-27080 |
YR2#..MRF |
1 | ||
| 45252 - TUBE, STEERING COLUMN, LOWER | ||||
| 45252-28070 |
YR2#,31..ARL |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
YR2#,31 |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-28030 |
YR2#,31 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-28041 |
YR2#..DLX W(TILT STEERING) |
1 | ||
| 45280-28051 |
YR2#..DLX |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2806003 |
YR2#..DLX SHADOW GRAY,TRIM1#,UPR |
1 | ||
| 45287-2806003 |
YR2#..DLX SHADOW GRAY,TRIM1#,LWR |
1 | ||
| 45286-2805113 |
YR2#..DLX W(TILT STEERING),SHADOW GRAY,TRIM1#,UPR |
1 | ||
| 45287-2805113 |
YR2#..DLX W(TILT STEERING),SHADOW GRAY,TRIM1#,LWR |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2806003 |
YR2#..DLX SHADOW GRAY,TRIM1#,UPR |
1 | ||
| 45287-2806003 |
YR2#..DLX SHADOW GRAY,TRIM1#,LWR |
1 | ||
| 45286-2805113 |
YR2#..DLX W(TILT STEERING),SHADOW GRAY,TRIM1#,UPR |
1 | ||
| 45287-2805113 |
YR2#..DLX W(TILT STEERING),SHADOW GRAY,TRIM1#,LWR |
1 | ||
| 45286A - COVER, STEERING COLUMN, NO.2 | ||||
| 45286-2810013 |
YR2#,31..MRF..ARL SHADOW GRAY,TRIM1# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-28030 |
YR2#,31 |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-28040 |
YR2#..MRF |
1 | ||
| 45390-28050 |
YR2#..MRF W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-08364 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 90201-11313 | ||||
| 91611-60616 | ||||
| 91651-40825 | ||||
| 91661-60820 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||

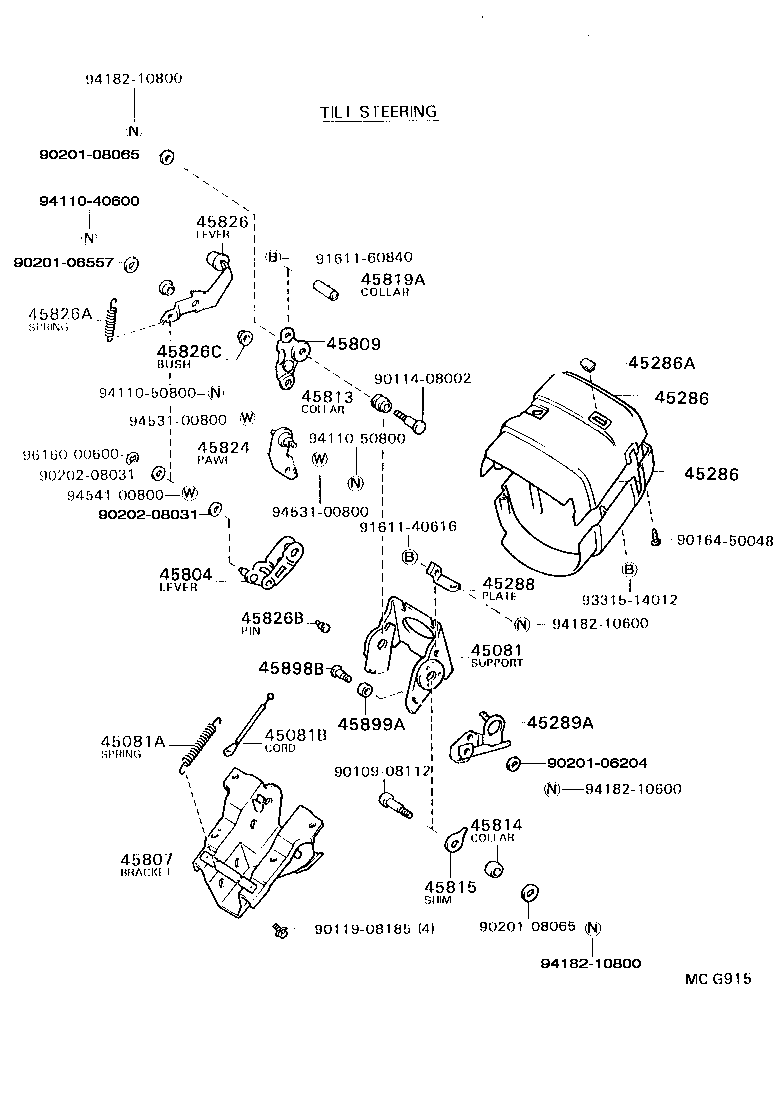

ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-35010 |
YR2#..DLX |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
YR2#..DLX |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02038 |
YR2#..DLX L=105.5 |
2 | ||
| 90945-02034 |
YR2#..DLX L=107.5 |
2 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2806003 |
YR2#..DLX SHADOW GRAY,TRIM1#,UPR |
1 | ||
| 45287-2806003 |
YR2#..DLX SHADOW GRAY,TRIM1#,LWR |
1 | ||
| 45286-2805113 |
YR2#..DLX W(TILT STEERING),SHADOW GRAY,TRIM1#,UPR |
1 | ||
| 45287-2805113 |
YR2#..DLX W(TILT STEERING),SHADOW GRAY,TRIM1#,LWR |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2806003 |
YR2#..DLX SHADOW GRAY,TRIM1#,UPR |
1 | ||
| 45287-2806003 |
YR2#..DLX SHADOW GRAY,TRIM1#,LWR |
1 | ||
| 45286-2805113 |
YR2#..DLX W(TILT STEERING),SHADOW GRAY,TRIM1#,UPR |
1 | ||
| 45287-2805113 |
YR2#..DLX W(TILT STEERING),SHADOW GRAY,TRIM1#,LWR |
1 | ||
| 45286A - COVER, STEERING COLUMN, NO.2 | ||||
| 45286-2810013 |
YR2#,31..MRF..ARL SHADOW GRAY,TRIM1# |
1 | ||
| 45288 - PLATE, STEERING COLUMN COVER | ||||
| 45288-28021 |
YR2#..DLX |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-28020 |
YR2#..DLX |
1 | ||
| 45289-28021 |
YR2#..DLX |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-30010 |
YR2#..DLX |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-28020 |
YR2#..DLX |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-30021 |
YR2#..DLX |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22010 |
YR2#..DLX OD=17.996-18.003 |
1 | ||
| 45813-22020 |
YR2#..DLX OD=18.003-18.010 |
1 | ||
| 45813-22030 |
YR2#..DLX OD=18.010-18.017 |
1 | ||
| 45813-22050 |
YR2#..DLX OD=17.989-17.996 |
1 | ||
| 45813-22040 |
YR2#..DLX OD=18.017-18.024 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22020 |
YR2#..DLX OD=18.000-18.018 |
1 | ||
| 45814-22010 |
YR2#..DLX OD=17.982-18.000 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22070 |
YR2#..DLX T=0.5 |
1 | ||
| 45815-22060 |
YR2#..DLX T=0.2 |
1 | ||
| 45815-22080 |
YR2#..DLX T=0.8 |
1 | ||
| 45815-22090 |
YR2#..DLX T=1.4 |
1 | ||
| 45815-22100 |
YR2#..DLX T=1.8 |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
YR2#..DLX |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-30020 |
YR2#..DLX |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-28011 |
YR2#..DLX |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
YR2#..DLX |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
YR2#..DLX |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-08123 |
YR2#..DLX |
2 | ||
| 45898B - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
YR2#..DLX |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
YR2#..DLX |
1 | ||
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90201-06204 | ||||
| 90201-06557 | ||||
| 90201-08065 | ||||
| 90202-08031 | ||||
| 91611-40616 | ||||
| 91611-60840 | ||||
| 93315-14012 | ||||
| 94110-40600 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||
| 94541-00800 | ||||
| 96160-00600 | ||||

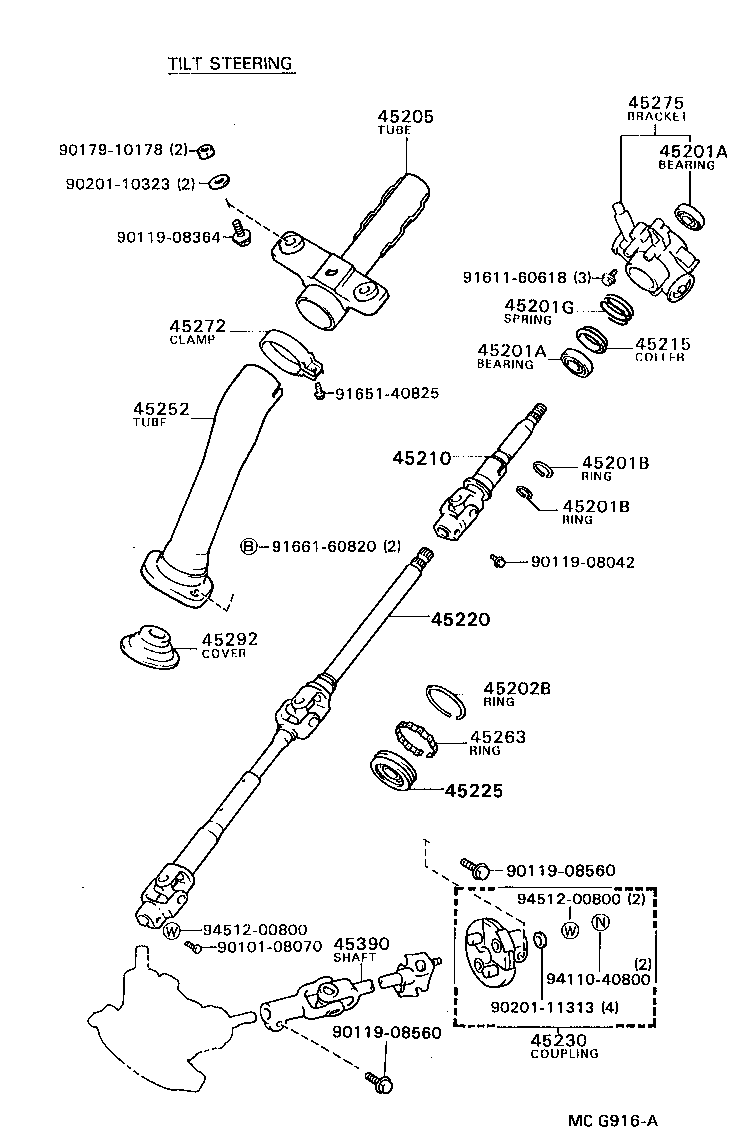

ILLUST NO. 1 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
YR2#..DLX UPR |
1 | ||
| 90363-18038 |
YR2#..DLX |
1 | ||
| 90363-28001 |
YR2#..DLX LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
YR2#..DLX UPR |
1 | ||
| 90363-18038 |
YR2#..DLX |
1 | ||
| 90363-28001 |
YR2#..DLX LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
YR2#..DLX T=1.20 |
1 | ||
| 90520-17042 |
YR2#,31 T=1.20 |
1 | ||
| 90520-17269 |
YR2#,31 T=1.20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
YR2#..DLX T=1.20 |
1 | ||
| 90520-17042 |
YR2#,31 T=1.20 |
1 | ||
| 90520-17269 |
YR2#,31 T=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
YR2#..DLX |
1 | ||
| 45202B - RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 96152-00300 |
YR2#,31 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-28070 |
YR2#..DLX W(TILT STEERING) |
1 | ||
| 45205-28060 |
YR2#..DLX |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-22050 |
YR2#..DLX W(TILT STEERING) |
1 | ||
| 45210-28060 |
YR2#..DLX |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
YR2#..DLX |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-28130 |
YR2#..DLX |
1 | ||
| 45225 - BLOCK, BEARING | ||||
| 45225-26010 |
YR2#,31 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-27090 |
YR2#..MRF W(POWER STEERING) |
1 | ||
| 45230-27080 |
YR2#..MRF |
1 | ||
| 45252 - TUBE, STEERING COLUMN, LOWER | ||||
| 45252-28070 |
YR2#,31..ARL |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
YR2#,31 |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-28030 |
YR2#,31 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-28041 |
YR2#..DLX W(TILT STEERING) |
1 | ||
| 45280-28051 |
YR2#..DLX |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-28030 |
YR2#,31 |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-28040 |
YR2#..MRF |
1 | ||
| 45390-28050 |
YR2#..MRF W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-08042 | ||||
| 90119-08364 | ||||
| 90119-08560 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 90201-11313 | ||||
| 91611-60618 | ||||
| 91651-40825 | ||||
| 91661-60820 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
