YR21RG-MDQ (1988)
Toyota Model-F
Production
Aug 1988
-
Jan 1990
Engine
3YC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||

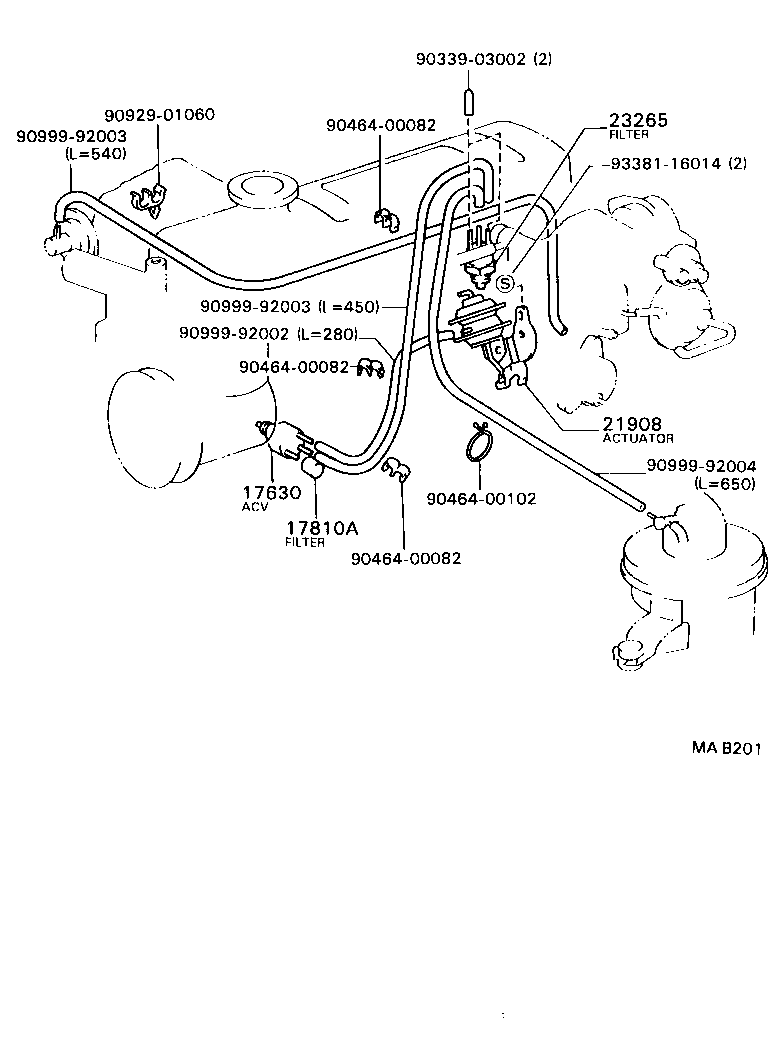

(8808- )3Y#
Click highlighted areas on diagram
NEW ZEALAND SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-28020 |
3Y..YR21;3YC..YR21..DLX |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06007 |
3Y..YR21;3YC..YR21..DLX |
1 | ||
| 21908 - ACTUATOR SUB-ASSY, IDLE-UP | ||||
| 21908-71010 |
3Y..YR21 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
3Y#..YR21 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90464-00082 | ||||
| 90464-00102 | ||||
| 90929-01060 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 93381-16014 | ||||

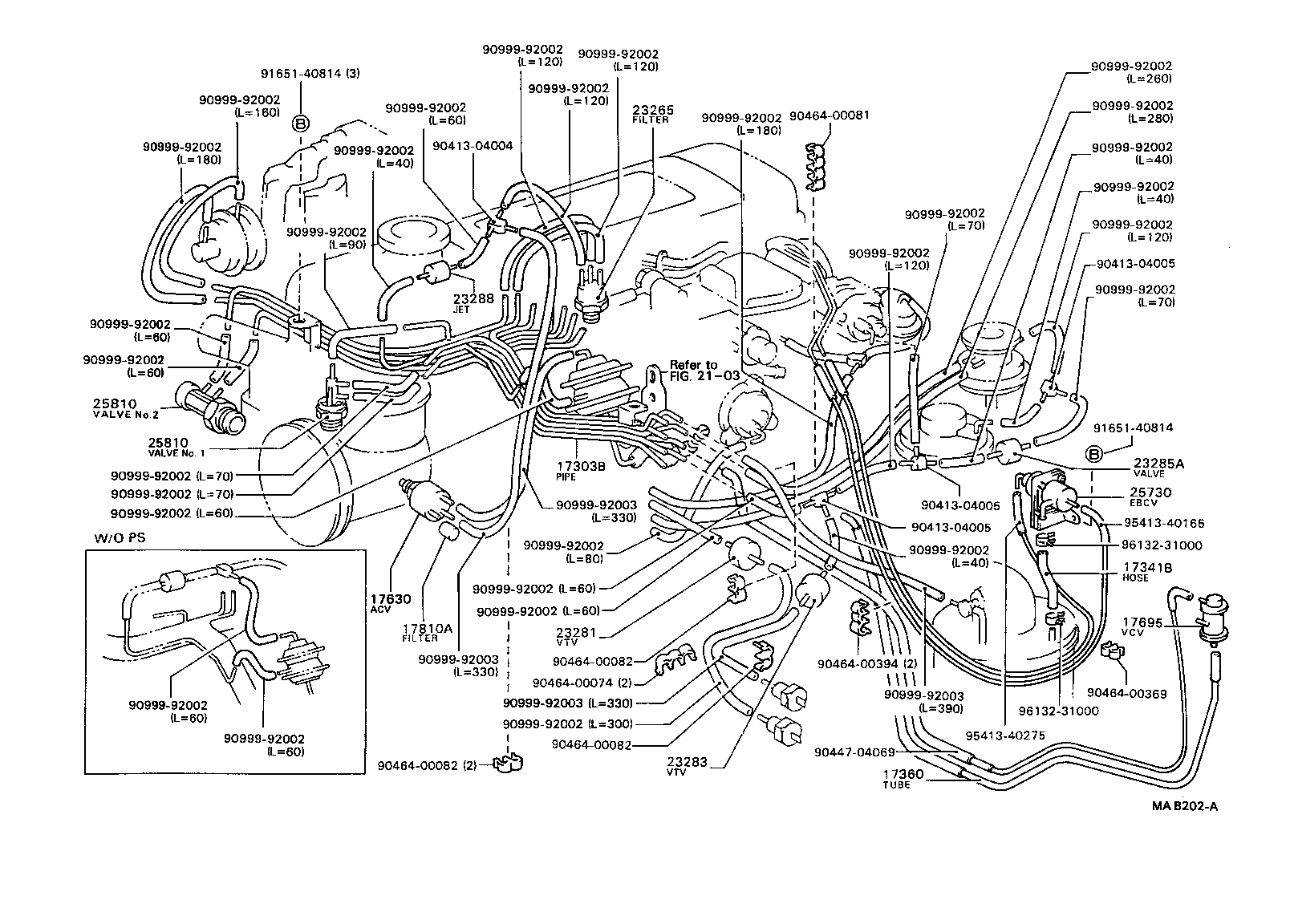

(8808- )3YC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-71011 |
3YC..YR21 |
1 | ||
| 17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-72030 |
3YC..YR21 |
1 | ||
| 17360 - TUBE ASSY, AIR | ||||
| 17360-72020 |
3YC..YR21 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-28020 |
3Y..YR21;3YC..YR21..DLX |
1 | ||
| 17695 - VALVE ASSY, VACUUM CONTROL | ||||
| 90925-03165 |
3YC..YR21..5F |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06007 |
3Y..YR21;3YC..YR21..DLX |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
3Y#..YR21 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01027 |
3YC..YR21 |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-01027 |
3YC..YR21 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3YC..YR21 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04004 |
3YC..YR21 |
1 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-72021 |
3YC..YR21 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-27010 |
3YC..YR21 NO.1 |
1 | ||
| 25820-37010 |
3YC..YR21 NO.2 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-27010 |
3YC..YR21 NO.1 |
1 | ||
| 25820-37010 |
3YC..YR21 NO.2 |
1 | ||
| Common parts | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90447-04069 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00369 | ||||
| 90464-00394 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
| 95413-40165 | ||||
| 95413-40275 | ||||
| 96132-31000 | ||||
| Linked diagrams | ||||
| 2103 | ||||
