YR21RG-MDQ (1984)

Toyota Model-F

Production Jan 1984 - Aug 1988
Engine 3YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

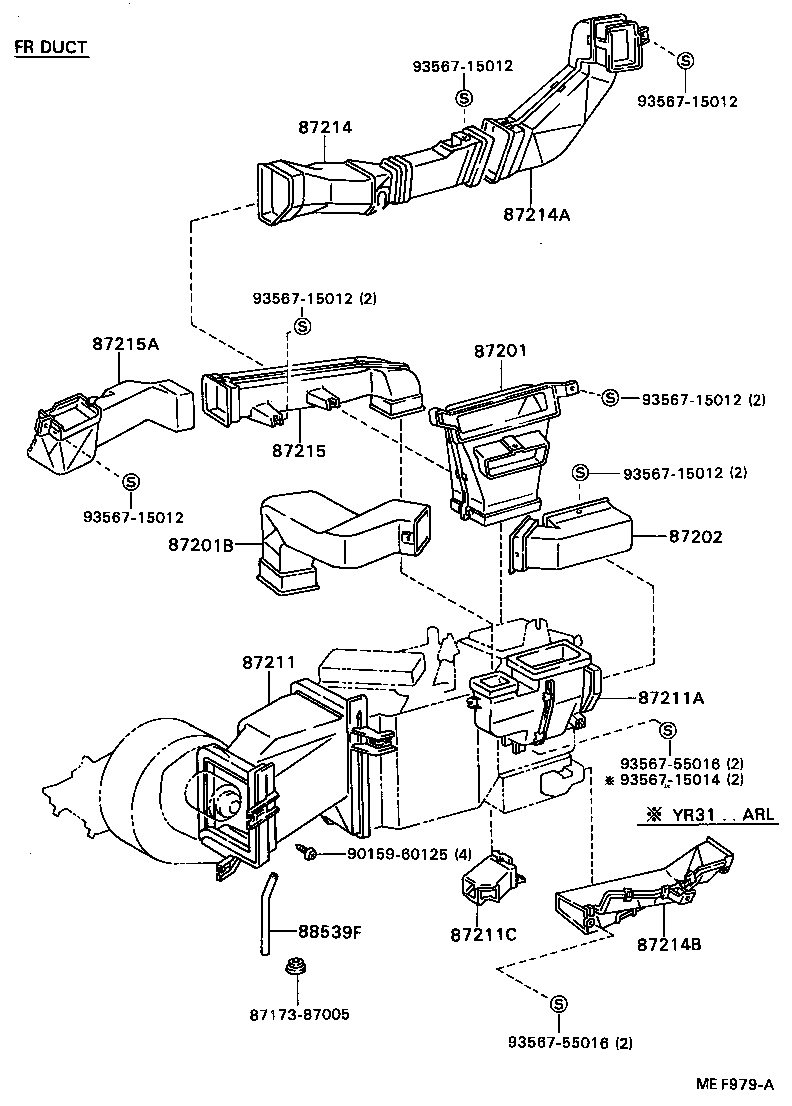

ILLUST NO. 3 OF 5(8211-8508)RHD

Click highlighted areas on diagram

diagram 8712487012 8717387005 87201 87211 87211A 87211C 87214 87214A 87214B 87215 87215A 88539F 9015960125 9165140814 9356715012 9356715012 9356715012 9356715012 9356715012 9356715014 9356755016 9356755016
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
55086-87001

CR21,YR2#..RHD

 1
55086-87002

CR21,YR2#,31..RHD

 1
87211 - DUCT, AIR, NO.1
87201-87002

CR21,YR2#,31..RHD

 1
87211A - DUCT, AIR, NO.2
87201-87003

CR21,YR2#,31..RHD

 1
87211C - DUCT, AIR, NO.4
87211-87002

CR21,YR2#,31..RHD

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55084-87001

CR21,YR2#..RHD

 1
55084-87002

CR21,YR2#,31..RHD

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55085-87001

CR21,YR2#..RHD

 1
55085-87002

CR21,YR2#,31..RHD

 1
87214B - DUCT, AIR, SIDE NO.3 RH
87211-87005

CR21,YR2#,31..RHD

 1
87211-87004

CR21,YR2#,31..RHD

 1
87211-87003

CR21,YR2#..RHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-87001

CR21,YR2#..RHD

 1
55087-87002

CR21,YR2#,31..RHD

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55088-87001

CR21,YR2#,31..RHD

 1
88539F - HOSE, DRAIN
88539-22011

CR21,YR20,21,31

 1
Common parts
87124-87012
87173-87005
90159-60125
91651-40814
93567-15012
93567-15014
93567-55016

ILLUST NO. 3 OF 5(8508- )RHD

Click highlighted areas on diagram

diagram 8717387005 87201 87201B 87202 87211 87211A 87211C 87214 87214A 87214B 87215 87215A 88539F 9015960125 9356715012 9356715012 9356715012 9356715012 9356715012 9356715012 9356715014 9356755016 9356755016
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
55086-87001

CR21,YR2#..RHD

 1
55086-87002

CR21,YR2#,31..RHD

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
55076-87001

CR21,YR2#,31..RHD

 1
87202 - DUCT, HEATER AIR
55832-87001

CR21,YR2#,31..RHD

FR DUCT

 1
87211 - DUCT, AIR, NO.1
87201-87002

CR21,YR2#,31..RHD

 1
87211A - DUCT, AIR, NO.2
87201-87003

CR21,YR2#,31..RHD

 1
87211C - DUCT, AIR, NO.4
87211-87002

CR21,YR2#,31..RHD

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55084-87001

CR21,YR2#..RHD

 1
55084-87002

CR21,YR2#,31..RHD

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55085-87001

CR21,YR2#..RHD

 1
55085-87002

CR21,YR2#,31..RHD

 1
87214B - DUCT, AIR, SIDE NO.3 RH
87211-87005

CR21,YR2#,31..RHD

 1
87211-87004

CR21,YR2#,31..RHD

 1
87211-87003

CR21,YR2#..RHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-87001

CR21,YR2#..RHD

 1
55087-87002

CR21,YR2#,31..RHD

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55088-87001

CR21,YR2#,31..RHD

 1
88539F - HOSE, DRAIN
88539-22011

CR21,YR20,21,31

 1
Common parts
87173-87005
90159-60125
93567-15012
93567-15014
93567-55016

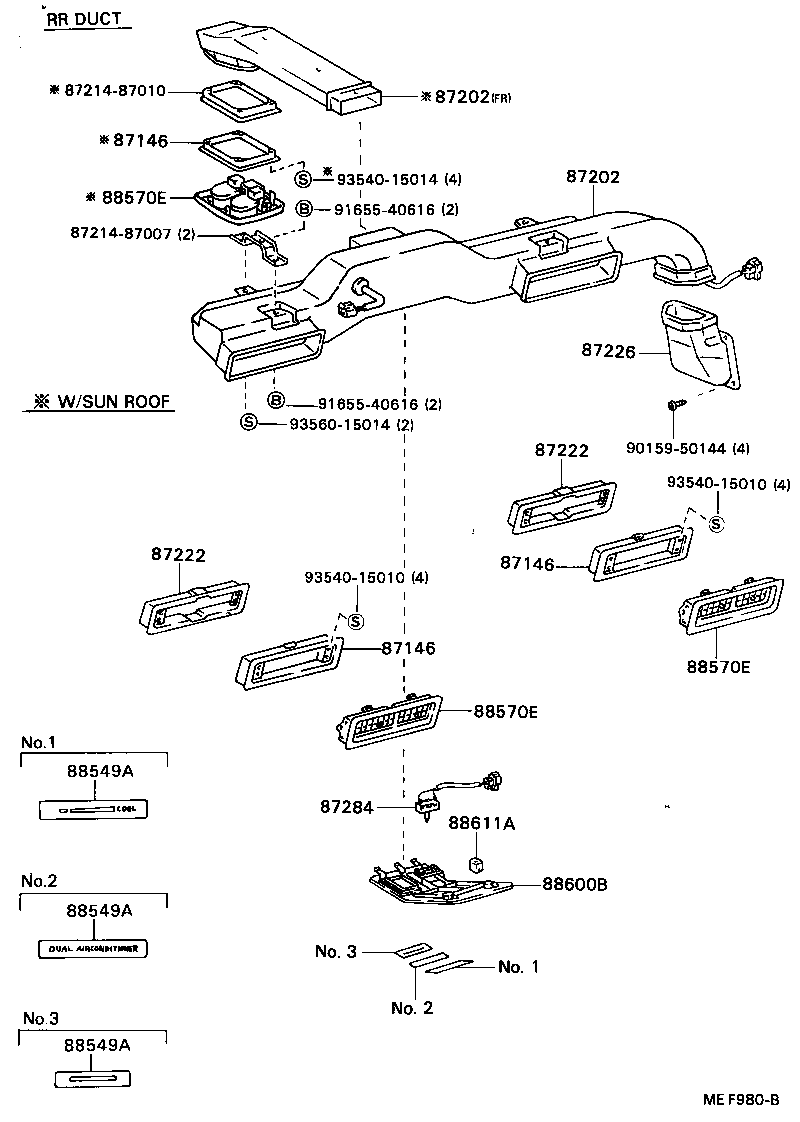

ILLUST NO. 4 OF 5(8508- )

Click highlighted areas on diagram

diagram 87146 87146 87146 87202 87202 8721487007 8721487010 87222 87222 87226 87284 88549A 88549A 88549A 88570E 88570E 88570E 88600B 88611A 9015950144 9165540616 9165540616 9354015010 9354015010 9354015014 9356015014
Part # Description Qty Price
87202 - DUCT, HEATER AIR
55832-87001

CR21,YR2#,31..RHD

FR DUCT

 1
87202 - DUCT, HEATER AIR
55832-87001

CR21,YR2#,31..RHD

FR DUCT

 1
87226 - ADAPTER, AIR DUCT
88565-8700115

CR21,YR21..ARL,GEN

UPR,*SUH,BEIGE,BEIGE,TRIM4#

 1
88565-8700105

CR21,YR2#..ARL,GEN

UPR,*SUH,BEIGE,BEIGE,TRIM4#

 1
87226-87003

CR21,YR2#..ARL,GEN

LWR

 1
88565-8700125

CR21,YR21..ARL,GEN

UPR,*SUH,BEIGE,BEIGE,TRIM4#

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88622-87001

CR21,YR20,21..RHD..(ARL,GEN)

 1
88570E - GRILLE ASSY, AIR OUTLET
88570-2801003

CR21,YR21,31..RHD..(ARL,GEN)

GRAY,W/RR COOLER,GRAY,TRIM1#,8#

 2
88570-2801025

CR21,YR21,31..ARL

BEIGE,BEIGE,TRIM4#

 2
88570-2801015

CR21,YR21..RHD..(ARL,GEN)

BEIGE,W/RR COOLER,BEIGE,TRIM4#

 2
88570E - GRILLE ASSY, AIR OUTLET
88570-2801003

CR21,YR21,31..RHD..(ARL,GEN)

GRAY,W/RR COOLER,GRAY,TRIM1#,8#

 2
88570-2801025

CR21,YR21,31..ARL

BEIGE,BEIGE,TRIM4#

 2
88570-2801015

CR21,YR21..RHD..(ARL,GEN)

BEIGE,W/RR COOLER,BEIGE,TRIM4#

 2
88570E - GRILLE ASSY, AIR OUTLET
88570-2801003

CR21,YR21,31..RHD..(ARL,GEN)

GRAY,W/RR COOLER,GRAY,TRIM1#,8#

 2
88570-2801025

CR21,YR21,31..ARL

BEIGE,BEIGE,TRIM4#

 2
88570-2801015

CR21,YR21..RHD..(ARL,GEN)

BEIGE,W/RR COOLER,BEIGE,TRIM4#

 2
Common parts
87214-87007
87214-87010
90159-50144
91655-40616
93540-15010
93540-15014
93560-15014
