YR21RG-MDQ (1984)

Toyota Model-F

Production Jan 1984 - Aug 1988
Engine 3YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211-8408)

Click highlighted areas on diagram

diagram 85033R 85310R 8531623010 85330R 85330S 8534387005 85345R 85348R 85348S 85348T 85371R 85372R 9018906018 9048001214 9356016020 9611110400
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85332-87001

CR21,YR2#

 1
85310R - MOTOR ASSY, REAR WASHER
85310-22080

CR21,YR2#

 1
85330R - JAR ASSY, REAR WASHER
85330-87004

CR21,YR2#

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

CR21,YR2#

 1
85345R - NOZZLE, REAR WASHER
85035-16040

CR21,YR2#,31..MRF

 1
85035-23030

CR21,YR2#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

CR21,YR2#

 1
85031-12250

CR21,YR2#,31

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20070

CR21,YR2#

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

CR21,YR2#,31

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06013

CR21,YR2#,31

*H,L=940

 1
90446-06013

CR21,YR2#

*H,L=400

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33299

CR21,YR2#,31

*H,L=150

 1
Common parts
85316-23010
85343-87005
90189-06018
90480-01214
93560-16020
96111-10400

(8408- )

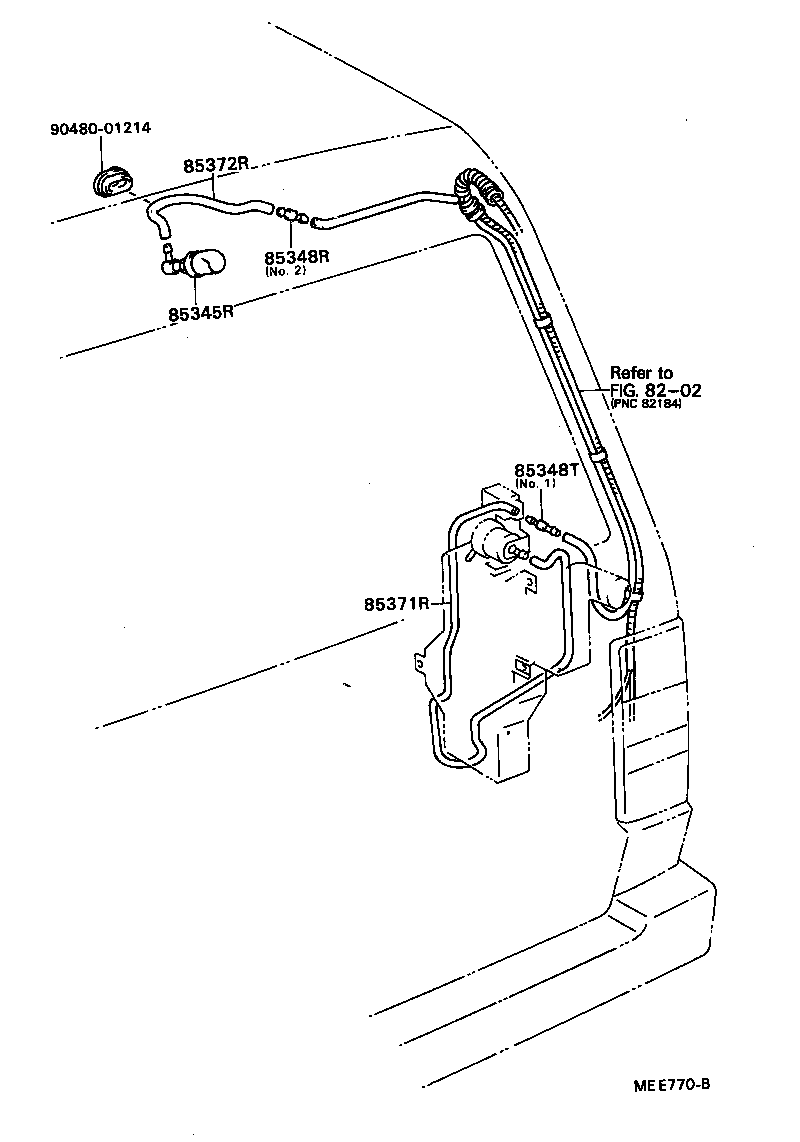

Click highlighted areas on diagram

diagram 8202 85345R 85348R 85348T 85371R 85372R 9048001214
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85035-16040

CR21,YR2#,31..MRF

 1
85035-23030

CR21,YR2#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

CR21,YR2#

 1
85031-12250

CR21,YR2#,31

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

CR21,YR2#,31

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06013

CR21,YR2#,31

*H,L=940

 1
90446-06013

CR21,YR2#

*H,L=400

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33299

CR21,YR2#,31

*H,L=150

 1
Common parts
90480-01214
Linked diagrams
8202
