YR21RG-MDQ (1984)

Toyota Model-F

Production Jan 1984 - Aug 1988
Engine 3YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211-8508)

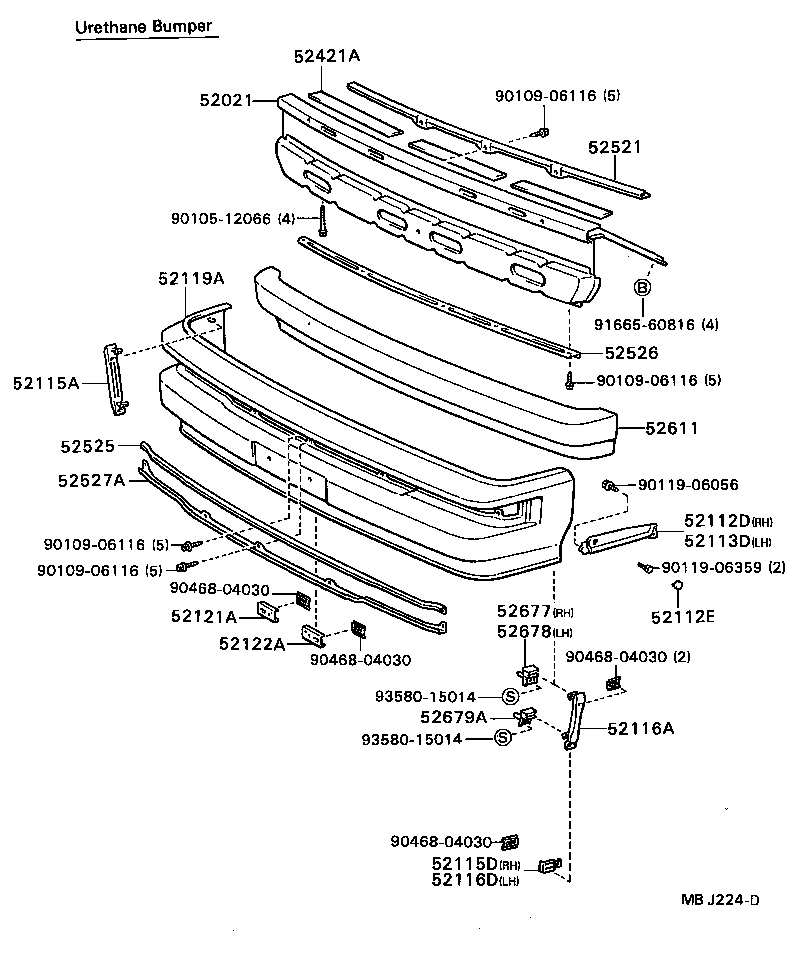

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52121A 52122A 52421 52422 52443 52444 52501 52518A 52519A 52521 52525 52526A 52611 52677 52678 52679A 52679A 9010512066 9010906066 9010906066 9010906068 9010906068 9017906097 9018303001 9018303001 9018303001 9018905013 9166560816 9354054008 9358015014 9358015014 9358015014 9358015014
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-28040

CR21,YR2#,31..ARL

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-87001

CR21,YR2#

 1
52675-28020

CR21,YR2#,31..ARL

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-87001

CR21,YR2#

 1
52675-28020

CR21,YR2#,31..ARL

 1
52119A - COVER, FRONT BUMPER
52119-87001

CR21,YR2#..DLX

 1
52119-28060

CR21,YR2#..DLX..ARL

 1
52121A - BRACKET, FRONT LICENSE PLATE MOUNTING, RH
52121-28010

CR21,YR2#,31..ARL

*UB

 1
52122A - BRACKET, FRONT LICENSE PLATE MOUNTING, LH
52122-28020

CR21,YR2#,31..ARL

*UB

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-28030

CR21,YR2#,31..ARL

 1
52521-28020

CR21,YR2#..ARL

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-28020

CR21,YR2#,31..ARL

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-28030

CR21,YR2#,31..ARL

 1
52677 - SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52677-28010

CR21,YR2#,31..ARL

*UB

 1
52678 - SUPPORT, FRONT BUMPER SIDE, NO.2, LH
52677-28010

CR21,YR2#,31..ARL

*UB

 1
52679A - SUPPORT, FRONT BUMPER SIDE, NO.3
52679-28010

CR21,YR2#,31..ARL

*UB

 2
52679A - SUPPORT, FRONT BUMPER SIDE, NO.3
52679-28010

CR21,YR2#,31..ARL

*UB

 2
Common parts
90105-12066
90109-06066
90109-06068
90179-06097
90183-03001
90189-05013
91665-60816
93540-54008
93580-15014

(8211-8508) ; (8508- )EUR,GEN

Click highlighted areas on diagram

diagram 52021A 52022A 52072 52112C 52112D 52113D 52115A 52116A 52119A 9010908115 9010908115 9011906359 9011906359 9017906043 9017906089 9046808026 9165160818 9165160818 9165160818 9166540620 9338616016 9338616016 9356615512 9356615512
Part # Description Qty Price
52021A - REINFORCEMENT SUB-ASSY, FRONT BUMPER, RH
52021-87001

CR21,YR2#

 1
52022A - REINFORCEMENT SUB-ASSY, FRONT BUMPER, LH
52022-87001

CR21,YR2#

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-8700201

CR21,YR2#..DLX..ARL

BLACK

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-8700201

CR21,YR2#..DLX..ARL

BLACK

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-87001

CR21,YR2#

 1
52675-28020

CR21,YR2#,31..ARL

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-87001

CR21,YR2#

 1
52675-28020

CR21,YR2#,31..ARL

 1
52119A - COVER, FRONT BUMPER
52119-87001

CR21,YR2#..DLX

 1
52119-28060

CR21,YR2#..DLX..ARL

 1
Common parts
90109-08115
90119-06359
90179-06043
90179-06089
90468-08026
91651-60818
91665-40620
93386-16016
93566-15512

(8508- )ARL

Click highlighted areas on diagram

diagram 52021 52112D 52112E 52113D 52115A 52115D 52116A 52116D 52119A 52121A 52122A 52421A 52521 52525 52526 52527A 52611 52677 52678 52679A 9010512066 9010906116 9010906116 9010906116 9010906116 9011906056 9011906359 9046804030 9046804030 9046804030 9046804030 9166560816 9358015014 9358015014
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-28040

CR21,YR2#,31..ARL

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-8700201

CR21,YR2#..DLX..ARL

BLACK

 1
52112E - PLUG, HOLE(FOR FRONT BUMPER EXTENSION)
90950-01482

CR21,YR2#..DLX..ARL

 2
52113D - EXTENSION, FRONT BUMPER, LH
52103-8700201

CR21,YR2#..DLX..ARL

BLACK

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-87001

CR21,YR2#

 1
52675-28020

CR21,YR2#,31..ARL

 1
52115D - SUPPORT, FRONT BUMPER SIDE, NO.2 RH
52115-28010

CR21,YR2#,31..ARL

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-87001

CR21,YR2#

 1
52675-28020

CR21,YR2#,31..ARL

 1
52116D - SUPPORT, FRONT BUMPER SIDE, NO.2 LH
52115-28010

CR21,YR2#,31..ARL

 1
52119A - COVER, FRONT BUMPER
52119-87001

CR21,YR2#..DLX

 1
52119-28060

CR21,YR2#..DLX..ARL

 1
52121A - BRACKET, FRONT LICENSE PLATE MOUNTING, RH
52121-28010

CR21,YR2#,31..ARL

*UB

 1
52122A - BRACKET, FRONT LICENSE PLATE MOUNTING, LH
52122-28020

CR21,YR2#,31..ARL

*UB

 1
52421A - PAD, FRONT BUMPER
52421-28010

CR21,YR2#,31..ARL

 3
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-28030

CR21,YR2#,31..ARL

 1
52521-28020

CR21,YR2#..ARL

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-28020

CR21,YR2#,31..ARL

 1
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-28020

CR21,YR2#,31..ARL

 1
52527A - RETAINER, FRONT BUMPER, LOWER CENTER NO.2
52527-28010

CR21,YR2#,31..ARL

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-28030

CR21,YR2#,31..ARL

 1
52677 - SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52677-28010

CR21,YR2#,31..ARL

*UB

 1
52678 - SUPPORT, FRONT BUMPER SIDE, NO.2, LH
52677-28010

CR21,YR2#,31..ARL

*UB

 1
52679A - SUPPORT, FRONT BUMPER SIDE, NO.3
52679-28010

CR21,YR2#,31..ARL

*UB

 2
Common parts
90105-12066
90109-06116
90119-06056
90119-06359
90468-04030
91665-60816
93580-15014
