YR21RG-MDQ (1984)
Toyota Model-F

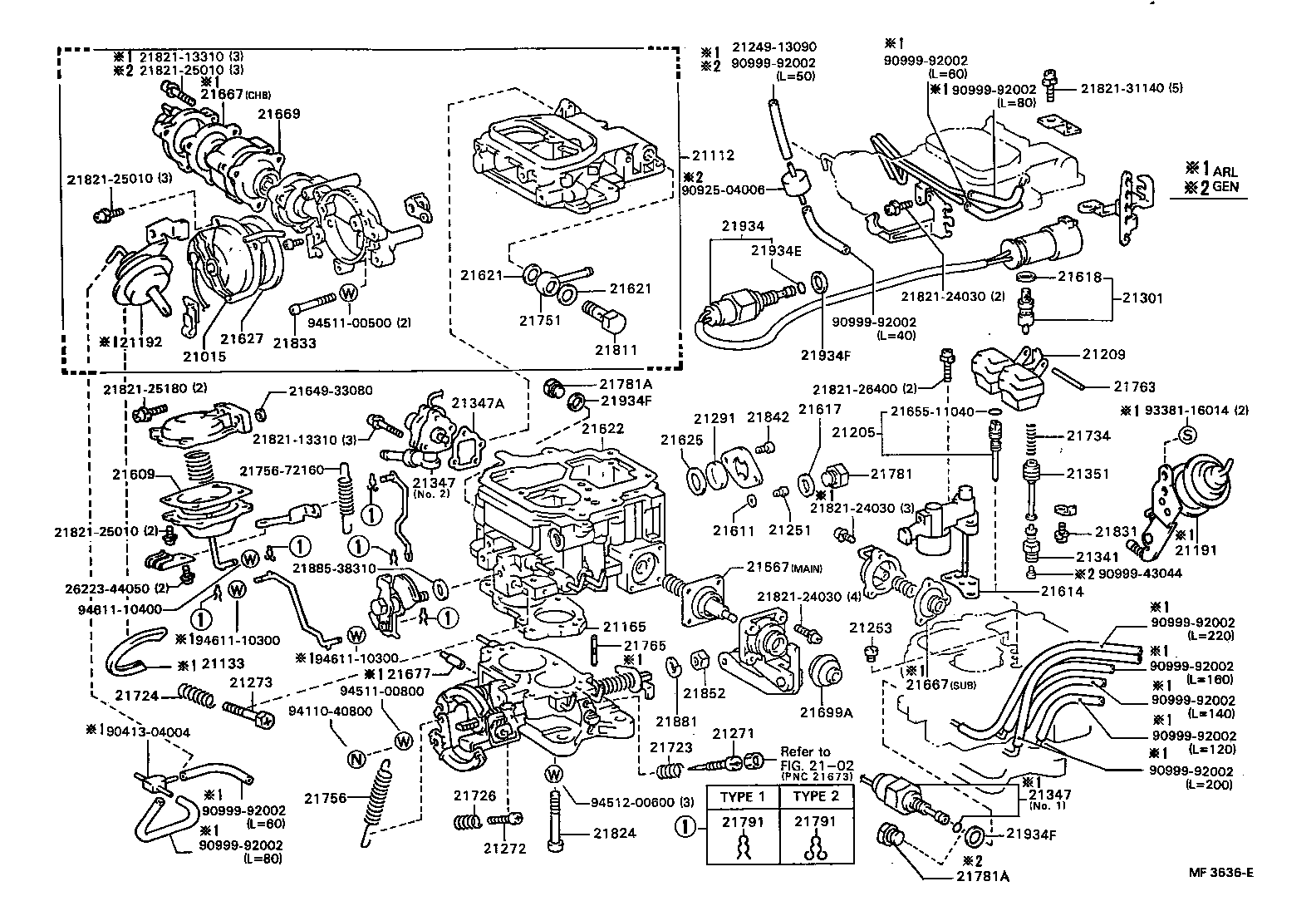

(8211-8508)2Y,3Y..EUR ; (8508- )3Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-71010 |
3Y#..YR21 |
1 | ||
| 21015-72163 |
3Y#..YR21..ARL |
1 | ||
| 21015-72170 |
3Y#..YR21..ARL |
1 | ||
| 21015-73090 |
3Y#..YR21..ARL;3Y..YR21..LHD..EUR |
1 | ||
| 21015-72190 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-73090 |
3Y#..YR21..ARL;3Y..YR21..LHD..EUR |
1 | ||
| 21112-71012 |
3Y..YR21;2Y..YR20..LHD..EUR |
1 | ||
| 21112-72170 |
3Y#..YR21..ARL |
1 | ||
| 21112-73320 |
3Y#..YR21..ARL |
1 | ||
| 21112-72190 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21165 - INSULATOR | ||||
| 21165-71010 |
2Y#,3Y#..YR2# |
1 | ||
| 21165-72160 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21192 - BREAKER | ||||
| 21192-71010 |
3Y..YR21;2Y#,3YC..YR2#..ARL,EUR |
1 | ||
| 21192-72020 |
3Y#..YR21..ARL,EUR |
1 | ||
| 21192-72160 |
3Y#..YR21..ARL |
1 | ||
| 21192-71010 |
3Y#..YR21..ARL,EUR |
1 | ||
| 21192-73300 |
3Y#..YR21..ARL |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-35210 |
3Y#..YR21..ARL |
1 | ||
| 21205-37080 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-37041 |
2Y#,3Y#..YR2# |
1 | ||
| 21209-72160 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41108 |
3Y#..YR21..ARL |
1 | ||
| 90999-41105 |
2Y,3Y#..YR2# |
1 | ||
| 90999-41106 |
3Y#..YR21..ARL |
1 | ||
| 90999-41106 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 21253-72160 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21253-72170 |
3Y#..YR21..ARL |
1 | ||
| 21253-37040 |
2Y#,3Y#..YR2# TYPE A |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-26440 |
3Y..YR21;2Y#,3YC..YR2#..ARL,EUR |
1 | ||
| 21271-15230 |
3Y#..YR21..ARL |
1 | ||
| 21271-26440 |
3Y#..YR21..ARL,EUR |
1 | ||
| 21271-15230 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21272-71010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-72160 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21272-71010 |
2YC,3Y#..YR2#..ARL;2Y,3Y..YR2#..LHD..EUR |
1 | ||
| 21275-71010 |
3Y..YR21;2Y..YR20..EUR |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-34320 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-35010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21335-34660 |
2Y#,3Y#..YR2# |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21304-61060 |
2Y#,3Y#..YR2# |
1 | ||
| 21347 - VALVE, SOLENOID | ||||
| 21347-72031 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21347-71011 |
2Y,3Y#..YR2# |
1 | ||
| 21347-73300 |
3Y#..YR21..ARL NO.2 |
1 | ||
| 21347-73280 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21347-73011 |
3Y#..YR21..ARL NO.2 |
1 | ||
| 21347-72160 |
3Y#..YR21..ARL NO.1 |
1 | ||
| 21347A - GASKET(FOR VALVE, SOLENOID) | ||||
| 21641-35010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-37040 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21609 - DIAPHRAGM SUB-ASSY | ||||
| 21609-71010 |
3Y..YR21;2Y..YR20..EUR |
1 | ||
| 21667-72170 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21609-72030 |
2YC,3Y#..YR2#..ARL;2Y,3Y..YR2#..LHD..EUR |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-72160 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-28150 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21641-37041 |
2Y#,3Y#..YR2# |
1 | ||
| 21641A - GASKET(FOR THERMOSTATIC VALVE COVER NO.2) | ||||
| 21641-24030 |
2Y#,3Y#..YR2# |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-37040 |
2Y#,3Y#..YR2# MAIN |
1 | ||
| 21667-38310 |
3Y#..YR21..ARL,EUR SUB |
1 | ||
| 21667-72080 |
3Y#..YR21..ARL SUB |
1 | ||
| 21667-72050 |
3Y#..YR21 MAIN |
1 | ||
| 21667-63090 |
3Y#..YR21..ARL *CHB |
1 | ||
| 21667-72080 |
3Y#..YR21..ARL,EUR SUB |
1 | ||
| 21667-38310 |
3Y..YR21;2Y#,3YC..YR2#..ARL,EUR SUB |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-37040 |
2Y#,3Y#..YR2# MAIN |
1 | ||
| 21667-38310 |
3Y#..YR21..ARL,EUR SUB |
1 | ||
| 21667-72080 |
3Y#..YR21..ARL SUB |
1 | ||
| 21667-72050 |
3Y#..YR21 MAIN |
1 | ||
| 21667-63090 |
3Y#..YR21..ARL *CHB |
1 | ||
| 21667-72080 |
3Y#..YR21..ARL,EUR SUB |
1 | ||
| 21667-38310 |
3Y..YR21;2Y#,3YC..YR2#..ARL,EUR SUB |
1 | ||
| 21669 - DIAPHRAGM | ||||
| 21669-63010 |
3Y#..YR21..ARL |
1 | ||
| 21669-37040 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21669-37040 |
2Y#,3Y#..YR2# |
1 | ||
| 21699A - BOOT(FOR ACCELERATION PUMP) | ||||
| 21699-37040 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21723-73320 |
3Y#..YR21..ARL |
1 | ||
| 21723-21030 |
3Y..YR21..ARL NEW ZEALAND |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-38330 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-38310 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING | ||||
| 21723-11041 |
3Y..YR21;2Y#,3YC..YR2#..ARL,EUR |
1 | ||
| 21723-11041 |
3Y#..YR21..ARL,EUR |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-71010 |
2Y,3Y..YR2# |
1 | ||
| 21734-33080 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21734-33081 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21734-37040 |
3Y#..YR21..ARL;2Y,3Y..YR20,21..LHD..EUR |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-71010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21869-37040 |
2Y#,3Y#..YR2# |
1 | ||
| 21869-72030 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-34320 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2Y#,3Y#..YR20,21 TYPE 2 |
4 | ||
| 21791-60010 |
2Y#,3Y#..YR20,21 TYPE 1 |
4 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2Y#,3Y#..YR20,21 TYPE 2 |
4 | ||
| 21791-60010 |
2Y#,3Y#..YR20,21 TYPE 1 |
4 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21824 - SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET) | ||||
| 21844-26400 |
2Y#,3Y#..YR20,21 |
3 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21821-15060 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-33010 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-72020 |
2Y#,3Y#..YR2# |
1 | ||
| 21062-72190 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21062-72160 |
3Y#..YR21..ARL |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21617-10010 |
3Y..YR21..ARL NO.1,NEW ZEALAND SPEC |
1 | ||
| 21649-38010 |
3Y#..YR21..ARL,EUR |
2 | ||
| 21649-38010 |
3Y..YR21..ARL NO.2,NEW Z EALAND SPEC |
1 | ||
| Common parts | ||||
| 21655-11040 | ||||
| 21821-13310 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-31140 | ||||
| 21885-38310 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90925-04005 | ||||
| 90999-92002 | ||||
| 93119-13012 | ||||
| 93381-16014 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10400 | ||||
| Linked diagrams | ||||
| 2102 | ||||

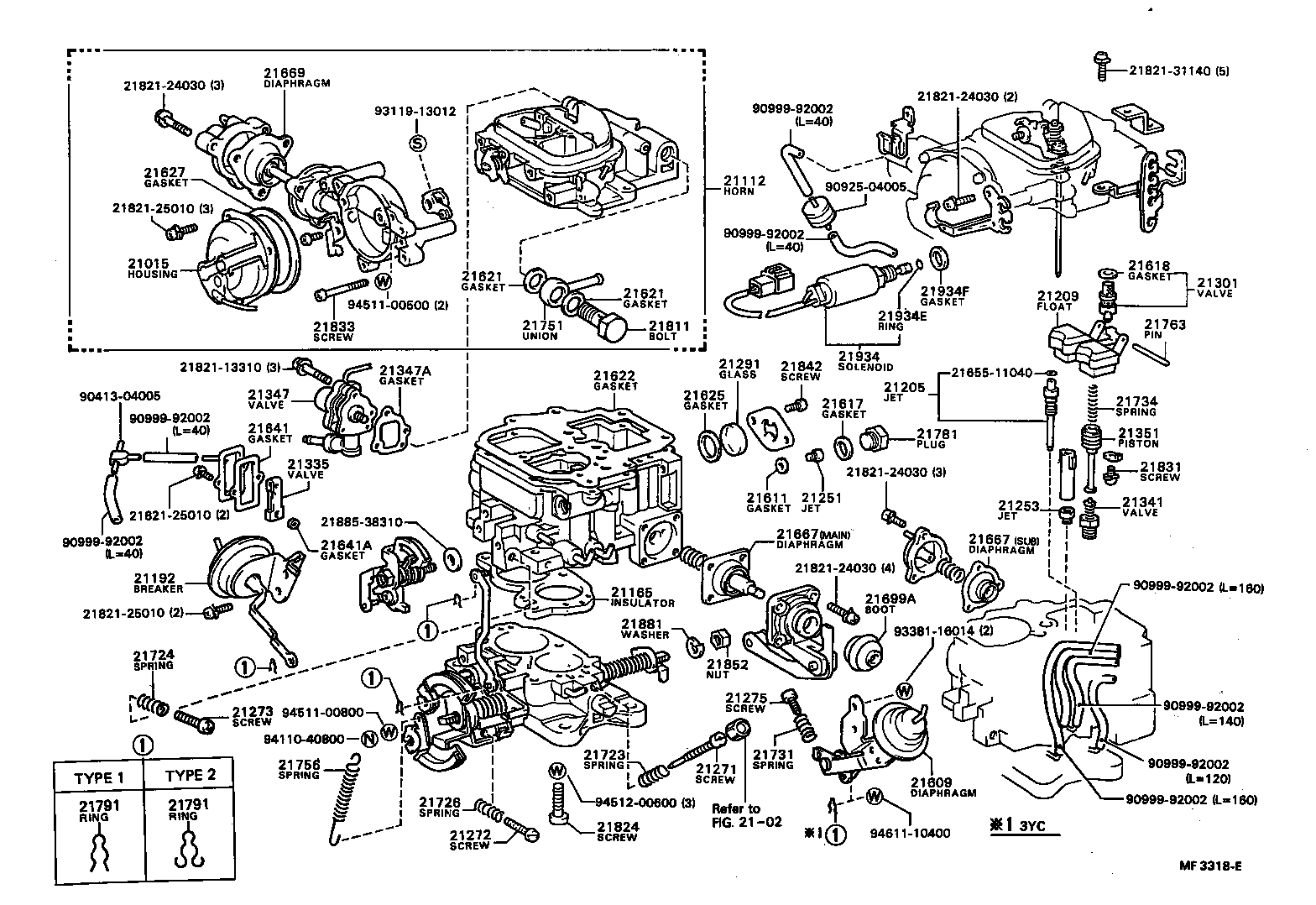

(8211-8508)3Y..ARL ; (8211-8508)2Y,3Y..LHD..EUR; (8508-8701)3Y..LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-71010 |
3Y#..YR21 |
1 | ||
| 21015-72163 |
3Y#..YR21..ARL |
1 | ||
| 21015-72170 |
3Y#..YR21..ARL |
1 | ||
| 21015-73090 |
3Y#..YR21..ARL;3Y..YR21..LHD..EUR |
1 | ||
| 21015-72190 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-73090 |
3Y#..YR21..ARL;3Y..YR21..LHD..EUR |
1 | ||
| 21112-71012 |
3Y..YR21;2Y..YR20..LHD..EUR |
1 | ||
| 21112-72170 |
3Y#..YR21..ARL |
1 | ||
| 21112-73320 |
3Y#..YR21..ARL |
1 | ||
| 21112-72190 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21165 - INSULATOR | ||||
| 21165-71010 |
2Y#,3Y#..YR2# |
1 | ||
| 21165-72160 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21192 - BREAKER | ||||
| 21192-71010 |
3Y..YR21;2Y#,3YC..YR2#..ARL,EUR |
1 | ||
| 21192-72020 |
3Y#..YR21..ARL,EUR |
1 | ||
| 21192-72160 |
3Y#..YR21..ARL |
1 | ||
| 21192-71010 |
3Y#..YR21..ARL,EUR |
1 | ||
| 21192-73300 |
3Y#..YR21..ARL |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-35210 |
3Y#..YR21..ARL |
1 | ||
| 21205-37080 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-37041 |
2Y#,3Y#..YR2# |
1 | ||
| 21209-72160 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41108 |
3Y#..YR21..ARL |
1 | ||
| 90999-41105 |
2Y,3Y#..YR2# |
1 | ||
| 90999-41106 |
3Y#..YR21..ARL |
1 | ||
| 90999-41106 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 21253-72160 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21253-72170 |
3Y#..YR21..ARL |
1 | ||
| 21253-37040 |
2Y#,3Y#..YR2# TYPE A |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-26440 |
3Y..YR21;2Y#,3YC..YR2#..ARL,EUR |
1 | ||
| 21271-15230 |
3Y#..YR21..ARL |
1 | ||
| 21271-26440 |
3Y#..YR21..ARL,EUR |
1 | ||
| 21271-15230 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21272-71010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-72160 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21272-71010 |
2YC,3Y#..YR2#..ARL;2Y,3Y..YR2#..LHD..EUR |
1 | ||
| 21275-71010 |
3Y..YR21;2Y..YR20..EUR |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-34320 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-35010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21335-34660 |
2Y#,3Y#..YR2# |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21304-61060 |
2Y#,3Y#..YR2# |
1 | ||
| 21347 - VALVE, SOLENOID | ||||
| 21347-72031 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21347-71011 |
2Y,3Y#..YR2# |
1 | ||
| 21347-73300 |
3Y#..YR21..ARL NO.2 |
1 | ||
| 21347-73280 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21347-73011 |
3Y#..YR21..ARL NO.2 |
1 | ||
| 21347-72160 |
3Y#..YR21..ARL NO.1 |
1 | ||
| 21347A - GASKET(FOR VALVE, SOLENOID) | ||||
| 21641-35010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-37040 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21609 - DIAPHRAGM SUB-ASSY | ||||
| 21609-71010 |
3Y..YR21;2Y..YR20..EUR |
1 | ||
| 21667-72170 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21609-72030 |
2YC,3Y#..YR2#..ARL;2Y,3Y..YR2#..LHD..EUR |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-72160 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-28150 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21641-37041 |
2Y#,3Y#..YR2# |
1 | ||
| 21641A - GASKET(FOR THERMOSTATIC VALVE COVER NO.2) | ||||
| 21641-24030 |
2Y#,3Y#..YR2# |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-37040 |
2Y#,3Y#..YR2# MAIN |
1 | ||
| 21667-38310 |
3Y#..YR21..ARL,EUR SUB |
1 | ||
| 21667-72080 |
3Y#..YR21..ARL SUB |
1 | ||
| 21667-72050 |
3Y#..YR21 MAIN |
1 | ||
| 21667-63090 |
3Y#..YR21..ARL *CHB |
1 | ||
| 21667-72080 |
3Y#..YR21..ARL,EUR SUB |
1 | ||
| 21667-38310 |
3Y..YR21;2Y#,3YC..YR2#..ARL,EUR SUB |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-37040 |
2Y#,3Y#..YR2# MAIN |
1 | ||
| 21667-38310 |
3Y#..YR21..ARL,EUR SUB |
1 | ||
| 21667-72080 |
3Y#..YR21..ARL SUB |
1 | ||
| 21667-72050 |
3Y#..YR21 MAIN |
1 | ||
| 21667-63090 |
3Y#..YR21..ARL *CHB |
1 | ||
| 21667-72080 |
3Y#..YR21..ARL,EUR SUB |
1 | ||
| 21667-38310 |
3Y..YR21;2Y#,3YC..YR2#..ARL,EUR SUB |
1 | ||
| 21669 - DIAPHRAGM | ||||
| 21669-63010 |
3Y#..YR21..ARL |
1 | ||
| 21669-37040 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21669-37040 |
2Y#,3Y#..YR2# |
1 | ||
| 21699A - BOOT(FOR ACCELERATION PUMP) | ||||
| 21699-37040 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21723-73320 |
3Y#..YR21..ARL |
1 | ||
| 21723-21030 |
3Y..YR21..ARL NEW ZEALAND |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-38330 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-38310 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING | ||||
| 21723-11041 |
3Y..YR21;2Y#,3YC..YR2#..ARL,EUR |
1 | ||
| 21723-11041 |
3Y#..YR21..ARL,EUR |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-71010 |
2Y,3Y..YR2# |
1 | ||
| 21734-33080 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21734-33081 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21734-37040 |
3Y#..YR21..ARL;2Y,3Y..YR20,21..LHD..EUR |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-71010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21869-37040 |
2Y#,3Y#..YR2# |
1 | ||
| 21869-72030 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-34320 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2Y#,3Y#..YR20,21 TYPE 2 |
4 | ||
| 21791-60010 |
2Y#,3Y#..YR20,21 TYPE 1 |
4 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2Y#,3Y#..YR20,21 TYPE 2 |
4 | ||
| 21791-60010 |
2Y#,3Y#..YR20,21 TYPE 1 |
4 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21824 - SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET) | ||||
| 21844-26400 |
2Y#,3Y#..YR20,21 |
3 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21821-15060 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-33010 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-72020 |
2Y#,3Y#..YR2# |
1 | ||
| 21062-72190 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21062-72160 |
3Y#..YR21..ARL |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21617-10010 |
3Y..YR21..ARL NO.1,NEW ZEALAND SPEC |
1 | ||
| 21649-38010 |
3Y#..YR21..ARL,EUR |
2 | ||
| 21649-38010 |
3Y..YR21..ARL NO.2,NEW Z EALAND SPEC |
1 | ||
| Common parts | ||||
| 21655-11040 | ||||
| 21821-13310 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-31140 | ||||
| 21885-38310 | ||||
| 90413-04005 | ||||
| 90925-04005 | ||||
| 90999-92002 | ||||
| 93119-13012 | ||||
| 93381-16014 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10400 | ||||
| Linked diagrams | ||||
| 2102 | ||||
(8508- )3Y#..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-71010 |
3Y#..YR21 |
1 | ||
| 21015-72163 |
3Y#..YR21..ARL |
1 | ||
| 21015-72170 |
3Y#..YR21..ARL |
1 | ||
| 21015-73090 |
3Y#..YR21..ARL;3Y..YR21..LHD..EUR |
1 | ||
| 21015-72190 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-73090 |
3Y#..YR21..ARL;3Y..YR21..LHD..EUR |
1 | ||
| 21112-71012 |
3Y..YR21;2Y..YR20..LHD..EUR |
1 | ||
| 21112-72170 |
3Y#..YR21..ARL |
1 | ||
| 21112-73320 |
3Y#..YR21..ARL |
1 | ||
| 21112-72190 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21133 - COVER(FOR DIAPHRAGM) | ||||
| 21133-72160 |
3Y#..YR21..ARL |
1 | ||
| 21165 - INSULATOR | ||||
| 21165-71010 |
2Y#,3Y#..YR2# |
1 | ||
| 21165-72160 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21191 - OPENER | ||||
| 21667-73010 |
3Y#..YR21..ARL |
1 | ||
| 21192 - BREAKER | ||||
| 21192-71010 |
3Y..YR21;2Y#,3YC..YR2#..ARL,EUR |
1 | ||
| 21192-72020 |
3Y#..YR21..ARL,EUR |
1 | ||
| 21192-72160 |
3Y#..YR21..ARL |
1 | ||
| 21192-71010 |
3Y#..YR21..ARL,EUR |
1 | ||
| 21192-73300 |
3Y#..YR21..ARL |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-35210 |
3Y#..YR21..ARL |
1 | ||
| 21205-37080 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-37041 |
2Y#,3Y#..YR2# |
1 | ||
| 21209-72160 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41108 |
3Y#..YR21..ARL |
1 | ||
| 90999-41105 |
2Y,3Y#..YR2# |
1 | ||
| 90999-41106 |
3Y#..YR21..ARL |
1 | ||
| 90999-41106 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 21253-72160 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21253-72170 |
3Y#..YR21..ARL |
1 | ||
| 21253-37040 |
2Y#,3Y#..YR2# TYPE A |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-26440 |
3Y..YR21;2Y#,3YC..YR2#..ARL,EUR |
1 | ||
| 21271-15230 |
3Y#..YR21..ARL |
1 | ||
| 21271-26440 |
3Y#..YR21..ARL,EUR |
1 | ||
| 21271-15230 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21272-71010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-72160 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-34320 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-35010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21304-61060 |
2Y#,3Y#..YR2# |
1 | ||
| 21347 - VALVE, SOLENOID | ||||
| 21347-72031 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21347-71011 |
2Y,3Y#..YR2# |
1 | ||
| 21347-73300 |
3Y#..YR21..ARL NO.2 |
1 | ||
| 21347-73280 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21347-73011 |
3Y#..YR21..ARL NO.2 |
1 | ||
| 21347-72160 |
3Y#..YR21..ARL NO.1 |
1 | ||
| 21347 - VALVE, SOLENOID | ||||
| 21347-72031 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21347-71011 |
2Y,3Y#..YR2# |
1 | ||
| 21347-73300 |
3Y#..YR21..ARL NO.2 |
1 | ||
| 21347-73280 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21347-73011 |
3Y#..YR21..ARL NO.2 |
1 | ||
| 21347-72160 |
3Y#..YR21..ARL NO.1 |
1 | ||
| 21347A - GASKET(FOR VALVE, SOLENOID) | ||||
| 21641-35010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-37040 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21609 - DIAPHRAGM SUB-ASSY | ||||
| 21609-71010 |
3Y..YR21;2Y..YR20..EUR |
1 | ||
| 21667-72170 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21609-72030 |
2YC,3Y#..YR2#..ARL;2Y,3Y..YR2#..LHD..EUR |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-72160 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-72160 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-28150 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-37040 |
2Y#,3Y#..YR2# MAIN |
1 | ||
| 21667-38310 |
3Y#..YR21..ARL,EUR SUB |
1 | ||
| 21667-72080 |
3Y#..YR21..ARL SUB |
1 | ||
| 21667-72050 |
3Y#..YR21 MAIN |
1 | ||
| 21667-63090 |
3Y#..YR21..ARL *CHB |
1 | ||
| 21667-72080 |
3Y#..YR21..ARL,EUR SUB |
1 | ||
| 21667-38310 |
3Y..YR21;2Y#,3YC..YR2#..ARL,EUR SUB |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-37040 |
2Y#,3Y#..YR2# MAIN |
1 | ||
| 21667-38310 |
3Y#..YR21..ARL,EUR SUB |
1 | ||
| 21667-72080 |
3Y#..YR21..ARL SUB |
1 | ||
| 21667-72050 |
3Y#..YR21 MAIN |
1 | ||
| 21667-63090 |
3Y#..YR21..ARL *CHB |
1 | ||
| 21667-72080 |
3Y#..YR21..ARL,EUR SUB |
1 | ||
| 21667-38310 |
3Y..YR21;2Y#,3YC..YR2#..ARL,EUR SUB |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-37040 |
2Y#,3Y#..YR2# MAIN |
1 | ||
| 21667-38310 |
3Y#..YR21..ARL,EUR SUB |
1 | ||
| 21667-72080 |
3Y#..YR21..ARL SUB |
1 | ||
| 21667-72050 |
3Y#..YR21 MAIN |
1 | ||
| 21667-63090 |
3Y#..YR21..ARL *CHB |
1 | ||
| 21667-72080 |
3Y#..YR21..ARL,EUR SUB |
1 | ||
| 21667-38310 |
3Y..YR21;2Y#,3YC..YR2#..ARL,EUR SUB |
1 | ||
| 21669 - DIAPHRAGM | ||||
| 21669-63010 |
3Y#..YR21..ARL |
1 | ||
| 21669-37040 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21669-37040 |
2Y#,3Y#..YR2# |
1 | ||
| 21677 - PLUG | ||||
| 21677-72170 |
3Y#..YR21..ARL |
1 | ||
| 21677-72171 |
3Y#..YR21..ARL |
1 | ||
| 21699A - BOOT(FOR ACCELERATION PUMP) | ||||
| 21699-37040 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21723-73320 |
3Y#..YR21..ARL |
1 | ||
| 21723-21030 |
3Y..YR21..ARL NEW ZEALAND |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-38330 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-38310 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-71010 |
2Y,3Y..YR2# |
1 | ||
| 21734-33080 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21734-33081 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21734-37040 |
3Y#..YR21..ARL;2Y,3Y..YR20,21..LHD..EUR |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-71010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21869-37040 |
2Y#,3Y#..YR2# |
1 | ||
| 21869-72030 |
3Y#..YR21..ARL,GEN |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-34320 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21765 - PIN(FOR PUMP PLUNGER) | ||||
| 21765-73320 |
3Y#..YR21..ARL |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21781A - PLUG, MAIN PASSAGE, NO.2(FOR CARBURETOR JET) | ||||
| 21781-72151 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21781A - PLUG, MAIN PASSAGE, NO.2(FOR CARBURETOR JET) | ||||
| 21781-72151 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2Y#,3Y#..YR20,21 TYPE 2 |
4 | ||
| 21791-60010 |
2Y#,3Y#..YR20,21 TYPE 1 |
4 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2Y#,3Y#..YR20,21 TYPE 2 |
4 | ||
| 21791-60010 |
2Y#,3Y#..YR20,21 TYPE 1 |
4 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21824 - SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET) | ||||
| 21844-26400 |
2Y#,3Y#..YR20,21 |
3 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21821-15060 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-33010 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-72020 |
2Y#,3Y#..YR2# |
1 | ||
| 21062-72190 |
3Y..YR21..ARL NEW ZEALAND SPEC |
1 | ||
| 21062-72160 |
3Y#..YR21..ARL |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2Y#,3Y#..YR20,21 |
1 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21617-10010 |
3Y..YR21..ARL NO.1,NEW ZEALAND SPEC |
1 | ||
| 21649-38010 |
3Y#..YR21..ARL,EUR |
2 | ||
| 21649-38010 |
3Y..YR21..ARL NO.2,NEW Z EALAND SPEC |
1 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21617-10010 |
3Y..YR21..ARL NO.1,NEW ZEALAND SPEC |
1 | ||
| 21649-38010 |
3Y#..YR21..ARL,EUR |
2 | ||
| 21649-38010 |
3Y..YR21..ARL NO.2,NEW Z EALAND SPEC |
1 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
2Y#,3Y#..YR20,21 |
2 | ||
| 21617-10010 |
3Y..YR21..ARL NO.1,NEW ZEALAND SPEC |
1 | ||
| 21649-38010 |
3Y#..YR21..ARL,EUR |
2 | ||
| 21649-38010 |
3Y..YR21..ARL NO.2,NEW Z EALAND SPEC |
1 | ||
| Common parts | ||||
| 21249-13090 | ||||
| 21649-33080 | ||||
| 21655-11040 | ||||
| 21756-72160 | ||||
| 21821-13310 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-25180 | ||||
| 21821-26400 | ||||
| 21821-31140 | ||||
| 21885-38310 | ||||
| 26223-44050 | ||||
| 90413-04004 | ||||
| 90925-04006 | ||||
| 90999-43044 | ||||
| 90999-92002 | ||||
| 93381-16014 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||

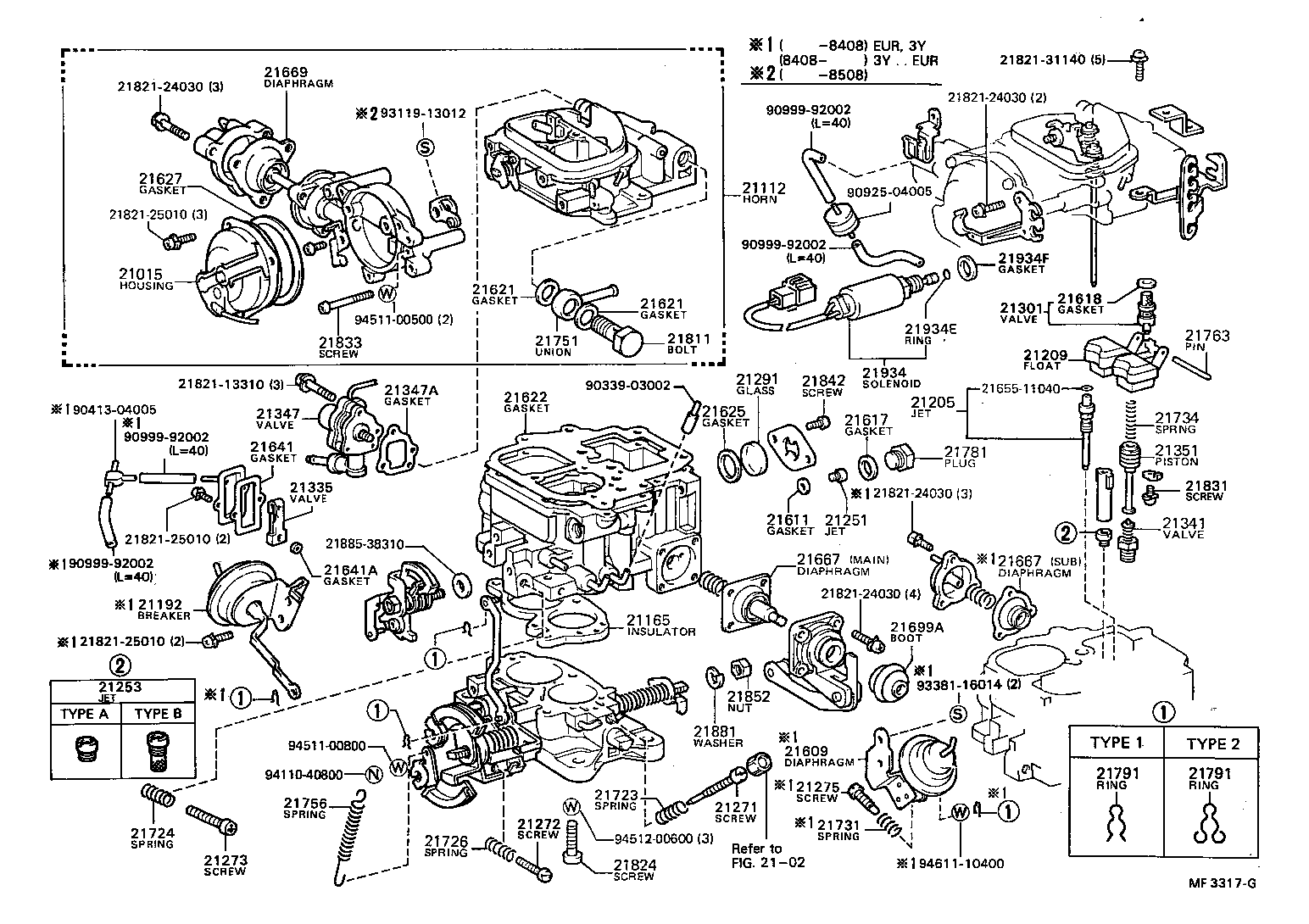

| Linked diagrams | ||||
| 2102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
