YR21RG-MD (1984)

Toyota Model-F

Production Aug 1984 - Aug 1985
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211-8508)

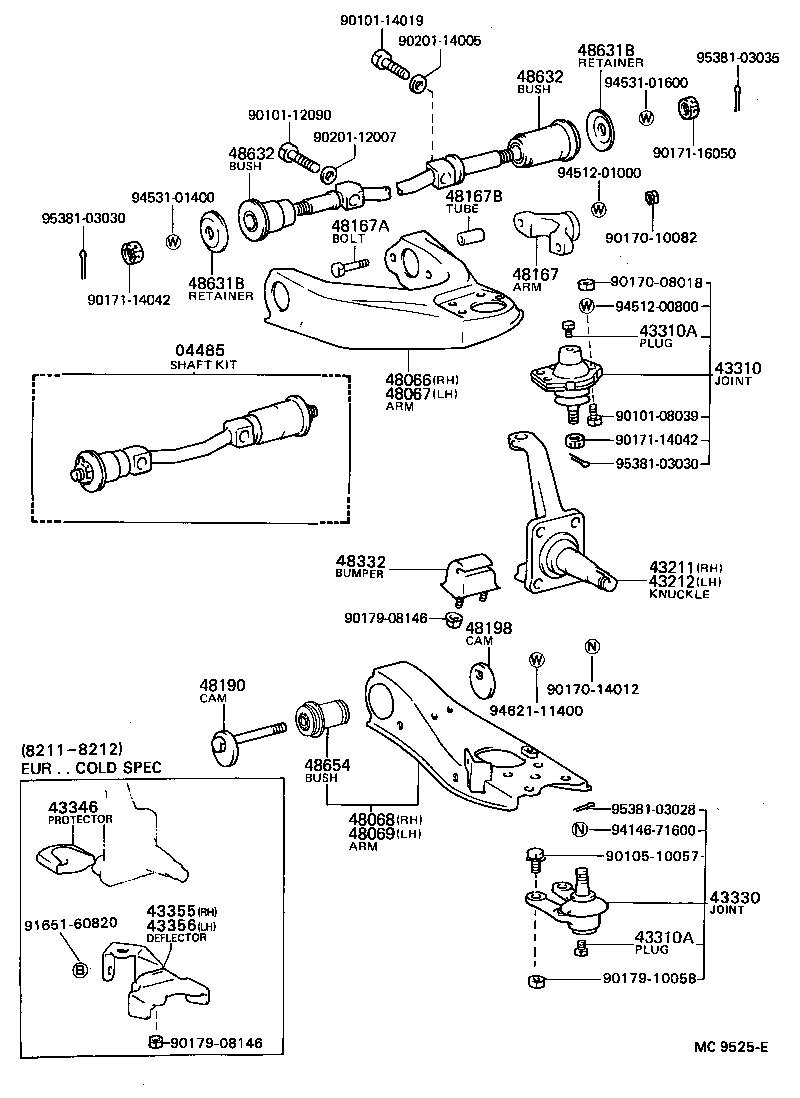

Click highlighted areas on diagram

diagram 04485 43211 43212 43310 43310A 43310A 43330 43346 43355 43356 48066 48067 48068 48069 48167 48167A 48167B 48190 48198 48332 48631B 48631B 48632 48632 48654 9010108039 9010112090 9010114019 9010510057 9017008018 9017010082 9017014012 9017114042 9017114042 9017116050 9017908146 9017908146 9017910058 9020112007 9020114005 9165160820 9414671600 9451200800 9451201000 9453101400 9453101600 9462111400 9538103028 9538103030 9538103030 9538103035
Part # Description Qty Price
04485 - SHAFT KIT, UPPER SUSPENSION ARM
04485-28020

CR21,YR2#

 2
43211 - KNUCKLE, STEERING, RH
43211-28020

CR21,YR2#

 1
43212 - KNUCKLE, STEERING, LH
43211-28020

CR21,YR2#

 1
43310 - JOINT ASSY, UPPER BALL
43350-29036

CR21,YR2#

RH

 1
43360-29056

CR21,YR2#

LH

 1
43310A - PLUG (FOR BALL JOINT)
90345-06014

CR21,YR2#

UPR & LWR

 4
43310A - PLUG (FOR BALL JOINT)
90345-06014

CR21,YR2#

UPR & LWR

 4
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-29115

CR21,YR2#

RH

 1
43340-29095

CR21,YR2#

LH

 1
48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48601-28010

CR21,YR2#

 1
48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48602-28010

CR21,YR2#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-28020

CR21,YR2#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-28020

CR21,YR2#

 1
48167 - ARM, TORQUE
48106-28010

CR21,YR2#

 2
48167A - BOLT(FOR TORQUE ARM SETTING)
91121-71085

CR21,YR2#

 4
48167B - TUBE(FOR TORQUE ARM SETTING BOLT)
90440-17029

CR21,YR2#

 2
48190 - CAM ASSY, CAMBER ADJUST
48190-20010

CR21,YR2#

 2
48198 - CAM, CAMBER ADJUST, NO.2
48198-20010

CR21,YR2#

 2
48332 - BUMPER, FRONT SPRING, NO.2
48331-27030

CR21,YR21

 2
48331-29045

CR21,YR2#

 2
48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)
90948-02048

CR21,YR2#

RR

 2
90948-02049

CR21,YR2#

FR

 2
48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)
90948-02048

CR21,YR2#

RR

 2
90948-02049

CR21,YR2#

FR

 2
48632 - BUSH, UPPER ARM
48632-30040

CR21,YR2#

FR

 2
48635-28010

CR21,YR2#

RR

 2
48632 - BUSH, UPPER ARM
48632-30040

CR21,YR2#

FR

 2
48635-28010

CR21,YR2#

RR

 2
48654 - BUSH, LOWER ARM
48061-28010

CR21,YR2#

 2
Common parts
90101-08039
90101-12090
90101-14019
90105-10057
90170-08018
90170-10082
90170-14012
90171-14042
90171-16050
90179-08146
90179-10058
90201-12007
90201-14005
91651-60820
94146-71600
94512-00800
94512-01000
94531-01400
94531-01600
94621-11400
95381-03028
95381-03030
95381-03035
