YR21LG-PQ (1985)

Toyota Model-F

Production Aug 1985 - Aug 1988
Engine 3Y
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

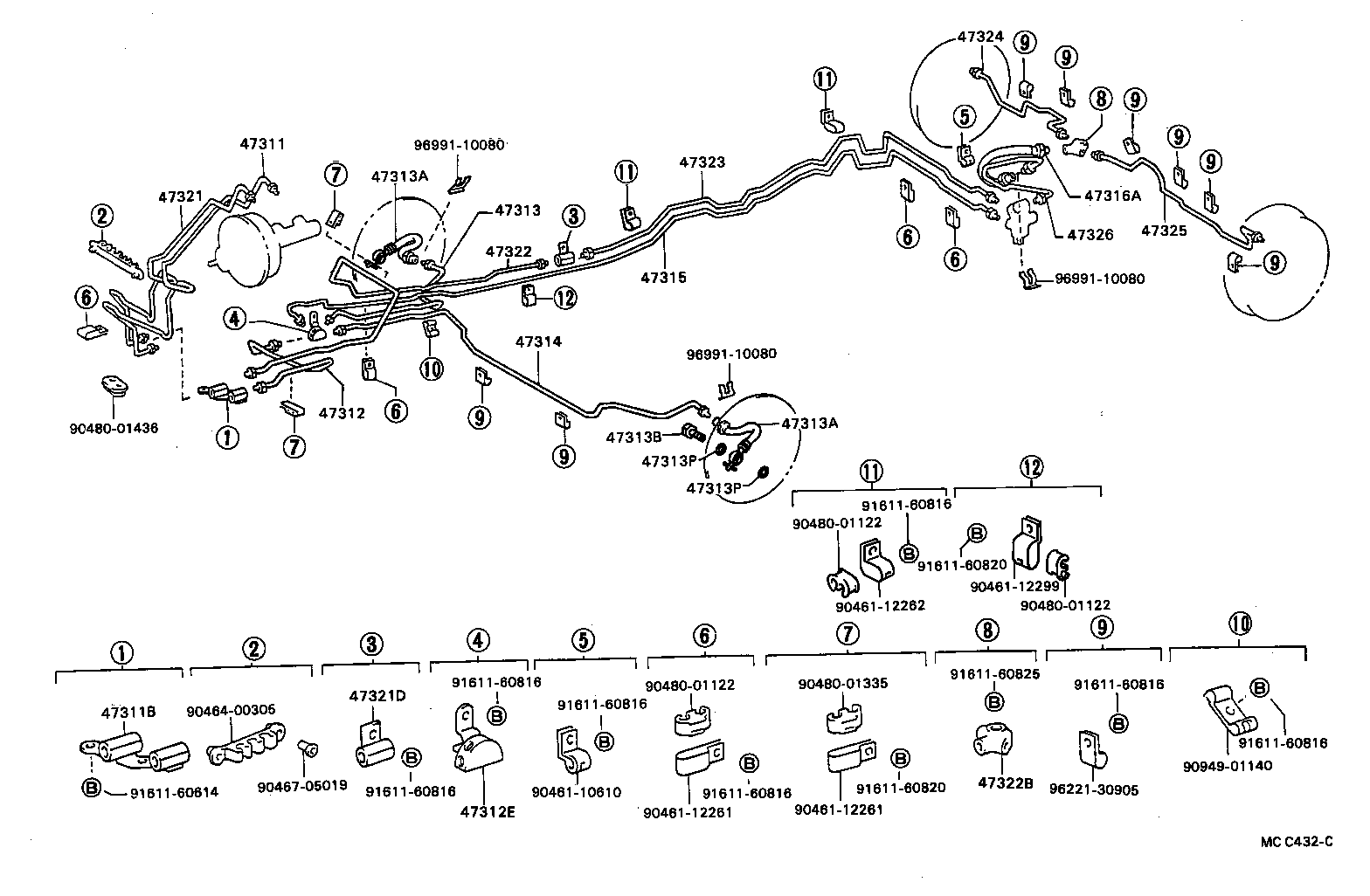

ILLUST NO. 1 OF 2(8508- )GEN

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47316A 47321 47321D 47322 47322B 47323 47324 47325 47326 9046110610 9046112261 9046112261 9046112262 9046112299 9046400305 9046705019 9048001122 9048001122 9048001122 9048001335 9094901140 9161160614 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160820 9161160820 9161160825 9622130905 9648001436 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-28100

YR2#..LHD..GEN

 1
47311-28200

YR21,31..LHD;YR22..GL..EUR

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10097

CR21,YR2#,31

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-28050

CR21,YR2#

 1
47312-28070

YR31;CR21,YR2#..ARL,GEN

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90414-10014

CR21,YR2#,31

 1
90413-10129

CR21,YR2#..GEN

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-28050

CR21,YR2#..ARL,GEN

 1
47313-28090

CR21,YR2#..ARL,GEN

 1
47313-28030

CR21,YR2#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-32855

CR21,YR2#..ARL,GEN

 2
90947-02505

CR21,YR2#..ARL,GEN

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-32855

CR21,YR2#..ARL,GEN

 2
90947-02505

CR21,YR2#..ARL,GEN

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

CR21,YR2#..ARL,GEN

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

CR21,YR2#..ARL,GEN

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

CR21,YR2#..ARL,GEN

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-28030

CR21,YR2#

 1
47314-28050

CR21,YR2#..ARL,GEN

 1
47314-28100

CR21,YR2#..ARL,GEN

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-28070

CR21,YR2#..ARL,GEN

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33105

CR21,YR2#

 1
96940-33105

YR2#..ARL,GEN

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-28100

YR2#..LHD..GEN

 1
47321-28200

YR21,31..LHD;YR22..GL..EUR

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10063

CR21,YR2#

 1
90412-10063

CR21,YR2#..ARL,GEN

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-28050

CR21,YR2#

 1
47322-28070

CR21,YR2#..ARL,GEN

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10130

CR21,YR2#,31

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-28070

CR21,YR2#..GEN

 1
47323-28160

CR21,YR2#..ARL,GEN

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-28031

YR21..GEN

 1
47324-28030

CR21,YR20,21..GEN

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-28050

CR21,YR20,21..GEN

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-28060

CR21,YR2#,31

 1
Common parts
90461-10610
90461-12261
90461-12262
90461-12299
90464-00305
90467-05019
90480-01122
90480-01335
90949-01140
91611-60614
91611-60816
91611-60820
91611-60825
96221-30905
96480-01436
96991-10080
