YR21LG-PQ (1988)

Toyota Model-F

Production Aug 1988 - Jan 1990
Engine 3Y
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

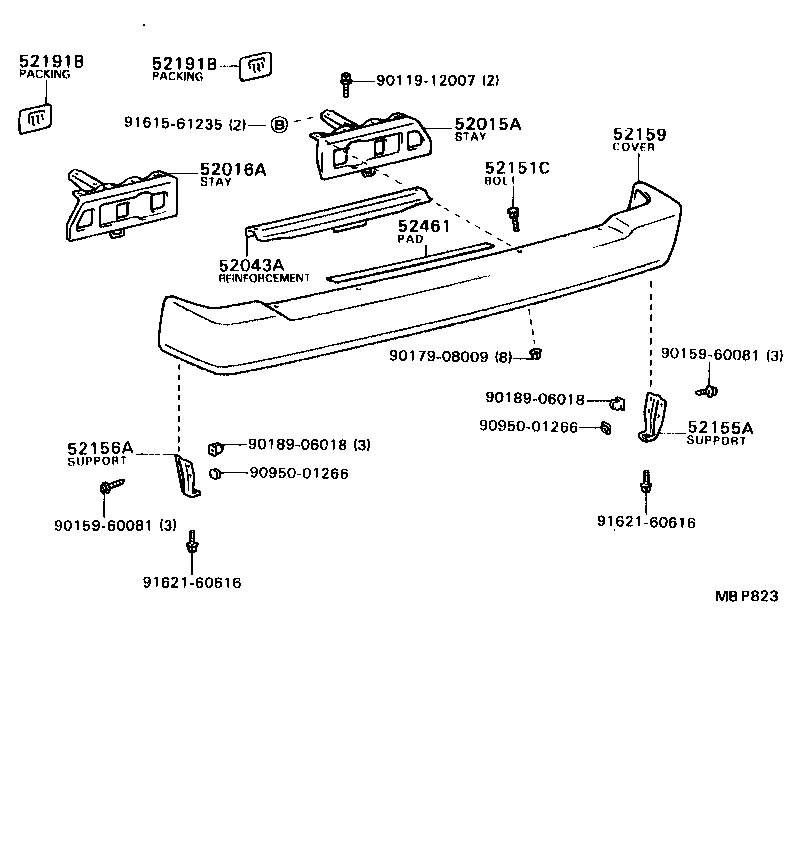

Click highlighted areas on diagram

diagram 52015A 52016A 52043A 52151C 52155A 52156A 52159 52191B 52191B 52461 9011912007 9015960081 9015960081 9017908009 9018906018 9018906018 9095001266 9095001266 9161561235 9162160616 9162160616
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-87002

YR21..GEN

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-87004

YR21..GEN

 1
52043A - REINFORCEMENT SUB-ASSY, REAR BUMPER BAR NO.2
52043-87001

YR21..GEN

 1
52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)
90112-08056

YR21..GEN

UPR

 4
90112-08061

YR21..GEN

LWR

 4
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-87001

YR21..GEN

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52155-87001

YR21..GEN

 1
52159 - COVER, REAR BUMPER
52159-87001

YR21..GEN

 1
52191B - GROMMET, REAR BUMPER STAY
52191-87002

YR21..GEN

 2
52191B - GROMMET, REAR BUMPER STAY
52191-87002

YR21..GEN

 2
52461 - PAD, REAR BUMPER, CENTER
52461-87002

YR21..GEN

 1
Common parts
90119-12007
90159-60081
90179-08009
90189-06018
90950-01266
91615-61235
91621-60616

(8808- )

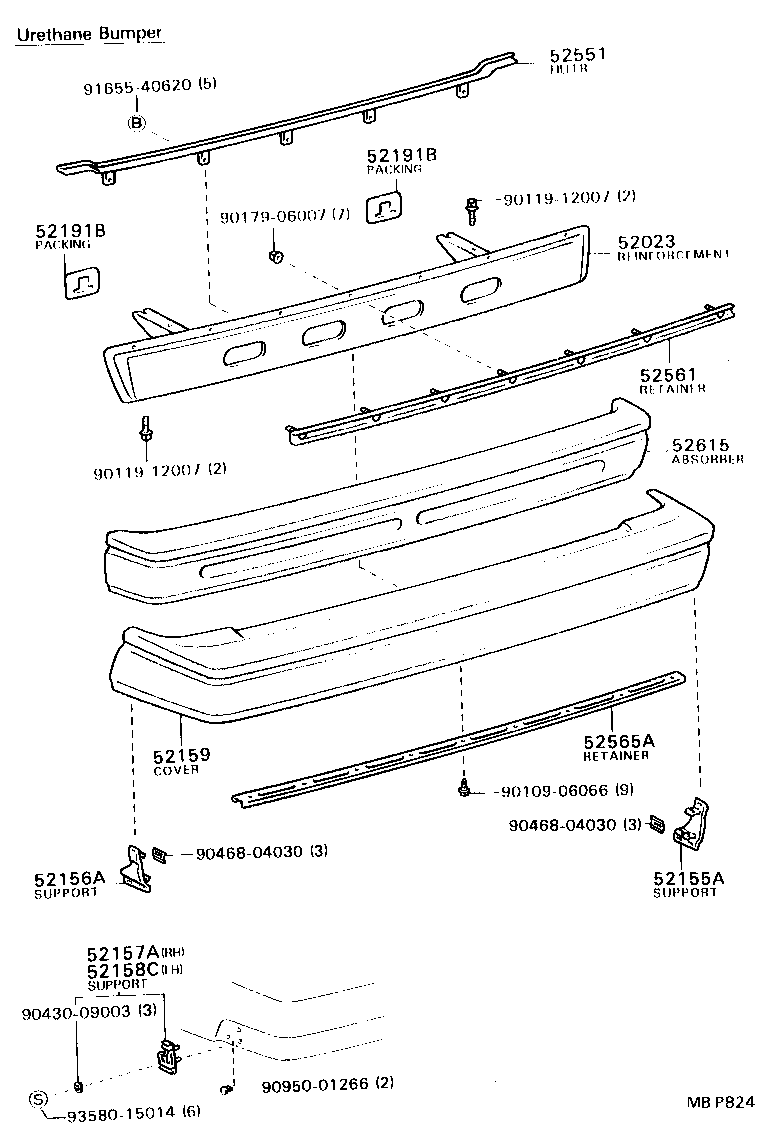

Click highlighted areas on diagram

diagram 52023 52155A 52156A 52157A 52158C 52159 52191B 52191B 52551 52561 52565A 52615 9010906066 9011912007 9011912007 9017906007 9043009003 9046804030 9046804030 9095001266 9165540620 9358015014
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-87001

YR21..GEN

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52155-87001

YR21..GEN

 1
52159 - COVER, REAR BUMPER
52159-87001

YR21..GEN

 1
52191B - GROMMET, REAR BUMPER STAY
52191-87002

YR21..GEN

 2
52191B - GROMMET, REAR BUMPER STAY
52191-87002

YR21..GEN

 2
Common parts
90109-06066
90119-12007
90179-06007
90430-09003
90468-04030
90950-01266
91655-40620
93580-15014
