YR21LG-MQ (1988)

Toyota Model-F

Production Aug 1988 - Jan 1990
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

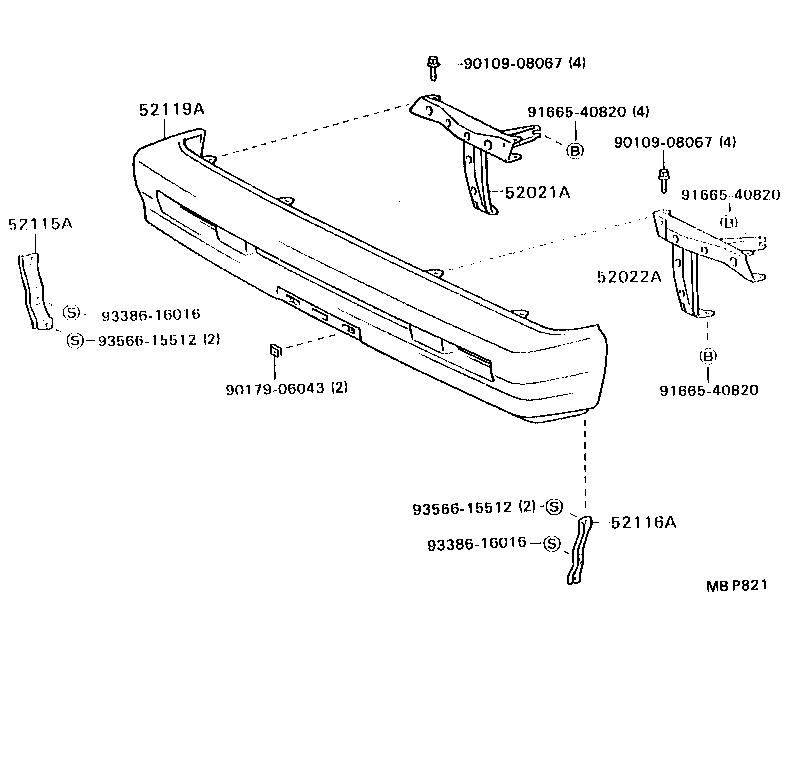

Click highlighted areas on diagram

diagram 52021A 52022A 52115A 52116A 52119A 9010908067 9010908067 9017906043 9166540820 9166540820 9166540820 9338616016 9338616016 9356615512 9356615512
Part # Description Qty Price
52021A - REINFORCEMENT SUB-ASSY, FRONT BUMPER, RH
52021-87001

YR21..GEN

 1
52022A - REINFORCEMENT SUB-ASSY, FRONT BUMPER, LH
52022-87001

YR21..GEN

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-87001

YR21..GEN

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-87001

YR21..GEN

 1
52119A - COVER, FRONT BUMPER
52119-87001

YR21..GEN

 1
Common parts
90109-08067
90179-06043
91665-40820
93386-16016
93566-15512

(8808- )

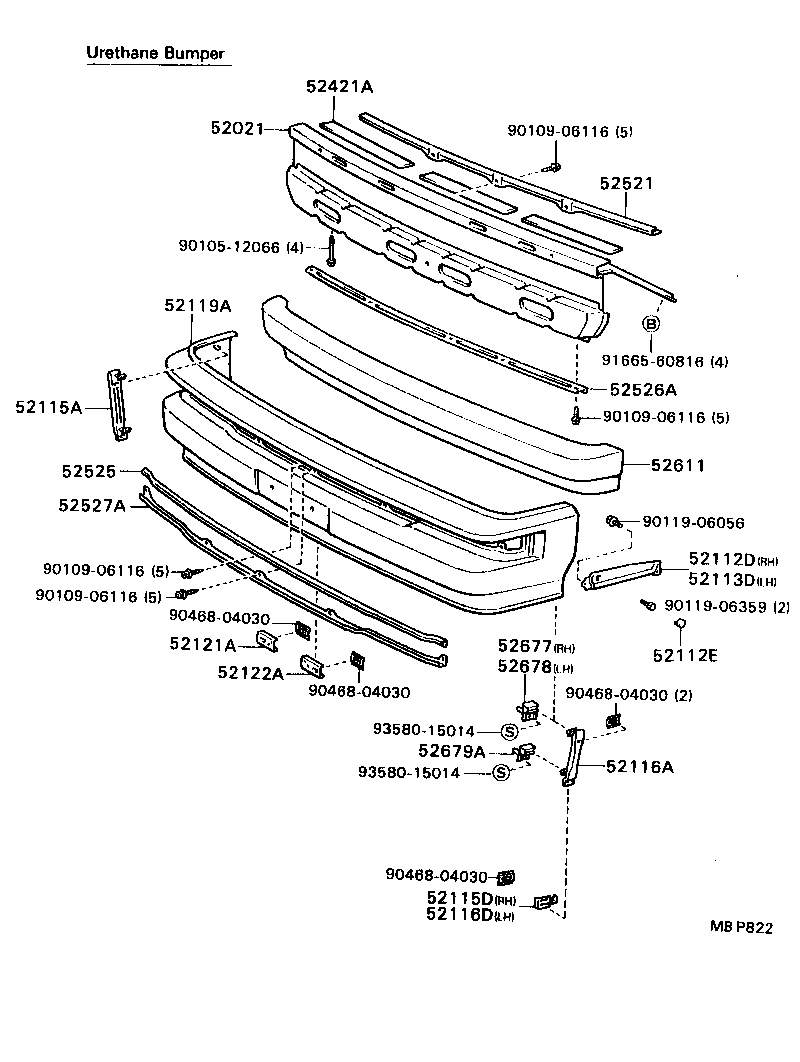

Click highlighted areas on diagram

diagram 52021 52112D 52112E 52113D 52115A 52115D 52116A 52116D 52119A 52121A 52122A 52421A 52521 52525 52526A 52527A 52611 52677 52678 52679A 9010512066 9010906116 9010906116 9010906116 9010906116 9011906056 9011906359 9046804030 9046804030 9046804030 9046804030 9166560816 9358015014 9358015014
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-87001

YR21..GEN

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-87001

YR21..GEN

 1
52119A - COVER, FRONT BUMPER
52119-87001

YR21..GEN

 1
Common parts
90105-12066
90109-06116
90119-06056
90119-06359
90468-04030
91665-60816
93580-15014
