YR21LG-MQ (1988)
Toyota Model-F
Production
Aug 1988
-
Jan 1990
Engine
3Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

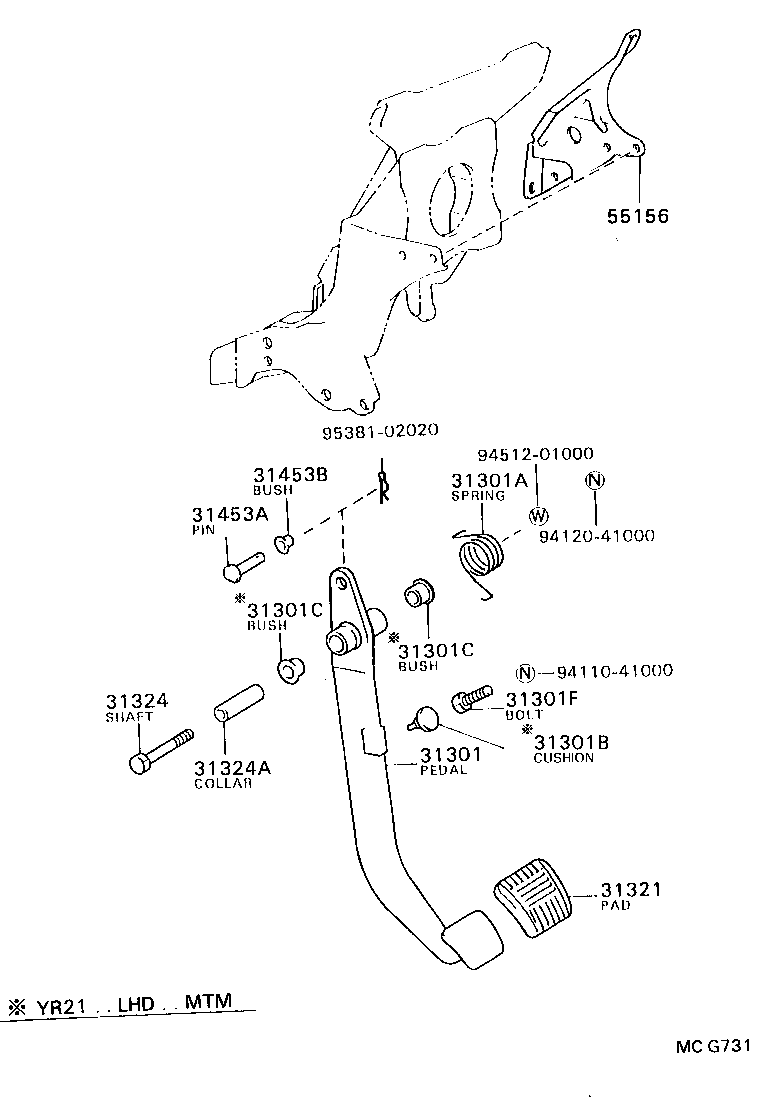

ILLUST NO. 1 OF 2(8808- )5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-28080 |
YR21..5F..GEN |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-35021 |
YR21..5F..GEN |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
YR21..5F..GEN |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
YR21..5F..GEN |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
YR21..5F..GEN |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10085 |
YR2#,31..5F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
YR2#,31..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10043 |
YR21..5F..GEN |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10002 |
YR21..5F..GEN |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
YR2#,31..5F L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
YR2#,31..5F |
1 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||

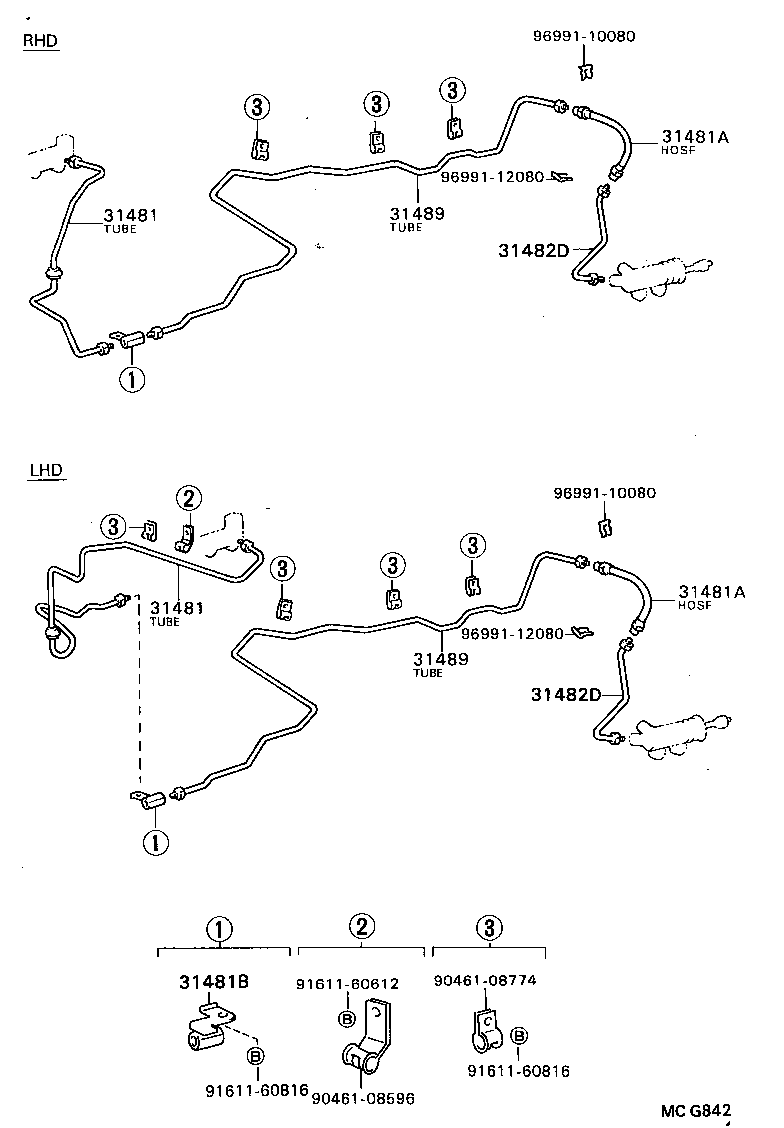

ILLUST NO. 2 OF 2(8808- )5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-28080 |
YR21..5F..GEN |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-28080 |
YR21..5F..GEN |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 31418-28020 |
YR2#,31..5F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 31418-28020 |
YR2#,31..5F |
1 | ||
| 31481B - WAY(FOR CLUTCH TUBE) | ||||
| 90412-12016 |
YR2#,31..5F |
1 | ||
| 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR | ||||
| 31482-28030 |
YR2#,31..5F |
1 | ||
| 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR | ||||
| 31482-28030 |
YR2#,31..5F |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-28110 |
YR2#,31..5F |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-28110 |
YR2#,31..5F |
1 | ||
| Common parts | ||||
| 90461-08596 | ||||
| 90461-08774 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||
