YR21LG-MDW (1984)
Toyota Model-F
(8211-8508)YR2#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-28012 |
YR2#,31 |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-28013 |
YR2#,31 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-28021 |
YR21 PUMP SIDE |
1 | ||
| 44348-28010 |
YR20,21 RESERVOIR SIDE |
1 | ||
| 44348-28020 |
YR2# PUMP SIDE |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-28021 |
YR21 PUMP SIDE |
1 | ||
| 44348-28010 |
YR20,21 RESERVOIR SIDE |
1 | ||
| 44348-28020 |
YR2# PUMP SIDE |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
CR21,YR2# |
4 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
CR21,YR2# |
4 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-28011 |
YR2#,31 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-28011 |
YR2#,31 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-28021 |
YR2#..LHD |
1 | ||
| 44410-28051 |
YR21..LHD |
1 | ||
| 44410-28052 |
YR2#..LHD |
1 | ||
| 44413B - HOSE(FOR RESERVOIR TANK INLET) | ||||
| 44412-28010 |
YR2# |
1 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
CR21,YR2# |
2 | ||
| 90467-21005 |
CR21,YR21 |
4 | ||
| 90460-26001 |
CR21,YR21 |
4 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-28021 |
YR2#..LHD |
1 | ||
| 44416-28051 |
YR2# |
1 | ||
| 44416A - CLAMP(FOR RETURN HOSE) | ||||
| 90460-01001 |
CR21,YR2# |
1 | ||
| 44417 - TUBE, RETURN, NO.2 | ||||
| 44417-28060 |
YR2#..LHD |
1 | ||
| 44426B - TUBE, OIL RESERVOIR TO PUMP | ||||
| 44426-28011 |
YR20,21 |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-27010 |
YR2# |
1 | ||
| 44444-27030 |
YR2#,31 |
1 | ||
| 44457 - BRACKET, TUBE SUPPORT, NO.1 | ||||
| 44457-28020 |
YR2# |
3 | ||
| Common parts | ||||
| 90105-10092 | ||||
| 90461-10456 | ||||
| 90480-01215 | ||||
| 91611-60816 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 91651-61025 | ||||
| 93381-16010 | ||||

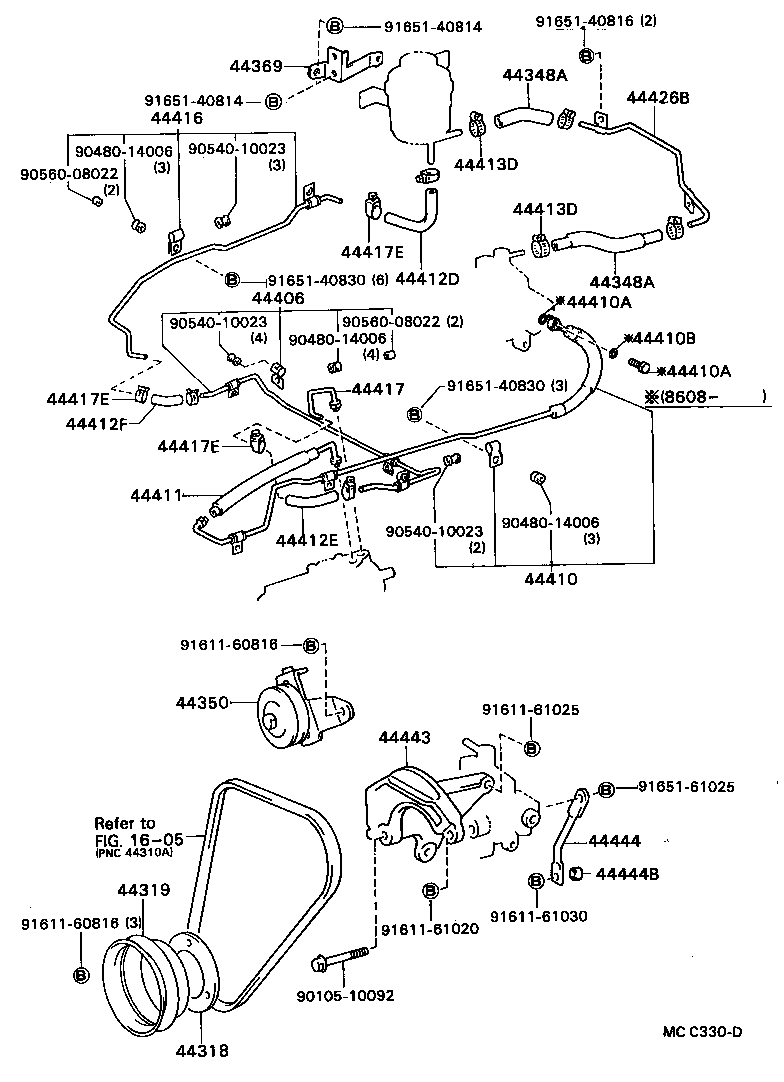

| Linked diagrams | ||||
| 1605 | ||||
(8508- )YR21..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-28012 |
YR2#,31 |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-28013 |
YR2#,31 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-28021 |
YR21 PUMP SIDE |
1 | ||
| 44348-28010 |
YR20,21 RESERVOIR SIDE |
1 | ||
| 44348-28020 |
YR2# PUMP SIDE |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-28021 |
YR21 PUMP SIDE |
1 | ||
| 44348-28010 |
YR20,21 RESERVOIR SIDE |
1 | ||
| 44348-28020 |
YR2# PUMP SIDE |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-28011 |
YR2#,31 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-28011 |
YR2#,31 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44416-28110 |
YR2#..LHD |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-28021 |
YR2#..LHD |
1 | ||
| 44410-28051 |
YR21..LHD |
1 | ||
| 44410-28052 |
YR2#..LHD |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
YR2#,31 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
YR2#,31 |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-16242 |
YR2#,31 |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-28050 |
YR2#..LHD |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-28120 |
YR21 |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 44412-28150 |
YR2#..LHD |
1 | ||
| 44412F - HOSE, RETURN, NO.3 | ||||
| 44412-28140 |
YR2#..LHD |
1 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
CR21,YR2# |
2 | ||
| 90467-21005 |
CR21,YR21 |
4 | ||
| 90460-26001 |
CR21,YR21 |
4 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
CR21,YR2# |
2 | ||
| 90467-21005 |
CR21,YR21 |
4 | ||
| 90460-26001 |
CR21,YR21 |
4 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-28021 |
YR2#..LHD |
1 | ||
| 44416-28051 |
YR2# |
1 | ||
| 44417 - TUBE, RETURN, NO.2 | ||||
| 44417-28060 |
YR2#..LHD |
1 | ||
| 44417E - CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE) | ||||
| 90467-16007 |
CR21,YR2#,31 |
6 | ||
| 44417E - CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE) | ||||
| 90467-16007 |
CR21,YR2#,31 |
6 | ||
| 44417E - CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE) | ||||
| 90467-16007 |
CR21,YR2#,31 |
6 | ||
| 44426B - TUBE, OIL RESERVOIR TO PUMP | ||||
| 44426-28011 |
YR20,21 |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-27010 |
YR2# |
1 | ||
| 44444-27030 |
YR2#,31 |
1 | ||
| 44444B - COLLAR (FOR PUMP REAR STAY) | ||||
| 90387-12031 |
YR2#,31 |
1 | ||
| Common parts | ||||
| 90105-10092 | ||||
| 90480-14006 | ||||
| 90540-10023 | ||||
| 90560-08022 | ||||
| 91611-60816 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-40830 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||
