YR20RG-PQW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )2Y#,3Y#,4YEC

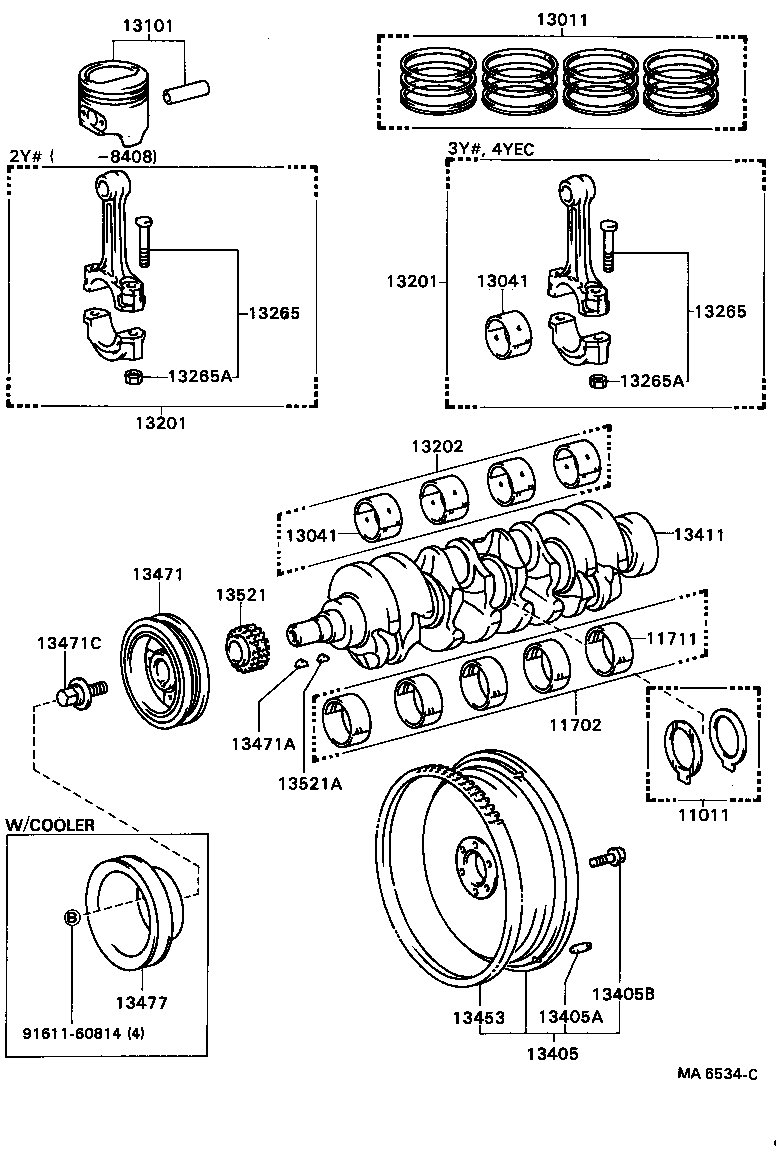

Click highlighted areas on diagram

diagram 11011 11702 11711 13011 13041 13041 13101 13201 13201 13202 13265 13265 13265A 13265A 13405 13405A 13405B 13411 13453 13471 13471A 13471C 13477 13521 13521A 9161160814
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-25010

2Y#,3Y#,4YEC..YR2#,31

STD

 1
11711 - BEARING, CRANKSHAFT
11701-7102001

2Y#,3Y#,4YEC..YR2#,31

MARK"1",MARK 1

 5
11701-7102002

2Y#,3Y#,4YEC..YR2#,31

MARK"2",MARK 2

 5
11701-7102003

2Y#,3Y#,4YEC..YR2#,31

MARK"3",MARK 3

 5
13011 - RING SET, PISTON
13014-71030

2Y#,3Y#..YR2#

O/S 0.75

 1
13011-71030

2Y#,3Y#..YR2#

STD,STD

 1
13015-71030

2Y#,3Y#..YR2#

O/S 1.00,O/S 1.00

 1
13013-71030

2Y#,3Y#..YR2#

O/S 0.50,O/S 0.50

 1
13041 - BEARING, CONNECTING ROD
13041-7102108

2Y#,3Y#,4YEC..YR2#,31

MARK"8",MARK 8

 4
13041-7102106

2Y#,3Y#,4YEC..YR2#,31

MARK"6",MARK 6

 4
13041-7102107

2Y#,3Y#,4YEC..YR2#,31

MARK"7",MARK 7

 4
13041 - BEARING, CONNECTING ROD
13041-7102108

2Y#,3Y#,4YEC..YR2#,31

MARK"8",MARK 8

 4
13041-7102106

2Y#,3Y#,4YEC..YR2#,31

MARK"6",MARK 6

 4
13041-7102107

2Y#,3Y#,4YEC..YR2#,31

MARK"7",MARK 7

 4
13101 - PISTON SUB-ASSY, W/PIN
13105-72010

2Y#..YR20

O/S 1.00,O/S 1.00

 4
13101-72010

2Y#..YR20

STD,STD

 4
13104-72010

2Y#..YR20

O/S 0.75,O/S 0.75

 4
13103-72010

2Y#..YR20

O/S 0.50,O/S 0.50

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-71011

2Y#..YR20

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-71011

2Y#..YR20

 4
13265 - BOLT, CONNECTING ROD
13265-29025

2Y#,3Y#,4YEC..YR2#,31

 8
13265 - BOLT, CONNECTING ROD
13265-29025

2Y#,3Y#,4YEC..YR2#,31

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09195

2Y#..YR20

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09195

2Y#..YR20

 8
13411 - CRANKSHAFT
13411-72010

2Y#..YR20

 1
13471 - PULLEY, CRANKSHAFT
13408-71010

2Y#,3Y#..YR2#

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

2Y#,3Y#,4YEC..YR2#,31

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-14013

2Y#,3Y#,4YEC..YR2#,31

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-33010

2Y#,3Y#,4YEC..YR2#,31

N=18

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

2Y#,3Y#,4YEC..YR2#,31

 1
Common parts
91611-60814
